Make it easy to create and manager PHY objects for the yans model. More...

#include <yans-wifi-helper.h>

Inheritance diagram for ns3::YansWifiPhyHelper:

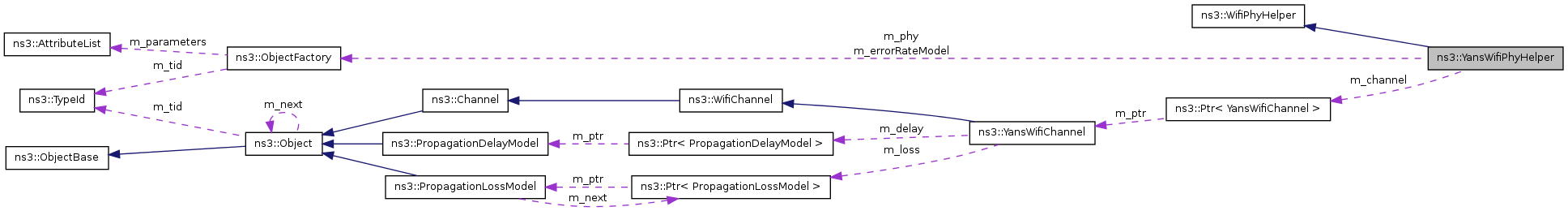

Collaboration diagram for ns3::YansWifiPhyHelper:

Public Member Functions
	YansWifiPhyHelper ()
void	SetChannel (Ptr< YansWifiChannel > channel)
void	SetChannel (std::string channelName)
void	Set (std::string name, const AttributeValue &v)
void	SetErrorRateModel (std::string name, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())
Static Public Member Functions
static YansWifiPhyHelper	Default (void)
static void	EnablePcap (std::string filename, uint32_t nodeid, uint32_t deviceid)
static void	EnablePcap (std::string filename, Ptr< NetDevice > nd)
static void	EnablePcap (std::string filename, std::string ndName)
static void	EnablePcap (std::string filename, NetDeviceContainer d)
static void	EnablePcap (std::string filename, NodeContainer n)
static void	EnablePcapAll (std::string filename)
static void	EnableAscii (std::ostream &os, uint32_t nodeid, uint32_t deviceid)
static void	EnableAscii (std::ostream &os, NetDeviceContainer d)
static void	EnableAscii (std::ostream &os, NodeContainer n)
static void	EnableAsciiAll (std::ostream &os)
Private Member Functions
virtual Ptr< WifiPhy >	Create (Ptr< Node > node, Ptr< WifiNetDevice > device) const

Detailed Description

Make it easy to create and manager PHY objects for the yans model.

The yans PHY model is described in "Yet Another Network Simulator", http://cutebugs.net/files/wns2-yans.pdf

The Pcap and ascii traces generated by the EnableAscii and EnablePcap methods defined in this class correspond to PHY-level traces.

Constructor & Destructor Documentation

ns3::YansWifiPhyHelper::YansWifiPhyHelper ( )

Create a phy helper without any parameter set. The user must set them all to be able to call Install later.

Member Function Documentation

virtual Ptr<WifiPhy> ns3::YansWifiPhyHelper::Create	(	Ptr< Node >	node,
		Ptr< WifiNetDevice >	device
	)			const `[private, virtual]`

Parameters:

	node	the node on which we wish to create a wifi PHY
	device	the device within which this PHY will be created

Returns:: a newly-created PHY object.

This method implements the pure virtual method defined in ns3::WifiPhyHelper.

Implements ns3::WifiPhyHelper.

static YansWifiPhyHelper ns3::YansWifiPhyHelper::Default ( void ) [static]

Create a phy helper in a default working state.

static void ns3::YansWifiPhyHelper::EnableAscii	(	std::ostream &	os,
		uint32_t	nodeid,
		uint32_t	deviceid
	)			`[static]`

Parameters:

	os	output stream
	nodeid	the id of the node to generate ascii output for.
	deviceid	the id of the device to generate ascii output for.

Enable ascii output on the specified deviceid within the specified nodeid if it is of type ns3::WifiNetDevice and dump that to the specified stdc++ output stream.

static void ns3::YansWifiPhyHelper::EnableAscii	(	std::ostream &	os,
		NetDeviceContainer	d
	)			`[static]`

Parameters:

	os	output stream
	d	device container

Enable ascii output on each device which is of the ns3::WifiNetDevice type and which is located in the input device container and dump that to the specified stdc++ output stream.

static void ns3::YansWifiPhyHelper::EnableAscii	(	std::ostream &	os,
		NodeContainer	n
	)			`[static]`

Parameters:

	os	output stream
	n	node container

Enable ascii output on each device which is of the ns3::WifiNetDevice type and which is located in one of the input node and dump that to the specified stdc++ output stream.

static void ns3::YansWifiPhyHelper::EnableAsciiAll ( std::ostream & os ) [static]

Parameters:

os

output stream

Enable ascii output on each device which is of the ns3::WifiNetDevice type and dump that to the specified stdc++ output stream.

static void ns3::YansWifiPhyHelper::EnablePcap	(	std::string	filename,
		std::string	ndName
	)			`[static]`

Parameters:

	filename	filename prefix to use for pcap files.
	ndName	Name of net device on which you want to enable tracing.

Enable pcap output on each input device which is of the ns3::WifiNetDevice type.

static void ns3::YansWifiPhyHelper::EnablePcap	(	std::string	filename,
		NetDeviceContainer	d
	)			`[static]`

Parameters:

	filename	filename prefix to use for pcap files.
	d	container of devices of type ns3::WifiNetDevice

Enable pcap output on each input device which is of the ns3::WifiNetDevice type.

static void ns3::YansWifiPhyHelper::EnablePcap	(	std::string	filename,
		NodeContainer	n
	)			`[static]`

Parameters:

	filename	filename prefix to use for pcap files.
	n	container of nodes.

Enable pcap output on each device which is of the ns3::WifiNetDevice type and which is located in one of the input nodes.

static void ns3::YansWifiPhyHelper::EnablePcap	(	std::string	filename,
		uint32_t	nodeid,
		uint32_t	deviceid
	)			`[static]`

Parameters:

	filename	filename prefix to use for pcap files.
	nodeid	the id of the node to generate pcap output for.
	deviceid	the id of the device to generate pcap output for.

Generate a pcap file which contains the link-level data observed by the specified deviceid within the specified nodeid. The pcap data is stored in the file prefix-nodeid-deviceid.pcap.

This method should be invoked after the network topology has been fully constructed.

static void ns3::YansWifiPhyHelper::EnablePcap	(	std::string	filename,
		Ptr< NetDevice >	nd
	)			`[static]`

Parameters:

	filename	filename prefix to use for pcap files.
	nd	Net device on which you want to enable tracing.

Enable pcap output on each input device which is of the ns3::WifiNetDevice type.

static void ns3::YansWifiPhyHelper::EnablePcapAll ( std::string filename ) [static]

Parameters:

filename

filename prefix to use for pcap files.

Enable pcap output on each device which is of the ns3::WifiNetDevice type

void ns3::YansWifiPhyHelper::Set	(	std::string	name,
		const AttributeValue &	v
	)

Parameters:

	name	the name of the attribute to set
	v	the value of the attribute

Set an attribute of the underlying PHY object.

void ns3::YansWifiPhyHelper::SetChannel ( std::string channelName )

Parameters:

channelName

The name of the channel to associate to this helper

Every PHY created by a call to Install is associated to this channel.

void ns3::YansWifiPhyHelper::SetChannel ( Ptr< YansWifiChannel > channel )

Parameters:

channel

the channel to associate to this helper

Every PHY created by a call to Install is associated to this channel.

void ns3::YansWifiPhyHelper::SetErrorRateModel	(	std::string	name,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue()`
	)

Parameters:

	name	the name of the error rate model to set.
	n0	the name of the attribute to set
	v0	the value of the attribute to set
	n1	the name of the attribute to set
	v1	the value of the attribute to set
	n2	the name of the attribute to set
	v2	the value of the attribute to set
	n3	the name of the attribute to set
	v3	the value of the attribute to set
	n4	the name of the attribute to set
	v4	the value of the attribute to set
	n5	the name of the attribute to set
	v5	the value of the attribute to set
	n6	the name of the attribute to set
	v6	the value of the attribute to set
	n7	the name of the attribute to set
	v7	the value of the attribute to set

Set the error rate model and its attributes to use when Install is called.

The documentation for this class was generated from the following file:

src/helper/yans-wifi-helper.h
