Represent the Capability Information Field. More...

#include "lr-wpan-fields.h"

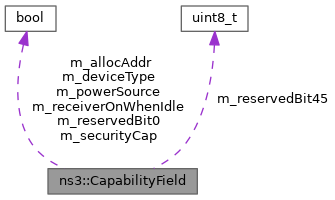

Collaboration diagram for ns3::CapabilityField:

Public Member Functions
	CapabilityField ()

	CapabilityField (uint8_t bitmap)
	Construct a Capability field based on a bitmap.

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize the entire Capability Information Field.

uint8_t	GetCapability () const
	Get the bitmap representing the device capability.

uint32_t	GetSerializedSize () const
	Get the size of the serialized Capability Information Field.

bool	IsDeviceTypeFfd () const
	True if the device type is a Full Functional Device (FFD) false if is a Reduced Functional Device (RFD).

bool	IsPowSrcAvailable () const
	True if the device is receiving power from alternating current mains.

bool	IsReceiverOnWhenIdle () const
	True if the device does not disable its receiver to conserve power during idle periods.

bool	IsSecurityCapability () const
	True if the device is capable of sending and receiving cryptographically protected MAC frames.

bool	IsShortAddrAllocOn () const
	True if the device wishes the coordinator to allocate a short address as result of the association procedure.

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize the entire Capability Information Field.

void	SetCapability (uint8_t bitmap)
	Set the bitmap representing the device capability.

void	SetFfdDevice (bool devType)
	Set the Device type in the Capability Information Field.

void	SetPowSrcAvailable (bool pow)
	Set the Power Source available flag in the Capability Information Field.

void	SetRxOnWhenIdle (bool rxIdle)
	Indicate if the receiver is On on Idle.

void	SetSecurityCap (bool sec)
	Set the Security Capability flag in the Capability Information Field.

void	SetShortAddrAllocOn (bool addrAlloc)
	Set the Short Address Flag in the Capability Information Field.

Private Attributes
bool	m_allocAddr
	Capability Information Field, Allocate Address (bit 7)

bool	m_deviceType
	Capability Information Field, Device Type (bit 1)

bool	m_powerSource
	Capability Information Field, Power Source (bit 2)

bool	m_receiverOnWhenIdle
	Capability Information Field, Receiver On When Idle (bit 3)

bool	m_reservedBit0
	Capability Information Field, Reserved (bit 0)

uint8_t	m_reservedBit45
	Capability Information Field, Reserved (bit 4 & 5)

bool	m_securityCap
	Capability Information Field, Security Capability (bit 6)

Detailed Description

Represent the Capability Information Field.

See IEEE 802.15.4-2011 Section 5.3.1.2 Figure 50

Definition at line 354 of file lr-wpan-fields.h.

Constructor & Destructor Documentation

◆ CapabilityField() [1/2]

ns3::CapabilityField::CapabilityField ( )

Definition at line 486 of file lr-wpan-fields.cc.

References m_allocAddr, m_deviceType, m_powerSource, m_receiverOnWhenIdle, and m_securityCap.

◆ CapabilityField() [2/2]

ns3::CapabilityField::CapabilityField ( uint8_t bitmap )

Construct a Capability field based on a bitmap.

Parameters

bitmap The bitmap representing the capability

Definition at line 495 of file lr-wpan-fields.cc.

References SetCapability().

Here is the call graph for this function:

Member Function Documentation

◆ Deserialize()

Buffer::Iterator ns3::CapabilityField::Deserialize ( Buffer::Iterator i )

Deserialize the entire Capability Information Field.

Parameters

i	an iterator which points to where the Capability information field should be read.

Returns: an iterator.

Definition at line 542 of file lr-wpan-fields.cc.

References ns3::Buffer::Iterator::ReadU8(), and SetCapability().

Referenced by ns3::CommandPayloadHeader::Deserialize().

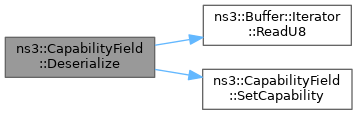

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCapability()

uint8_t ns3::CapabilityField::GetCapability ( ) const

Get the bitmap representing the device capability.

Returns: The bitmap representing the device capability.

< Bit 0 (reserved)

< Bit 1

< Bit 2

< Bit 3

< Bit 4-5 (reserved)

< Bit 6

< Bit 7

Definition at line 501 of file lr-wpan-fields.cc.

References m_allocAddr, m_deviceType, m_powerSource, m_receiverOnWhenIdle, m_reservedBit0, m_reservedBit45, and m_securityCap.

Referenced by Serialize().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::CapabilityField::GetSerializedSize ( ) const

Get the size of the serialized Capability Information Field.

Returns: the size of the serialized field.

Definition at line 529 of file lr-wpan-fields.cc.

Referenced by ns3::CommandPayloadHeader::GetSerializedSize().

Here is the caller graph for this function:

◆ IsDeviceTypeFfd()

bool ns3::CapabilityField::IsDeviceTypeFfd ( ) const

True if the device type is a Full Functional Device (FFD) false if is a Reduced Functional Device (RFD).

Returns: True if the device type is a Full Functional Device (FFD) false if is a Reduced Functional Device (RFD).

Definition at line 550 of file lr-wpan-fields.cc.

References m_deviceType.

Referenced by ns3::operator<<(), and ns3::CommandPayloadHeader::Print().

Here is the caller graph for this function:

◆ IsPowSrcAvailable()

bool ns3::CapabilityField::IsPowSrcAvailable ( ) const

True if the device is receiving power from alternating current mains.

Returns: True if the device is receiving power from alternating current mains.

Definition at line 556 of file lr-wpan-fields.cc.

References m_powerSource.

Referenced by ns3::operator<<(), and ns3::CommandPayloadHeader::Print().

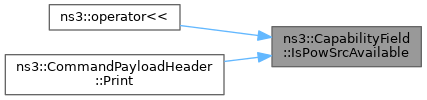

Here is the caller graph for this function:

◆ IsReceiverOnWhenIdle()

bool ns3::CapabilityField::IsReceiverOnWhenIdle ( ) const

True if the device does not disable its receiver to conserve power during idle periods.

Returns: True if the device does not disable its receiver to conserve power during idle periods.

Definition at line 562 of file lr-wpan-fields.cc.

References m_receiverOnWhenIdle.

Referenced by ns3::operator<<(), and ns3::CommandPayloadHeader::Print().

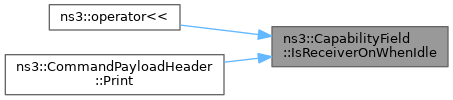

Here is the caller graph for this function:

◆ IsSecurityCapability()

bool ns3::CapabilityField::IsSecurityCapability ( ) const

True if the device is capable of sending and receiving cryptographically protected MAC frames.

Returns: True if the device is capable of sending and receiving cryptographically protected MAC frames.

Definition at line 568 of file lr-wpan-fields.cc.

References m_securityCap.

Referenced by ns3::operator<<(), and ns3::CommandPayloadHeader::Print().

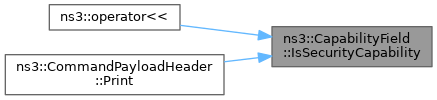

Here is the caller graph for this function:

◆ IsShortAddrAllocOn()

bool ns3::CapabilityField::IsShortAddrAllocOn ( ) const

True if the device wishes the coordinator to allocate a short address as result of the association procedure.

Returns: True if the device wishes the coordinator to allocate a short address as result of the association procedure.

Definition at line 574 of file lr-wpan-fields.cc.

References m_allocAddr.

Referenced by ns3::operator<<(), and ns3::CommandPayloadHeader::Print().

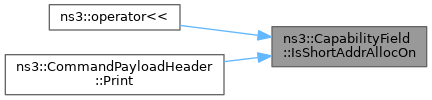

Here is the caller graph for this function:

◆ Serialize()

Buffer::Iterator ns3::CapabilityField::Serialize ( Buffer::Iterator i ) const

Serialize the entire Capability Information Field.

Parameters

i	an iterator which points to where the Capability information field should be written.

Returns: an iterator.

Definition at line 535 of file lr-wpan-fields.cc.

References GetCapability(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::CommandPayloadHeader::Serialize().

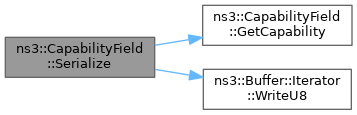

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetCapability()

void ns3::CapabilityField::SetCapability ( uint8_t bitmap )

Set the bitmap representing the device capability.

Parameters

bitmap The bitmap representing the capability

< Bit 0 (reserved)

< Bit 1

< Bit 2

< Bit 3

< Bit 4-5 (reserved)

< Bit 6

< Bit 7

Definition at line 517 of file lr-wpan-fields.cc.

References m_allocAddr, m_deviceType, m_powerSource, m_receiverOnWhenIdle, m_reservedBit0, m_reservedBit45, and m_securityCap.

Referenced by CapabilityField(), and Deserialize().

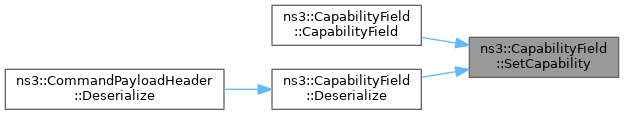

Here is the caller graph for this function:

◆ SetFfdDevice()

void ns3::CapabilityField::SetFfdDevice ( bool devType )

Set the Device type in the Capability Information Field.

True = full functional device (FFD) False = reduced functional device (RFD).

Parameters

devType The device type described in the Capability Information Field.

Definition at line 580 of file lr-wpan-fields.cc.

References m_deviceType.

◆ SetPowSrcAvailable()

void ns3::CapabilityField::SetPowSrcAvailable ( bool pow )

Set the Power Source available flag in the Capability Information Field.

Parameters

pow	Set true if a Power Source is available in the Capability Information Field.

Definition at line 586 of file lr-wpan-fields.cc.

References m_powerSource.

◆ SetRxOnWhenIdle()

void ns3::CapabilityField::SetRxOnWhenIdle ( bool rxIdle )

Indicate if the receiver is On on Idle.

Parameters

rxIdle Set true if the receiver is on when Idle

Definition at line 592 of file lr-wpan-fields.cc.

References m_receiverOnWhenIdle.

◆ SetSecurityCap()

void ns3::CapabilityField::SetSecurityCap ( bool sec )

Set the Security Capability flag in the Capability Information Field.

Parameters

sec	Set true if the device have Security Capabilities.

Definition at line 598 of file lr-wpan-fields.cc.

References m_securityCap.

◆ SetShortAddrAllocOn()

void ns3::CapabilityField::SetShortAddrAllocOn ( bool addrAlloc )

Set the Short Address Flag in the Capability Information Field.

Parameters

addrAlloc Describes whether or not the coordinator should allocate a short address in the association process.

Definition at line 604 of file lr-wpan-fields.cc.

References m_allocAddr.

Referenced by ScanConfirm().

Here is the caller graph for this function:

Member Data Documentation

◆ m_allocAddr

bool ns3::CapabilityField::m_allocAddr

private

Capability Information Field, Allocate Address (bit 7)

Definition at line 490 of file lr-wpan-fields.h.

Referenced by CapabilityField(), GetCapability(), IsShortAddrAllocOn(), SetCapability(), and SetShortAddrAllocOn().

◆ m_deviceType

bool ns3::CapabilityField::m_deviceType

private

Capability Information Field, Device Type (bit 1)

Definition at line 485 of file lr-wpan-fields.h.

Referenced by CapabilityField(), GetCapability(), IsDeviceTypeFfd(), SetCapability(), and SetFfdDevice().

◆ m_powerSource

bool ns3::CapabilityField::m_powerSource

private

Capability Information Field, Power Source (bit 2)

Definition at line 486 of file lr-wpan-fields.h.

Referenced by CapabilityField(), GetCapability(), IsPowSrcAvailable(), SetCapability(), and SetPowSrcAvailable().

◆ m_receiverOnWhenIdle

bool ns3::CapabilityField::m_receiverOnWhenIdle

private

Capability Information Field, Receiver On When Idle (bit 3)

Definition at line 487 of file lr-wpan-fields.h.

Referenced by CapabilityField(), GetCapability(), IsReceiverOnWhenIdle(), SetCapability(), and SetRxOnWhenIdle().

◆ m_reservedBit0

bool ns3::CapabilityField::m_reservedBit0

private

Capability Information Field, Reserved (bit 0)

Definition at line 484 of file lr-wpan-fields.h.

Referenced by GetCapability(), and SetCapability().

◆ m_reservedBit45

uint8_t ns3::CapabilityField::m_reservedBit45

private

Capability Information Field, Reserved (bit 4 & 5)

Definition at line 488 of file lr-wpan-fields.h.

Referenced by GetCapability(), and SetCapability().

◆ m_securityCap

bool ns3::CapabilityField::m_securityCap

private

Capability Information Field, Security Capability (bit 6)

Definition at line 489 of file lr-wpan-fields.h.

Referenced by CapabilityField(), GetCapability(), IsSecurityCapability(), SetCapability(), and SetSecurityCap().

The documentation for this class was generated from the following files:

src/lr-wpan/model/lr-wpan-fields.h
src/lr-wpan/model/lr-wpan-fields.cc

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ CapabilityField() [1/2]

◆ CapabilityField() [2/2]

Member Function Documentation

◆ Deserialize()

◆ GetCapability()

◆ GetSerializedSize()

◆ IsDeviceTypeFfd()

◆ IsPowSrcAvailable()

◆ IsReceiverOnWhenIdle()

◆ IsSecurityCapability()

◆ IsShortAddrAllocOn()

◆ Serialize()

◆ SetCapability()

◆ SetFfdDevice()

◆ SetPowSrcAvailable()

◆ SetRxOnWhenIdle()

◆ SetSecurityCap()

◆ SetShortAddrAllocOn()

Member Data Documentation

◆ m_allocAddr

◆ m_deviceType

◆ m_powerSource

◆ m_receiverOnWhenIdle

◆ m_reservedBit0

◆ m_reservedBit45

◆ m_securityCap
