ns3::Cid Class Reference

Cid class. More...

#include "cid.h"

Collaboration diagram for ns3::Cid:

Public Types
enum	Type {   BROADCAST = 1 , INITIAL_RANGING , BASIC , PRIMARY ,   TRANSPORT , MULTICAST , PADDING }
	Type enumeration. More...

Public Member Functions
	Cid ()
	Create a cid of unknown type.
	Cid (uint16_t cid)
	Constructor.
	~Cid ()
uint16_t	GetIdentifier () const
bool	IsBroadcast () const
bool	IsInitialRanging () const
bool	IsMulticast () const
bool	IsPadding () const

Static Public Member Functions
static Cid	Broadcast ()
static Cid	InitialRanging ()
static Cid	Padding ()

Private Attributes
uint16_t	m_identifier
	identiifier

Friends
class	CidFactory
	allow CidFactory class friend access
bool	operator== (const Cid &lhs, const Cid &rhs)
	equality operator

Detailed Description

Cid class.

Definition at line 36 of file cid.h.

Member Enumeration Documentation

Type

enum ns3::Cid::Type

Type enumeration.

Enumerator
BROADCAST
INITIAL_RANGING
BASIC
PRIMARY
TRANSPORT
MULTICAST
PADDING

Definition at line 40 of file cid.h.

Constructor & Destructor Documentation

Cid() [1/2]

ns3::Cid::Cid

(

)

Create a cid of unknown type.

Definition at line 30 of file cid.cc.

References CID_UNINITIALIZED, and m_identifier.

Cid() [2/2]

ns3::Cid::Cid

(

uint16_t

cid

)

Constructor.

Parameters

cid

Definition at line 35 of file cid.cc.

References m_identifier.

~Cid()

ns3::Cid::~Cid

(

)

Definition at line 40 of file cid.cc.

Member Function Documentation

Broadcast()

Cid ns3::Cid::Broadcast ( )

static

Returns

the broadcast cid

Definition at line 75 of file cid.cc.

Referenced by ns3::CidFactory::Allocate(), ns3::WimaxNetDevice::CreateDefaultConnections(), and IsBroadcast().

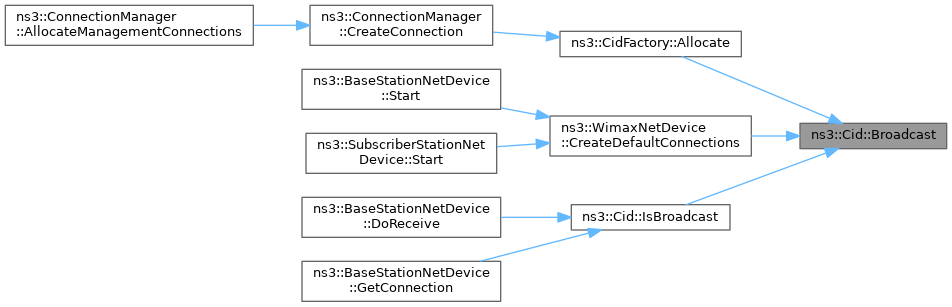

Here is the caller graph for this function:

GetIdentifier()

uint16_t ns3::Cid::GetIdentifier

(

)

const

Returns

the identifier of the cid

Definition at line 45 of file cid.cc.

References m_identifier.

Referenced by ns3::BSSchedulerRtps::BSSchedulerBroadcastConnection(), ns3::ServiceFlowManager::GetServiceFlow(), ns3::operator<<(), ns3::BandwidthRequestHeader::Print(), ns3::RngRsp::Serialize(), ns3::GenericMacHeader::Serialize(), ns3::BandwidthRequestHeader::Serialize(), ns3::OfdmDlMapIe::Write(), and ns3::OfdmUlMapIe::Write().

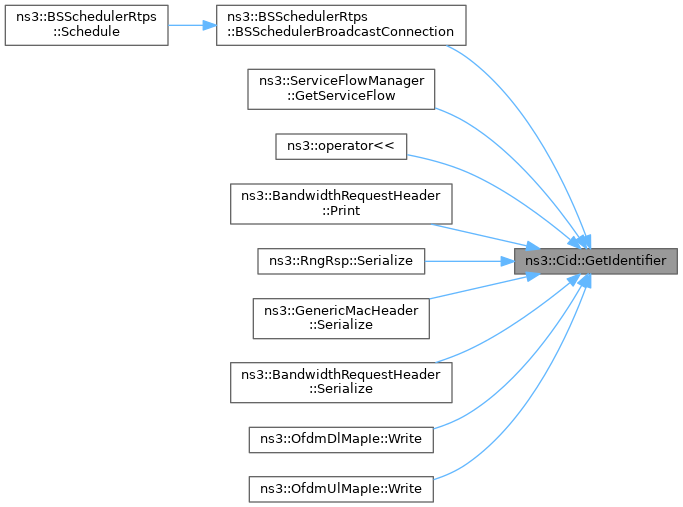

Here is the caller graph for this function:

InitialRanging()

Cid ns3::Cid::InitialRanging ( )

static

Returns

the initial ranging cid

Definition at line 87 of file cid.cc.

Referenced by ns3::BsServiceFlowManager::BsServiceFlowManager(), ns3::CidFactory::Allocate(), ns3::WimaxNetDevice::CreateDefaultConnections(), ns3::BaseStationNetDevice::CreateDlMap(), IsInitialRanging(), ns3::UplinkSchedulerRtps::Schedule(), and ns3::UplinkSchedulerSimple::Schedule().

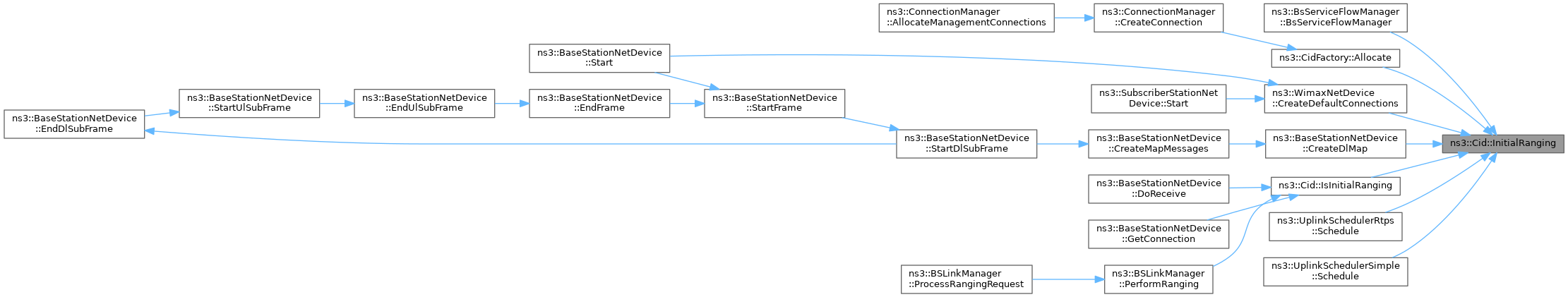

Here is the caller graph for this function:

IsBroadcast()

bool ns3::Cid::IsBroadcast

(

)

const

Returns

true if the cid is a broadcast cid, false otherwise

Definition at line 57 of file cid.cc.

References Broadcast().

Referenced by ns3::BaseStationNetDevice::DoReceive(), and ns3::BaseStationNetDevice::GetConnection().

Here is the call graph for this function:

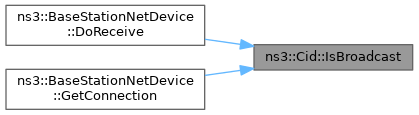

Here is the caller graph for this function:

IsInitialRanging()

bool ns3::Cid::IsInitialRanging

(

)

const

Returns

true if the cid is an initial ranging cid, false otherwise

Definition at line 69 of file cid.cc.

References InitialRanging().

Referenced by ns3::BaseStationNetDevice::DoReceive(), ns3::BaseStationNetDevice::GetConnection(), and ns3::BSLinkManager::PerformRanging().

Here is the call graph for this function:

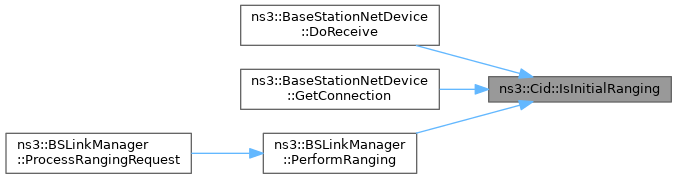

Here is the caller graph for this function:

IsMulticast()

bool ns3::Cid::IsMulticast

(

)

const

Returns

true if the cid is a multicast cid, false otherwise

Definition at line 51 of file cid.cc.

References m_identifier.

Referenced by ns3::SubscriberStationNetDevice::DoReceive().

Here is the caller graph for this function:

IsPadding()

bool ns3::Cid::IsPadding

(

)

const

Returns

true if the cid is a padding cid, false otherwise

Definition at line 63 of file cid.cc.

References Padding().

Here is the call graph for this function:

Padding()

Cid ns3::Cid::Padding ( )

static

Returns

the padding cid

Definition at line 81 of file cid.cc.

Referenced by ns3::CidFactory::Allocate(), and IsPadding().

Here is the caller graph for this function:

Friends And Related Function Documentation

CidFactory

friend class CidFactory

friend

allow CidFactory class friend access

Definition at line 95 of file cid.h.

operator==

bool operator== ( const Cid &  lhs, const Cid &  rhs  )

friend

equality operator

Parameters

lhs	left hand side
rhs	right hand side

Returns

true if equal

Definition at line 99 of file cid.cc.

Member Data Documentation

m_identifier

uint16_t ns3::Cid::m_identifier

private

identiifier

Definition at line 98 of file cid.h.

Referenced by Cid(), GetIdentifier(), ns3::CidFactory::IsBasic(), IsMulticast(), ns3::CidFactory::IsPrimary(), and ns3::CidFactory::IsTransport().

---

The documentation for this class was generated from the following files:

• src/wimax/model/cid.h
• src/wimax/model/cid.cc
