Implements the Adaptive Modulation And Coding Scheme. More...

#include "lte-amc.h"

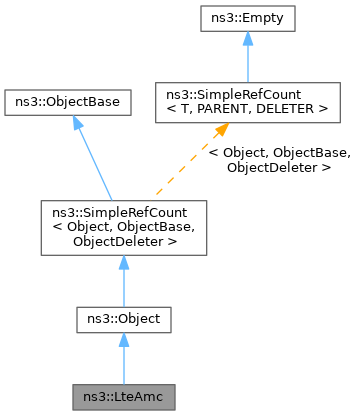

Inheritance diagram for ns3::LteAmc:

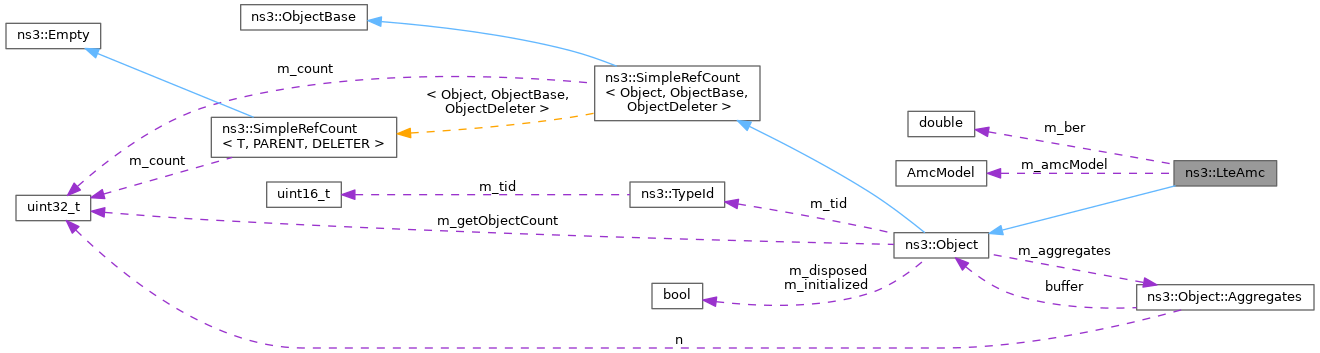

Collaboration diagram for ns3::LteAmc:

Public Types
enum	AmcModel { PiroEW2010 , MiErrorModel }
	Types of AMC model. More...

Public Member Functions
	LteAmc ()

	~LteAmc () override

std::vector< int >	CreateCqiFeedbacks (const SpectrumValue &sinr, uint8_t rbgSize=0)
	Create a message with CQI feedback.

int	GetCqiFromSpectralEfficiency (double s)
	Get a proper CQI for the spectral efficiency value.

int	GetDlTbSizeFromMcs (int mcs, int nprb)
	Get the Transport Block Size for a selected MCS and number of PRB (table 7.1.7.2.1-1 of 36.213)

int	GetMcsFromCqi (int cqi)
	Get the Modulation and Coding Scheme for a CQI value.

double	GetSpectralEfficiencyFromCqi (int cqi)
	Get the spectral efficiency value associated to the received CQI.

int	GetUlTbSizeFromMcs (int mcs, int nprb)
	Get the Transport Block Size for a selected MCS and number of PRB (table 8.6.1-1 of 36.213)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor.

	~Object () override
	Destructor.

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together.

void	Dispose ()
	Dispose of this Object.

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object.

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object.

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one.

bool	IsInitialized () const
	Check if the object has been initialized.

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Attributes
AmcModel	m_amcModel
	The `AmcModel` attribute.

double	m_ber
	The `Ber` attribute.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object.

virtual void	DoDispose ()
	Destructor implementation.

virtual void	DoInitialize ()
	Initialize() implementation.

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

Implements the Adaptive Modulation And Coding Scheme.

Introspection did not find any typical Config paths.

As proposed in 3GPP TSG-RAN WG1 [R1-081483 Conveying MCS and TB size via PDCCH] (http://www.3gpp.org/ftp/tsg_ran/WG1_RL1/TSGR1_52b/Docs/R1-081483.zip).

Attributes

AmcModel: AMC model used to assign CQI
- Set with class: ns3::EnumValue
- Underlying type: Vienna|PiroEW2010
- Initial value: Vienna
- Flags: constructwriteread
Ber: The requested BER in assigning MCS (default is 0.00005).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 5e-05
- Flags: constructwriteread

No TraceSources are defined for this type.
Size of this type is 48 bytes (on a 64-bit architecture).

Definition at line 41 of file lte-amc.h.

Member Enumeration Documentation

◆ AmcModel

enum ns3::LteAmc::AmcModel

Types of AMC model.

Enumerator
PiroEW2010	An AMC model based on Piro, G.; Grieco, L.A; Boggia, G.; Camarda, P., "A two-level scheduling algorithm for QoS support in the downlink of LTE cellular networks," Wireless Conference (EW), 2010 European, pp.246,253, 12-15 April 2010.
MiErrorModel	An AMC model based on 10% of BER according to LteMiErrorModel.

Definition at line 54 of file lte-amc.h.

Constructor & Destructor Documentation

◆ LteAmc()

ns3::LteAmc::LteAmc ( )

Definition at line 459 of file lte-amc.cc.

◆ ~LteAmc()

ns3::LteAmc::~LteAmc ( )

override

Definition at line 463 of file lte-amc.cc.

Member Function Documentation

◆ CreateCqiFeedbacks()

std::vector< int > ns3::LteAmc::CreateCqiFeedbacks	(	const SpectrumValue &	sinr,
		uint8_t	rbgSize = `0`
	)

Create a message with CQI feedback.

Parameters

sinr	the SpectrumValue vector of SINR for evaluating the CQI
rbgSize	size of RB group (in RBs) for evaluating subband/wideband CQI

Returns: a vector of CQI feedbacks

Definition at line 552 of file lte-amc.cc.

References ns3::SpectrumValue::ConstValuesBegin(), ns3::SpectrumValue::ConstValuesEnd(), NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::SpectralEfficiencyForCqi, ns3::SpectralEfficiencyForMcs, and ns3::TbStats_t::tbler.

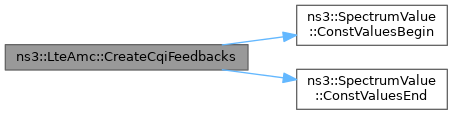

Here is the call graph for this function:

◆ GetCqiFromSpectralEfficiency()

int ns3::LteAmc::GetCqiFromSpectralEfficiency ( double s )

Get a proper CQI for the spectral efficiency value.

In order to assure a lower block error rate, the AMC chooses the lower CQI value for a given spectral efficiency

Parameters

s	the spectral efficiency

Returns: the CQI value

Definition at line 490 of file lte-amc.cc.

References NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::SpectralEfficiencyForCqi.

◆ GetDlTbSizeFromMcs()

int ns3::LteAmc::GetDlTbSizeFromMcs	(	int	mcs,
		int	nprb
	)

Get the Transport Block Size for a selected MCS and number of PRB (table 7.1.7.2.1-1 of 36.213)

Parameters

mcs	the MCS index
nprb	the no. of PRB

Returns: the Transport Block Size in bits

Definition at line 519 of file lte-amc.cc.

References ns3::McsToItbsDl, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::TransportBlockSizeTable.

◆ GetMcsFromCqi()

int ns3::LteAmc::GetMcsFromCqi ( int cqi )

Get the Modulation and Coding Scheme for a CQI value.

Parameters

cqi	the cqi value

Returns: the MCS value

Definition at line 504 of file lte-amc.cc.

References NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::SpectralEfficiencyForCqi, and ns3::SpectralEfficiencyForMcs.

◆ GetSpectralEfficiencyFromCqi()

double ns3::LteAmc::GetSpectralEfficiencyFromCqi ( int cqi )

Get the spectral efficiency value associated to the received CQI.

Parameters

cqi	the cqi value

Returns: the spectral efficiency in (bit/s)/Hz

Definition at line 543 of file lte-amc.cc.

References NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::SpectralEfficiencyForCqi.

◆ GetTypeId()

TypeId ns3::LteAmc::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 468 of file lte-amc.cc.

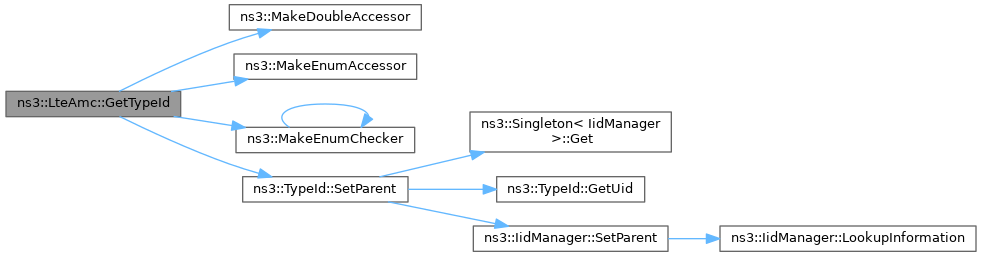

References ns3::MakeDoubleAccessor(), ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ GetUlTbSizeFromMcs()

int ns3::LteAmc::GetUlTbSizeFromMcs	(	int	mcs,
		int	nprb
	)

Get the Transport Block Size for a selected MCS and number of PRB (table 8.6.1-1 of 36.213)

Parameters

mcs	the MCS index
nprb	the no. of PRB

Returns: the Transport Block Size in bits

Definition at line 531 of file lte-amc.cc.

References ns3::McsToItbsUl, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::TransportBlockSizeTable.

Member Data Documentation

◆ m_amcModel

AmcModel ns3::LteAmc::m_amcModel

private

The AmcModel attribute.

AMC model used to assign CQI.

Definition at line 134 of file lte-amc.h.

◆ m_ber

double ns3::LteAmc::m_ber

private

The Ber attribute.

The requested BER in assigning MCS (default is 0.00005).

Definition at line 127 of file lte-amc.h.

The documentation for this class was generated from the following files:

src/lte/model/lte-amc.h
src/lte/model/lte-amc.cc
