A record that that holds information about an ArpCache entry. More...

#include "arp-cache.h"

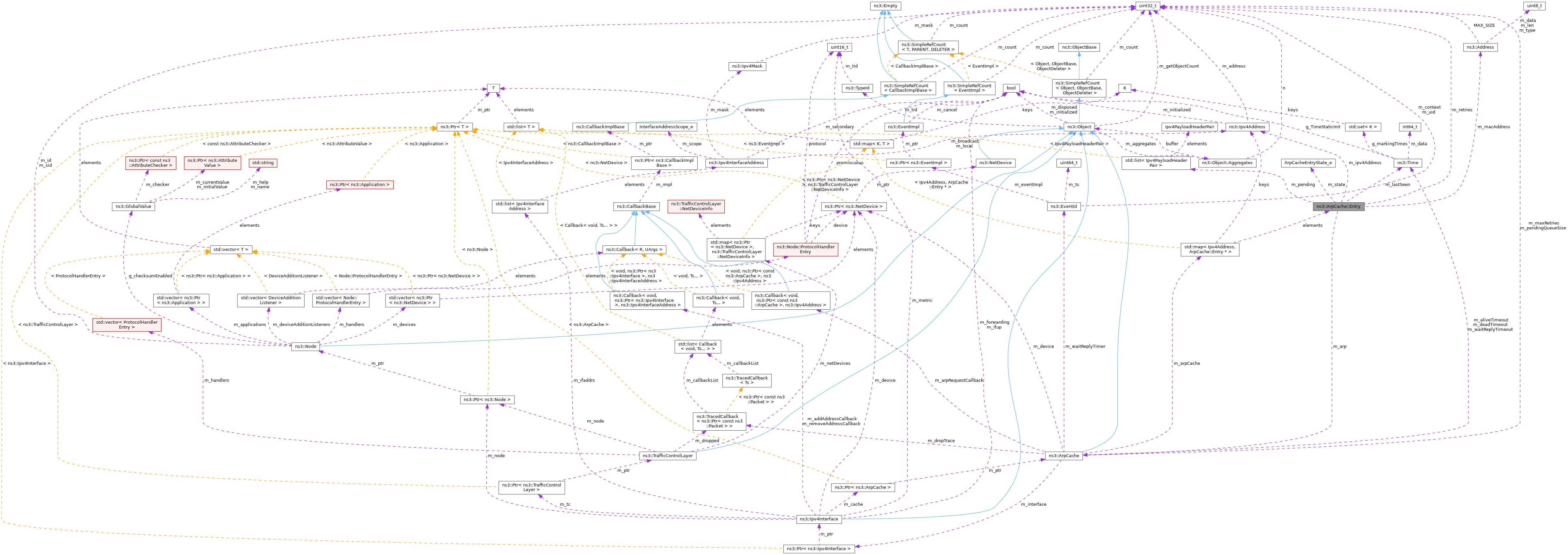

Collaboration diagram for ns3::ArpCache::Entry:

Public Member Functions
	Entry (ArpCache *arp)
	Constructor.

void	ClearPendingPacket ()
	Clear the pending packet list.

void	ClearRetries ()
	Zero the counter of number of retries for an entry.

Ipv4PayloadHeaderPair	DequeuePending ()

Ipv4Address	GetIpv4Address () const

Address	GetMacAddress () const

uint32_t	GetRetries () const

void	IncrementRetries ()
	Increment the counter of number of retries for an entry.

bool	IsAlive ()

bool	IsAutoGenerated ()

bool	IsDead ()

bool	IsExpired () const

bool	IsPermanent ()

bool	IsWaitReply ()

void	MarkAlive (Address macAddress)

void	MarkAutoGenerated ()
	Changes the state of this entry to auto-generated.

void	MarkDead ()
	Changes the state of this entry to dead.

void	MarkPermanent ()
	Changes the state of this entry to Permanent.

void	MarkWaitReply (Ipv4PayloadHeaderPair waiting)

void	SetIpv4Address (Ipv4Address destination)

void	SetMacAddress (Address macAddress)

void	UpdateSeen ()
	Update the entry when seeing a packet.

bool	UpdateWaitReply (Ipv4PayloadHeaderPair waiting)

Private Types
enum	ArpCacheEntryState_e { ALIVE , WAIT_REPLY , DEAD , PERMANENT , STATIC_AUTOGENERATED }
	ARP cache entry states. More...

Private Member Functions
Time	GetTimeout () const
	Returns the entry timeout.

Private Attributes
ArpCache *	m_arp
	pointer to the ARP cache owning the entry

Ipv4Address	m_ipv4Address
	entry's IP address

Time	m_lastSeen
	last moment a packet from that address has been seen

Address	m_macAddress
	entry's MAC address

std::list< Ipv4PayloadHeaderPair >	m_pending
	list of pending packets for the entry's IP

uint32_t	m_retries
	rerty counter

ArpCacheEntryState_e	m_state
	state of the entry

Detailed Description

A record that that holds information about an ArpCache entry.

Definition at line 183 of file arp-cache.h.

Member Enumeration Documentation

◆ ArpCacheEntryState_e

enum ns3::ArpCache::Entry::ArpCacheEntryState_e

private

ARP cache entry states.

Enumerator
ALIVE
WAIT_REPLY
DEAD
PERMANENT
STATIC_AUTOGENERATED

Definition at line 296 of file arp-cache.h.

Constructor & Destructor Documentation

◆ Entry()

ns3::ArpCache::Entry::Entry ( ArpCache * arp )

Constructor.

Parameters

arp	The ArpCache this entry belongs to

Definition at line 381 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ClearPendingPacket()

void ns3::ArpCache::Entry::ClearPendingPacket ( )

Clear the pending packet list.

Definition at line 574 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::Remove().

Here is the caller graph for this function:

◆ ClearRetries()

void ns3::ArpCache::Entry::ClearRetries ( )

Zero the counter of number of retries for an entry.

Definition at line 603 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

◆ DequeuePending()

ArpCache::Ipv4PayloadHeaderPair ns3::ArpCache::Entry::DequeuePending ( )

Returns: 0 is no packet is pending, the next packet to send if packets are pending.

Definition at line 557 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout(), and ns3::ArpL3Protocol::Receive().

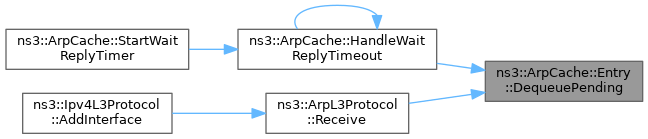

Here is the caller graph for this function:

◆ GetIpv4Address()

Ipv4Address ns3::ArpCache::Entry::GetIpv4Address ( ) const

Returns: The Ipv4Address for this entry

Definition at line 513 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

◆ GetMacAddress()

Address ns3::ArpCache::Entry::GetMacAddress ( ) const

Returns: The MacAddress of this entry

Definition at line 499 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup(), ns3::ArpCache::LookupInverse(), ns3::aodv::Neighbors::LookupMacAddress(), and ns3::dsr::DsrRouteCache::LookupMacAddress().

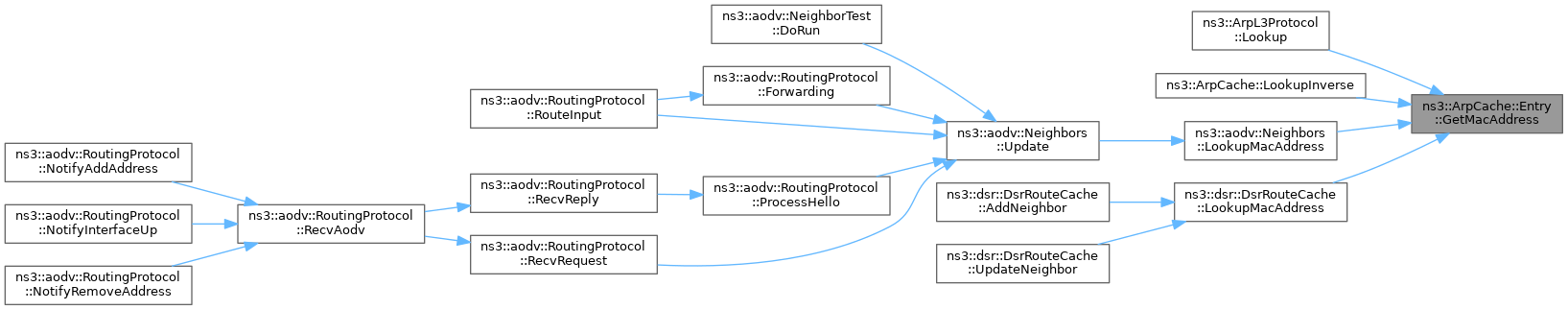

Here is the caller graph for this function:

◆ GetRetries()

uint32_t ns3::ArpCache::Entry::GetRetries ( ) const

Returns: number of retries that have been sent for an ArpRequest in WaitReply state.

Definition at line 588 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

◆ GetTimeout()

Time ns3::ArpCache::Entry::GetTimeout ( ) const

private

Returns the entry timeout.

Returns: the entry timeout

Definition at line 527 of file arp-cache.cc.

References ALIVE, DEAD, ns3::Time::Max(), NS_LOG_FUNCTION, PERMANENT, STATIC_AUTOGENERATED, and WAIT_REPLY.

Here is the call graph for this function:

◆ IncrementRetries()

void ns3::ArpCache::Entry::IncrementRetries ( )

Increment the counter of number of retries for an entry.

Definition at line 595 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

◆ IsAlive()

bool ns3::ArpCache::Entry::IsAlive ( )

Returns: True if the state of this entry is alive; false otherwise.

Definition at line 397 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup(), ns3::aodv::Neighbors::LookupMacAddress(), ns3::dsr::DsrRouteCache::LookupMacAddress(), and ns3::Ipv4L3Protocol::Receive().

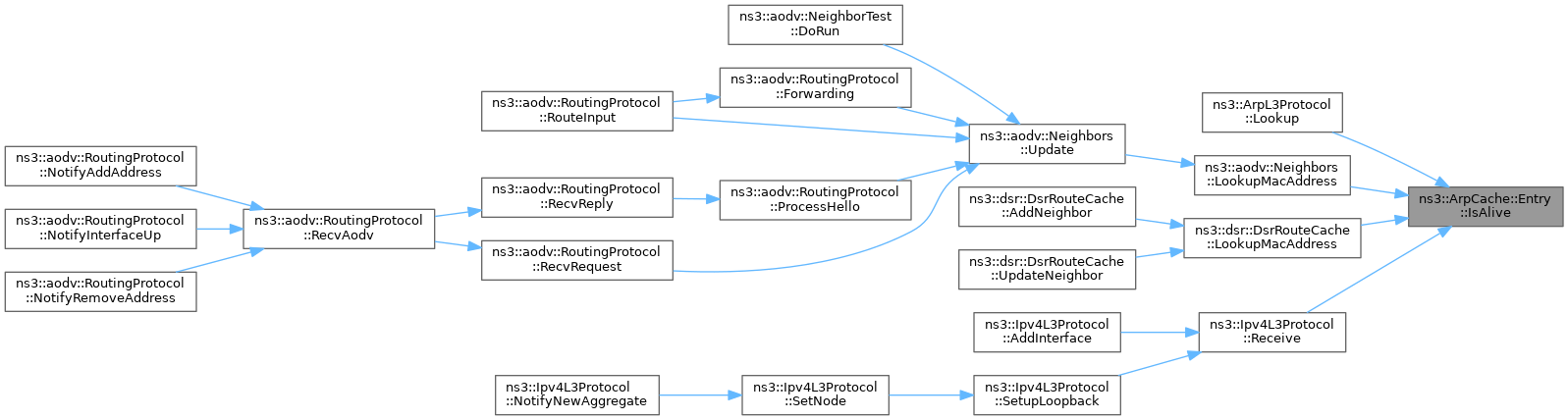

Here is the caller graph for this function:

◆ IsAutoGenerated()

bool ns3::ArpCache::Entry::IsAutoGenerated ( )

Returns: True if the state of this entry is auto-generated; false otherwise.

Definition at line 418 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup().

Here is the caller graph for this function:

◆ IsDead()

bool ns3::ArpCache::Entry::IsDead ( )

Returns: True if the state of this entry is dead; false otherwise.

Definition at line 390 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup().

Here is the caller graph for this function:

◆ IsExpired()

bool ns3::ArpCache::Entry::IsExpired ( ) const

Returns: True if this entry has timed out; false otherwise.

This function returns true if the time elapsed strictly exceeds the timeout value (i.e., is not less than or equal to the timeout).

Definition at line 547 of file arp-cache.cc.

References ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and timeout.

Referenced by ns3::ArpL3Protocol::Lookup(), ns3::aodv::Neighbors::LookupMacAddress(), and ns3::dsr::DsrRouteCache::LookupMacAddress().

Here is the call graph for this function:

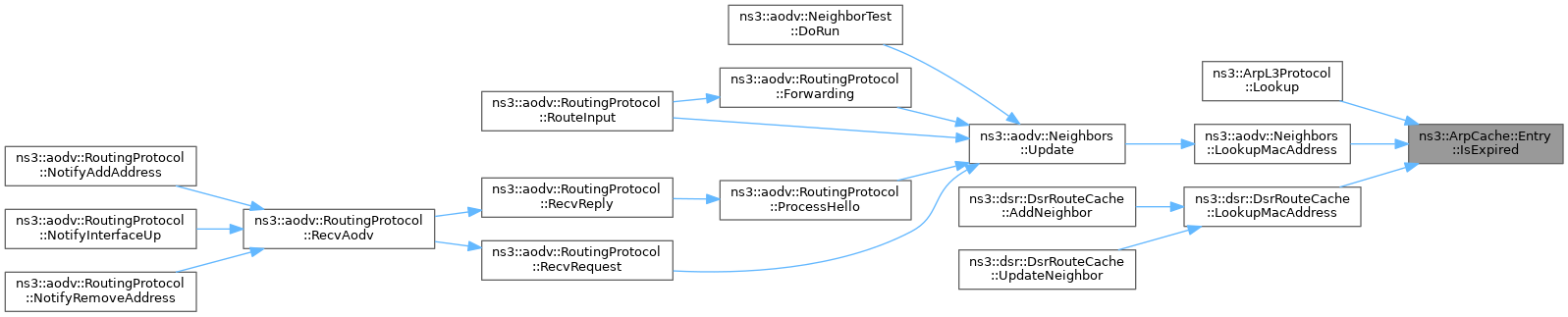

Here is the caller graph for this function:

◆ IsPermanent()

bool ns3::ArpCache::Entry::IsPermanent ( )

Returns: True if the state of this entry is permanent; false otherwise.

Definition at line 411 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup(), ns3::aodv::Neighbors::LookupMacAddress(), and ns3::dsr::DsrRouteCache::LookupMacAddress().

Here is the caller graph for this function:

◆ IsWaitReply()

bool ns3::ArpCache::Entry::IsWaitReply ( )

Returns: True if the state of this entry is wait_reply; false otherwise.

Definition at line 404 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout(), ns3::ArpL3Protocol::Lookup(), and ns3::ArpL3Protocol::Receive().

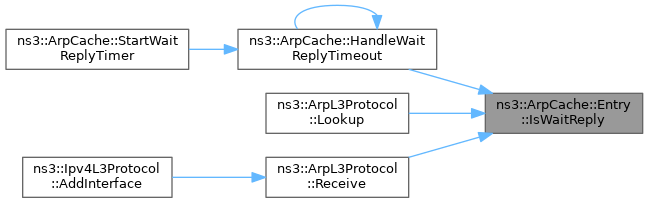

Here is the caller graph for this function:

◆ MarkAlive()

void ns3::ArpCache::Entry::MarkAlive ( Address macAddress )

Parameters

macAddress

Definition at line 435 of file arp-cache.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Receive().

Here is the caller graph for this function:

◆ MarkAutoGenerated()

void ns3::ArpCache::Entry::MarkAutoGenerated ( )

Changes the state of this entry to auto-generated.

The entry must have a valid MacAddress.

Definition at line 457 of file arp-cache.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::NeighborCacheHelper::AddEntry().

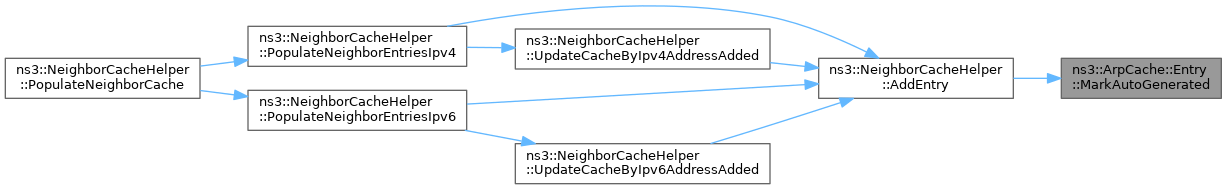

Here is the caller graph for this function:

◆ MarkDead()

void ns3::ArpCache::Entry::MarkDead ( )

Changes the state of this entry to dead.

Definition at line 425 of file arp-cache.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

◆ MarkPermanent()

void ns3::ArpCache::Entry::MarkPermanent ( )

Changes the state of this entry to Permanent.

The entry must have a valid MacAddress.

Definition at line 446 of file arp-cache.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by FlushTest::DoRun(), and EpcS1uUlTestCase::DoRun().

Here is the caller graph for this function:

◆ MarkWaitReply()

void ns3::ArpCache::Entry::MarkWaitReply ( Ipv4PayloadHeaderPair waiting )

Parameters

waiting

Definition at line 485 of file arp-cache.cc.

References NS_ASSERT, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup().

Here is the caller graph for this function:

◆ SetIpv4Address()

void ns3::ArpCache::Entry::SetIpv4Address ( Ipv4Address destination )

Parameters

destination The Ipv4Address for this entry

Definition at line 520 of file arp-cache.cc.

References NS_LOG_FUNCTION.

◆ SetMacAddress()

void ns3::ArpCache::Entry::SetMacAddress ( Address macAddress )

Parameters

macAddress The MacAddress for this entry

Definition at line 506 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::NeighborCacheHelper::AddEntry(), FlushTest::DoRun(), and EpcS1uUlTestCase::DoRun().

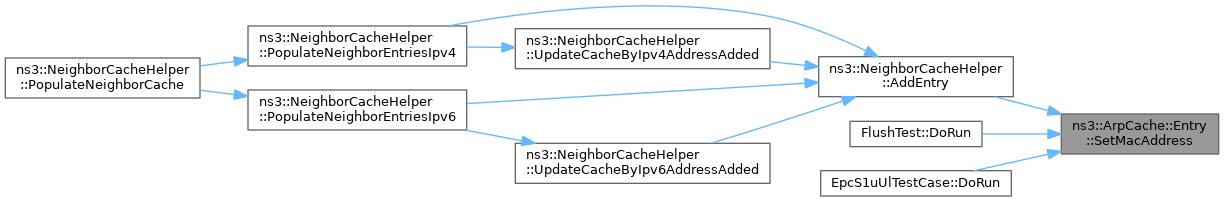

Here is the caller graph for this function:

◆ UpdateSeen()

void ns3::ArpCache::Entry::UpdateSeen ( )

Update the entry when seeing a packet.

Definition at line 581 of file arp-cache.cc.

References ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4L3Protocol::Receive().

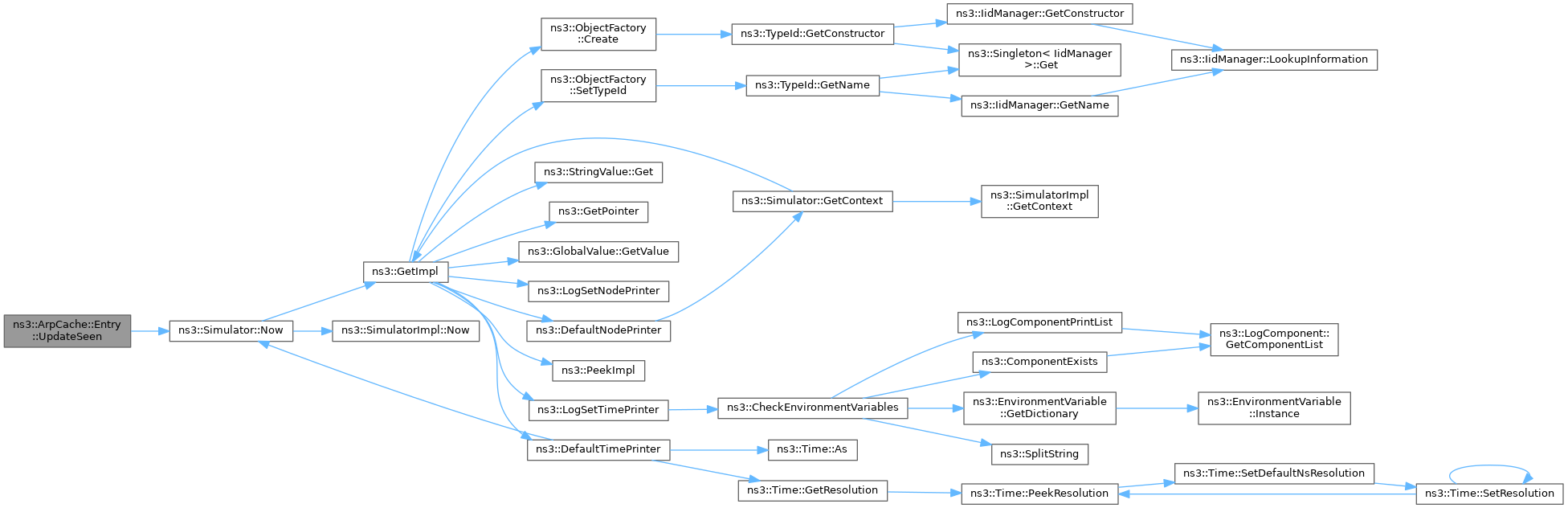

Here is the call graph for this function:

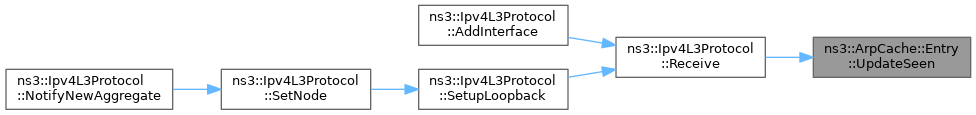

Here is the caller graph for this function:

◆ UpdateWaitReply()

bool ns3::ArpCache::Entry::UpdateWaitReply ( Ipv4PayloadHeaderPair waiting )

Parameters

waiting

Returns

Definition at line 468 of file arp-cache.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup().

Here is the caller graph for this function:

Member Data Documentation

◆ m_arp

ArpCache* ns3::ArpCache::Entry::m_arp

private

pointer to the ARP cache owning the entry

Definition at line 311 of file arp-cache.h.

◆ m_ipv4Address

Ipv4Address ns3::ArpCache::Entry::m_ipv4Address

private

entry's IP address

Definition at line 315 of file arp-cache.h.

◆ m_lastSeen

Time ns3::ArpCache::Entry::m_lastSeen

private

last moment a packet from that address has been seen

Definition at line 313 of file arp-cache.h.

◆ m_macAddress

Address ns3::ArpCache::Entry::m_macAddress

private

entry's MAC address

Definition at line 314 of file arp-cache.h.

◆ m_pending

std::list<Ipv4PayloadHeaderPair> ns3::ArpCache::Entry::m_pending

private

list of pending packets for the entry's IP

Definition at line 316 of file arp-cache.h.

◆ m_retries

uint32_t ns3::ArpCache::Entry::m_retries

private

rerty counter

Definition at line 317 of file arp-cache.h.

◆ m_state

ArpCacheEntryState_e ns3::ArpCache::Entry::m_state

private

state of the entry

Definition at line 312 of file arp-cache.h.

The documentation for this class was generated from the following files:

src/internet/model/arp-cache.h
src/internet/model/arp-cache.cc

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ ArpCacheEntryState_e

Constructor & Destructor Documentation

◆ Entry()

Member Function Documentation

◆ ClearPendingPacket()

◆ ClearRetries()

◆ DequeuePending()

◆ GetIpv4Address()

◆ GetMacAddress()

◆ GetRetries()

◆ GetTimeout()

◆ IncrementRetries()

◆ IsAlive()

◆ IsAutoGenerated()

◆ IsDead()

◆ IsExpired()

◆ IsPermanent()

◆ IsWaitReply()

◆ MarkAlive()

◆ MarkAutoGenerated()

◆ MarkDead()

◆ MarkPermanent()

◆ MarkWaitReply()

◆ SetIpv4Address()

◆ SetMacAddress()

◆ UpdateSeen()

◆ UpdateWaitReply()

Member Data Documentation

◆ m_arp

◆ m_ipv4Address

◆ m_lastSeen

◆ m_macAddress

◆ m_pending

◆ m_retries

◆ m_state
