build a DpdkNetDevice object attached to a physical network interface More...

#include "dpdk-net-device-helper.h"

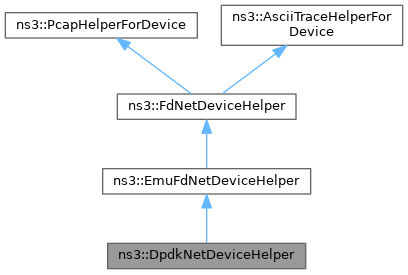

Inheritance diagram for ns3::DpdkNetDeviceHelper:

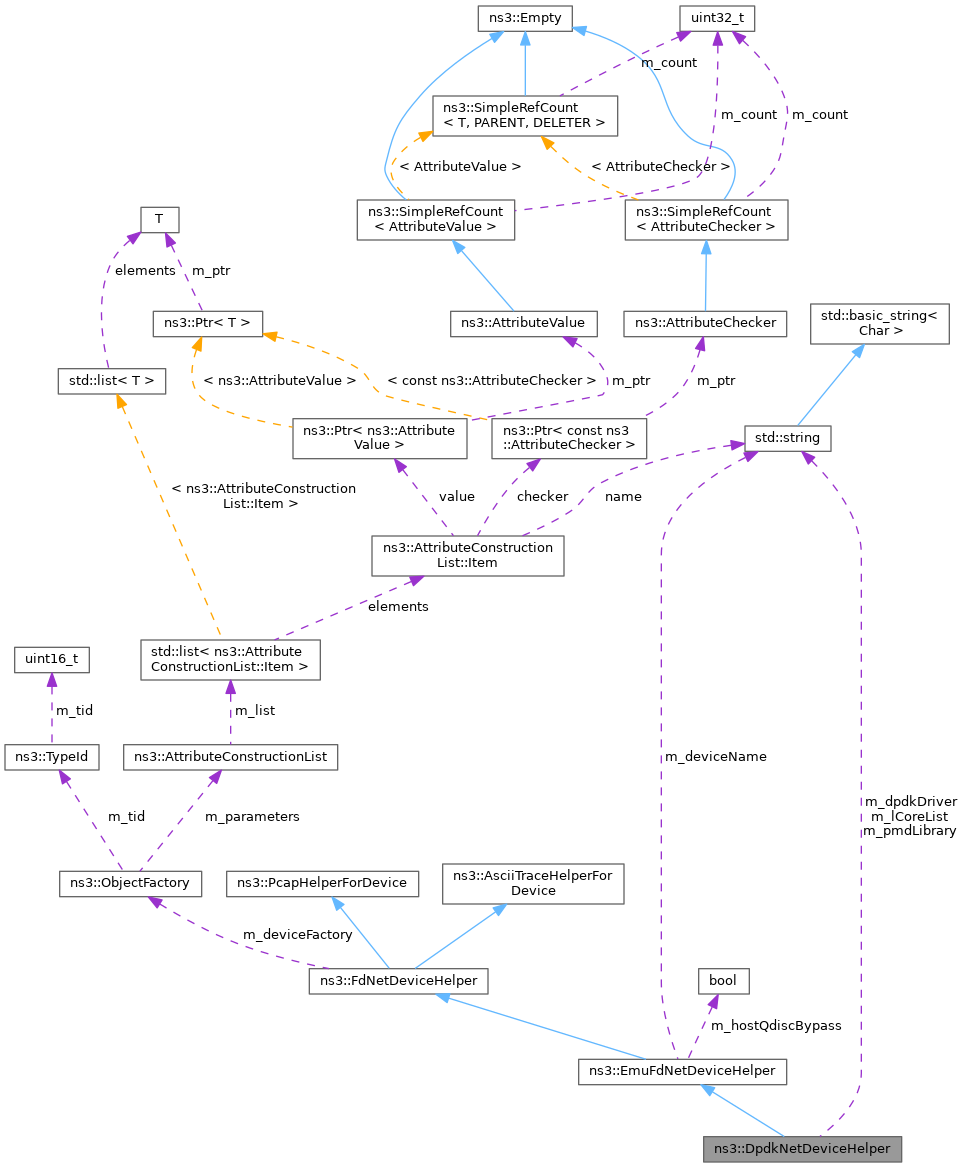

Collaboration diagram for ns3::DpdkNetDeviceHelper:

Public Member Functions
	DpdkNetDeviceHelper ()
	Construct a DpdkNetDeviceHelper and initialize DPDK EAL.

	~DpdkNetDeviceHelper () override

void	SetDpdkDriver (std::string dpdkDriver)
	Sets DPDK Driver to bind NIC to.

void	SetLCoreList (std::string lCoreList)
	Sets list of logical cores to use.

void	SetPmdLibrary (std::string pmdLibrary)
	Sets PMD Library to be used for the NIC.

Public Member Functions inherited from ns3::EmuFdNetDeviceHelper
	EmuFdNetDeviceHelper ()
	Construct a EmuFdNetDeviceHelper.

	~EmuFdNetDeviceHelper () override

std::string	GetDeviceName ()
	Get the device name of this device.

void	HostQdiscBypass (bool hostQdiscBypass)
	Request host qdisc bypass.

void	SetDeviceName (std::string deviceName)
	Set the device name of this device.

Public Member Functions inherited from ns3::FdNetDeviceHelper
	FdNetDeviceHelper ()
	Construct a FdNetDeviceHelper.

	~FdNetDeviceHelper () override

virtual NetDeviceContainer	Install (const NodeContainer &c) const
	This method creates a FdNetDevice and associates it to a node.

virtual NetDeviceContainer	Install (Ptr< Node > node) const
	This method creates a FdNetDevice and associates it to a node.

virtual NetDeviceContainer	Install (std::string name) const
	This method creates a FdNetDevice and associates it to a node.

void	SetAttribute (std::string n1, const AttributeValue &v1)

void	SetTypeId (std::string type)
	Set the TypeId of the Objects to be created by this helper.

Public Member Functions inherited from ns3::PcapHelperForDevice
	PcapHelperForDevice ()
	Construct a PcapHelperForDevice.

virtual	~PcapHelperForDevice ()
	Destroy a PcapHelperForDevice.

void	EnablePcap (std::string prefix, NetDeviceContainer d, bool promiscuous=false)
	Enable pcap output on each device in the container which is of the appropriate type.

void	EnablePcap (std::string prefix, NodeContainer n, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the nodes provided in the container.

void	EnablePcap (std::string prefix, Ptr< NetDevice > nd, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device.

void	EnablePcap (std::string prefix, std::string ndName, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device using a device previously named using the ns-3 object name service.

void	EnablePcap (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool promiscuous=false)
	Enable pcap output on the device specified by a global node-id (of a previously created node) and associated device-id.

void	EnablePcapAll (std::string prefix, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.

virtual void	EnablePcapInternal (std::string prefix, Ptr< NetDevice > nd, bool promiscuous, bool explicitFilename)=0
	Enable pcap output the indicated net device.

Public Member Functions inherited from ns3::AsciiTraceHelperForDevice
	AsciiTraceHelperForDevice ()
	Construct an AsciiTraceHelperForDevice.

virtual	~AsciiTraceHelperForDevice ()
	Destroy an AsciiTraceHelperForDevice.

void	EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type.

void	EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container.

void	EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd)
	Enable ascii trace output on the indicated net device.

void	EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service.

void	EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id.

void	EnableAscii (std::string prefix, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type.

void	EnableAscii (std::string prefix, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container.

void	EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false)
	Enable ascii trace output on the indicated net device.

void	EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service.

void	EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id.

void	EnableAsciiAll (Ptr< OutputStreamWrapper > stream)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.

void	EnableAsciiAll (std::string prefix)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.

virtual void	EnableAsciiInternal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< NetDevice > nd, bool explicitFilename)=0
	Enable ascii trace output on the indicated net device.

Protected Member Functions
Ptr< NetDevice >	InstallPriv (Ptr< Node > node) const override
	This method creates an ns3::FdNetDevice attached to a physical network interface.

Protected Member Functions inherited from ns3::EmuFdNetDeviceHelper
virtual int	CreateFileDescriptor () const
	Call out to a separate process running as suid root in order to get a raw socket.

Ptr< NetDevice >	InstallPriv (Ptr< Node > node) const override
	This method creates an ns3::FdNetDevice attached to a physical network interface.

virtual void	SetFileDescriptor (Ptr< FdNetDevice > device) const
	Sets a file descriptor on the FileDescriptorNetDevice.

virtual Ptr< NetDevice >	InstallPriv (Ptr< Node > node) const
	This method creates an ns3::FdNetDevice and associates it to a node.

Protected Attributes
std::string	m_dpdkDriver
	DPDK Driver to bind NIC to.

std::string	m_lCoreList
	Logical cores to use.

std::string	m_pmdLibrary
	PMD Library to be used for NIC.

Protected Attributes inherited from ns3::EmuFdNetDeviceHelper
std::string	m_deviceName
	The Unix/Linux name of the underlying device (e.g., eth0)

bool	m_hostQdiscBypass
	True if request host qdisc bypass.

Detailed Description

build a DpdkNetDevice object attached to a physical network interface

Definition at line 35 of file dpdk-net-device-helper.h.

Constructor & Destructor Documentation

◆ DpdkNetDeviceHelper()

ns3::DpdkNetDeviceHelper::DpdkNetDeviceHelper ( )

Construct a DpdkNetDeviceHelper and initialize DPDK EAL.

Definition at line 30 of file dpdk-net-device-helper.cc.

References NS_LOG_FUNCTION, and ns3::FdNetDeviceHelper::SetTypeId().

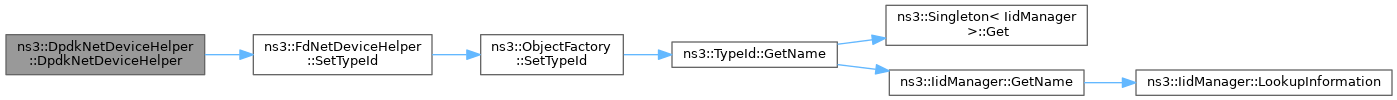

Here is the call graph for this function:

◆ ~DpdkNetDeviceHelper()

ns3::DpdkNetDeviceHelper::~DpdkNetDeviceHelper ( )

inlineoverride

Definition at line 43 of file dpdk-net-device-helper.h.

Member Function Documentation

◆ InstallPriv()

Ptr< NetDevice > ns3::DpdkNetDeviceHelper::InstallPriv ( Ptr< Node > node ) const

overrideprotectedvirtual

This method creates an ns3::FdNetDevice attached to a physical network interface.

Parameters

node	The node to install the device in

Returns: A container holding the added net device.

Reimplemented from ns3::FdNetDeviceHelper.

Definition at line 58 of file dpdk-net-device-helper.cc.

References ns3::FdNetDeviceHelper::InstallPriv(), ns3::EmuFdNetDeviceHelper::m_deviceName, m_dpdkDriver, m_lCoreList, m_pmdLibrary, and NS_LOG_FUNCTION.

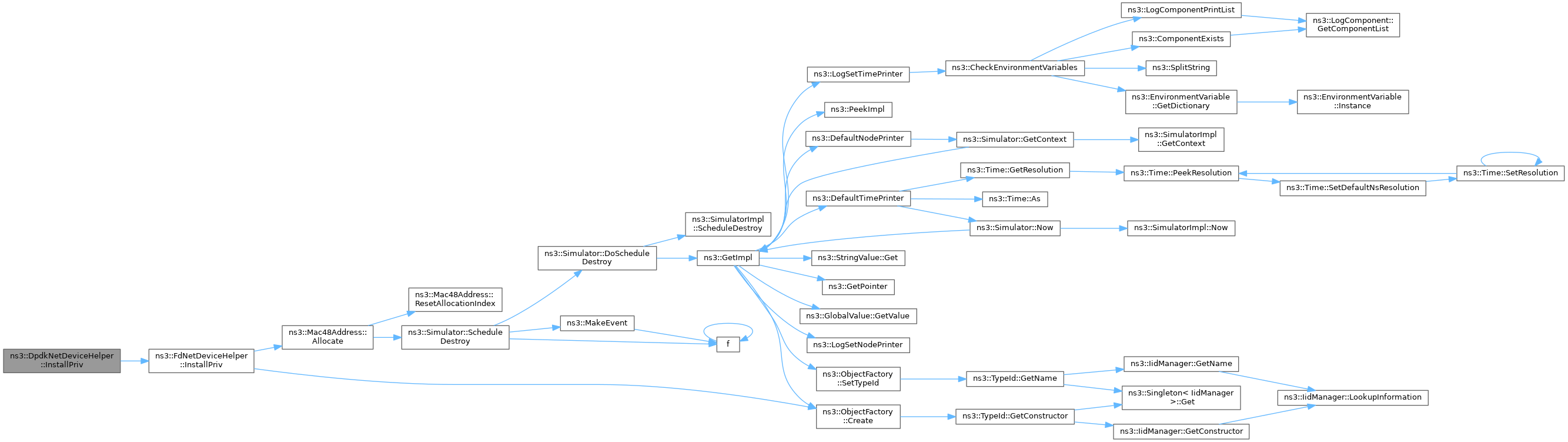

Here is the call graph for this function:

◆ SetDpdkDriver()

void ns3::DpdkNetDeviceHelper::SetDpdkDriver ( std::string dpdkDriver )

Sets DPDK Driver to bind NIC to.

Parameters

dpdkDriver The DPDK Driver

Definition at line 52 of file dpdk-net-device-helper.cc.

References m_dpdkDriver.

◆ SetLCoreList()

void ns3::DpdkNetDeviceHelper::SetLCoreList ( std::string lCoreList )

Sets list of logical cores to use.

Parameters

lCoreList Comma separated logical core list (e.g., "0,1")

Definition at line 40 of file dpdk-net-device-helper.cc.

References m_lCoreList.

◆ SetPmdLibrary()

void ns3::DpdkNetDeviceHelper::SetPmdLibrary ( std::string pmdLibrary )

Sets PMD Library to be used for the NIC.

Parameters

pmdLibrary The PMD Library

Definition at line 46 of file dpdk-net-device-helper.cc.

References m_pmdLibrary.

Member Data Documentation

◆ m_dpdkDriver

std::string ns3::DpdkNetDeviceHelper::m_dpdkDriver

protected

DPDK Driver to bind NIC to.

Definition at line 91 of file dpdk-net-device-helper.h.

Referenced by InstallPriv(), and SetDpdkDriver().

◆ m_lCoreList

std::string ns3::DpdkNetDeviceHelper::m_lCoreList

protected

Logical cores to use.

Definition at line 81 of file dpdk-net-device-helper.h.

Referenced by InstallPriv(), and SetLCoreList().

◆ m_pmdLibrary

std::string ns3::DpdkNetDeviceHelper::m_pmdLibrary

protected

PMD Library to be used for NIC.

Definition at line 86 of file dpdk-net-device-helper.h.

Referenced by InstallPriv(), and SetPmdLibrary().

The documentation for this class was generated from the following files:

src/fd-net-device/helper/dpdk-net-device-helper.h
src/fd-net-device/helper/dpdk-net-device-helper.cc
