NetAnimExperiment Class Reference

Helper class for UAN CW MAC example. More...

#include "uan-animation.h"

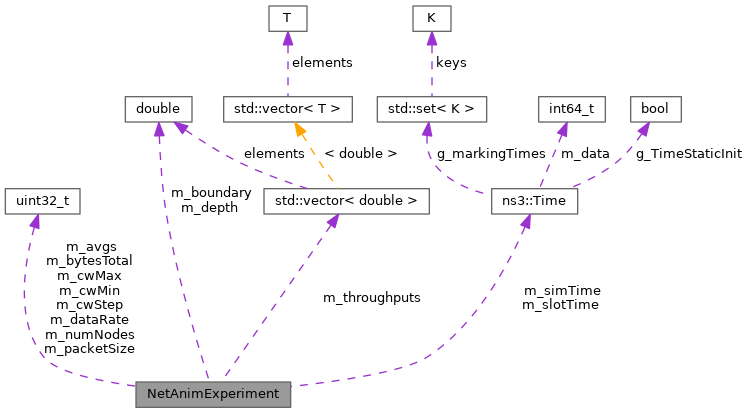

Collaboration diagram for NetAnimExperiment:

Public Member Functions
	NetAnimExperiment ()
	the experiment
void	IncrementCw (uint32_t cw)
	Increment CW function.
void	ReceivePacket (Ptr< Socket > socket)
	Receive packet function.
void	ResetData ()
	Reset data function.
void	Run (UanHelper &uan)
	Run function.
void	UpdatePositions (NodeContainer &nodes) const
	Update positions function.

Public Attributes
uint32_t	m_avgs
	averages
double	m_boundary
	boundary
uint32_t	m_bytesTotal
	bytes total
uint32_t	m_cwMax
	CW maximum.
uint32_t	m_cwMin
	CW minimum.
uint32_t	m_cwStep
	CW step.
uint32_t	m_dataRate
	data rate
double	m_depth
	depth
uint32_t	m_numNodes
	number of nodes
uint32_t	m_packetSize
	packet size
Time	m_simTime
	simulation time
Time	m_slotTime
	slot time
std::vector< double >	m_throughputs
	throughputs

Detailed Description

Helper class for UAN CW MAC example.

Definition at line 33 of file uan-animation.h.

Constructor & Destructor Documentation

NetAnimExperiment()

NetAnimExperiment::NetAnimExperiment

(

)

the experiment

Definition at line 53 of file uan-animation.cc.

Member Function Documentation

IncrementCw()

void NetAnimExperiment::IncrementCw

(

uint32_t

cw

)

Increment CW function.

Parameters

cw

the CW

Definition at line 78 of file uan-animation.cc.

References ns3::RngSeedManager::GetRun(), m_avgs, m_cwStep, m_throughputs, NS_ASSERT, NS_LOG_DEBUG, ns3::Config::Set(), and ns3::RngSeedManager::SetRun().

Referenced by Run().

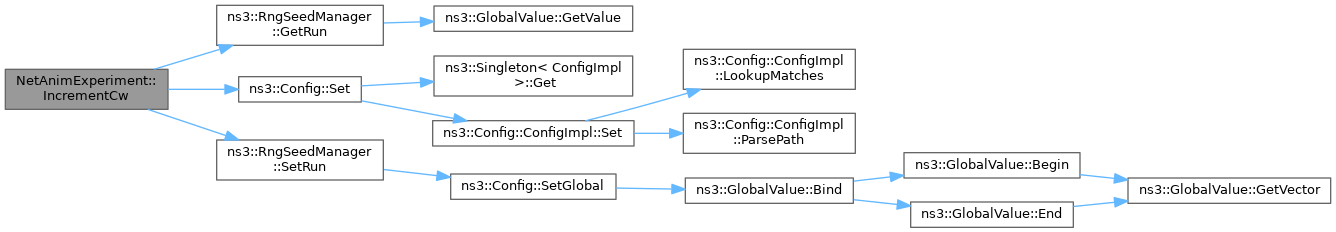

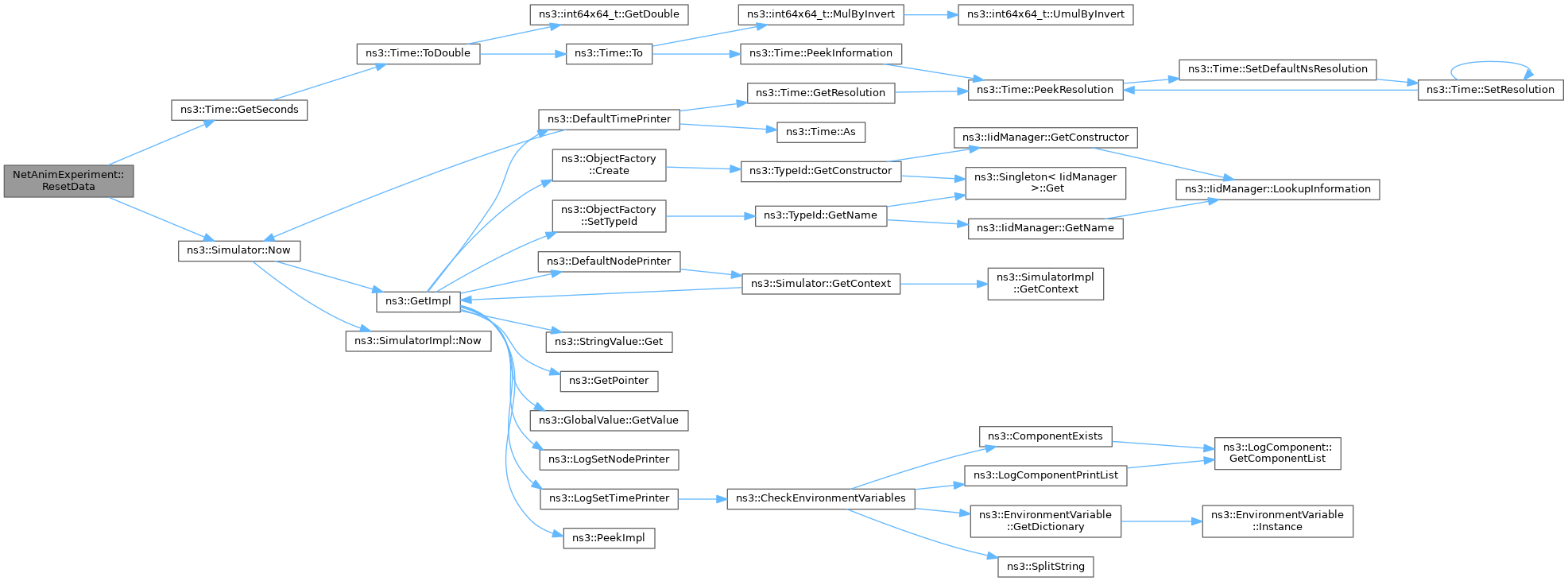

Here is the call graph for this function:

Here is the caller graph for this function:

ReceivePacket()

void NetAnimExperiment::ReceivePacket

(

Ptr< Socket >

socket

)

Receive packet function.

Parameters

socket

the socket to receive from

Definition at line 113 of file uan-animation.cc.

References m_bytesTotal.

Referenced by Run().

Here is the caller graph for this function:

ResetData()

void NetAnimExperiment::ResetData

(

)

Reset data function.

Definition at line 70 of file uan-animation.cc.

References ns3::Time::GetSeconds(), m_bytesTotal, m_simTime, m_throughputs, ns3::Simulator::Now(), NS_LOG_DEBUG, and ns3::Time::S.

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

Run()

void NetAnimExperiment::Run

(

UanHelper &

uan

)

Run function.

Parameters

uan	the UAN helper

Definition at line 125 of file uan-animation.cc.

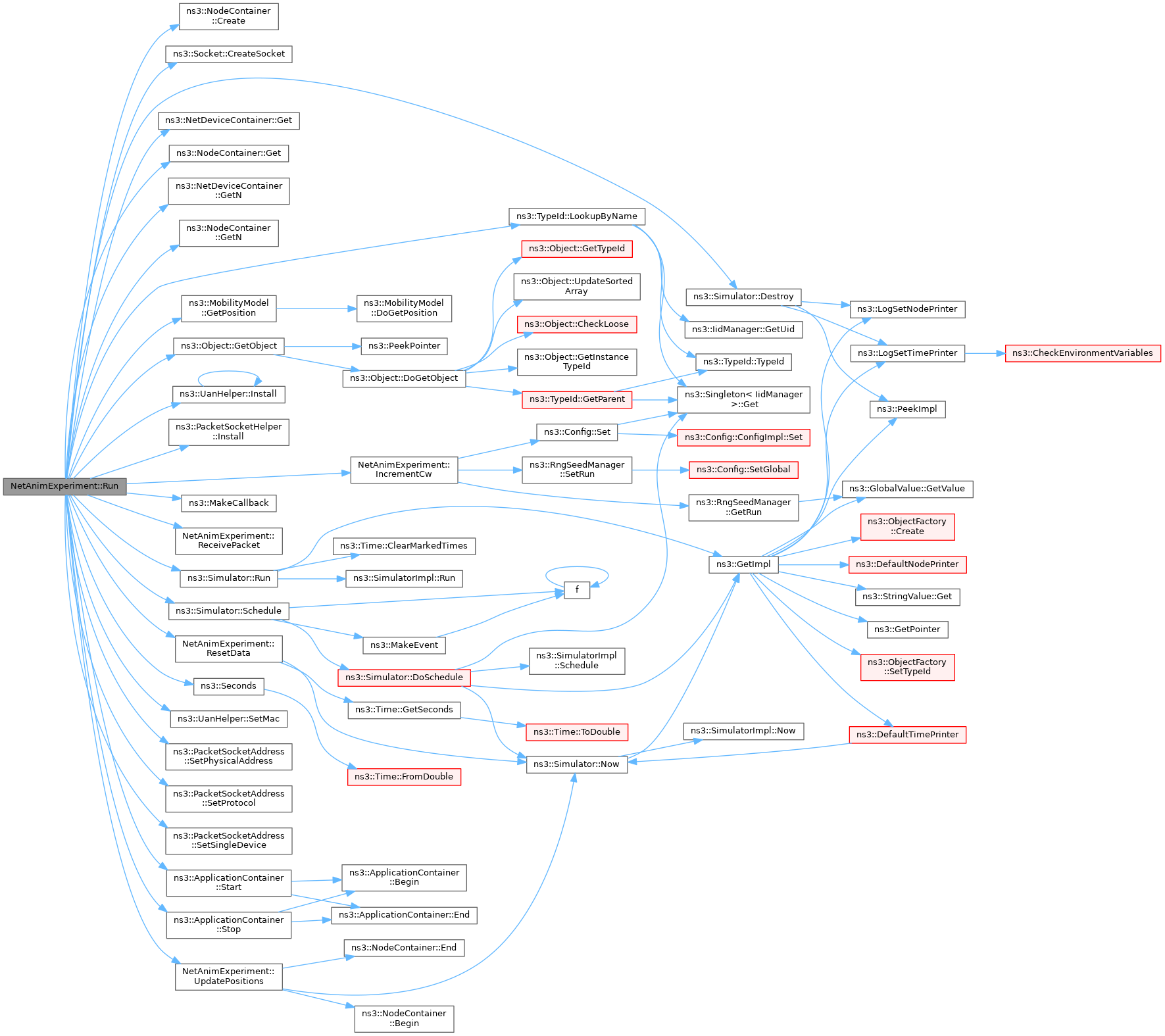

References anim, ns3::NodeContainer::Create(), ns3::Socket::CreateSocket(), ns3::Simulator::Destroy(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::NetDeviceContainer::GetN(), ns3::NodeContainer::GetN(), ns3::Object::GetObject(), ns3::MobilityModel::GetPosition(), IncrementCw(), ns3::UanHelper::Install(), ns3::PacketSocketHelper::Install(), ns3::TypeId::LookupByName(), m_avgs, m_boundary, m_bytesTotal, m_cwMax, m_cwMin, m_cwStep, m_dataRate, m_depth, m_numNodes, m_packetSize, m_simTime, m_slotTime, ns3::MakeCallback(), NS_LOG_DEBUG, ReceivePacket(), ResetData(), ns3::Simulator::Run(), ns3::Simulator::Schedule(), ns3::Seconds(), ns3::UanHelper::SetMac(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::PacketSocketAddress::SetProtocol(), ns3::PacketSocketAddress::SetSingleDevice(), sink, ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), and UpdatePositions().

Here is the call graph for this function:

UpdatePositions()

void NetAnimExperiment::UpdatePositions

(

NodeContainer &

nodes

)

const

Update positions function.

Parameters

nodes

the collection of nodes

Definition at line 98 of file uan-animation.cc.

References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), m_boundary, nodes, ns3::Simulator::Now(), NS_LOG_DEBUG, and ns3::Time::S.

Referenced by Run().

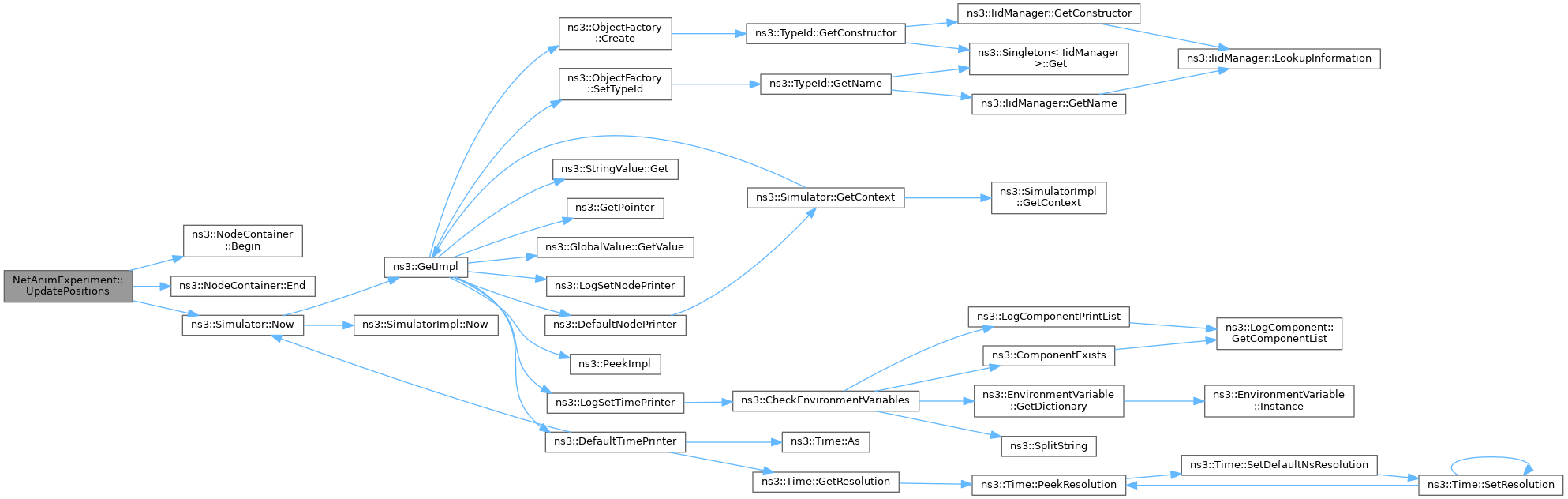

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_avgs

uint32_t NetAnimExperiment::m_avgs

averages

Definition at line 67 of file uan-animation.h.

Referenced by IncrementCw(), and Run().

m_boundary

double NetAnimExperiment::m_boundary

boundary

Definition at line 61 of file uan-animation.h.

Referenced by Run(), and UpdatePositions().

m_bytesTotal

uint32_t NetAnimExperiment::m_bytesTotal

bytes total

Definition at line 63 of file uan-animation.h.

Referenced by ReceivePacket(), ResetData(), and Run().

m_cwMax

uint32_t NetAnimExperiment::m_cwMax

CW maximum.

Definition at line 65 of file uan-animation.h.

Referenced by Run().

m_cwMin

uint32_t NetAnimExperiment::m_cwMin

CW minimum.

Definition at line 64 of file uan-animation.h.

Referenced by Run().

m_cwStep

uint32_t NetAnimExperiment::m_cwStep

CW step.

Definition at line 66 of file uan-animation.h.

Referenced by IncrementCw(), and Run().

m_dataRate

uint32_t NetAnimExperiment::m_dataRate

data rate

Definition at line 59 of file uan-animation.h.

Referenced by Run().

m_depth

double NetAnimExperiment::m_depth

depth

Definition at line 60 of file uan-animation.h.

Referenced by Run().

m_numNodes

uint32_t NetAnimExperiment::m_numNodes

number of nodes

Definition at line 58 of file uan-animation.h.

Referenced by Run().

m_packetSize

uint32_t NetAnimExperiment::m_packetSize

packet size

Definition at line 62 of file uan-animation.h.

Referenced by Run().

m_simTime

Time NetAnimExperiment::m_simTime

simulation time

Definition at line 70 of file uan-animation.h.

Referenced by ResetData(), and Run().

m_slotTime

Time NetAnimExperiment::m_slotTime

slot time

Definition at line 69 of file uan-animation.h.

Referenced by Run().

m_throughputs

std::vector<double> NetAnimExperiment::m_throughputs

throughputs

Definition at line 72 of file uan-animation.h.

Referenced by IncrementCw(), and ResetData().

---

The documentation for this class was generated from the following files:

• src/netanim/examples/uan-animation.h
• src/netanim/examples/uan-animation.cc
