tid-to-link-mapping-element.h File Reference

#include "ns3/nstime.h"
#include "ns3/wifi-information-element.h"
#include "ns3/wifi-utils.h"
#include <map>
#include <optional>
#include <set>

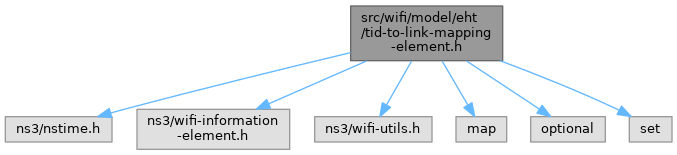

Include dependency graph for tid-to-link-mapping-element.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ns3::TidToLinkMapping::Control
	TID-to-Link Mapping Control subfield IEEE 802.11be D3.1 Figure 9-1002ap. More...
class	ns3::TidToLinkMapping
	TID-to-Link Mapping Information Element. More...

Namespaces
namespace	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Variables
constexpr auto	ns3::DEFAULT_WIFI_TID_LINK_MAP_DIR {WifiDirection::BOTH_DIRECTIONS}
	default value for the Direction subfield of the TID-To-Link Control field
constexpr auto	ns3::DEFAULT_WIFI_TID_LINK_MAPPING {true}
	whether to enforce the default link mapping
constexpr uint16_t	ns3::WIFI_LINK_MAPPING_PRESENCE_IND_SIZE_B = 1
	size in bytes of the Link Mapping Presence Indicator field (IEEE 802.11be D2.0 9.4.2.314)
constexpr uint16_t	ns3::WIFI_TID_TO_LINK_MAPPING_CONTROL_BASIC_SIZE_B
	size in bytes of the TID-To-Link Control field with default link mapping
