ns3::EpcX2SapProvider Class Reference

These service primitives of this part of the X2 SAP are provided by the X2 entity and issued by RRC entity. More...

#include "epc-x2-sap.h"

Inheritance diagram for ns3::EpcX2SapProvider:

Collaboration diagram for ns3::EpcX2SapProvider:

Public Member Functions
	~EpcX2SapProvider () override
virtual void	SendHandoverCancel (HandoverCancelParams params)=0
	Send handover Cancel to the target eNB.
virtual void	SendHandoverPreparationFailure (HandoverPreparationFailureParams params)=0
	Send handover preparation failure function.
virtual void	SendHandoverRequest (HandoverRequestParams params)=0
	Send handover request function.
virtual void	SendHandoverRequestAck (HandoverRequestAckParams params)=0
	Send handover request ack function.
virtual void	SendLoadInformation (LoadInformationParams params)=0
	Send load information function.
virtual void	SendResourceStatusUpdate (ResourceStatusUpdateParams params)=0
	Send resource status update function.
virtual void	SendSnStatusTransfer (SnStatusTransferParams params)=0
	Send SN status transfer function.
virtual void	SendUeContextRelease (UeContextReleaseParams params)=0
	Send UE context release function.
virtual void	SendUeData (UeDataParams params)=0
	Send UE data function.
Public Member Functions inherited from ns3::EpcX2Sap
virtual	~EpcX2Sap ()

Additional Inherited Members
Public Types inherited from ns3::EpcX2Sap
enum	IdCause { HandoverDesirableForRadioReason , TimeCriticalHandover }
	Cause ID enumeration. More...
enum	LoadIndicator { LowLoad , MediumLoad , HighLoad , Overload }
	Load Indicator as it is used in the RESOURCE STATUS UPDATE message. More...
enum	UlInterferenceOverloadIndicationItem { HighInterference , MediumInterference , LowInterference }
	UL Interference OverloadIndication as it is used in the LOAD INFORMATION message. More...
Static Public Attributes inherited from ns3::EpcX2Sap
static const uint16_t	m_maxPdcpSn = 4096
	E-RABs subject to status transfer item as it is used in the SN STATUS TRANSFER message.

Detailed Description

These service primitives of this part of the X2 SAP are provided by the X2 entity and issued by RRC entity.

Definition at line 358 of file epc-x2-sap.h.

Constructor & Destructor Documentation

~EpcX2SapProvider()

ns3::EpcX2SapProvider::~EpcX2SapProvider ( )

override

Definition at line 34 of file epc-x2-sap.cc.

Member Function Documentation

SendHandoverCancel()

virtual void ns3::EpcX2SapProvider::SendHandoverCancel ( HandoverCancelParams  params )

pure virtual

Send handover Cancel to the target eNB.

Parameters

params

the handover cancel parameters

Implemented in ns3::EpcX2SpecificEpcX2SapProvider< C >.

Referenced by ns3::LteEnbRrc::HandoverLeavingTimeout().

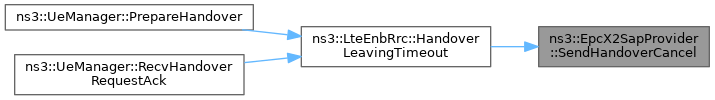

Here is the caller graph for this function:

SendHandoverPreparationFailure()

virtual void ns3::EpcX2SapProvider::SendHandoverPreparationFailure ( HandoverPreparationFailureParams  params )

pure virtual

Send handover preparation failure function.

Parameters

params

the handover preparation failure

Implemented in ns3::EpcX2SpecificEpcX2SapProvider< C >.

Referenced by ns3::LteEnbRrc::DoRecvHandoverRequest(), ns3::LteEnbRrc::DoRecvIdealUeContextRemoveRequest(), and ns3::LteEnbRrc::HandoverJoiningTimeout().

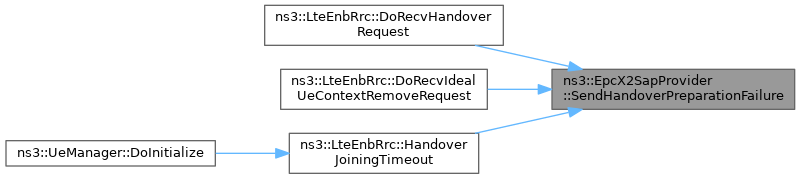

Here is the caller graph for this function:

SendHandoverRequest()

virtual void ns3::EpcX2SapProvider::SendHandoverRequest ( HandoverRequestParams  params )

pure virtual

Send handover request function.

Parameters

params

handover request parameters

Implemented in ns3::EpcX2SpecificEpcX2SapProvider< C >.

SendHandoverRequestAck()

virtual void ns3::EpcX2SapProvider::SendHandoverRequestAck ( HandoverRequestAckParams  params )

pure virtual

Send handover request ack function.

Parameters

params

the handover request ack parameters

Implemented in ns3::EpcX2SpecificEpcX2SapProvider< C >.

Referenced by ns3::LteEnbRrc::DoRecvHandoverRequest().

Here is the caller graph for this function:

SendLoadInformation()

virtual void ns3::EpcX2SapProvider::SendLoadInformation ( LoadInformationParams  params )

pure virtual

Send load information function.

Parameters

params

the load information parameters

Implemented in ns3::EpcX2SpecificEpcX2SapProvider< C >.

Referenced by ns3::LteEnbRrc::DoSendLoadInformation().

Here is the caller graph for this function:

SendResourceStatusUpdate()

virtual void ns3::EpcX2SapProvider::SendResourceStatusUpdate ( ResourceStatusUpdateParams  params )

pure virtual

Send resource status update function.

Parameters

params

the resource statue update parameters

Implemented in ns3::EpcX2SpecificEpcX2SapProvider< C >.

SendSnStatusTransfer()

virtual void ns3::EpcX2SapProvider::SendSnStatusTransfer ( SnStatusTransferParams  params )

pure virtual

Send SN status transfer function.

Parameters

params

the SN status transfer parameters

Implemented in ns3::EpcX2SpecificEpcX2SapProvider< C >.

SendUeContextRelease()

virtual void ns3::EpcX2SapProvider::SendUeContextRelease ( UeContextReleaseParams  params )

pure virtual

Send UE context release function.

Parameters

params

the UE context release parameters

Implemented in ns3::EpcX2SpecificEpcX2SapProvider< C >.

SendUeData()

virtual void ns3::EpcX2SapProvider::SendUeData ( UeDataParams  params )

pure virtual

Send UE data function.

Parameters

params

the UE data parameters

Implemented in ns3::EpcX2SpecificEpcX2SapProvider< C >.

---

The documentation for this class was generated from the following files:

• src/lte/model/epc-x2-sap.h
• src/lte/model/epc-x2-sap.cc
