Simulator

Control the virtual time and the execution of simulation events. More...

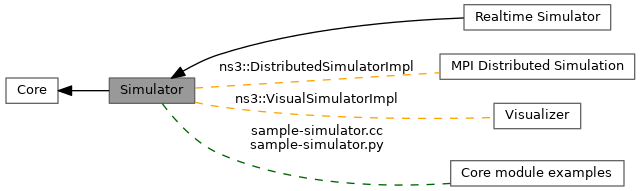

Collaboration diagram for Simulator:

Modules
	Realtime Simulator
	Realtime simulator implementation.

Files
file	default-simulator-impl.cc
	ns3::DefaultSimulatorImpl implementation.
file	default-simulator-impl.h
	ns3::DefaultSimulatorImpl declaration.
file	des-metrics.cc
	ns3::DesMetrics implementation.
file	des-metrics.h
	ns3::DesMetrics declaration.
file	node-printer.cc
	ns3::DefaultNodePrinter implementation.
file	sample-simulator.cc
	Example program demonstrating use of various Schedule functions.
file	sample-simulator.py
	Python example program demonstrating use of various Schedule functions.
file	simulator-impl.cc
	ns3::SimulatorImpl implementation.
file	simulator-impl.h
	ns3::SimulatorImpl declaration.
file	simulator.cc
	ns3::Simulator implementation, as well as implementation pointer, global scheduler implementation.
file	simulator.h
	ns3::Simulator declaration.

Classes
class	ns3::DefaultSimulatorImpl
	The default single process simulator implementation. More...
class	ns3::DesMetrics
	Event trace data collector for the DES Metrics project. More...
class	ns3::DistributedSimulatorImpl
	Distributed simulator implementation using lookahead. More...
class	ns3::Simulator
	Control the scheduling of simulation events. More...
class	ns3::SimulatorImpl
	The SimulatorImpl base class. More...
class	ns3::VisualSimulatorImpl
	A replacement simulator that starts the visualizer. More...

Functions
static SimulatorImpl *	ns3::GetImpl ()
	Get the SimulatorImpl singleton.
Time	ns3::Now ()
	create an ns3::Time instance which contains the current simulation time.
static SimulatorImpl **	ns3::PeekImpl ()
	Get the static SimulatorImpl instance.

Variables
static GlobalValue	ns3::g_simTypeImpl
	The specific simulator implementation to use.

Detailed Description

Control the virtual time and the execution of simulation events.

Function Documentation

GetImpl()

static SimulatorImpl * ns3::GetImpl ( )

static

Get the SimulatorImpl singleton.

Returns

The singleton pointer.

See also

Simulator::GetImplementation()

Definition at line 102 of file simulator.cc.

References ns3::ObjectFactory::Create(), ns3::DefaultNodePrinter(), ns3::DefaultTimePrinter(), ns3::g_schedTypeImpl, ns3::g_simTypeImpl, ns3::StringValue::Get(), ns3::GetPointer(), ns3::GlobalValue::GetValue(), ns3::LogSetNodePrinter(), ns3::LogSetTimePrinter(), ns3::PeekImpl(), and ns3::ObjectFactory::SetTypeId().

Referenced by ns3::Simulator::Cancel(), ns3::Simulator::DoSchedule(), ns3::Simulator::DoScheduleDestroy(), ns3::Simulator::DoScheduleNow(), ns3::Simulator::GetContext(), ns3::Simulator::GetDelayLeft(), ns3::Simulator::GetEventCount(), ns3::Simulator::GetImplementation(), ns3::Simulator::GetMaximumSimulationTime(), ns3::Simulator::GetSystemId(), ns3::Simulator::IsExpired(), ns3::Simulator::IsFinished(), ns3::Simulator::Now(), ns3::Simulator::Remove(), ns3::Simulator::Run(), ns3::Simulator::ScheduleWithContext(), ns3::Simulator::SetScheduler(), and ns3::Simulator::Stop().

Here is the call graph for this function:

Here is the caller graph for this function:

Now()

Time ns3::Now

(

)

create an ns3::Time instance which contains the current simulation time.

This is really a shortcut for the ns3::Simulator::Now method. It is typically used as shown below to schedule an event which expires at the absolute time "2 seconds":

Simulator::Schedule (Seconds (2.0) - Now (), &my_function);

Returns

The current simulation time.

Definition at line 296 of file simulator.cc.

References ns3::Simulator::Now().

Referenced by ChannelAccessManagerTest< TxopType >::AddAccessRequestWithAckTimeout(), ChannelAccessManagerTest< TxopType >::AddAccessRequestWithSuccessfulAck(), ChannelAccessManagerTest< TxopType >::AddAckTimeoutReset(), ChannelAccessManagerTest< TxopType >::AddCcaBusyEvt(), ChannelAccessManagerTest< TxopType >::AddNavReset(), ChannelAccessManagerTest< TxopType >::AddNavStart(), ChannelAccessManagerTest< TxopType >::AddRxErrorEvt(), ChannelAccessManagerTest< TxopType >::AddRxInsideSifsEvt(), ChannelAccessManagerTest< TxopType >::AddRxOkEvt(), ChannelAccessManagerTest< TxopType >::AddRxStartEvt(), ChannelAccessManagerTest< TxopType >::AddSwitchingEvt(), ChannelAccessManagerTest< TxopType >::AddTxEvt(), ns3::UanMacRc::Associate(), ns3::ThreeGppChannelModel::CalcAttenuationOfBlockage(), ns3::UanPhyCalcSinrDual::CalcSinrDb(), ns3::WifiRemoteStationInfo::CalculateAveragingCoefficient(), ns3::ThreeGppChannelModel::ChannelParamsNeedsUpdate(), ns3::LteInterference::ConditionallyEvaluateChunk(), ns3::SpectrumInterference::ConditionallyEvaluateChunk(), ns3::SpectrumInterference::DoAddSignal(), ns3::PieQueueDisc::DoDequeue(), ns3::PieQueueDisc::DoEnqueue(), ns3::SpectrumInterference::DoSubtractSignal(), ns3::UanMacRcGw::EndCycle(), ns3::UanMacCw::EndTx(), ns3::UanMacAloha::Enqueue(), ns3::UanMacCw::Enqueue(), ChannelAccessManagerTest< TxopType >::ExpectBusy(), ns3::Watchdog::Expire(), ns3::UanMacRcGw::FindOptA(), ns3::JakesProcess::GetComplexGain(), ns3::UanMacCw::NotifyCcaEnd(), ns3::UanMacCw::NotifyCcaStart(), ns3::UanMacCw::NotifyRxEndError(), ns3::UanMacCw::NotifyRxEndOk(), ns3::UanMacCw::NotifyRxStart(), ns3::UanMacCw::NotifyTxStart(), SimulatorEventsTestCase::NowUs(), ns3::Watchdog::Ping(), ns3::NixVectorRouting< T >::PrintRoutingPath(), ns3::NixVectorRouting< T >::PrintRoutingTable(), ns3::aodv::RoutingProtocol::PrintRoutingTable(), ns3::dsdv::RoutingProtocol::PrintRoutingTable(), ns3::Ipv4GlobalRouting::PrintRoutingTable(), ns3::Ipv4ListRouting::PrintRoutingTable(), ns3::Ipv4StaticRouting::PrintRoutingTable(), ns3::Ipv6ListRouting::PrintRoutingTable(), ns3::Ipv6StaticRouting::PrintRoutingTable(), ns3::Rip::PrintRoutingTable(), ns3::RipNg::PrintRoutingTable(), ns3::olsr::RoutingProtocol::PrintRoutingTable(), ns3::UanMacRc::ProcessAck(), ns3::UanTransducerHd::Receive(), ns3::UanMacRc::ReceiveOkFromPhy(), ns3::UanMacRcGw::ReceivePacket(), Experiment::ResetData(), ns3::UanMacRc::RtsTimeout(), ns3::UanPhyDual::RxOkFromSubPhy(), ns3::UanMacCw::SaveTimer(), ns3::UanMacRc::ScheduleData(), ns3::UanMacCw::SendPacket(), ns3::UanPhyDual::SendPacket(), ns3::UanMacRcGw::SendPacket(), ns3::UanMacRc::SendPacket(), ns3::WaveformGenerator::Start(), ns3::Ping::StartApplication(), ns3::UanMacRcGw::StartCycle(), ns3::SpectrumInterference::StartRx(), ns3::LteInterference::StartRx(), ns3::UanMacCw::StartTimer(), TraceFirstCwnd(), TraceFirstDctcp(), TraceFirstThroughput(), TraceThroughput(), WaveformGeneratorTestCase::TraceWave(), ns3::SpectrumAnalyzer::UpdateEnergyReceivedSoFar(), Experiment::UpdatePositions(), and ns3::WriteAveragePowerSpectralDensityReport().

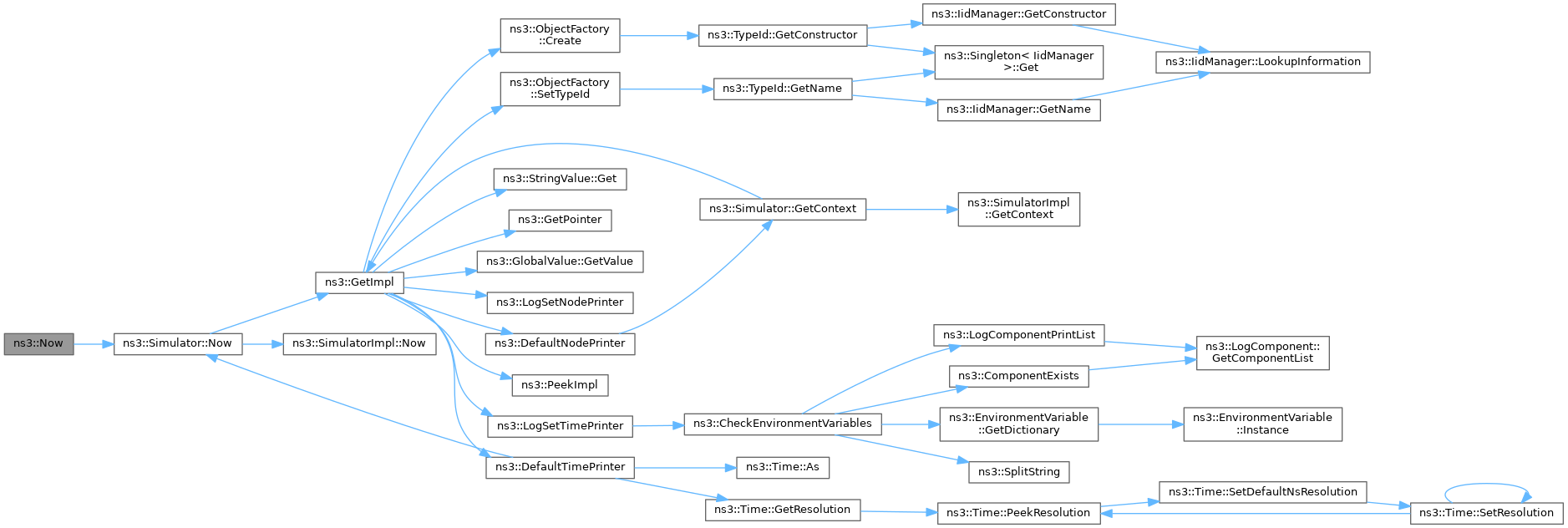

Here is the call graph for this function:

PeekImpl()

static SimulatorImpl ** ns3::PeekImpl ( )

static

Get the static SimulatorImpl instance.

Returns

The SimulatorImpl instance pointer.

Definition at line 89 of file simulator.cc.

Referenced by ns3::Simulator::Cancel(), ns3::Simulator::Destroy(), ns3::GetImpl(), ns3::Simulator::GetSystemId(), ns3::Simulator::IsExpired(), ns3::Simulator::Remove(), and ns3::Simulator::SetImplementation().

Here is the caller graph for this function:

Variable Documentation

g_simTypeImpl

GlobalValue ns3::g_simTypeImpl

static

Initial value:

=
    GlobalValue("SimulatorImplementationType",
                "The object class to use as the simulator implementation",
                StringValue("ns3::DefaultSimulatorImpl"),
                MakeStringChecker())

The specific simulator implementation to use.

Must be derived from SimulatorImpl.

Definition at line 64 of file simulator.cc.

Referenced by ns3::GetImpl().
