wifi-simple-infra.cc File Reference

#include "ns3/command-line.h"
#include "ns3/config.h"
#include "ns3/double.h"
#include "ns3/internet-stack-helper.h"
#include "ns3/ipv4-address-helper.h"
#include "ns3/log.h"
#include "ns3/mobility-helper.h"
#include "ns3/mobility-model.h"
#include "ns3/ssid.h"
#include "ns3/string.h"
#include "ns3/yans-wifi-channel.h"
#include "ns3/yans-wifi-helper.h"

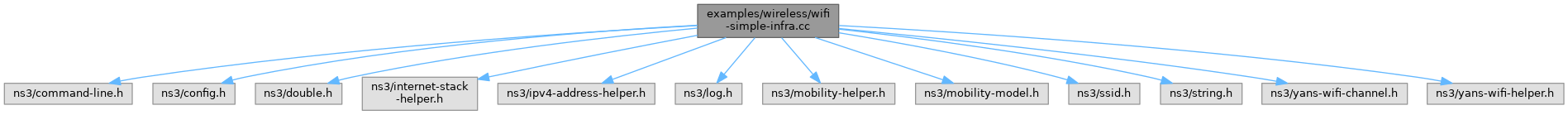

Include dependency graph for wifi-simple-infra.cc:

Go to the source code of this file.

Functions
static void	GenerateTraffic (Ptr< Socket > socket, uint32_t pktSize, uint32_t pktCount, Time pktInterval)
	Generate traffic.
void	ReceivePacket (Ptr< Socket > socket)
	Function called when a packet is received.

Detailed Description

Usage

$ ./ns3 run "wifi-simple-infra [Program Options]"

Program Options

--phyMode

Wifi Phy mode [DsssRate1Mbps]

--rss

received signal strength [-80]

--packetSize

size of application packet sent [1000]

--numPackets

number of packets generated [1]

--interval

interval between packets [+1s]

--verbose

turn on all WifiNetDevice log components [false]

Definition in file wifi-simple-infra.cc.

Function Documentation

GenerateTraffic()

static void GenerateTraffic ( Ptr< Socket >  socket, uint32_t  pktSize, uint32_t  pktCount, Time  pktInterval  )

static

Generate traffic.

Parameters

socket	The sending socket.
pktSize	The packet size.
pktCount	The packet count.
pktInterval	The interval between two packets.

Definition at line 123 of file wifi-simple-infra.cc.

References GenerateTraffic(), NS_LOG_INFO, pktSize, and ns3::Simulator::Schedule().

Referenced by GenerateTraffic().

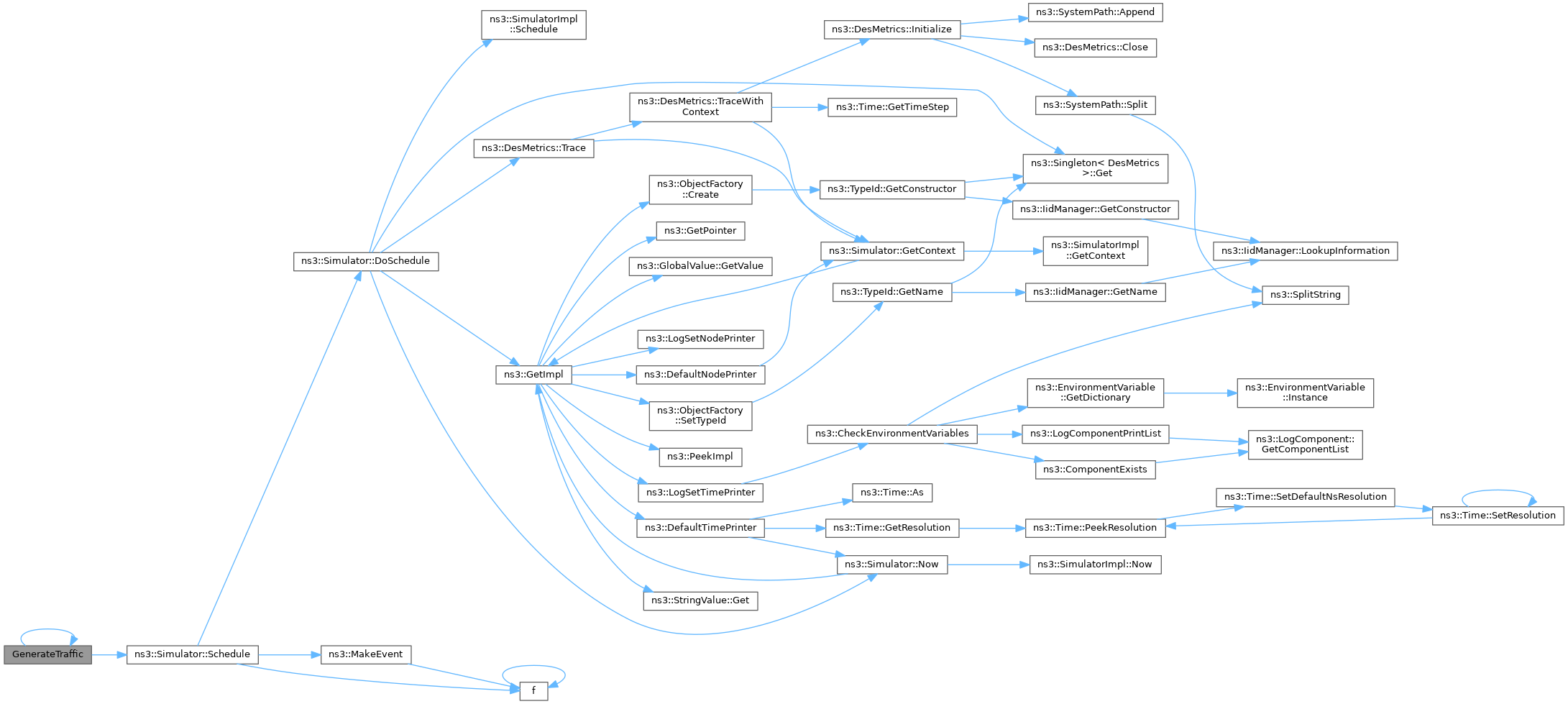

Here is the call graph for this function:

Here is the caller graph for this function:

ReceivePacket()

void ReceivePacket

(

Ptr< Socket >

socket

)

Function called when a packet is received.

Parameters

socket

The receiving socket.

Definition at line 106 of file wifi-simple-infra.cc.
