ns3::RipRoutingTableEntry Class Reference

Rip Routing Table Entry. More...

#include "rip.h"

Inheritance diagram for ns3::RipRoutingTableEntry:

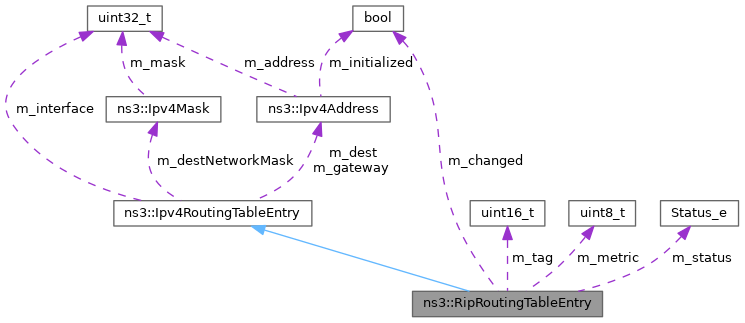

Collaboration diagram for ns3::RipRoutingTableEntry:

Public Types
enum	Status_e { RIP_VALID , RIP_INVALID }
	Route status. More...

Public Member Functions
	RipRoutingTableEntry ()
	RipRoutingTableEntry (Ipv4Address network, Ipv4Mask networkPrefix, Ipv4Address nextHop, uint32_t interface)
	Constructor.
	RipRoutingTableEntry (Ipv4Address network, Ipv4Mask networkPrefix, uint32_t interface)
	Constructor.
virtual	~RipRoutingTableEntry ()
uint8_t	GetRouteMetric () const
	Get the route metric.
Status_e	GetRouteStatus () const
	Get the route status.
uint16_t	GetRouteTag () const
	Get the route tag.
bool	IsRouteChanged () const
	Get the route changed status.
void	SetRouteChanged (bool changed)
	Set the route as changed.
void	SetRouteMetric (uint8_t routeMetric)
	Set the route metric.
void	SetRouteStatus (Status_e status)
	Set the route status.
void	SetRouteTag (uint16_t routeTag)
	Set the route tag.
Public Member Functions inherited from ns3::Ipv4RoutingTableEntry
	Ipv4RoutingTableEntry ()
	This constructor does nothing.
	Ipv4RoutingTableEntry (const Ipv4RoutingTableEntry &route)
	Copy Constructor.
	Ipv4RoutingTableEntry (const Ipv4RoutingTableEntry *route)
	Copy Constructor.
Ipv4Address	GetDest () const
Ipv4Address	GetDestNetwork () const
Ipv4Mask	GetDestNetworkMask () const
Ipv4Address	GetGateway () const
uint32_t	GetInterface () const
bool	IsDefault () const
bool	IsGateway () const
bool	IsHost () const
bool	IsNetwork () const

Private Attributes
bool	m_changed
	route has been updated
uint8_t	m_metric
	route metric
Status_e	m_status
	route status
uint16_t	m_tag
	route tag

Additional Inherited Members
Static Public Member Functions inherited from ns3::Ipv4RoutingTableEntry
static Ipv4RoutingTableEntry	CreateDefaultRoute (Ipv4Address nextHop, uint32_t interface)
static Ipv4RoutingTableEntry	CreateHostRouteTo (Ipv4Address dest, Ipv4Address nextHop, uint32_t interface)
static Ipv4RoutingTableEntry	CreateHostRouteTo (Ipv4Address dest, uint32_t interface)
static Ipv4RoutingTableEntry	CreateNetworkRouteTo (Ipv4Address network, Ipv4Mask networkMask, Ipv4Address nextHop, uint32_t interface)
static Ipv4RoutingTableEntry	CreateNetworkRouteTo (Ipv4Address network, Ipv4Mask networkMask, uint32_t interface)

Detailed Description

Rip Routing Table Entry.

Definition at line 64 of file rip.h.

Member Enumeration Documentation

Status_e

enum ns3::RipRoutingTableEntry::Status_e

Route status.

Enumerator
RIP_VALID
RIP_INVALID

Definition at line 70 of file rip.h.

Constructor & Destructor Documentation

RipRoutingTableEntry() [1/3]

ns3::RipRoutingTableEntry::RipRoutingTableEntry

(

)

Definition at line 1409 of file rip.cc.

RipRoutingTableEntry() [2/3]

ns3::RipRoutingTableEntry::RipRoutingTableEntry	(	Ipv4Address	network,
		Ipv4Mask	networkPrefix,
		Ipv4Address	nextHop,
		uint32_t	interface
	)

Constructor.

Parameters

network	network address
networkPrefix	network prefix
nextHop	next hop address to route the packet
interface	interface index

Definition at line 1417 of file rip.cc.

RipRoutingTableEntry() [3/3]

ns3::RipRoutingTableEntry::RipRoutingTableEntry	(	Ipv4Address	network,
		Ipv4Mask	networkPrefix,
		uint32_t	interface
	)

Constructor.

Parameters

network	network address
networkPrefix	network prefix
interface	interface index

Definition at line 1430 of file rip.cc.

~RipRoutingTableEntry()

ns3::RipRoutingTableEntry::~RipRoutingTableEntry ( )

virtual

Definition at line 1442 of file rip.cc.

Member Function Documentation

GetRouteMetric()

uint8_t ns3::RipRoutingTableEntry::GetRouteMetric

(

)

const

Get the route metric.

Returns

the route metric

Definition at line 1473 of file rip.cc.

References m_metric.

Referenced by ns3::operator<<(), and ns3::Rip::PrintRoutingTable().

Here is the caller graph for this function:

GetRouteStatus()

RipRoutingTableEntry::Status_e ns3::RipRoutingTableEntry::GetRouteStatus

(

)

const

Get the route status.

Returns

the route status

Definition at line 1489 of file rip.cc.

References m_status.

Referenced by ns3::Rip::Lookup(), and ns3::Rip::PrintRoutingTable().

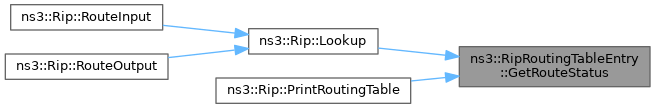

Here is the caller graph for this function:

GetRouteTag()

uint16_t ns3::RipRoutingTableEntry::GetRouteTag

(

)

const

Get the route tag.

Returns

the route tag

Definition at line 1457 of file rip.cc.

References m_tag.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

IsRouteChanged()

bool ns3::RipRoutingTableEntry::IsRouteChanged

(

)

const

Get the route changed status.

Returns

true if route is changed

Definition at line 1501 of file rip.cc.

References m_changed.

SetRouteChanged()

void ns3::RipRoutingTableEntry::SetRouteChanged

(

bool

changed

)

Set the route as changed.

The changed routes are scheduled for a Triggered Update. After a Triggered Update, all the changed flags are cleared from the routing table.

Parameters

changed

true if route is changed

Definition at line 1495 of file rip.cc.

References m_changed.

Referenced by ns3::Rip::InvalidateRoute().

Here is the caller graph for this function:

SetRouteMetric()

void ns3::RipRoutingTableEntry::SetRouteMetric

(

uint8_t

routeMetric

)

Set the route metric.

Parameters

routeMetric

the route metric

Definition at line 1463 of file rip.cc.

References m_changed, and m_metric.

Referenced by ns3::Rip::InvalidateRoute().

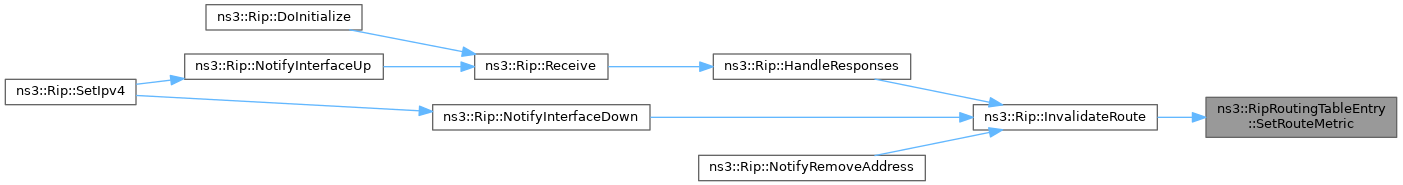

Here is the caller graph for this function:

SetRouteStatus()

void ns3::RipRoutingTableEntry::SetRouteStatus

(

Status_e

status

)

Set the route status.

Parameters

status

the route status

Definition at line 1479 of file rip.cc.

References m_changed, and m_status.

Referenced by ns3::Rip::InvalidateRoute().

Here is the caller graph for this function:

SetRouteTag()

void ns3::RipRoutingTableEntry::SetRouteTag

(

uint16_t

routeTag

)

Set the route tag.

Parameters

routeTag

the route tag

Definition at line 1447 of file rip.cc.

References m_changed, and m_tag.

Member Data Documentation

m_changed

bool ns3::RipRoutingTableEntry::m_changed

private

route has been updated

Definition at line 158 of file rip.h.

Referenced by IsRouteChanged(), SetRouteChanged(), SetRouteMetric(), SetRouteStatus(), and SetRouteTag().

m_metric

uint8_t ns3::RipRoutingTableEntry::m_metric

private

route metric

Definition at line 156 of file rip.h.

Referenced by GetRouteMetric(), and SetRouteMetric().

m_status

Status_e ns3::RipRoutingTableEntry::m_status

private

route status

Definition at line 157 of file rip.h.

Referenced by GetRouteStatus(), and SetRouteStatus().

m_tag

uint16_t ns3::RipRoutingTableEntry::m_tag

private

route tag

Definition at line 155 of file rip.h.

Referenced by GetRouteTag(), and SetRouteTag().

---

The documentation for this class was generated from the following files:

• src/internet/model/rip.h
• src/internet/model/rip.cc
