A record of an IPv4 multicast route for Ipv4GlobalRouting and Ipv4StaticRouting. More...

#include "ipv4-routing-table-entry.h"

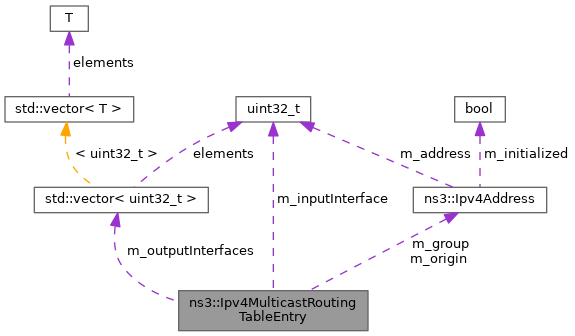

Collaboration diagram for ns3::Ipv4MulticastRoutingTableEntry:

Public Member Functions
	Ipv4MulticastRoutingTableEntry ()
	This constructor does nothing.

	Ipv4MulticastRoutingTableEntry (const Ipv4MulticastRoutingTableEntry &route)
	Copy Constructor.

	Ipv4MulticastRoutingTableEntry (const Ipv4MulticastRoutingTableEntry *route)
	Copy Constructor.

Ipv4Address	GetGroup () const

uint32_t	GetInputInterface () const

uint32_t	GetNOutputInterfaces () const

Ipv4Address	GetOrigin () const

uint32_t	GetOutputInterface (uint32_t n) const

std::vector< uint32_t >	GetOutputInterfaces () const

Static Public Member Functions
static Ipv4MulticastRoutingTableEntry	CreateMulticastRoute (Ipv4Address origin, Ipv4Address group, uint32_t inputInterface, std::vector< uint32_t > outputInterfaces)

Private Member Functions
	Ipv4MulticastRoutingTableEntry (Ipv4Address origin, Ipv4Address group, uint32_t inputInterface, std::vector< uint32_t > outputInterfaces)
	Constructor.

Private Attributes
Ipv4Address	m_group
	destination address

uint32_t	m_inputInterface
	input interface

Ipv4Address	m_origin
	source address

std::vector< uint32_t >	m_outputInterfaces
	output interfaces

Detailed Description

A record of an IPv4 multicast route for Ipv4GlobalRouting and Ipv4StaticRouting.

Definition at line 198 of file ipv4-routing-table-entry.h.

Constructor & Destructor Documentation

◆ Ipv4MulticastRoutingTableEntry() [1/4]

ns3::Ipv4MulticastRoutingTableEntry::Ipv4MulticastRoutingTableEntry ( )

This constructor does nothing.

Definition at line 252 of file ipv4-routing-table-entry.cc.

References NS_LOG_FUNCTION.

Referenced by CreateMulticastRoute().

Here is the caller graph for this function:

◆ Ipv4MulticastRoutingTableEntry() [2/4]

ns3::Ipv4MulticastRoutingTableEntry::Ipv4MulticastRoutingTableEntry ( const Ipv4MulticastRoutingTableEntry & route )

Copy Constructor.

Parameters

route The route to copy

Definition at line 257 of file ipv4-routing-table-entry.cc.

References NS_LOG_FUNCTION.

◆ Ipv4MulticastRoutingTableEntry() [3/4]

ns3::Ipv4MulticastRoutingTableEntry::Ipv4MulticastRoutingTableEntry ( const Ipv4MulticastRoutingTableEntry * route )

Copy Constructor.

Parameters

route The route to copy

Definition at line 267 of file ipv4-routing-table-entry.cc.

References NS_LOG_FUNCTION.

◆ Ipv4MulticastRoutingTableEntry() [4/4]

ns3::Ipv4MulticastRoutingTableEntry::Ipv4MulticastRoutingTableEntry	(	Ipv4Address	origin,
		Ipv4Address	group,
		uint32_t	inputInterface,
		std::vector< uint32_t >	outputInterfaces
	)

private

Constructor.

Parameters

origin	source address
group	destination address
inputInterface	input interface
outputInterfaces	output interfaces

Definition at line 277 of file ipv4-routing-table-entry.cc.

References m_group, m_inputInterface, m_origin, m_outputInterfaces, and NS_LOG_FUNCTION.

Member Function Documentation

◆ CreateMulticastRoute()

Ipv4MulticastRoutingTableEntry ns3::Ipv4MulticastRoutingTableEntry::CreateMulticastRoute	(	Ipv4Address	origin,
		Ipv4Address	group,
		uint32_t	inputInterface,
		std::vector< uint32_t >	outputInterfaces
	)

static

Returns: Ipv4MulticastRoutingTableEntry corresponding to the input parameters.

Parameters

origin	Source address for the multicast route
group	Group destination address for the multicast route
inputInterface	Input interface that multicast datagram must be received on
outputInterfaces	vector of output interfaces to copy and forward the datagram to

Definition at line 336 of file ipv4-routing-table-entry.cc.

References Ipv4MulticastRoutingTableEntry(), and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4StaticRouting::AddMulticastRoute().

Here is the call graph for this function:
