Abstract Channel Base Class. More...

#include "channel.h"

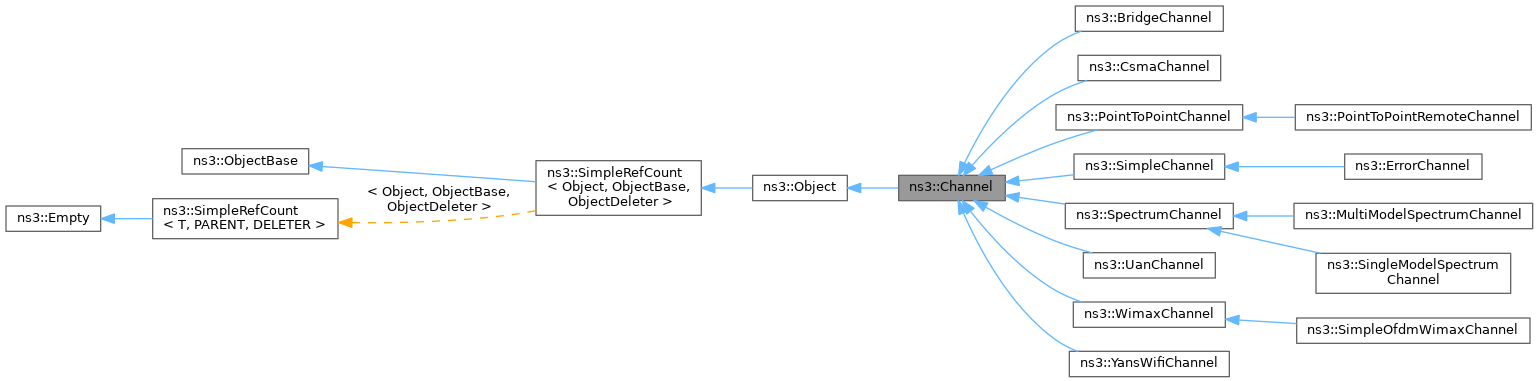

Inheritance diagram for ns3::Channel:

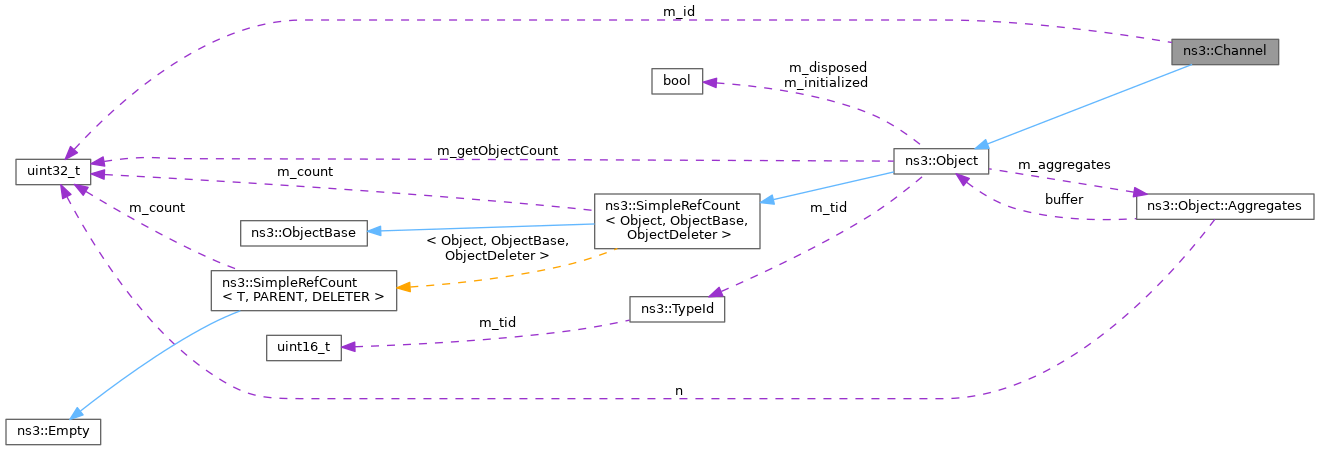

Collaboration diagram for ns3::Channel:

Public Member Functions
	Channel ()

	~Channel () override

virtual Ptr< NetDevice >	GetDevice (std::size_t i) const =0

uint32_t	GetId () const

virtual std::size_t	GetNDevices () const =0

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor.

	~Object () override
	Destructor.

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together.

void	Dispose ()
	Dispose of this Object.

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object.

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object.

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one.

bool	IsInitialized () const
	Check if the object has been initialized.

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Attributes
uint32_t	m_id
	Channel id for this channel.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object.

virtual void	DoDispose ()
	Destructor implementation.

virtual void	DoInitialize ()
	Initialize() implementation.

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

Abstract Channel Base Class.

A channel is a logical path over which information flows. The path can be as simple as a short piece of wire, or as complicated as space-time.

Subclasses must use Simulator::ScheduleWithContext to correctly update event contexts when scheduling an event from one node to another one.

Config Paths

ns3::Channel is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/Channel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/Channel"
"/ChannelList/[i]"

Attributes

Id: The id (unique integer) of this Channel.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Flags: read

No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 44 of file channel.h.

Constructor & Destructor Documentation

◆ Channel()

ns3::Channel::Channel ( )

Definition at line 48 of file channel.cc.

References ns3::ChannelList::Add(), m_id, and NS_LOG_FUNCTION.

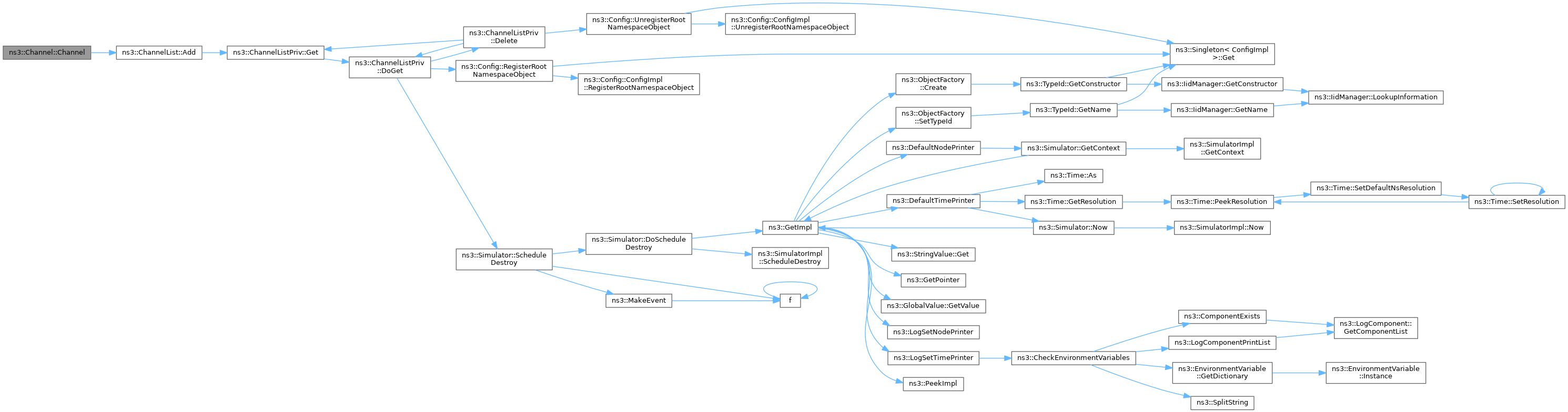

Here is the call graph for this function:

◆ ~Channel()

ns3::Channel::~Channel ( )

override

Definition at line 55 of file channel.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetDevice()

virtual Ptr< NetDevice > ns3::Channel::GetDevice ( std::size_t i ) const

pure virtual

Parameters

i	index of NetDevice to retrieve

Returns: one of the NetDevices connected to this channel.

This method must be implemented by subclasses.

Implemented in ns3::BridgeChannel, ns3::CsmaChannel, ns3::ErrorChannel, ns3::SimpleChannel, ns3::PointToPointChannel, ns3::MultiModelSpectrumChannel, ns3::SingleModelSpectrumChannel, ns3::UanChannel, ns3::YansWifiChannel, and ns3::WimaxChannel.

◆ GetId()

uint32_t ns3::Channel::GetId ( ) const

Returns: the unique id of this channel

This unique id happens to be also the index of the Channel into the ChannelList.

Definition at line 61 of file channel.cc.

References m_id, and NS_LOG_FUNCTION.

◆ GetNDevices()

virtual std::size_t ns3::Channel::GetNDevices ( ) const

pure virtual

Returns: the number of NetDevices connected to this Channel.

This method must be implemented by subclasses.

Implemented in ns3::BridgeChannel, ns3::CsmaChannel, ns3::ErrorChannel, ns3::SimpleChannel, ns3::PointToPointChannel, ns3::MultiModelSpectrumChannel, ns3::SingleModelSpectrumChannel, ns3::UanChannel, ns3::YansWifiChannel, and ns3::WimaxChannel.

◆ GetTypeId()

TypeId ns3::Channel::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 34 of file channel.cc.

References ns3::TypeId::ATTR_GET, m_id, ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

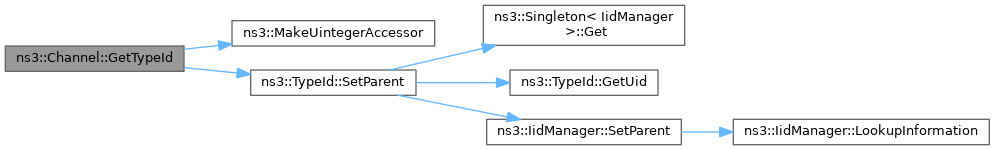

Here is the call graph for this function:

Member Data Documentation

◆ m_id

uint32_t ns3::Channel::m_id

private

Channel id for this channel.

Definition at line 79 of file channel.h.

Referenced by Channel(), GetId(), and GetTypeId().

The documentation for this class was generated from the following files:

src/network/model/channel.h
src/network/model/channel.cc
