ns3::MlmePollRequestParams Struct Reference

MLME-POLL.request params. More...

#include "lr-wpan-mac.h"

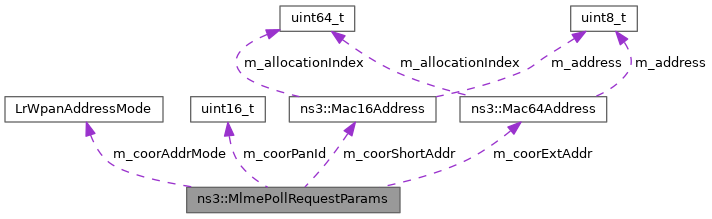

Collaboration diagram for ns3::MlmePollRequestParams:

Public Attributes
LrWpanAddressMode	m_coorAddrMode
	The addressing mode of the coordinator to which the pool is intended.
Mac64Address	m_coorExtAddr
	Coordinator extended address.
uint16_t	m_coorPanId {0}
	The PAN id of the coordinator to which the poll is intended.
Mac16Address	m_coorShortAddr
	Coordinator short address.

Detailed Description

MLME-POLL.request params.

See 802.15.4-2011 Section 6.2.14.1

Definition at line 513 of file lr-wpan-mac.h.

Member Data Documentation

m_coorAddrMode

LrWpanAddressMode ns3::MlmePollRequestParams::m_coorAddrMode

Initial value:

{
        SHORT_ADDR}

The addressing mode of the coordinator to which the pool is intended.

Definition at line 515 of file lr-wpan-mac.h.

m_coorExtAddr

Mac64Address ns3::MlmePollRequestParams::m_coorExtAddr

Coordinator extended address.

Definition at line 519 of file lr-wpan-mac.h.

m_coorPanId

uint16_t ns3::MlmePollRequestParams::m_coorPanId {0}

The PAN id of the coordinator to which the poll is intended.

Definition at line 517 of file lr-wpan-mac.h.

m_coorShortAddr

Mac16Address ns3::MlmePollRequestParams::m_coorShortAddr

Coordinator short address.

Definition at line 518 of file lr-wpan-mac.h.

---

The documentation for this struct was generated from the following file:

• src/lr-wpan/model/lr-wpan-mac.h
