ns3::McsGroup Struct Reference

Data structure to contain the information that defines a group. More...

#include "minstrel-ht-wifi-manager.h"

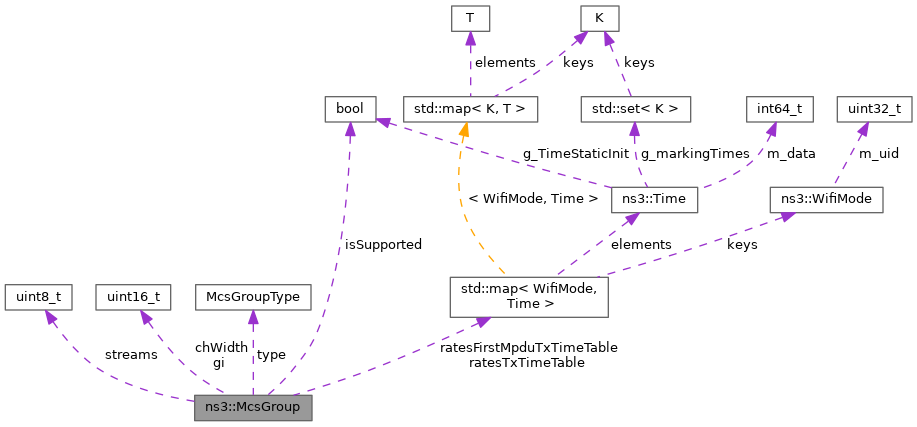

Collaboration diagram for ns3::McsGroup:

Public Attributes
uint16_t	chWidth
	channel width (MHz)
uint16_t	gi
	guard interval duration (nanoseconds)
bool	isSupported
	flag whether group is supported
TxTime	ratesFirstMpduTxTimeTable
	rates MPDU transmit time table
TxTime	ratesTxTimeTable
	rates transmit time table
uint8_t	streams
	number of spatial streams
McsGroupType	type
	identifies the group,

Detailed Description

Data structure to contain the information that defines a group.

It also contains the transmission times for all the MCS in the group. A group is a collection of MCS defined by the number of spatial streams, if it uses or not Short Guard Interval, and the channel width used.

Definition at line 81 of file minstrel-ht-wifi-manager.h.

Member Data Documentation

chWidth

uint16_t ns3::McsGroup::chWidth

channel width (MHz)

Definition at line 85 of file minstrel-ht-wifi-manager.h.

Referenced by ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::StatsDump(), and ns3::MinstrelHtWifiManager::UpdateRateAfterAllowedWidth().

gi

uint16_t ns3::McsGroup::gi

guard interval duration (nanoseconds)

Definition at line 84 of file minstrel-ht-wifi-manager.h.

Referenced by ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::StatsDump(), and ns3::MinstrelHtWifiManager::UpdateRateAfterAllowedWidth().

isSupported

bool ns3::McsGroup::isSupported

flag whether group is supported

Definition at line 87 of file minstrel-ht-wifi-manager.h.

Referenced by ns3::MinstrelHtWifiManager::UpdateRateAfterAllowedWidth().

ratesFirstMpduTxTimeTable

TxTime ns3::McsGroup::ratesFirstMpduTxTimeTable

rates MPDU transmit time table

Definition at line 91 of file minstrel-ht-wifi-manager.h.

ratesTxTimeTable

TxTime ns3::McsGroup::ratesTxTimeTable

rates transmit time table

Definition at line 90 of file minstrel-ht-wifi-manager.h.

streams

uint8_t ns3::McsGroup::streams

number of spatial streams

Definition at line 83 of file minstrel-ht-wifi-manager.h.

Referenced by ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::StatsDump(), and ns3::MinstrelHtWifiManager::UpdateRateAfterAllowedWidth().

type

McsGroupType ns3::McsGroup::type

identifies the group,

See also

McsGroupType

Definition at line 86 of file minstrel-ht-wifi-manager.h.

Referenced by ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::StatsDump(), and ns3::MinstrelHtWifiManager::UpdateRateAfterAllowedWidth().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/rate-control/minstrel-ht-wifi-manager.h
