#include "ns3/basic-energy-source-helper.h"
#include "ns3/command-line.h"
#include "ns3/config.h"
#include "ns3/internet-stack-helper.h"
#include "ns3/ipv4-address-helper.h"
#include "ns3/log.h"
#include "ns3/mobility-helper.h"
#include "ns3/mobility-model.h"
#include "ns3/on-off-helper.h"
#include "ns3/packet-sink-helper.h"
#include "ns3/string.h"
#include "ns3/wifi-net-device.h"
#include "ns3/wifi-radio-energy-model-helper.h"
#include "ns3/wifi-utils.h"
#include "ns3/yans-wifi-channel.h"
#include "ns3/yans-wifi-helper.h"

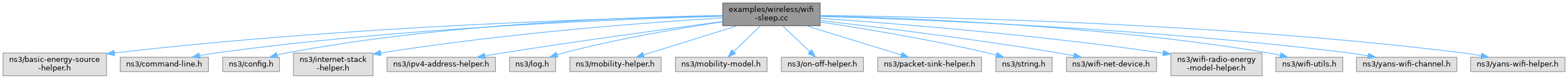

Include dependency graph for wifi-sleep.cc:

Functions
template<int node>
void	PhyStateTrace (std::string context, Time start, Time duration, WifiPhyState state)
	PHY state trace sink.

template<int node>
void	RemainingEnergyTrace (double oldValue, double newValue)
	Remaining energy trace sink.

Detailed Description

Usage

$ ./ns3 run "wifi-sleep [Program Options]"

Program Options

--dataRate: Data rate [1Mbps]
--packetSize: size of application packet sent [1000]
--duration: duration (seconds) of the experiment [10]
--initialEnergy: Initial Energy (Joule) of each node [7.5]
--voltage: Supply voltage (Joule) [3]
--txPowerStart: Minimum available transmission level (dbm) [0]
--txPowerEnd: Maximum available transmission level (dbm) [15]
--nTxPowerLevels: Number of transmission power levels available between txPowerStart and txPowerEnd included [16]
--txPowerLevel: Transmission power level [0]
--idleCurrent: The radio Idle current in Ampere [0.273]
--txCurrent: The radio Tx current in Ampere [0.38]
--verbose: turn on all WifiNetDevice log components [false]

Definition in file wifi-sleep.cc.

Function Documentation

◆ PhyStateTrace()

template<int node>

void PhyStateTrace	(	std::string	context,
		Time	start,
		Time	duration,
		WifiPhyState	state
	)

PHY state trace sink.

Template Parameters

node	The node ID this trace belongs to.

Parameters

context	The context
start	Start time for the current state
duration	Duratio of the current state
state	State

Definition at line 98 of file wifi-sleep.cc.

References f(), ns3::Time::GetSeconds(), and ns3::Simulator::Now().

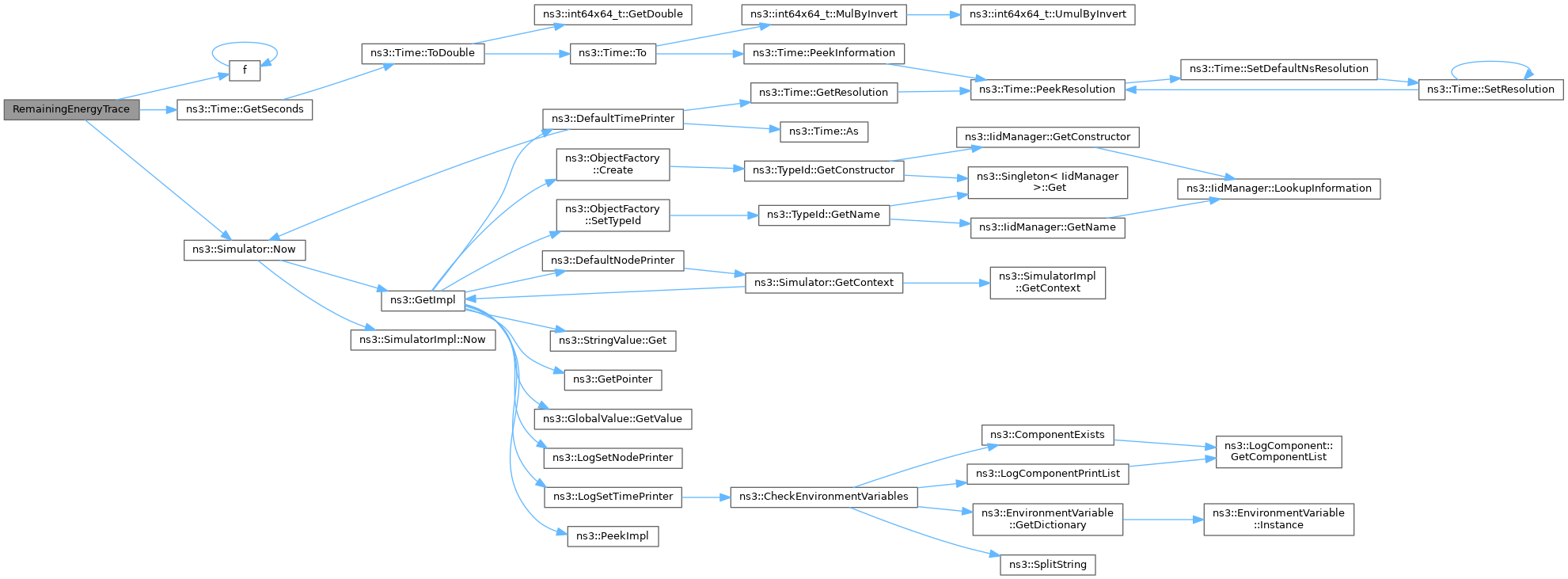

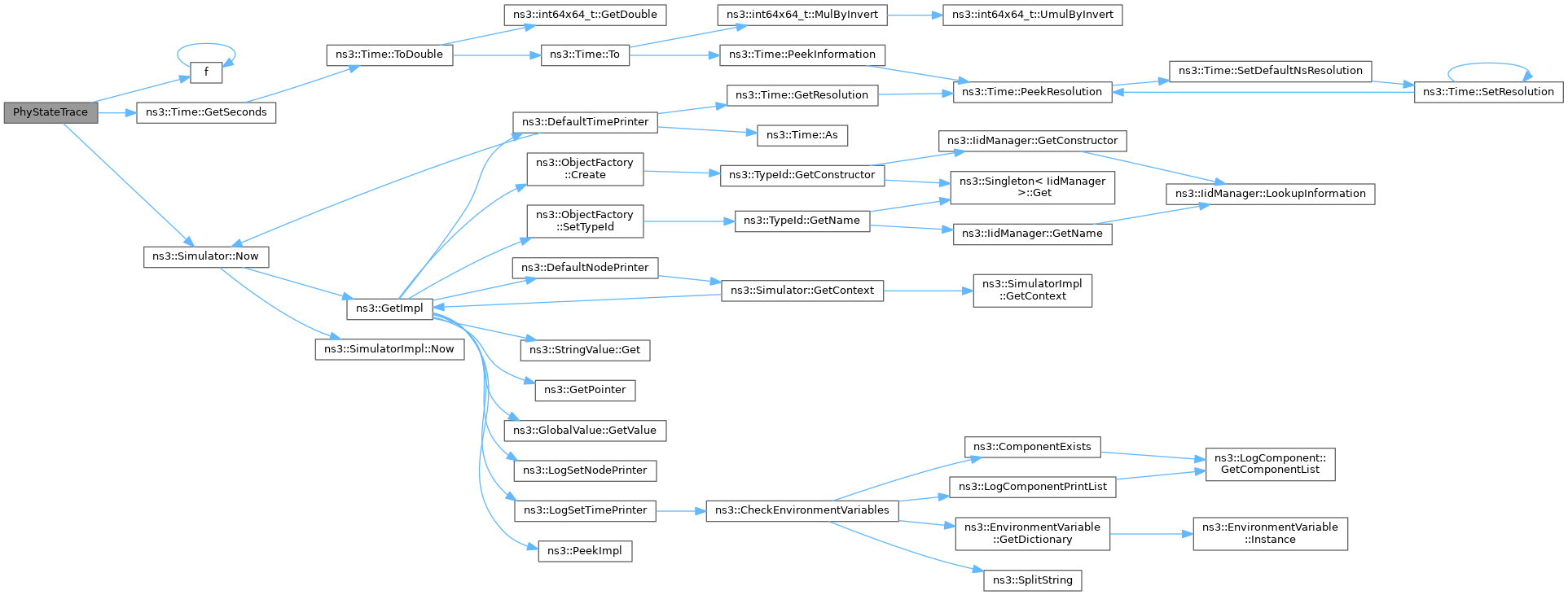

Here is the call graph for this function:

◆ RemainingEnergyTrace()
