wifi-tx-vector.h File Reference

#include "wifi-mode.h"
#include "wifi-phy-common.h"
#include "ns3/he-ru.h"
#include <list>
#include <optional>
#include <set>
#include <vector>

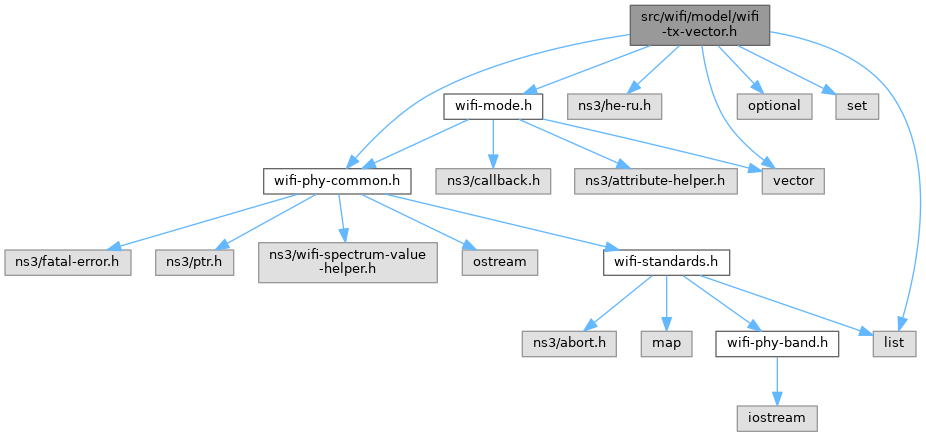

Include dependency graph for wifi-tx-vector.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ns3::HeMuUserInfo
	HE MU specific user transmission parameters. More...
class	ns3::WifiTxVector
	This class mimics the TXVECTOR which is to be passed to the PHY in order to define the parameters which are to be used for a transmission. More...

Namespaces
namespace	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Typedefs
using	ns3::RuAllocation = std::vector< uint8_t >
	8 bit RU_ALLOCATION per 20 MHz

Enumerations
enum	ns3::Center26ToneRuIndication : uint8_t {   ns3::CENTER_26_TONE_RU_UNALLOCATED = 0 , ns3::CENTER_26_TONE_RU_LOW_80_MHZ_ALLOCATED , ns3::CENTER_26_TONE_RU_HIGH_80_MHZ_ALLOCATED , ns3::CENTER_26_TONE_RU_LOW_AND_HIGH_80_MHZ_ALLOCATED ,   ns3::CENTER_26_TONE_RU_INDICATION_MAX }
	Enum for the different values for CENTER_26_TONE_RU. More...

Functions
std::ostream &	ns3::operator<< (std::ostream &os, const WifiTxVector &v)
	Serialize WifiTxVector to the given ostream.

Variables
static constexpr uint16_t	ns3::NO_USER_STA_ID = 2046
	STA_ID for a RU that is intended for no user (Section 26.11.1 802.11ax-2021)
