#include "block-ack-type.h"
#include "ns3/fatal-error.h"
#include "ns3/ptr.h"
#include <list>
#include <map>
#include <set>

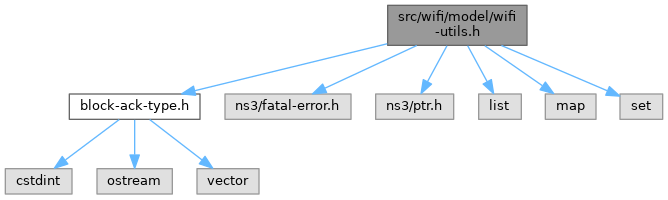

Include dependency graph for wifi-utils.h:

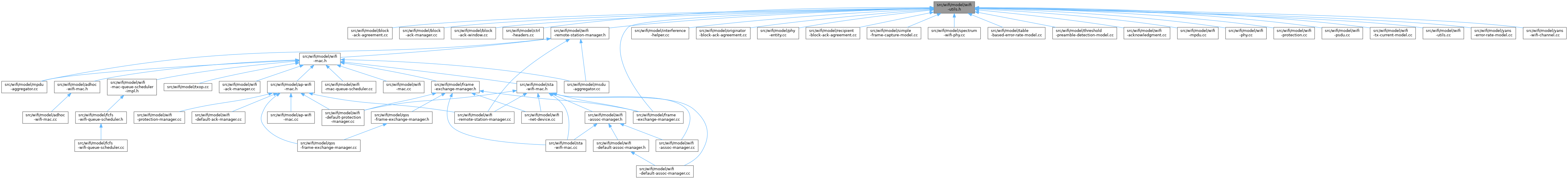

This graph shows which files directly or indirectly include this file:

Namespaces
namespace	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Typedefs
using	ns3::WifiTidLinkMapping = std::map< uint8_t, std::set< uint8_t > >
	TID-indexed map of the link set to which the TID is mapped.

Enumerations
enum class	ns3::WifiDirection : uint8_t { ns3::DOWNLINK = 0 , ns3::UPLINK = 1 , ns3::BOTH_DIRECTIONS = 2 }
	Wifi direction. More...

Functions
void	ns3::AddWifiMacTrailer (Ptr< Packet > packet)
	Add FCS trailer to a packet.

double	ns3::DbmToW (double dbm)
	Convert from dBm to Watts.

double	ns3::DbToRatio (double db)
	Convert from dB to ratio.

uint32_t	ns3::GetAckSize ()
	Return the total Ack size (including FCS trailer).

uint32_t	ns3::GetBlockAckRequestSize (BlockAckReqType type)
	Return the total BlockAckRequest size (including FCS trailer).

uint32_t	ns3::GetBlockAckSize (BlockAckType type)
	Return the total BlockAck size (including FCS trailer).

uint32_t	ns3::GetCtsSize ()
	Return the total CTS size (including FCS trailer).

uint32_t	ns3::GetMuBarSize (std::list< BlockAckReqType > types)
	Return the total MU-BAR size (including FCS trailer).

uint32_t	ns3::GetRtsSize ()
	Return the total RTS size (including FCS trailer).

uint32_t	ns3::GetSize (Ptr< const Packet > packet, const WifiMacHeader *hdr, bool isAmpdu)
	Return the total size of the packet after WifiMacHeader and FCS trailer have been added.

bool	ns3::IsInWindow (uint16_t seq, uint16_t winstart, uint16_t winsize)

std::ostream &	ns3::operator<< (std::ostream &os, const WifiDirection &direction)
	Stream insertion operator.

double	ns3::RatioToDb (double ratio)
	Convert from ratio to dB.

bool	ns3::TidToLinkMappingValidForNegType1 (const WifiTidLinkMapping &dlLinkMapping, const WifiTidLinkMapping &ulLinkMapping)
	Check if the given TID-to-Link Mappings are valid for a negotiation type of 1.

double	ns3::WToDbm (double w)
	Convert from Watts to dBm.

Variables
static constexpr uint16_t	ns3::SEQNO_SPACE_HALF_SIZE = SEQNO_SPACE_SIZE / 2
	Size of the half the space of sequence numbers (used to determine old packets)

static constexpr uint16_t	ns3::SEQNO_SPACE_SIZE = 4096
	Size of the space of sequence numbers.

static constexpr uint8_t	ns3::SINGLE_LINK_OP_ID = 0
	Link ID for single link operations (helps tracking places where correct link ID is to be used to support multi-link operations)

static constexpr uint8_t	ns3::WIFI_LINKID_UNDEFINED = 0xff
	Invalid link identifier.
