#include "ns3/boolean.h"
#include "ns3/command-line.h"
#include "ns3/config.h"
#include "ns3/double.h"
#include "ns3/enum.h"
#include "ns3/gnuplot.h"
#include "ns3/he-configuration.h"
#include "ns3/ht-configuration.h"
#include "ns3/log.h"
#include "ns3/mobility-helper.h"
#include "ns3/packet-socket-client.h"
#include "ns3/packet-socket-helper.h"
#include "ns3/packet-socket-server.h"
#include "ns3/propagation-delay-model.h"
#include "ns3/propagation-loss-model.h"
#include "ns3/rng-seed-manager.h"
#include "ns3/ssid.h"
#include "ns3/tuple.h"
#include "ns3/uinteger.h"
#include "ns3/wifi-net-device.h"
#include "ns3/yans-wifi-helper.h"

Include dependency graph for wifi-manager-example.cc:

Classes
struct	StandardInfo
	StandardInfo structure. More...

struct	Step
	Step structure. More...

Functions
void	ChangeSignalAndReportRate (Ptr< FixedRssLossModel > rssModel, Step step, double rss, Gnuplot2dDataset &rateDataset, Gnuplot2dDataset &actualDataset)
	Change the signal model and report the rate.

void	PacketRx (Ptr< const Packet > pkt, const Address &addr)
	Packet received.

void	RateChange (uint64_t oldVal, uint64_t newVal)
	Rate changed.

Variables
double	g_intervalBytes = 0
	Bytes received in an interval.

uint64_t	g_intervalRate = 0
	Rate in an interval.

const double	NOISE_DBM_Hz = -174.0
	Default value for noise.

double	noiseDbm = NOISE_DBM_Hz
	Value for noise.

Detailed Description

Usage

$ ./ns3 run "wifi-manager-example [Program Options]"

Program Options

--maxSsrc: The maximum number of retransmission attempts for a RTS packet [7]
--maxSlrc: The maximum number of retransmission attempts for a Data packet [7]
--rtsThreshold: RTS threshold [999999]
--maxAmpduSize: Max A-MPDU size [65535]
--stepSize: Power between steps (dBm) [1]
--stepTime: Time on each step (seconds) [1]
--broadcast: Send broadcast instead of unicast [false]
--serverChannelWidth: Set channel width of the server (valid only for 802.11n or ac) [0]
--clientChannelWidth: Set channel width of the client (valid only for 802.11n or ac) [0]
--serverNss: Set nss of the server (valid only for 802.11n or ac) [1]
--clientNss: Set nss of the client (valid only for 802.11n or ac) [1]
--serverShortGuardInterval: Set short guard interval of the server (802.11n/ac/ax) in nanoseconds [800]
--clientShortGuardInterval: Set short guard interval of the client (802.11n/ac/ax) in nanoseconds [800]
--standard: Set standard (802.11a, 802.11b, 802.11g, 802.11p-10MHz, 802.11p-5MHz, 802.11n-5GHz, 802.11n-2.4GHz, 802.11ac, 802.11ax-6GHz, 802.11ax-5GHz, 802.11ax-2.4GHz) [802.11a]
--wifiManager: Set wifi rate manager (Aarf, Aarfcd, Amrr, Arf, Cara, Ideal, Minstrel, MinstrelHt, Onoe, Rraa, ThompsonSampling) [Ideal]
--infrastructure: Use infrastructure instead of adhoc [false]

Definition in file wifi-manager-example.cc.

Function Documentation

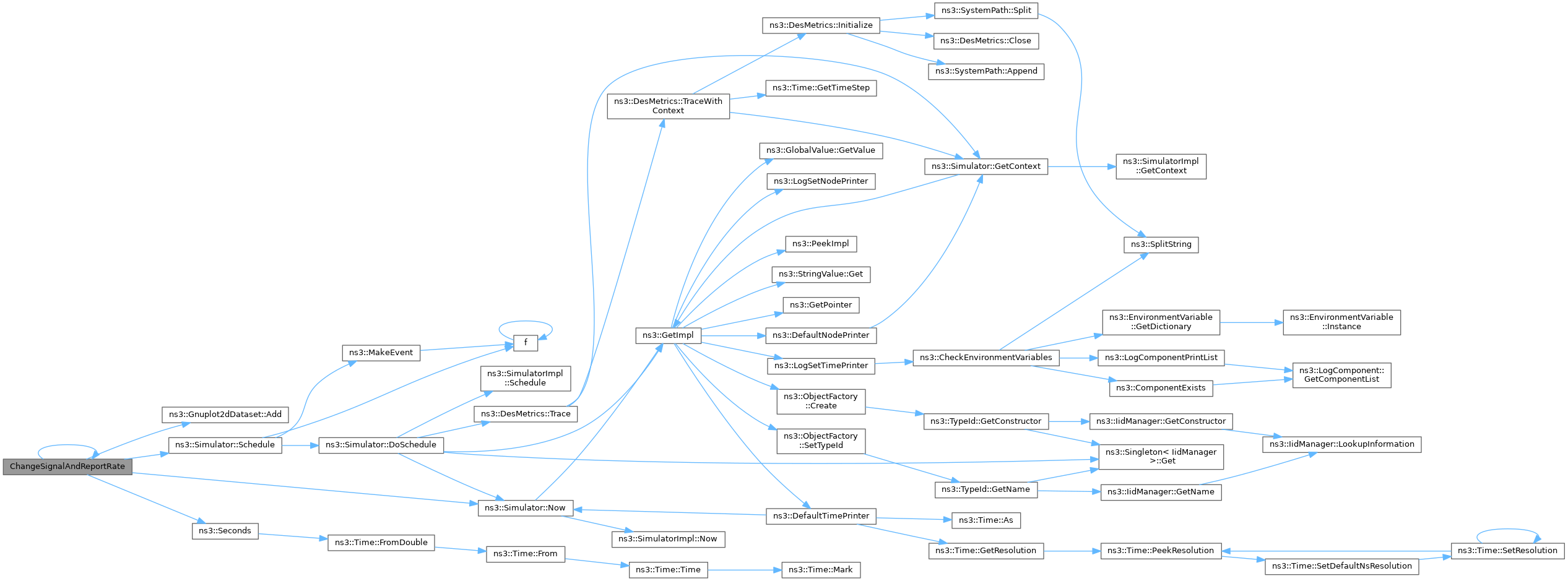

◆ ChangeSignalAndReportRate()

void ChangeSignalAndReportRate	(	Ptr< FixedRssLossModel >	rssModel,
		Step	step,
		double	rss,
		Gnuplot2dDataset &	rateDataset,
		Gnuplot2dDataset &	actualDataset
	)
