#include "ns3/applications-module.h"
#include "ns3/core-module.h"
#include "ns3/internet-module.h"
#include "ns3/mesh-helper.h"
#include "ns3/mesh-module.h"
#include "ns3/mobility-module.h"
#include "ns3/network-module.h"
#include "ns3/yans-wifi-helper.h"
#include <fstream>
#include <iostream>
#include <sstream>

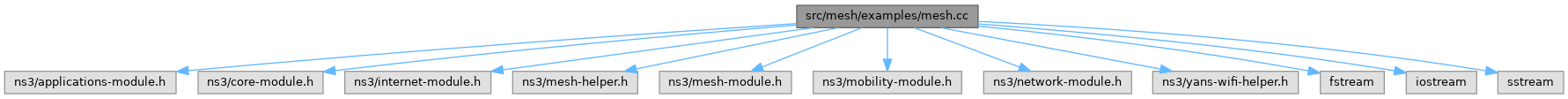

Include dependency graph for mesh.cc:

Classes
class	MeshTest
	MeshTest class. More...

Functions
void	RxTrace (Ptr< const Packet > p)
	Reception trace sink,.

void	TxTrace (Ptr< const Packet > p)
	Transmission trace sink.

Variables
uint32_t	g_udpRxCount = 0
	Tx packet counter.

uint32_t	g_udpTxCount = 0
	Rx packet counter.

Detailed Description

Usage

$ ./ns3 run "mesh [Program Options]"

Program Options

--x-size: Number of nodes in a row grid [3]
--y-size: Number of rows in a grid [3]
--step: Size of edge in our grid (meters) [50]
--start: Maximum random start delay for beacon jitter (sec) [0.1]
--time: Simulation time (sec) [100]
--packet-interval: Interval between packets in UDP ping (sec) [1]
--packet-size: Size of packets in UDP ping (bytes) [1024]
--interfaces: Number of radio interfaces used by each mesh point [1]
--channels: Use different frequency channels for different interfaces [true]
--pcap: Enable PCAP traces on interfaces [false]
--ascii: Enable Ascii traces on interfaces [false]
--stack: Type of protocol stack. ns3::Dot11sStack by default [ns3::Dot11sStack]
--root: Mac address of root mesh point in HWMP [ff:ff:ff:ff:ff:ff]
