DSDV Update Packet Format. More...

#include "dsdv-packet.h"

Inheritance diagram for ns3::dsdv::DsdvHeader:

Collaboration diagram for ns3::dsdv::DsdvHeader:

Public Member Functions
	DsdvHeader (Ipv4Address dst=Ipv4Address(), uint32_t hopcount=0, uint32_t dstSeqNo=0)
	Constructor.

	~DsdvHeader () override

uint32_t	Deserialize (Buffer::Iterator start) override

Ipv4Address	GetDst () const
	Get destination address.

uint32_t	GetDstSeqno () const
	Get destination sequence number.

uint32_t	GetHopCount () const
	Get hop count.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

uint32_t	GetSerializedSize () const override

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

void	SetDst (Ipv4Address destination)
	Set destination address.

void	SetDstSeqno (uint32_t sequenceNumber)
	Set destination sequence number.

void	SetHopCount (uint32_t hopCount)
	Set hop count.

Public Member Functions inherited from ns3::Header
	~Header () override

uint32_t	Deserialize (Buffer::Iterator start) override=0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual uint32_t	GetSerializedSize () const =0

void	Print (std::ostream &os) const override=0

virtual void	Serialize (Buffer::Iterator start) const =0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual void	Print (std::ostream &os) const =0
	Print the object contents.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Attributes
Ipv4Address	m_dst
	Destination IP Address.

uint32_t	m_dstSeqNo
	Destination Sequence Number.

uint32_t	m_hopCount
	Number of Hops.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

DSDV Update Packet Format.

Introspection did not find any typical Config paths.

|      0        |      1        |      2        |       3       |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                      Destination Address                      |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                            HopCount                           |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                       Sequence Number                         |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
*

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 60 of file dsdv-packet.h.

Constructor & Destructor Documentation

◆ DsdvHeader()

ns3::dsdv::DsdvHeader::DsdvHeader	(	Ipv4Address	dst = `Ipv4Address()`,
		uint32_t	hopcount = `0`,
		uint32_t	dstSeqNo = `0`
	)

Constructor.

Parameters

dst	destination IP address
hopcount	hop count
dstSeqNo	destination sequence number

Definition at line 42 of file dsdv-packet.cc.

◆ ~DsdvHeader()

ns3::dsdv::DsdvHeader::~DsdvHeader ( )

override

Definition at line 49 of file dsdv-packet.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::dsdv::DsdvHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 84 of file dsdv-packet.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), GetSerializedSize(), m_dst, m_dstSeqNo, m_hopCount, NS_ASSERT, ns3::ReadFrom(), and ns3::Buffer::Iterator::ReadNtohU32().

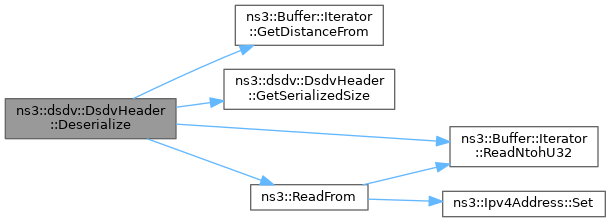

Here is the call graph for this function:

◆ GetDst()

Ipv4Address ns3::dsdv::DsdvHeader::GetDst ( ) const

inline

Get destination address.

Returns: the destination IPv4 address

Definition at line 96 of file dsdv-packet.h.

References m_dst.

Referenced by DsdvHeaderTestCase::DoRun(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::dsdv::RoutingProtocol::SendPeriodicUpdate(), and ns3::dsdv::RoutingProtocol::SendTriggeredUpdate().

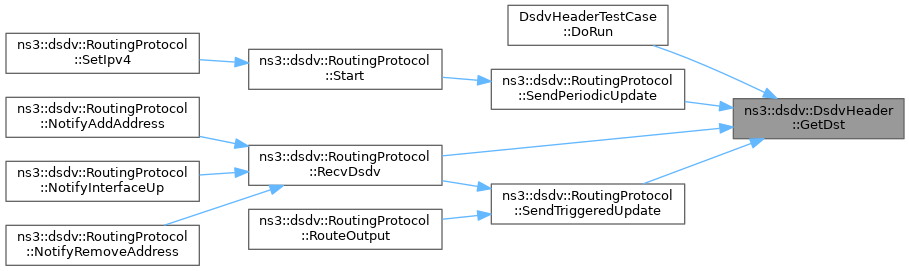

Here is the caller graph for this function:

◆ GetDstSeqno()

uint32_t ns3::dsdv::DsdvHeader::GetDstSeqno ( ) const

inline

Get destination sequence number.

Returns: the destination sequence number

Definition at line 132 of file dsdv-packet.h.

References m_dstSeqNo.

Referenced by DsdvHeaderTestCase::DoRun(), ns3::dsdv::RoutingProtocol::RecvDsdv(), and ns3::dsdv::RoutingProtocol::SendPeriodicUpdate().

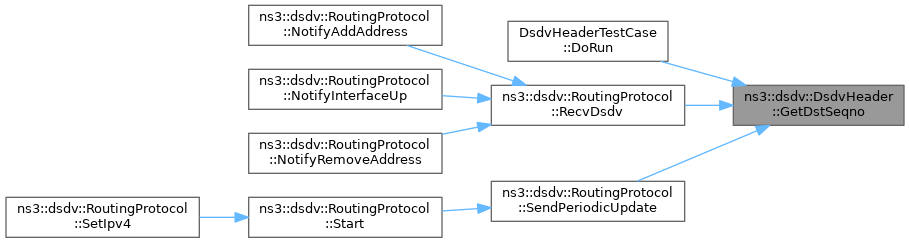

Here is the caller graph for this function:

◆ GetHopCount()

uint32_t ns3::dsdv::DsdvHeader::GetHopCount ( ) const

inline

Get hop count.

Returns: the hop count

Definition at line 114 of file dsdv-packet.h.

References m_hopCount.

Referenced by DsdvHeaderTestCase::DoRun(), ns3::dsdv::RoutingProtocol::RecvDsdv(), and ns3::dsdv::RoutingProtocol::SendPeriodicUpdate().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::dsdv::DsdvHeader::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 64 of file dsdv-packet.cc.

References GetTypeId().

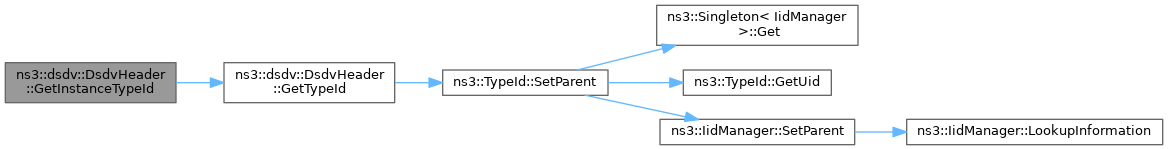

Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::dsdv::DsdvHeader::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 70 of file dsdv-packet.cc.

Referenced by Deserialize(), and DsdvHeaderTestCase::DoRun().

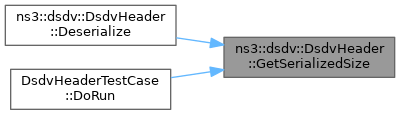

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::dsdv::DsdvHeader::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 54 of file dsdv-packet.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

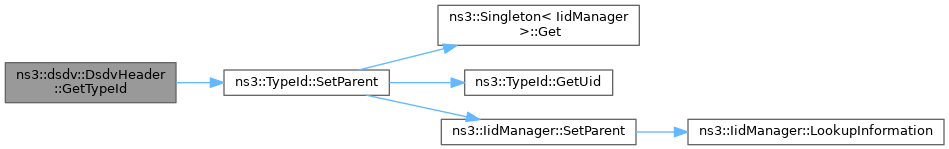

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::dsdv::DsdvHeader::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 98 of file dsdv-packet.cc.

References m_dst, m_dstSeqNo, and m_hopCount.

Referenced by ns3::dsdv::operator<<().

Here is the caller graph for this function:

◆ Serialize()

void ns3::dsdv::DsdvHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 76 of file dsdv-packet.cc.

References m_dst, m_dstSeqNo, m_hopCount, ns3::Buffer::Iterator::WriteHtonU32(), and ns3::WriteTo().

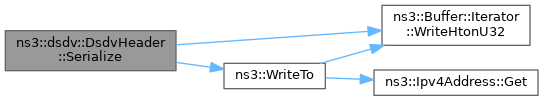

Here is the call graph for this function:

◆ SetDst()

void ns3::dsdv::DsdvHeader::SetDst ( Ipv4Address destination )

inline

Set destination address.

Parameters

destination the destination IPv4 address

Definition at line 87 of file dsdv-packet.h.

References m_dst.

Referenced by DsdvHeaderTestCase::DoRun(), ns3::dsdv::RoutingProtocol::SendPeriodicUpdate(), and ns3::dsdv::RoutingProtocol::SendTriggeredUpdate().

Here is the caller graph for this function:

◆ SetDstSeqno()

void ns3::dsdv::DsdvHeader::SetDstSeqno ( uint32_t sequenceNumber )

inline

Set destination sequence number.

Parameters

sequenceNumber The sequence number

Definition at line 123 of file dsdv-packet.h.

References m_dstSeqNo.

Referenced by DsdvHeaderTestCase::DoRun(), ns3::dsdv::RoutingProtocol::SendPeriodicUpdate(), and ns3::dsdv::RoutingProtocol::SendTriggeredUpdate().

Here is the caller graph for this function:

◆ SetHopCount()

void ns3::dsdv::DsdvHeader::SetHopCount ( uint32_t hopCount )

inline

Set hop count.

Parameters

hopCount the hop count

Definition at line 105 of file dsdv-packet.h.

References m_hopCount.

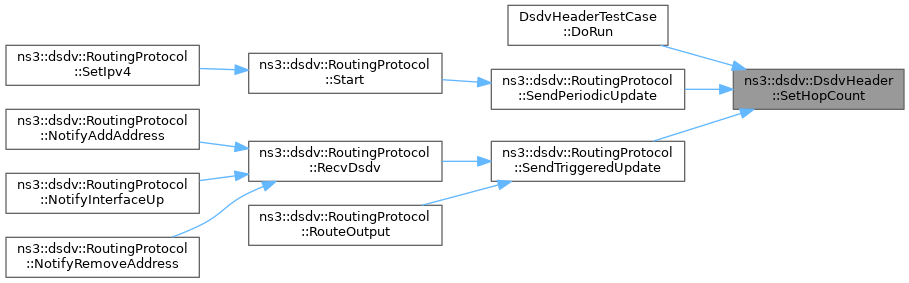

Referenced by DsdvHeaderTestCase::DoRun(), ns3::dsdv::RoutingProtocol::SendPeriodicUpdate(), and ns3::dsdv::RoutingProtocol::SendTriggeredUpdate().

Here is the caller graph for this function:

Member Data Documentation

◆ m_dst

Ipv4Address ns3::dsdv::DsdvHeader::m_dst

private

Destination IP Address.

Definition at line 138 of file dsdv-packet.h.

Referenced by Deserialize(), GetDst(), Print(), Serialize(), and SetDst().

◆ m_dstSeqNo

uint32_t ns3::dsdv::DsdvHeader::m_dstSeqNo

private

Destination Sequence Number.

Definition at line 140 of file dsdv-packet.h.

Referenced by Deserialize(), GetDstSeqno(), Print(), Serialize(), and SetDstSeqno().

◆ m_hopCount

uint32_t ns3::dsdv::DsdvHeader::m_hopCount

private

Number of Hops.

Definition at line 139 of file dsdv-packet.h.

Referenced by Deserialize(), GetHopCount(), Print(), Serialize(), and SetHopCount().

The documentation for this class was generated from the following files:

src/dsdv/model/dsdv-packet.h
src/dsdv/model/dsdv-packet.cc
