an Inet address class More...

#include "inet-socket-address.h"

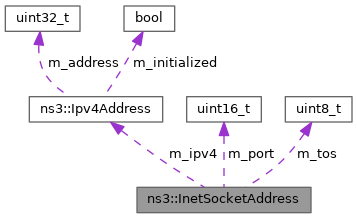

Collaboration diagram for ns3::InetSocketAddress:

Public Member Functions
	InetSocketAddress (const char *ipv4)

	InetSocketAddress (const char *ipv4, uint16_t port)

	InetSocketAddress (Ipv4Address ipv4)

	InetSocketAddress (Ipv4Address ipv4, uint16_t port)

	InetSocketAddress (uint16_t port)

Address	ConvertTo () const
	Convert to an Address type.

Ipv4Address	GetIpv4 () const

uint16_t	GetPort () const

uint8_t	GetTos () const

	operator Address () const

void	SetIpv4 (Ipv4Address address)

void	SetPort (uint16_t port)

void	SetTos (uint8_t tos)

Static Public Member Functions
static InetSocketAddress	ConvertFrom (const Address &address)
	Returns an InetSocketAddress which corresponds to the input Address.

static bool	IsMatchingType (const Address &address)

Static Private Member Functions
static uint8_t	GetType ()
	Get the underlying address type (automatically assigned).

Private Attributes
Ipv4Address	m_ipv4
	the IPv4 address

uint16_t	m_port
	the port

uint8_t	m_tos
	the ToS

Detailed Description

an Inet address class

This class is similar to inet_sockaddr in the BSD socket API. i.e., this class holds an Ipv4Address and a port number to form an ipv4 transport endpoint.

Definition at line 41 of file inet-socket-address.h.

Constructor & Destructor Documentation

◆ InetSocketAddress() [1/5]

ns3::InetSocketAddress::InetSocketAddress	(	Ipv4Address	ipv4,
		uint16_t	port
	)

Parameters

ipv4	the ipv4 address
port	the port number

Definition at line 30 of file inet-socket-address.cc.

References NS_LOG_FUNCTION, and port.

◆ InetSocketAddress() [2/5]

ns3::InetSocketAddress::InetSocketAddress ( Ipv4Address ipv4 )

Parameters

ipv4	the ipv4 address

The port number is set to zero by default.

Definition at line 38 of file inet-socket-address.cc.

References NS_LOG_FUNCTION.

◆ InetSocketAddress() [3/5]

ns3::InetSocketAddress::InetSocketAddress ( uint16_t port )

Parameters

port	the port number

The ipv4 address is set to the "Any" address by default.

Definition at line 62 of file inet-socket-address.cc.

References NS_LOG_FUNCTION, and port.

◆ InetSocketAddress() [4/5]

ns3::InetSocketAddress::InetSocketAddress	(	const char *	ipv4,
		uint16_t	port
	)

Parameters

ipv4	string which represents an ipv4 address
port	the port number

Definition at line 46 of file inet-socket-address.cc.

References NS_LOG_FUNCTION, and port.

◆ InetSocketAddress() [5/5]

ns3::InetSocketAddress::InetSocketAddress ( const char * ipv4 )

Parameters

ipv4	string which represents an ipv4 address

The port number is set to zero.

Definition at line 54 of file inet-socket-address.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ConvertFrom()

InetSocketAddress ns3::InetSocketAddress::ConvertFrom ( const Address & address )

static

Returns an InetSocketAddress which corresponds to the input Address.

Parameters

address the Address instance to convert from.

Returns: an InetSocketAddress

Definition at line 137 of file inet-socket-address.cc.

References ns3::Ipv4Address::Deserialize(), GetType(), NS_ASSERT, NS_LOG_FUNCTION, port, and SetTos().

Referenced by ns3::DhcpClient::AcceptAck(), ns3::Ipv4RawSocketImpl::Bind(), ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Bind(), ns3::TcpSocketBase::CompleteFork(), ns3::Ipv4RawSocketImpl::Connect(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::Connect(), DualStackTestCase::DoRun(), dstSocketRecv(), ns3::aodv::LoopbackTestCase::EchoData(), ns3::SinkTracer::FormatAddress(), ns3::PacketSink::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::UdpEchoServer::HandleRead(), ns3::UdpServer::HandleRead(), ns3::addressUtils::IsMulticast(), ns3::DhcpServer::NetHandler(), ns3::PacketSink::AddressHash::operator()(), PrintReceivedPacket(), ns3::TcpSocketBase::ProcessSynRcvd(), Receiver::Receive(), ns3::Ping::Receive(), ns3::V4TraceRoute::Receive(), ns3::Rip::Receive(), ns3::olsr::Bug780Test::Receive(), ns3::ThreeGppHttpClient::ReceivedDataCallback(), ns3::ThreeGppHttpServer::ReceivedDataCallback(), Ipv4RipSplitHorizonStrategyTest::ReceivePktProbe(), ns3::aodv::RoutingProtocol::RecvAodv(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::olsr::RoutingProtocol::RecvOlsr(), ns3::UdpEchoClient::Send(), Ipv4FragmentationTest::SendClient(), ns3::OnOffApplication::SendPacket(), ns3::TcpL4Protocol::SendPacket(), ns3::UdpSocketImpl::SendTo(), ns3::Ipv4RawSocketImpl::SendTo(), srcSocketRecv(), ns3::PacketSink::StartApplication(), and ns3::UdpClient::StartApplication().

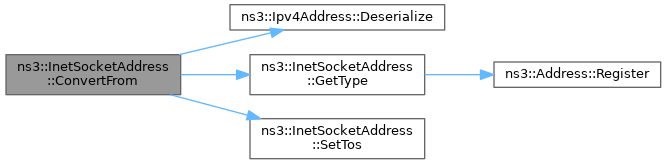

Here is the call graph for this function:

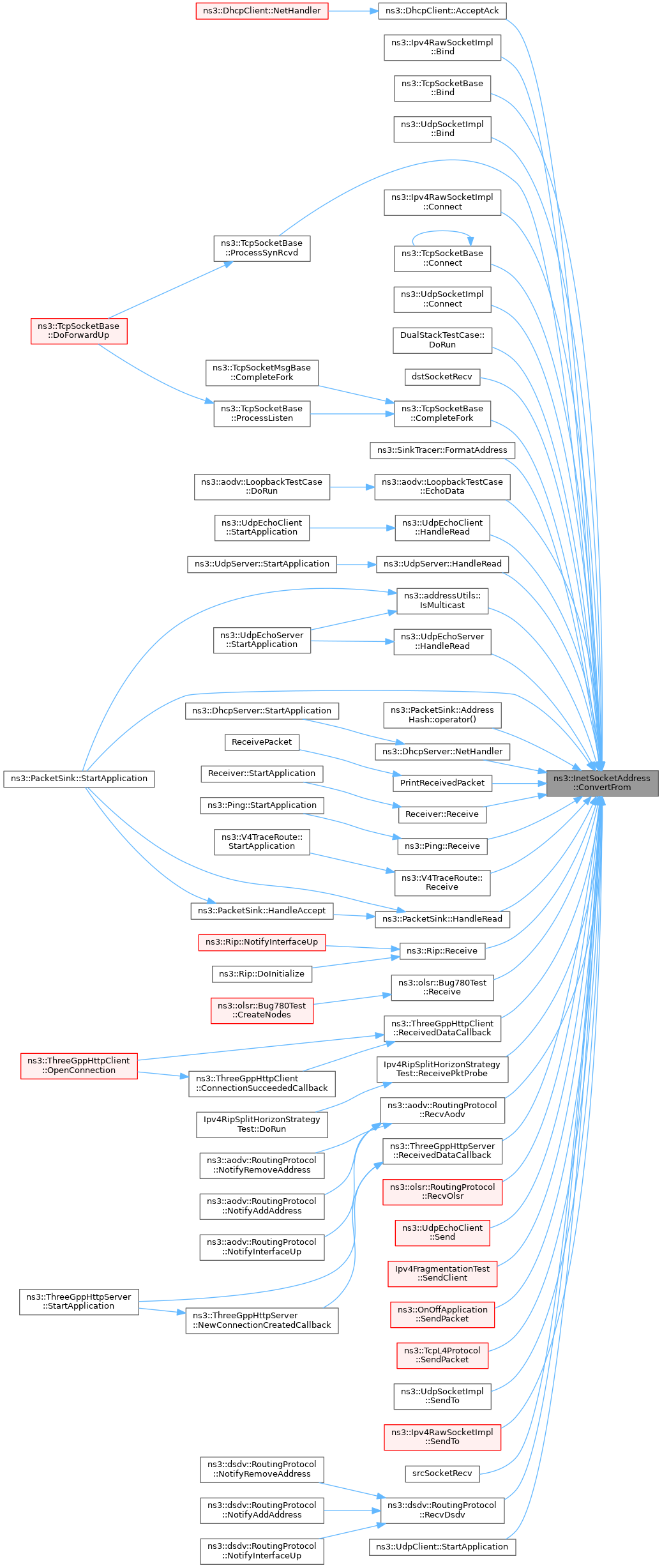

Here is the caller graph for this function:

◆ ConvertTo()

Address ns3::InetSocketAddress::ConvertTo ( ) const

Convert to an Address type.

Returns: the Address corresponding to this object.

Definition at line 125 of file inet-socket-address.cc.

References GetType(), m_ipv4, m_port, m_tos, NS_LOG_FUNCTION, and ns3::Ipv4Address::Serialize().

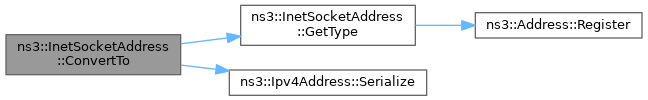

Here is the call graph for this function:

◆ GetIpv4()

Ipv4Address ns3::InetSocketAddress::GetIpv4 ( ) const

Returns: the ipv4 address

Definition at line 78 of file inet-socket-address.cc.

References m_ipv4, and NS_LOG_FUNCTION.

Referenced by ns3::DhcpClient::AcceptAck(), ns3::Ipv4RawSocketImpl::Bind(), ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Bind(), ns3::Ipv4RawSocketImpl::Connect(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::Connect(), ns3::aodv::LoopbackTestCase::EchoData(), ns3::SinkTracer::FormatAddress(), ns3::PacketSink::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::UdpEchoServer::HandleRead(), ns3::addressUtils::IsMulticast(), ns3::PacketSink::AddressHash::operator()(), PrintReceivedPacket(), ns3::Ping::PrintReport(), Receiver::Receive(), ns3::Ping::Receive(), ns3::V4TraceRoute::Receive(), ns3::Rip::Receive(), ns3::ThreeGppHttpClient::ReceivedDataCallback(), ns3::ThreeGppHttpServer::ReceivedDataCallback(), Ipv4RipSplitHorizonStrategyTest::ReceivePktProbe(), ns3::aodv::RoutingProtocol::RecvAodv(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::olsr::RoutingProtocol::RecvOlsr(), ns3::DhcpServer::SendAck(), ns3::DhcpServer::SendOffer(), ns3::OnOffApplication::SendPacket(), ns3::TcpL4Protocol::SendPacket(), ns3::UdpSocketImpl::SendTo(), ns3::Ipv4RawSocketImpl::SendTo(), srcSocketRecv(), ns3::UdpClient::StartApplication(), and ns3::Ping::StartApplication().

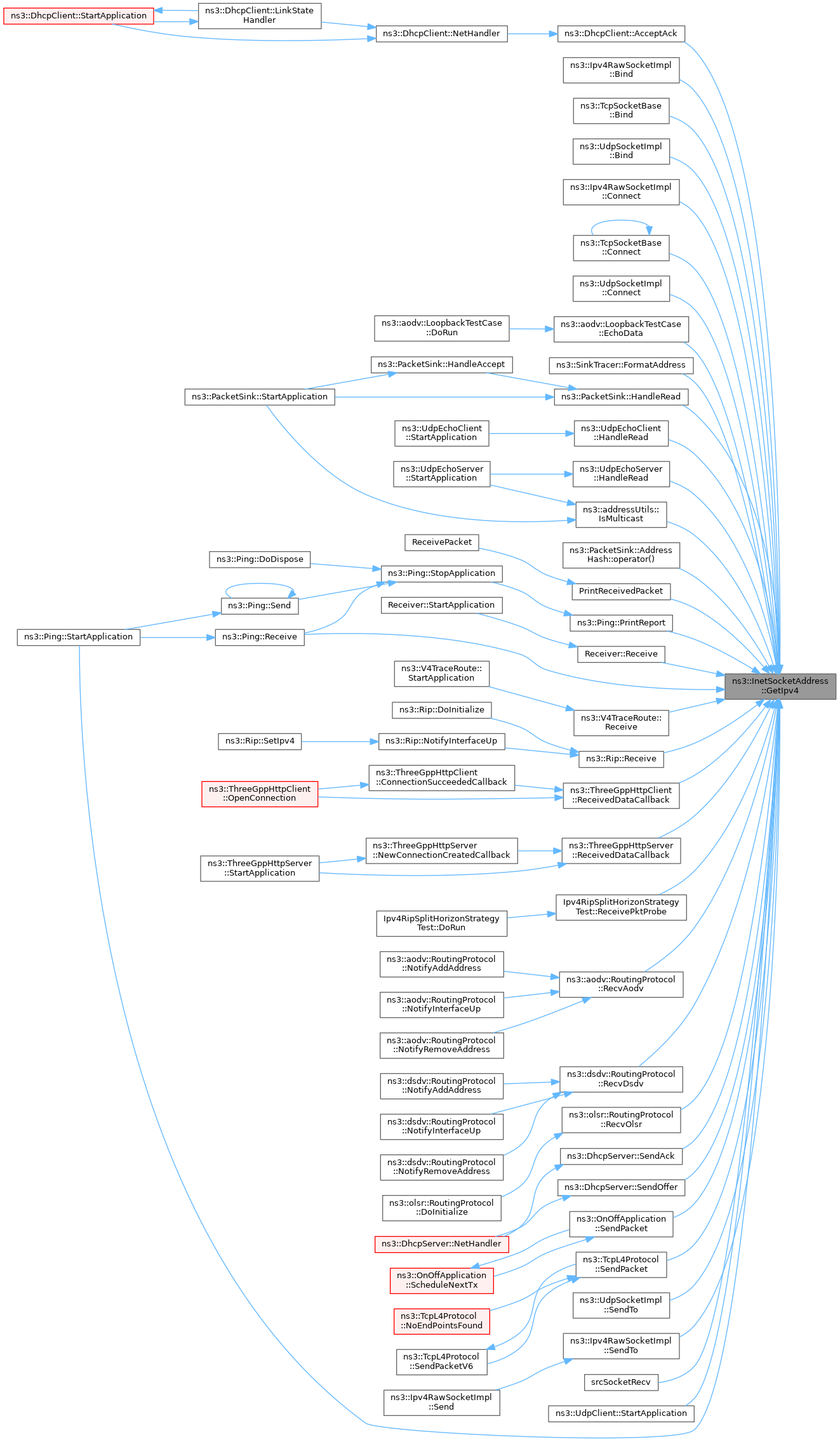

Here is the caller graph for this function:

◆ GetPort()

uint16_t ns3::InetSocketAddress::GetPort ( ) const

Returns: the port number

Definition at line 71 of file inet-socket-address.cc.

References m_port, and NS_LOG_FUNCTION.

Referenced by ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Bind(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::Connect(), ns3::SinkTracer::FormatAddress(), ns3::PacketSink::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::UdpEchoServer::HandleRead(), PrintReceivedPacket(), ns3::V4TraceRoute::Receive(), ns3::Rip::Receive(), ns3::olsr::Bug780Test::Receive(), ns3::ThreeGppHttpClient::ReceivedDataCallback(), ns3::ThreeGppHttpServer::ReceivedDataCallback(), ns3::olsr::RoutingProtocol::RecvOlsr(), ns3::DhcpServer::SendAck(), ns3::DhcpServer::SendOffer(), ns3::OnOffApplication::SendPacket(), ns3::UdpSocketImpl::SendTo(), and ns3::PacketSink::StartApplication().

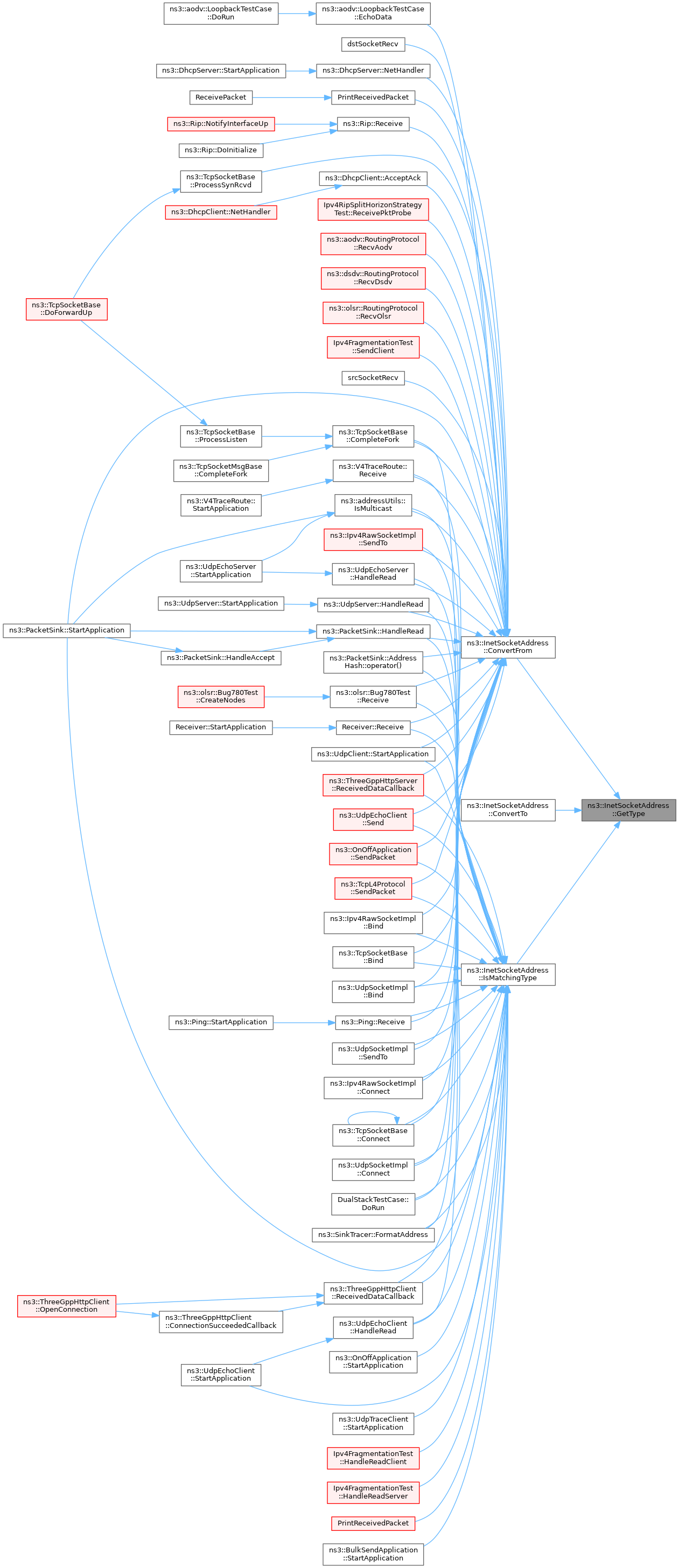

Here is the caller graph for this function:

◆ GetTos()

uint8_t ns3::InetSocketAddress::GetTos ( ) const

Returns: the ToS

Definition at line 85 of file inet-socket-address.cc.

References m_tos, and NS_LOG_FUNCTION.

Referenced by ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Bind(), ns3::Ipv4RawSocketImpl::Connect(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::Connect(), ns3::UdpSocketImpl::SendTo(), and ns3::Ipv4RawSocketImpl::SendTo().

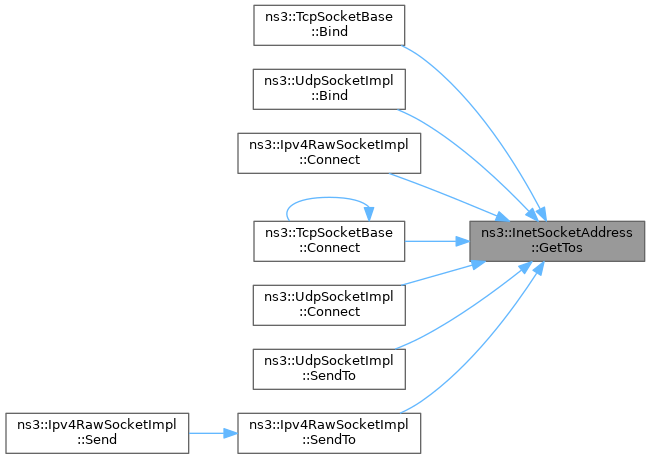

Here is the caller graph for this function:

◆ GetType()

uint8_t ns3::InetSocketAddress::GetType ( )

staticprivate

Get the underlying address type (automatically assigned).

Returns: the address type

Definition at line 152 of file inet-socket-address.cc.

References NS_LOG_FUNCTION_NOARGS, and ns3::Address::Register().

Referenced by ConvertFrom(), ConvertTo(), and IsMatchingType().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsMatchingType()

bool ns3::InetSocketAddress::IsMatchingType ( const Address & address )

static

Parameters

address address to test

Returns: true if the address matches, false otherwise.

Definition at line 113 of file inet-socket-address.cc.

References GetType(), and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4RawSocketImpl::Bind(), ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Bind(), ns3::TcpSocketBase::CompleteFork(), ns3::Ipv4RawSocketImpl::Connect(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::Connect(), DualStackTestCase::DoRun(), ns3::SinkTracer::FormatAddress(), ns3::PacketSink::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::UdpEchoServer::HandleRead(), ns3::UdpServer::HandleRead(), Ipv4FragmentationTest::HandleReadClient(), Ipv4FragmentationTest::HandleReadServer(), ns3::addressUtils::IsMulticast(), ns3::PacketSink::AddressHash::operator()(), PrintReceivedPacket(), Receiver::Receive(), ns3::Ping::Receive(), ns3::V4TraceRoute::Receive(), ns3::olsr::Bug780Test::Receive(), ns3::ThreeGppHttpClient::ReceivedDataCallback(), ns3::ThreeGppHttpServer::ReceivedDataCallback(), ns3::UdpEchoClient::Send(), ns3::OnOffApplication::SendPacket(), ns3::TcpL4Protocol::SendPacket(), ns3::UdpSocketImpl::SendTo(), ns3::Ipv4RawSocketImpl::SendTo(), ns3::BulkSendApplication::StartApplication(), ns3::OnOffApplication::StartApplication(), ns3::PacketSink::StartApplication(), ns3::UdpClient::StartApplication(), ns3::UdpEchoClient::StartApplication(), and ns3::UdpTraceClient::StartApplication().

Here is the call graph for this function:

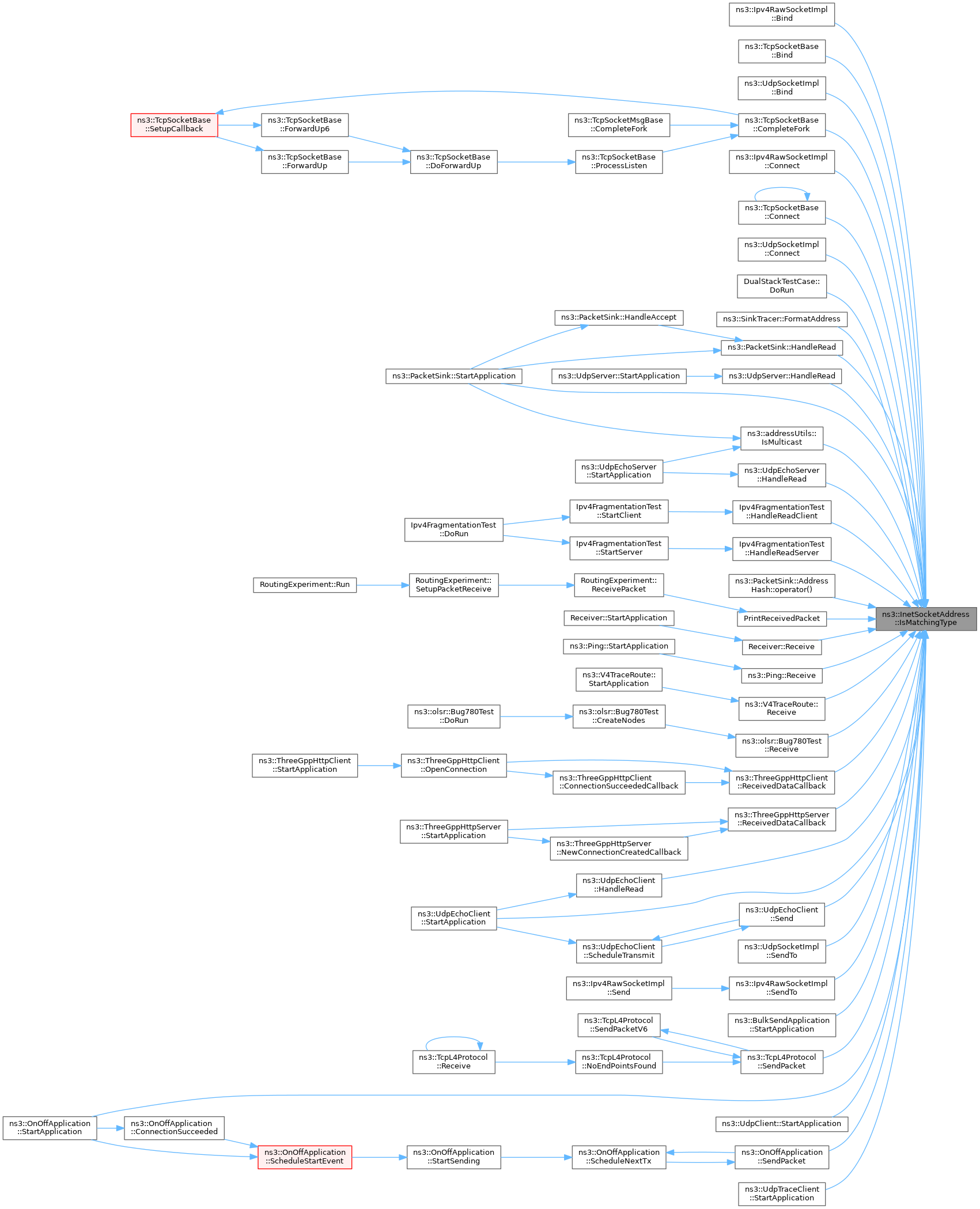

Here is the caller graph for this function:

◆ operator Address()

ns3::InetSocketAddress::operator Address ( ) const

Returns: an Address instance which represents this InetSocketAddress instance.

Definition at line 119 of file inet-socket-address.cc.

◆ SetIpv4()

void ns3::InetSocketAddress::SetIpv4 ( Ipv4Address address )

Parameters

address the new ipv4 address

Definition at line 99 of file inet-socket-address.cc.

References m_ipv4, and NS_LOG_FUNCTION.

Referenced by Ipv4FragmentationTest::SendClient().

Here is the caller graph for this function:

◆ SetPort()

void ns3::InetSocketAddress::SetPort ( uint16_t port )

Parameters

port	the new port number.

Definition at line 92 of file inet-socket-address.cc.

References m_port, NS_LOG_FUNCTION, and port.

Referenced by Ipv4RawSocketImplTest::DoRun().

Here is the caller graph for this function:

◆ SetTos()

void ns3::InetSocketAddress::SetTos ( uint8_t tos )

Parameters

tos	the new ToS.

Definition at line 106 of file inet-socket-address.cc.

References m_tos, and NS_LOG_FUNCTION.

Referenced by ConvertFrom(), UdpSocketImplTest::DoRun(), WifiAcMappingTest::DoRun(), ns3::UdpSocketImpl::GetPeerName(), and ns3::Ipv4RawSocketImpl::Send().

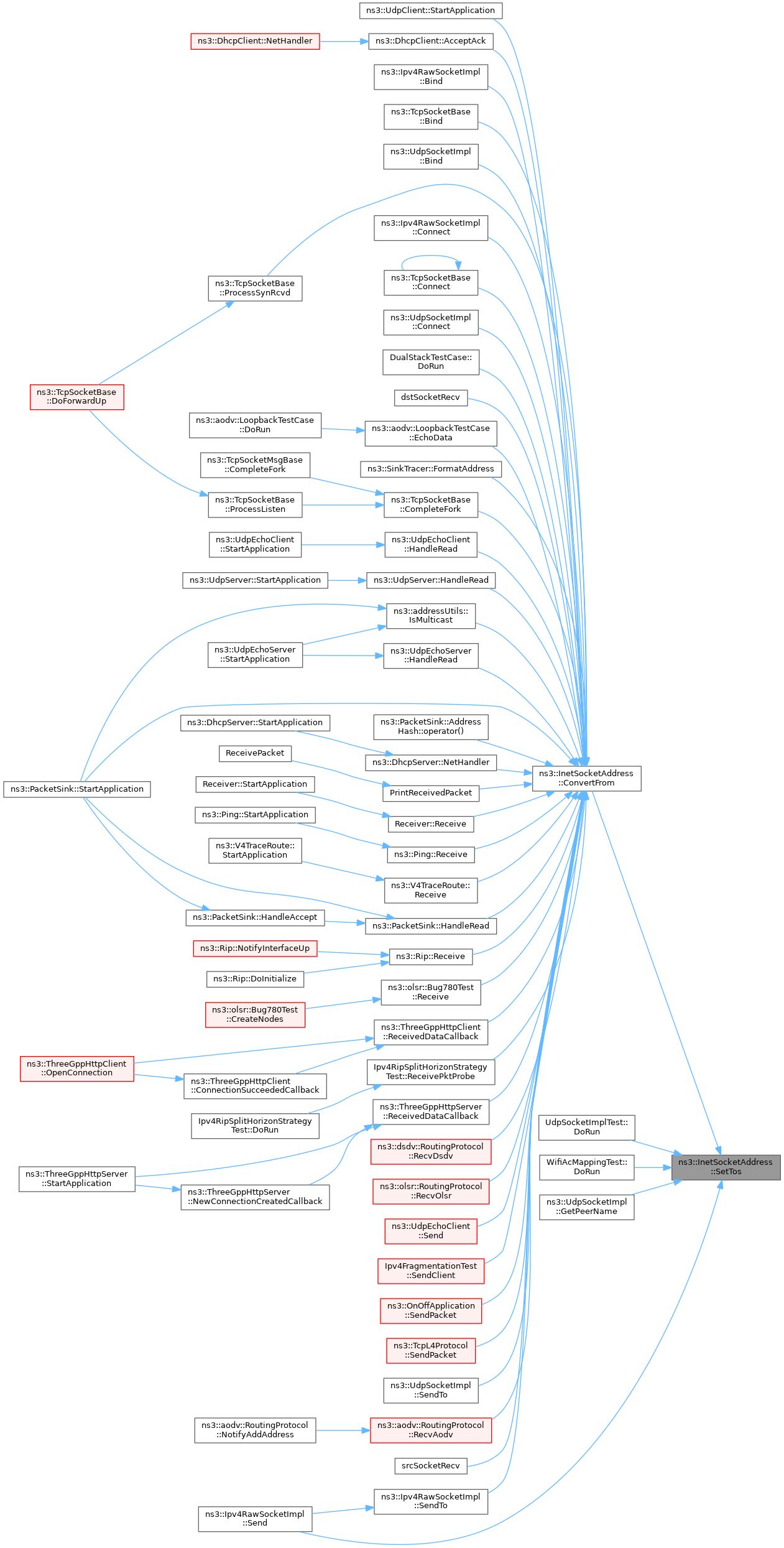

Here is the caller graph for this function:

Member Data Documentation

◆ m_ipv4

Ipv4Address ns3::InetSocketAddress::m_ipv4

private

the IPv4 address

Definition at line 132 of file inet-socket-address.h.

Referenced by ConvertTo(), GetIpv4(), and SetIpv4().

◆ m_port

uint16_t ns3::InetSocketAddress::m_port

private

the port

Definition at line 133 of file inet-socket-address.h.

Referenced by ConvertTo(), GetPort(), and SetPort().

◆ m_tos

uint8_t ns3::InetSocketAddress::m_tos

private

the ToS

Definition at line 134 of file inet-socket-address.h.

Referenced by ConvertTo(), GetTos(), and SetTos().

The documentation for this class was generated from the following files:

src/network/utils/inet-socket-address.h
src/network/utils/inet-socket-address.cc
