generic-battery-wifiradio-example.cc File Reference

#include <ns3/core-module.h>
#include <ns3/energy-module.h>
#include <ns3/internet-module.h>
#include <ns3/mobility-module.h>
#include <ns3/network-module.h>
#include <ns3/wifi-module.h>
#include <sstream>
#include <string>

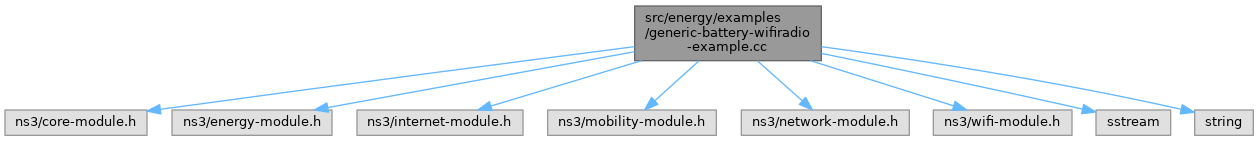

Include dependency graph for generic-battery-wifiradio-example.cc:

Go to the source code of this file.

Functions
static void	GenerateTraffic (Ptr< Socket > socket, uint32_t pktSize, Ptr< Node > n, uint32_t pktCount, Time pktInterval)
std::string	PrintReceivedPacket (Address &from)
	Print a received packet.
void	ReceivePacket (Ptr< Socket > socket)
void	RemainingEnergy (double oldValue, double remainingEnergy)
	Trace function for remaining energy at node.

Function Documentation

GenerateTraffic()

static void GenerateTraffic ( Ptr< Socket >  socket, uint32_t  pktSize, Ptr< Node >  n, uint32_t  pktCount, Time  pktInterval  )

static

Parameters

socket	Pointer to socket.
pktSize	Packet size.
n	Pointer to node.
pktCount	Number of packets to generate.
pktInterval	Packet sending interval.

Generate Traffic

Definition at line 101 of file generic-battery-wifiradio-example.cc.

References GenerateTraffic(), pktSize, and ns3::Simulator::Schedule().

Referenced by GenerateTraffic().

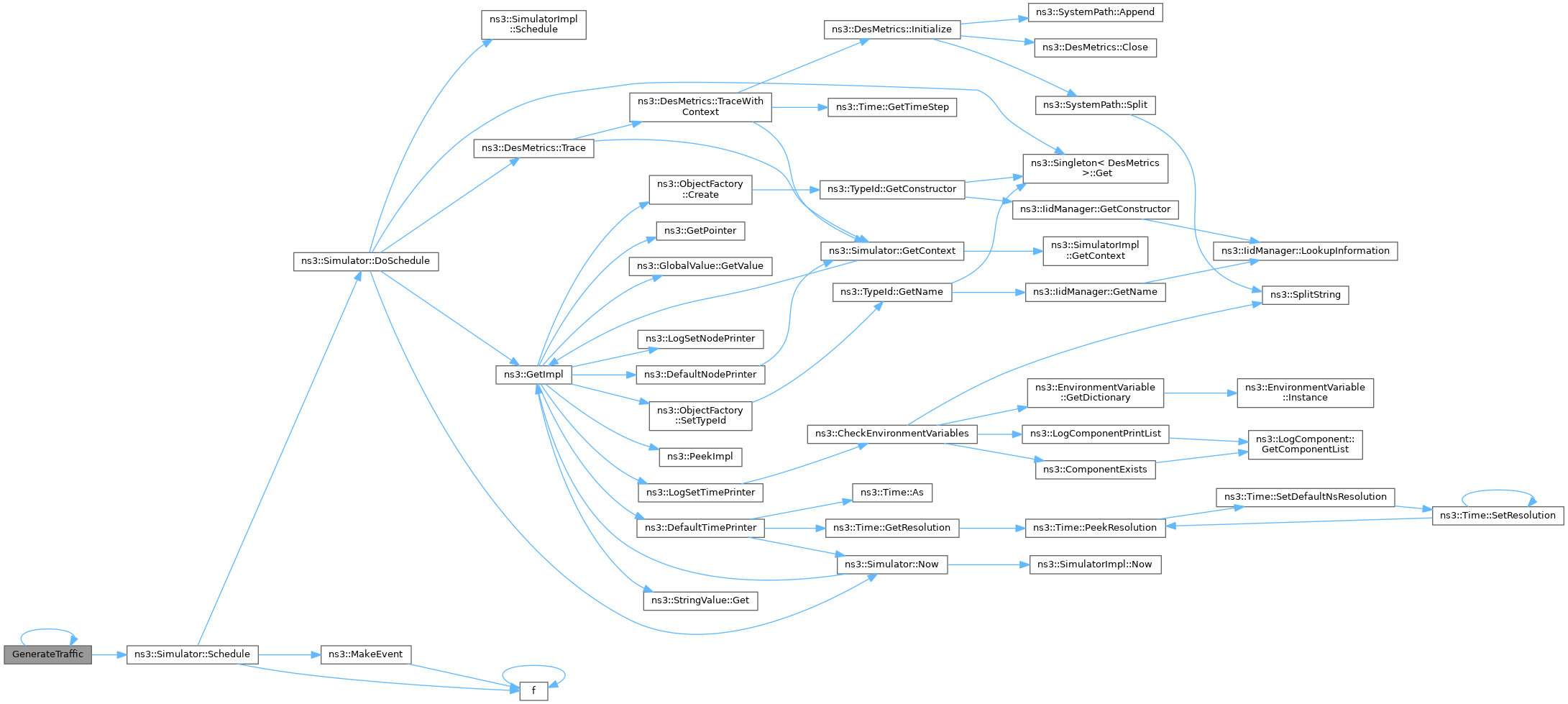

Here is the call graph for this function:

Here is the caller graph for this function:

PrintReceivedPacket()

std::string PrintReceivedPacket ( Address &  from )

inline

Print a received packet.

Parameters

from	sender address

Returns

a string with the details of the packet: dst {IP, port}, time.

Definition at line 61 of file generic-battery-wifiradio-example.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::InetSocketAddress::GetIpv4(), and ns3::InetSocketAddress::GetPort().

Referenced by ReceivePacket().

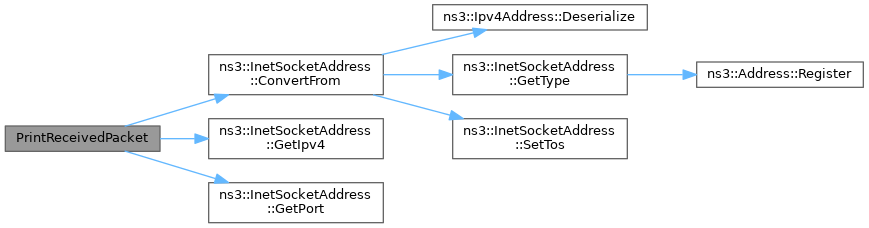

Here is the call graph for this function:

Here is the caller graph for this function:

ReceivePacket()

void ReceivePacket

(

Ptr< Socket >

socket

)

Parameters

socket

Pointer to socket.

Packet receiving sink.

Definition at line 78 of file generic-battery-wifiradio-example.cc.

References NS_LOG_DEBUG, and PrintReceivedPacket().

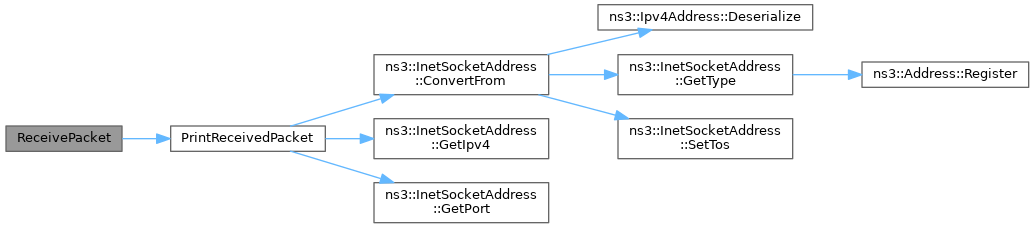

Here is the call graph for this function:

RemainingEnergy()

void RemainingEnergy	(	double	oldValue,
		double	remainingEnergy
	)

Trace function for remaining energy at node.

Parameters

oldValue	Old value
remainingEnergy	New value

Definition at line 131 of file generic-battery-wifiradio-example.cc.

References NS_LOG_DEBUG.
