ns3::RachPreambleLteControlMessage Class Reference

abstract model for the Random Access Preamble More...

#include "lte-control-messages.h"

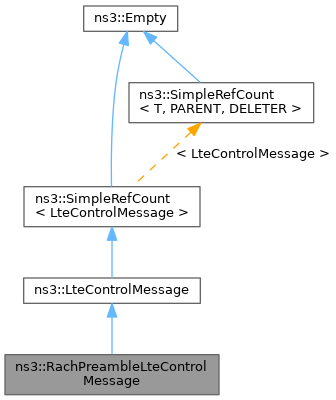

Inheritance diagram for ns3::RachPreambleLteControlMessage:

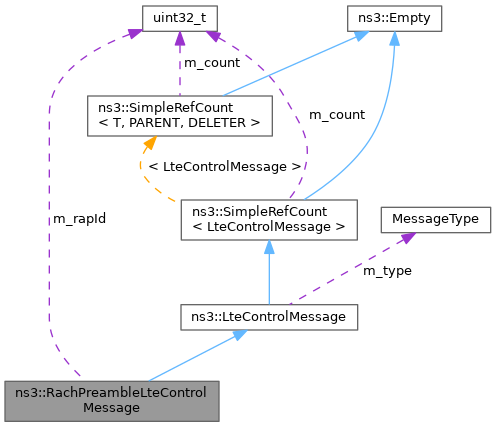

Collaboration diagram for ns3::RachPreambleLteControlMessage:

Public Member Functions
	RachPreambleLteControlMessage ()
uint32_t	GetRapId () const
void	SetRapId (uint32_t rapid)
	Set the Random Access Preamble Identifier (RAPID), see 3GPP TS 36.321 6.2.2.
Public Member Functions inherited from ns3::LteControlMessage
	LteControlMessage ()
virtual	~LteControlMessage ()
MessageType	GetMessageType ()
	Get the type of the message.
void	SetMessageType (MessageType type)
	Set the type of the message.
Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
	SimpleRefCount ()
	Default constructor.
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.
uint32_t	GetReferenceCount () const
	Get the reference count of the object.
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.
void	Ref () const
	Increment the reference count.
void	Unref () const
	Decrement the reference count.

Private Attributes
uint32_t	m_rapId
	the RAPID

Additional Inherited Members
Public Types inherited from ns3::LteControlMessage
enum	MessageType {   DL_DCI , UL_DCI , DL_CQI , UL_CQI ,   BSR , DL_HARQ , RACH_PREAMBLE , RAR ,   MIB , SIB1 }
	The type of the message NOTE: The messages sent by UE are filtered by the LteEnbPhy::ReceiveLteControlMessageList in order to remove the ones that has been already handoff by the eNB for avoiding propagation of spurious messages. More...

Detailed Description

abstract model for the Random Access Preamble

Definition at line 239 of file lte-control-messages.h.

Constructor & Destructor Documentation

RachPreambleLteControlMessage()

ns3::RachPreambleLteControlMessage::RachPreambleLteControlMessage

(

)

Definition at line 146 of file lte-control-messages.cc.

References ns3::LteControlMessage::RACH_PREAMBLE, and ns3::LteControlMessage::SetMessageType().

Here is the call graph for this function:

Member Function Documentation

GetRapId()

uint32_t ns3::RachPreambleLteControlMessage::GetRapId

(

)

const

Returns

the RAPID

Definition at line 158 of file lte-control-messages.cc.

References m_rapId.

SetRapId()

void ns3::RachPreambleLteControlMessage::SetRapId

(

uint32_t

rapid

)

Set the Random Access Preamble Identifier (RAPID), see 3GPP TS 36.321 6.2.2.

Parameters

rapid

the RAPID

Definition at line 152 of file lte-control-messages.cc.

References m_rapId.

Member Data Documentation

m_rapId

uint32_t ns3::RachPreambleLteControlMessage::m_rapId

private

the RAPID

Definition at line 258 of file lte-control-messages.h.

Referenced by GetRapId(), and SetRapId().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-control-messages.h
• src/lte/model/lte-control-messages.cc
