LOWPAN_NHC Extension Header Encoding - see RFC 6282. More...

#include "sixlowpan-header.h"

Inheritance diagram for ns3::SixLowPanNhcExtension:

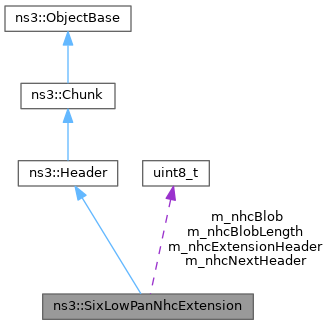

Collaboration diagram for ns3::SixLowPanNhcExtension:

Public Types
enum	Eid_e { EID_HOPBYHOP_OPTIONS_H = 0 , EID_ROUTING_H , EID_FRAGMENTATION_H , EID_DESTINATION_OPTIONS_H , EID_MOBILITY_H , EID_IPv6_H = 7 }
	EID: IPv6 Extension Header ID. More...

Public Member Functions
	SixLowPanNhcExtension ()

uint32_t	CopyBlob (uint8_t *blob, uint32_t size) const
	Get the option header data blob.

uint32_t	Deserialize (Buffer::Iterator start) override
	Deserialize the packet.

Eid_e	GetEid () const
	Get the Extension Header Type.

TypeId	GetInstanceTypeId () const override
	Return the instance type identifier.

uint8_t	GetNextHeader () const
	Get the Next Header field value.

bool	GetNh () const
	Get the Next Header field value.

virtual SixLowPanDispatch::NhcDispatch_e	GetNhcDispatchType () const
	Get the NhcDispatch type.

uint32_t	GetSerializedSize () const override
	Get the serialized size of the packet.

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override
	Serialize the packet.

void	SetBlob (const uint8_t *blob, uint32_t size)
	Set the option header data blob.

void	SetEid (Eid_e extensionHeaderType)
	Set the Extension Header Type.

void	SetNextHeader (uint8_t nextHeader)
	Set the Next Header field values.

void	SetNh (bool nhField)
	Set the NH field values.

Public Member Functions inherited from ns3::Header
	~Header () override

uint32_t	Deserialize (Buffer::Iterator start) override=0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual uint32_t	GetSerializedSize () const =0

void	Print (std::ostream &os) const override=0

virtual void	Serialize (Buffer::Iterator start) const =0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual void	Print (std::ostream &os) const =0
	Print the object contents.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Attributes
uint8_t	m_nhcBlob [256]
	NHC compressed header.

uint8_t	m_nhcBlobLength
	Length of the NHC compressed header.

uint8_t	m_nhcExtensionHeader
	NHC extension header type.

uint8_t	m_nhcNextHeader
	Next header.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

LOWPAN_NHC Extension Header Encoding - see RFC 6282.

Introspection did not find any typical Config paths.

   0   1   2   3   4   5   6   7
 +---+---+---+---+---+---+---+---+
 | 1 | 1 | 1 | 0 |    EID    |NH |
 +---+---+---+---+---+---+---+---+

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 272 bytes (on a 64-bit architecture).

Definition at line 944 of file sixlowpan-header.h.

Member Enumeration Documentation

◆ Eid_e

enum ns3::SixLowPanNhcExtension::Eid_e

EID: IPv6 Extension Header ID.

EID: IPv6 Extension Header ID: 0: IPv6 Hop-by-Hop Options Header [RFC 2460] 1: IPv6 Routing Header [RFC 2460] 2: IPv6 Fragment Header [RFC 2460] 3: IPv6 Destination Options Header [RFC 2460] 4: IPv6 Mobility Header [RFC 6275] 5: Reserved 6: Reserved 7: IPv6 Header

Enumerator
EID_HOPBYHOP_OPTIONS_H
EID_ROUTING_H
EID_FRAGMENTATION_H
EID_DESTINATION_OPTIONS_H
EID_MOBILITY_H
EID_IPv6_H

Definition at line 960 of file sixlowpan-header.h.

Constructor & Destructor Documentation

◆ SixLowPanNhcExtension()

ns3::SixLowPanNhcExtension::SixLowPanNhcExtension ( )

Definition at line 1521 of file sixlowpan-header.cc.

References m_nhcBlobLength, m_nhcExtensionHeader, and m_nhcNextHeader.

Member Function Documentation

◆ CopyBlob()

uint32_t ns3::SixLowPanNhcExtension::CopyBlob	(	uint8_t *	blob,
		uint32_t	size
	)		const

Get the option header data blob.

Parameters

[in]	blob	A buffer to copy the blob data into.
[in]	size	The size of the buffer.

Returns: The length of the copied data.

Definition at line 1644 of file sixlowpan-header.cc.

References m_nhcBlob, m_nhcBlobLength, and NS_ASSERT_MSG.

◆ Deserialize()

uint32_t ns3::SixLowPanNhcExtension::Deserialize ( Buffer::Iterator start )

overridevirtual

Deserialize the packet.

Parameters

[in] start Buffer iterator.

Returns: Size of the packet.

Implements ns3::Header.

Definition at line 1576 of file sixlowpan-header.cc.

References GetNh(), GetSerializedSize(), m_nhcBlob, m_nhcBlobLength, m_nhcExtensionHeader, m_nhcNextHeader, ns3::Buffer::Iterator::Read(), and ns3::Buffer::Iterator::ReadU8().

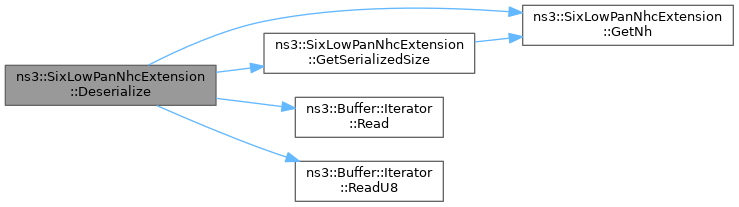

Here is the call graph for this function:

◆ GetEid()

SixLowPanNhcExtension::Eid_e ns3::SixLowPanNhcExtension::GetEid ( ) const

Get the Extension Header Type.

Returns: The Extension Header Type.

Definition at line 1604 of file sixlowpan-header.cc.

References m_nhcExtensionHeader.

◆ GetInstanceTypeId()

TypeId ns3::SixLowPanNhcExtension::GetInstanceTypeId ( ) const

overridevirtual

Return the instance type identifier.

Returns: Instance type ID.

Implements ns3::ObjectBase.

Definition at line 1540 of file sixlowpan-header.cc.

References GetTypeId().

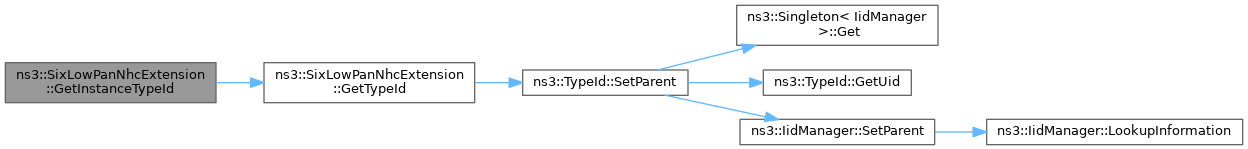

Here is the call graph for this function:

◆ GetNextHeader()

uint8_t ns3::SixLowPanNhcExtension::GetNextHeader ( ) const

Get the Next Header field value.

Returns: The Next Header field value.

Definition at line 1616 of file sixlowpan-header.cc.

References m_nhcNextHeader.

◆ GetNh()

bool ns3::SixLowPanNhcExtension::GetNh ( ) const

Get the Next Header field value.

Returns: The NH field value.

Definition at line 1629 of file sixlowpan-header.cc.

References m_nhcExtensionHeader.

Referenced by Deserialize(), GetSerializedSize(), and Serialize().

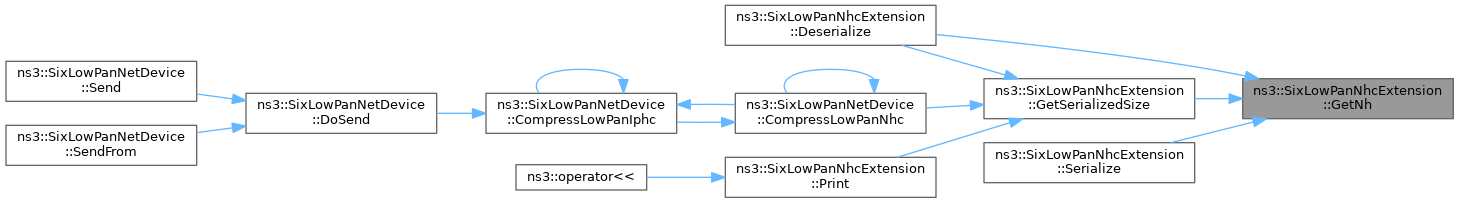

Here is the caller graph for this function:

◆ GetNhcDispatchType()

SixLowPanDispatch::NhcDispatch_e ns3::SixLowPanNhcExtension::GetNhcDispatchType ( ) const

virtual

Get the NhcDispatch type.

Returns: The NhcDispatch type.

Definition at line 1591 of file sixlowpan-header.cc.

References ns3::SixLowPanDispatch::LOWPAN_NHC.

◆ GetSerializedSize()

uint32_t ns3::SixLowPanNhcExtension::GetSerializedSize ( ) const

overridevirtual

Get the serialized size of the packet.

Returns: Size.

Implements ns3::Header.

Definition at line 1552 of file sixlowpan-header.cc.

References GetNh(), and m_nhcBlobLength.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanNhc(), Deserialize(), and Print().

Here is the call graph for this function:

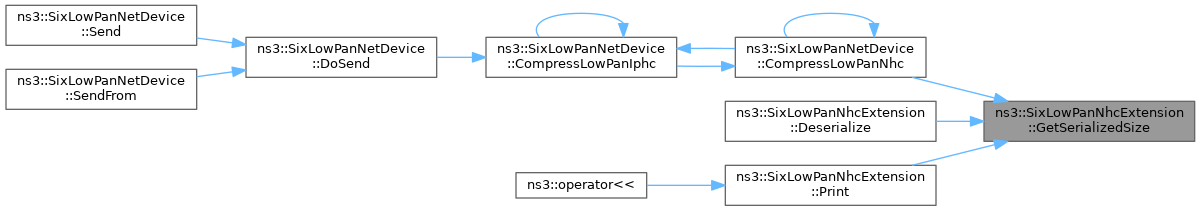

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SixLowPanNhcExtension::GetTypeId ( )

static

Get the type ID.

Returns: The object TypeId.

Definition at line 1530 of file sixlowpan-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

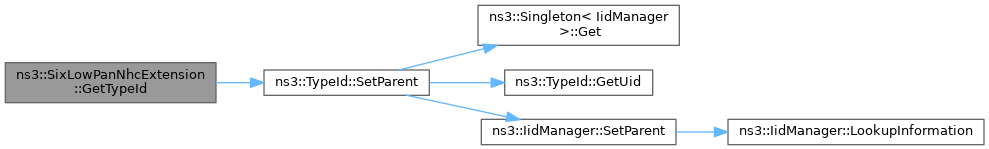

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::SixLowPanNhcExtension::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 1546 of file sixlowpan-header.cc.

References GetSerializedSize(), and m_nhcExtensionHeader.

Referenced by ns3::operator<<().

Here is the call graph for this function:
