ns3::RemoteChannelBundleManager Class Reference

Singleton for managing the RemoteChannelBundles for each process. More...

#include "remote-channel-bundle-manager.h"

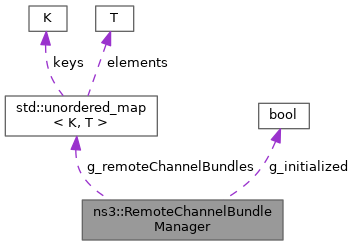

Collaboration diagram for ns3::RemoteChannelBundleManager:

Static Public Member Functions
static Ptr< RemoteChannelBundle >	Add (uint32_t systemId)
	Add RemoteChannelBundle from this task to MPI task on other side of the link.
static void	Destroy ()
	Destroy the singleton.
static Ptr< RemoteChannelBundle >	Find (uint32_t systemId)
	Get the bundle corresponding to a remote rank.
static Time	GetSafeTime ()
	Get the safe time across all channels in this bundle.
static void	InitializeNullMessageEvents ()
	Setup initial Null Message events for every RemoteChannelBundle.
static std::size_t	Size ()
	Get the number of ns-3 channels in this bundle.

Private Types
typedef std::unordered_map< uint32_t, Ptr< RemoteChannelBundle > >	RemoteChannelMap
	Container for all remote channel bundles for this task.

Private Member Functions
	RemoteChannelBundleManager ()
	Private ctor to prevent creation outside of singleton pattern.
	~RemoteChannelBundleManager ()
	Private dtor to prevent destruction outside of singleton pattern.

Static Private Attributes
static bool	g_initialized = false
	Protect manager class from being initialized twice or incorrect ordering of method calls.
static RemoteChannelMap	g_remoteChannelBundles
	The remote channel bundles.

Detailed Description

Singleton for managing the RemoteChannelBundles for each process.

Manages collective tasks associated with the bundle collection.

Definition at line 47 of file remote-channel-bundle-manager.h.

Member Typedef Documentation

RemoteChannelMap

typedef std::unordered_map<uint32_t, Ptr<RemoteChannelBundle> > ns3::RemoteChannelBundleManager::RemoteChannelMap

private

Container for all remote channel bundles for this task.

Definition at line 108 of file remote-channel-bundle-manager.h.

Constructor & Destructor Documentation

RemoteChannelBundleManager()

ns3::RemoteChannelBundleManager::RemoteChannelBundleManager ( )

inlineprivate

Private ctor to prevent creation outside of singleton pattern.

Definition at line 93 of file remote-channel-bundle-manager.h.

~RemoteChannelBundleManager()

ns3::RemoteChannelBundleManager::~RemoteChannelBundleManager ( )

inlineprivate

Private dtor to prevent destruction outside of singleton pattern.

Definition at line 100 of file remote-channel-bundle-manager.h.

Member Function Documentation

Add()

Ptr< RemoteChannelBundle > ns3::RemoteChannelBundleManager::Add ( uint32_t  systemId )

static

Add RemoteChannelBundle from this task to MPI task on other side of the link.

Can not be invoked after InitializeNullMessageEvents has been invoked.

Parameters

[in]

systemId

The remote system id.

Returns

The newly added bundle.

Definition at line 57 of file remote-channel-bundle-manager.cc.

References g_initialized, g_remoteChannelBundles, and NS_ASSERT.

Referenced by ns3::NullMessageSimulatorImpl::CalculateLookAhead().

Here is the caller graph for this function:

Destroy()

void ns3::RemoteChannelBundleManager::Destroy ( )

static

Destroy the singleton.

Definition at line 107 of file remote-channel-bundle-manager.cc.

References g_initialized, g_remoteChannelBundles, and NS_ASSERT.

Referenced by ns3::NullMessageSimulatorImpl::Destroy().

Here is the caller graph for this function:

Find()

Ptr< RemoteChannelBundle > ns3::RemoteChannelBundleManager::Find ( uint32_t  systemId )

static

Get the bundle corresponding to a remote rank.

Parameters

[in]

systemId

The remote system id.

Returns

The bundle for the specified system id.

Definition at line 42 of file remote-channel-bundle-manager.cc.

References g_remoteChannelBundles.

Referenced by ns3::NullMessageSimulatorImpl::CalculateGuaranteeTime(), ns3::NullMessageSimulatorImpl::CalculateLookAhead(), ns3::NullMessageMpiInterface::InitializeSendReceiveBuffers(), ns3::NullMessageMpiInterface::ReceiveMessages(), and ns3::NullMessageSimulatorImpl::RescheduleNullMessageEvent().

Here is the caller graph for this function:

GetSafeTime()

Time ns3::RemoteChannelBundleManager::GetSafeTime ( )

static

Get the safe time across all channels in this bundle.

Returns

The safe time.

Definition at line 92 of file remote-channel-bundle-manager.cc.

References g_initialized, g_remoteChannelBundles, ns3::Simulator::GetMaximumSimulationTime(), Min, and NS_ASSERT.

Referenced by ns3::NullMessageSimulatorImpl::CalculateSafeTime().

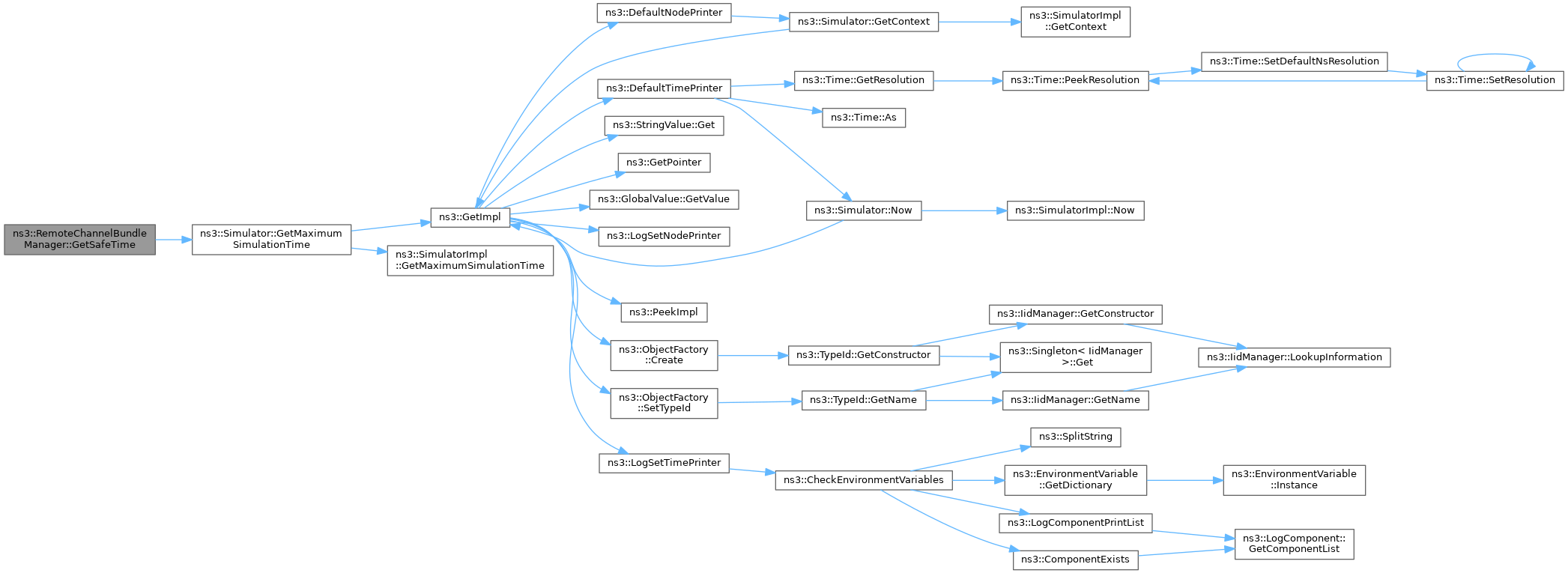

Here is the call graph for this function:

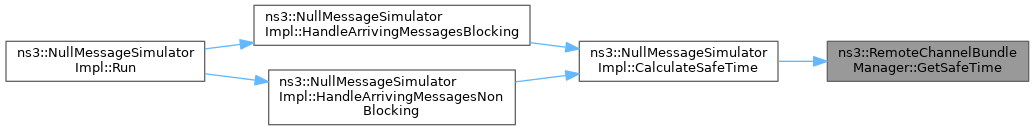

Here is the caller graph for this function:

InitializeNullMessageEvents()

void ns3::RemoteChannelBundleManager::InitializeNullMessageEvents ( )

static

Setup initial Null Message events for every RemoteChannelBundle.

All RemoteChannelBundles should be added before this method is invoked.

Definition at line 76 of file remote-channel-bundle-manager.cc.

References g_initialized, g_remoteChannelBundles, ns3::NullMessageSimulatorImpl::GetInstance(), NS_ASSERT, and ns3::NullMessageSimulatorImpl::ScheduleNullMessageEvent().

Referenced by ns3::NullMessageSimulatorImpl::Run().

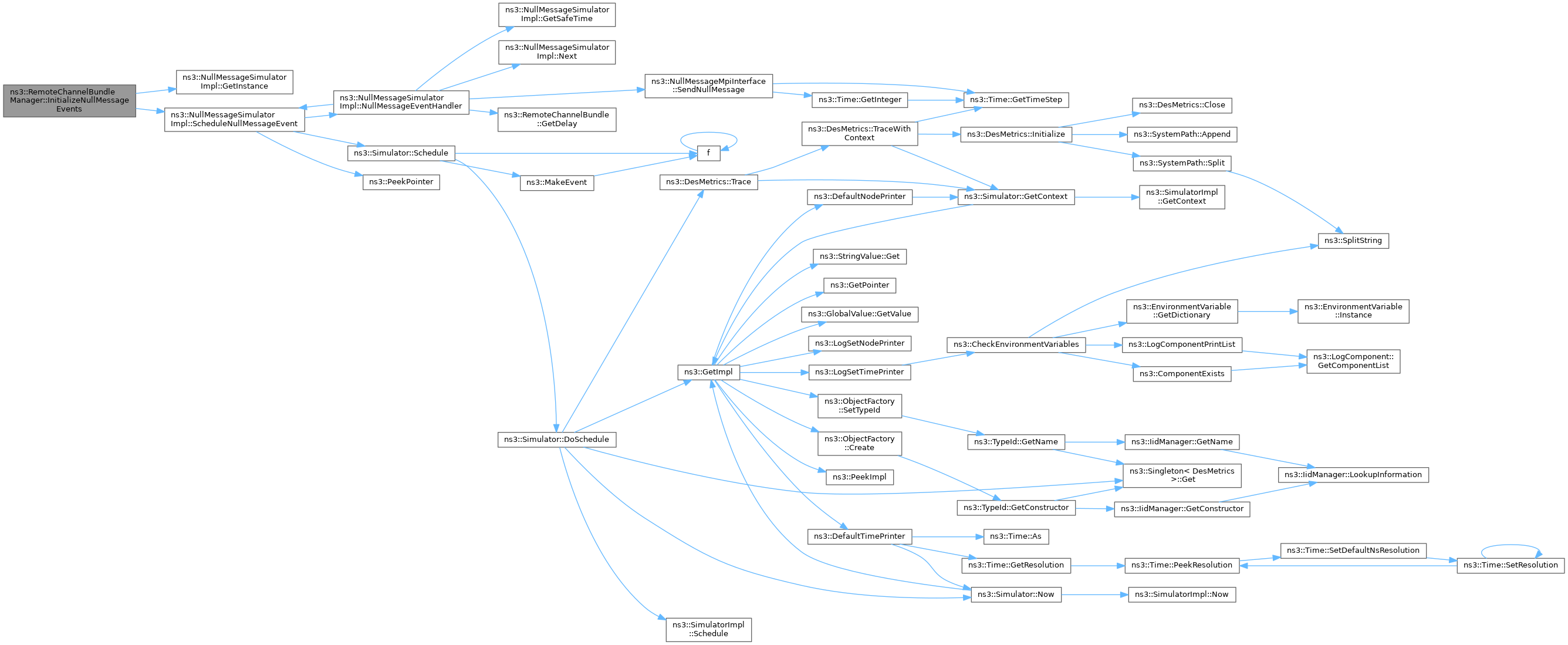

Here is the call graph for this function:

Here is the caller graph for this function:

Size()

std::size_t ns3::RemoteChannelBundleManager::Size ( )

static

Get the number of ns-3 channels in this bundle.

Returns

The number of channels.

Definition at line 70 of file remote-channel-bundle-manager.cc.

References g_remoteChannelBundles.

Referenced by ns3::NullMessageMpiInterface::InitializeSendReceiveBuffers().

Here is the caller graph for this function:

Member Data Documentation

g_initialized

bool ns3::RemoteChannelBundleManager::g_initialized = false

staticprivate

Protect manager class from being initialized twice or incorrect ordering of method calls.

Definition at line 116 of file remote-channel-bundle-manager.h.

Referenced by Add(), Destroy(), GetSafeTime(), and InitializeNullMessageEvents().

g_remoteChannelBundles

ns3::RemoteChannelBundleManager::RemoteChannelMap ns3::RemoteChannelBundleManager::g_remoteChannelBundles

staticprivate

The remote channel bundles.

Definition at line 110 of file remote-channel-bundle-manager.h.

Referenced by Add(), Destroy(), Find(), GetSafeTime(), InitializeNullMessageEvents(), and Size().

---

The documentation for this class was generated from the following files:

• src/mpi/model/remote-channel-bundle-manager.h
• src/mpi/model/remote-channel-bundle-manager.cc
