lr-wpan-phy-test.cc File Reference

#include <ns3/command-line.h>
#include <ns3/constant-position-mobility-model.h>
#include <ns3/log.h>
#include <ns3/lr-wpan-mac.h>
#include <ns3/lr-wpan-phy.h>
#include <ns3/packet.h>
#include <ns3/simulator.h>
#include <ns3/single-model-spectrum-channel.h>
#include <ns3/test.h>

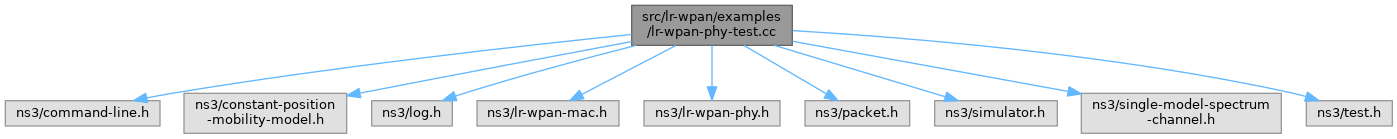

Include dependency graph for lr-wpan-phy-test.cc:

Go to the source code of this file.

Functions
void	GetSetTRXStateConfirm (LrWpanPhyEnumeration status)
	Function called when a the PHY state change is confirmed.
void	ReceivePdDataIndication (uint32_t psduLength, Ptr< Packet > p, uint8_t lqi)
	Function called when a the PHY receives a packet.
void	SendOnePacket (Ptr< LrWpanPhy > sender, Ptr< LrWpanPhy > receiver)
	Send one packet.

Detailed Description

Usage

$ ./ns3 run "lr-wpan-phy-test"

Definition in file lr-wpan-phy-test.cc.

Function Documentation

GetSetTRXStateConfirm()

void GetSetTRXStateConfirm

(

LrWpanPhyEnumeration

status

)

Function called when a the PHY state change is confirmed.

Parameters

status

PHY state

Definition at line 36 of file lr-wpan-phy-test.cc.

References ns3::Simulator::Now(), and NS_LOG_UNCOND.

Here is the call graph for this function:

ReceivePdDataIndication()

void ReceivePdDataIndication	(	uint32_t	psduLength,
		Ptr< Packet >	p,
		uint8_t	lqi
	)

Function called when a the PHY receives a packet.

Parameters

psduLength	PSDU length
p	packet
lqi	link quality indication

Definition at line 48 of file lr-wpan-phy-test.cc.

References ns3::Simulator::Now(), and NS_LOG_UNCOND.

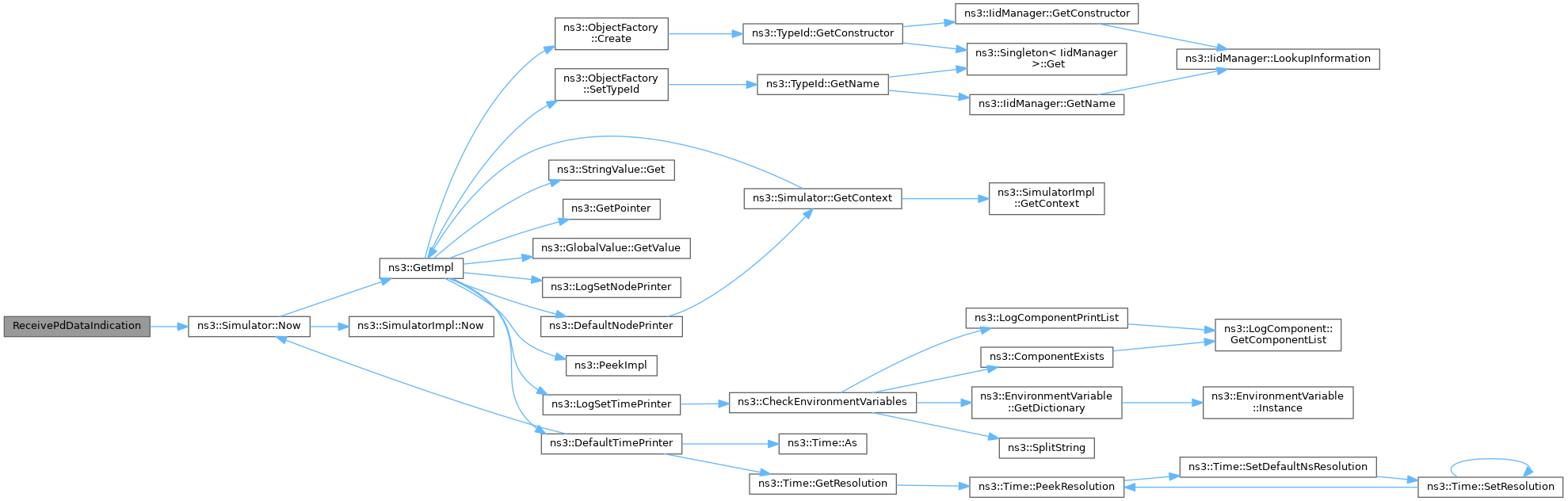

Here is the call graph for this function:

SendOnePacket()

void SendOnePacket	(	Ptr< LrWpanPhy >	sender,
		Ptr< LrWpanPhy >	receiver
	)

Send one packet.

Parameters

sender	sender PHY
receiver	receiver PHY

Definition at line 60 of file lr-wpan-phy-test.cc.
