ns3::olsr::LinkTuple Struct Reference

A Link Tuple. More...

#include "olsr-repositories.h"

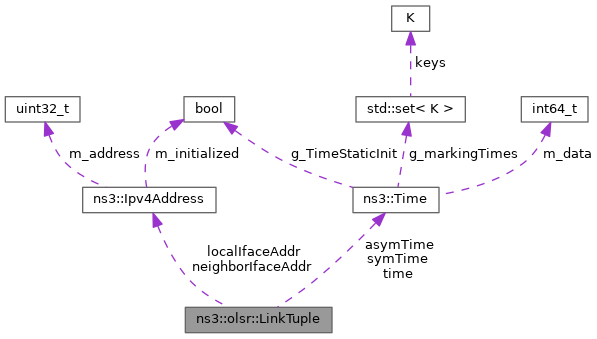

Collaboration diagram for ns3::olsr::LinkTuple:

Public Attributes
Time	asymTime
	The link is considered unidirectional until this time.
Ipv4Address	localIfaceAddr
	Interface address of the local node.
Ipv4Address	neighborIfaceAddr
	Interface address of the neighbor node.
Time	symTime
	The link is considered bidirectional until this time.
Time	time
	Time at which this tuple expires and must be removed.

Detailed Description

A Link Tuple.

Definition at line 111 of file olsr-repositories.h.

Member Data Documentation

asymTime

Time ns3::olsr::LinkTuple::asymTime

The link is considered unidirectional until this time.

Definition at line 120 of file olsr-repositories.h.

Referenced by ns3::olsr::RoutingProtocol::LinkSensing(), and ns3::olsr::operator<<().

localIfaceAddr

Ipv4Address ns3::olsr::LinkTuple::localIfaceAddr

Interface address of the local node.

Definition at line 114 of file olsr-repositories.h.

Referenced by ns3::olsr::RoutingProtocol::LinkSensing(), ns3::olsr::operator<<(), ns3::olsr::operator==(), and ns3::olsr::RoutingProtocol::RoutingTableComputation().

neighborIfaceAddr

Ipv4Address ns3::olsr::LinkTuple::neighborIfaceAddr

Interface address of the neighbor node.

Definition at line 116 of file olsr-repositories.h.

Referenced by ns3::olsr::RoutingProtocol::LinkSensing(), ns3::olsr::RoutingProtocol::LinkTupleAdded(), ns3::olsr::RoutingProtocol::LinkTupleUpdated(), ns3::olsr::RoutingProtocol::NeighborLoss(), ns3::olsr::operator<<(), ns3::olsr::operator==(), ns3::olsr::RoutingProtocol::RemoveLinkTuple(), and ns3::olsr::RoutingProtocol::RoutingTableComputation().

symTime

Time ns3::olsr::LinkTuple::symTime

The link is considered bidirectional until this time.

Definition at line 118 of file olsr-repositories.h.

Referenced by ns3::olsr::RoutingProtocol::LinkSensing(), ns3::olsr::RoutingProtocol::LinkTupleAdded(), ns3::olsr::RoutingProtocol::LinkTupleTimerExpire(), ns3::olsr::RoutingProtocol::LinkTupleUpdated(), and ns3::olsr::operator<<().

time

Time ns3::olsr::LinkTuple::time

Time at which this tuple expires and must be removed.

Definition at line 122 of file olsr-repositories.h.

Referenced by ns3::olsr::RoutingProtocol::LinkSensing(), ns3::olsr::RoutingProtocol::LinkTupleTimerExpire(), ns3::olsr::operator<<(), and ns3::olsr::RoutingProtocol::RoutingTableComputation().

---

The documentation for this struct was generated from the following file:

• src/olsr/model/olsr-repositories.h
