ns3::DsssPpdu Class Reference
Wifi Models

DSSS (HR/DSSS) PPDU (11b) More...

#include "dsss-ppdu.h"

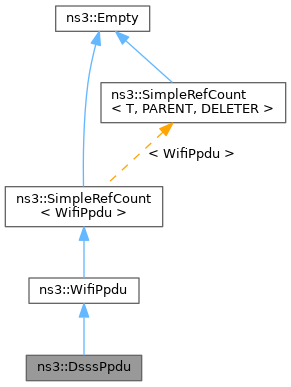

+ Inheritance diagram for ns3::DsssPpdu:
+ Collaboration diagram for ns3::DsssPpdu:

Classes

class  DsssSigHeader
 DSSS SIG PHY header. More...


Public Member Functions

 DsssPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, const WifiPhyOperatingChannel &channel, Time ppduDuration, uint64_t uid)
 Create a DSSS (HR/DSSS) PPDU.

Ptr< WifiPpdu > Copy () const override
 Copy this instance.

Time GetTxDuration () const override
 Get the total transmission duration of the PPDU.

- Public Member Functions inherited from ns3::WifiPpdu
 WifiPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, const WifiPhyOperatingChannel &channel, uint64_t uid)
 Create a PPDU storing a map of PSDUs.

 WifiPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, const WifiPhyOperatingChannel &channel, uint64_t uid=UINT64_MAX)
 Create a PPDU storing a PSDU.

virtual ~WifiPpdu ()
 Destructor for WifiPpdu.

virtual Ptr< WifiPpdu > Copy () const
 Copy this instance.

bool DoesOverlapChannel (uint16_t minFreq, uint16_t maxFreq) const
 Check whether the given PPDU overlaps a given channel.

WifiModulationClass GetModulation () const
 Get the modulation used for the PPDU.

WifiPreamble GetPreamble () const
 Get the preamble of the PPDU.

Ptr< const WifiPsdu > GetPsdu () const
 Get the payload of the PPDU.

virtual uint16_t GetStaId () const
 Get the ID of the STA that transmitted the PPDU for UL MU, SU_STA_ID otherwise.

uint16_t GetTxCenterFreq () const

virtual uint16_t GetTxChannelWidth () const
 Get the channel width over which the PPDU will effectively be transmitted.

virtual Time GetTxDuration () const
 Get the total transmission duration of the PPDU.

const WifiTxVector & GetTxVector () const
 Get the TXVECTOR used to send the PPDU.

virtual WifiPpduType GetType () const
 Return the PPDU type (.

uint64_t GetUid () const
 Get the UID of the PPDU.

bool IsTruncatedTx () const

void Print (std::ostream &os) const
 Print the PPDU contents.

void ResetTxVector () const
 Reset the TXVECTOR.

void SetTruncatedTx ()
 Indicate that the PPDU's transmission was aborted due to transmitter switch off.

void UpdateTxVector (const WifiTxVector &updatedTxVector) const
 Update the TXVECTOR based on some information known at the receiver.

- Public Member Functions inherited from ns3::SimpleRefCount< WifiPpdu >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCount & operator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.


Private Member Functions

WifiTxVector DoGetTxVector () const override
 Get the TXVECTOR used to send the PPDU.

void SetDsssHeader (DsssSigHeader &dsssSig, const WifiTxVector &txVector, Time ppduDuration) const
 Fill in the DSSS header.

void SetPhyHeaders (const WifiTxVector &txVector, Time ppduDuration)
 Fill in the PHY headers.

virtual void SetTxVectorFromDsssHeader (WifiTxVector &txVector, const DsssSigHeader &dsssSig) const
 Fill in the TXVECTOR from DSSS header.


Private Attributes

DsssSigHeader m_dsssSig
 the DSSS SIG PHY header


Additional Inherited Members

- Protected Member Functions inherited from ns3::WifiPpdu
virtual std::string PrintPayload () const
 Print the payload of the PPDU.

- Protected Attributes inherited from ns3::WifiPpdu
WifiModulationClass m_modulation
 the modulation used for the transmission of this PPDU

const WifiPhyOperatingChannel & m_operatingChannel
 the operating channel of the PHY

WifiPreamble m_preamble
 the PHY preamble

WifiConstPsduMap m_psdus
 the PSDUs contained in this PPDU

uint16_t m_txCenterFreq
 the center frequency (MHz) used for the transmission of this PPDU

std::optional< WifiTxVector > m_txVector
 the TXVECTOR at TX PHY or the reconstructed TXVECTOR at RX PHY (or std::nullopt if TXVECTOR has not been reconstructed yet)

uint64_t m_uid
 the unique ID of this PPDU


Detailed Description

DSSS (HR/DSSS) PPDU (11b)

DsssPpdu stores a preamble, PHY headers and a PSDU of a PPDU with DSSS modulation.

Definition at line 44 of file dsss-ppdu.h.

Constructor & Destructor Documentation

◆ DsssPpdu()

ns3::DsssPpdu::DsssPpdu ( Ptr< const WifiPsdu >  psdu,
const WifiTxVector &  txVector,
const WifiPhyOperatingChannel &  channel,
Time  ppduDuration,
uint64_t  uid
)

Create a DSSS (HR/DSSS) PPDU.

Parameters
psduthe PHY payload (PSDU)
txVectorthe TXVECTOR that was used for this PPDU
channelthe operating channel of the PHY used to transmit this PPDU
ppduDurationthe transmission duration of this PPDU
uidthe unique ID of this PPDU

Definition at line 36 of file dsss-ppdu.cc.

References NS_LOG_FUNCTION, and SetPhyHeaders().

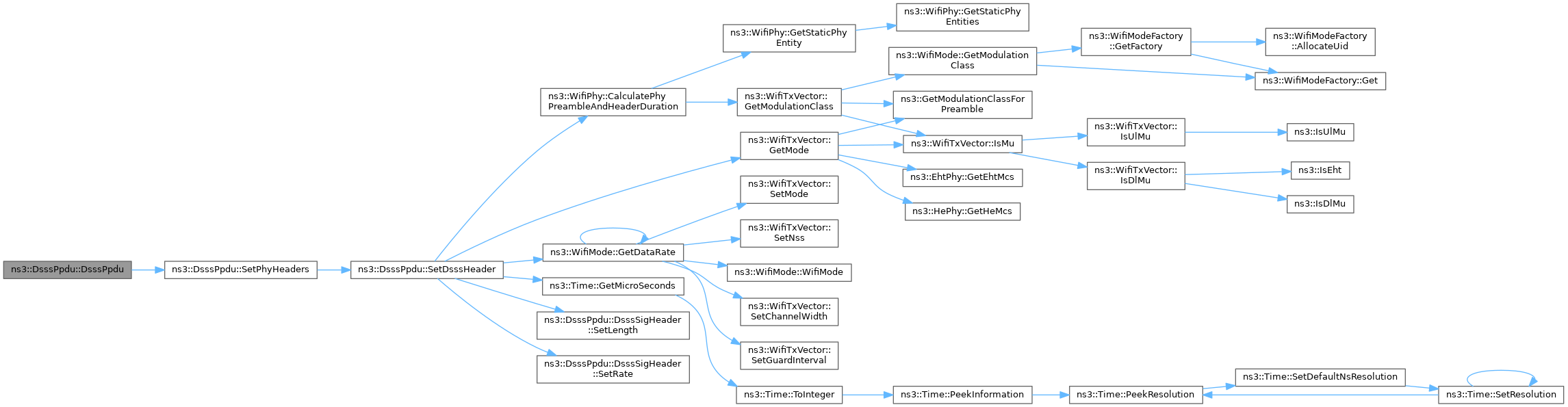

+ Here is the call graph for this function:

Member Function Documentation

◆ Copy()

Ptr< WifiPpdu > ns3::DsssPpdu::Copy ( ) const
overridevirtual

Copy this instance.

Returns
a Ptr to a copy of this instance.

Reimplemented from ns3::WifiPpdu.

Definition at line 89 of file dsss-ppdu.cc.

◆ DoGetTxVector()

WifiTxVector ns3::DsssPpdu::DoGetTxVector ( ) const
overrideprivatevirtual

Get the TXVECTOR used to send the PPDU.

Returns
the TXVECTOR of the PPDU.

Reimplemented from ns3::WifiPpdu.

Definition at line 65 of file dsss-ppdu.cc.

References m_dsssSig, ns3::WifiPpdu::m_preamble, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetPreambleType(), and SetTxVectorFromDsssHeader().

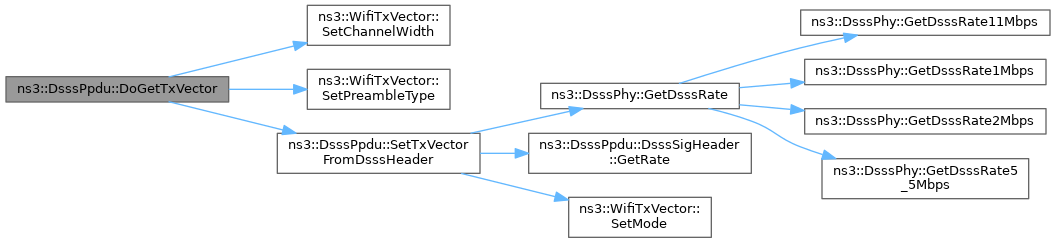

+ Here is the call graph for this function:

◆ GetTxDuration()

Time ns3::DsssPpdu::GetTxDuration ( ) const
overridevirtual

Get the total transmission duration of the PPDU.

Returns
the transmission duration of the PPDU

Reimplemented from ns3::WifiPpdu.

Definition at line 81 of file dsss-ppdu.cc.

References ns3::WifiPhy::CalculatePhyPreambleAndHeaderDuration(), ns3::DsssPpdu::DsssSigHeader::GetLength(), ns3::WifiPpdu::GetTxVector(), m_dsssSig, and ns3::MicroSeconds().

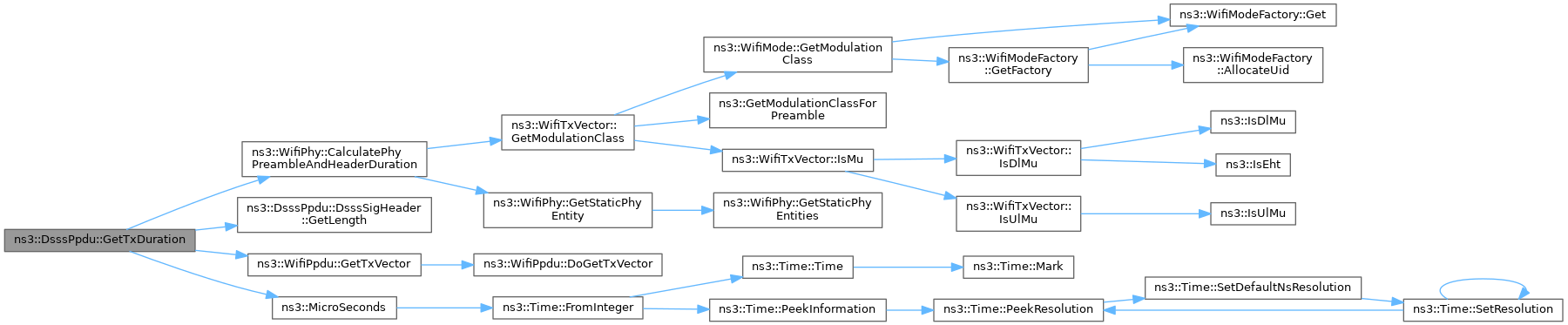

+ Here is the call graph for this function:

◆ SetDsssHeader()

void ns3::DsssPpdu::SetDsssHeader ( DsssSigHeader &  dsssSig,
const WifiTxVector &  txVector,
Time  ppduDuration
) const
private

Fill in the DSSS header.

Parameters
dsssSigthe DSSS header to fill in
txVectorthe TXVECTOR that was used for this PPDU
ppduDurationthe transmission duration of this PPDU

Definition at line 55 of file dsss-ppdu.cc.

References ns3::WifiPhy::CalculatePhyPreambleAndHeaderDuration(), ns3::WifiMode::GetDataRate(), ns3::Time::GetMicroSeconds(), ns3::WifiTxVector::GetMode(), ns3::DsssPpdu::DsssSigHeader::SetLength(), and ns3::DsssPpdu::DsssSigHeader::SetRate().

Referenced by SetPhyHeaders().

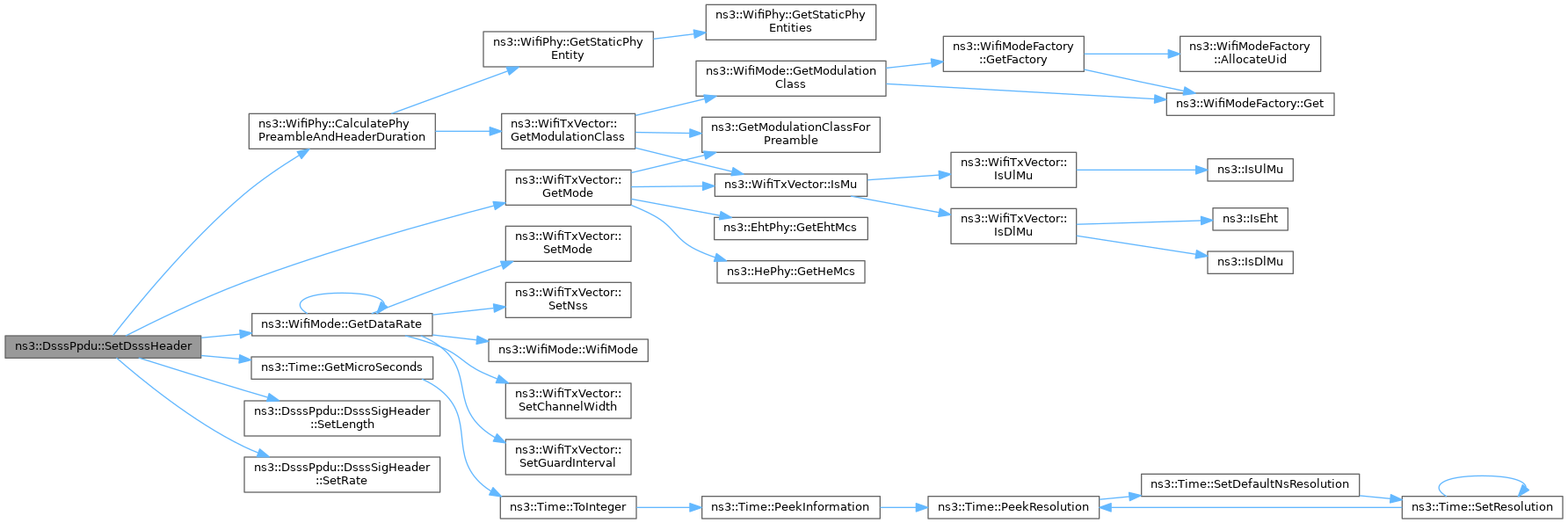

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetPhyHeaders()

void ns3::DsssPpdu::SetPhyHeaders ( const WifiTxVector &  txVector,
Time  ppduDuration
)
private

Fill in the PHY headers.

Parameters
txVectorthe TXVECTOR that was used for this PPDU
ppduDurationthe transmission duration of this PPDU

Definition at line 48 of file dsss-ppdu.cc.

References m_dsssSig, NS_LOG_FUNCTION, and SetDsssHeader().

Referenced by DsssPpdu().

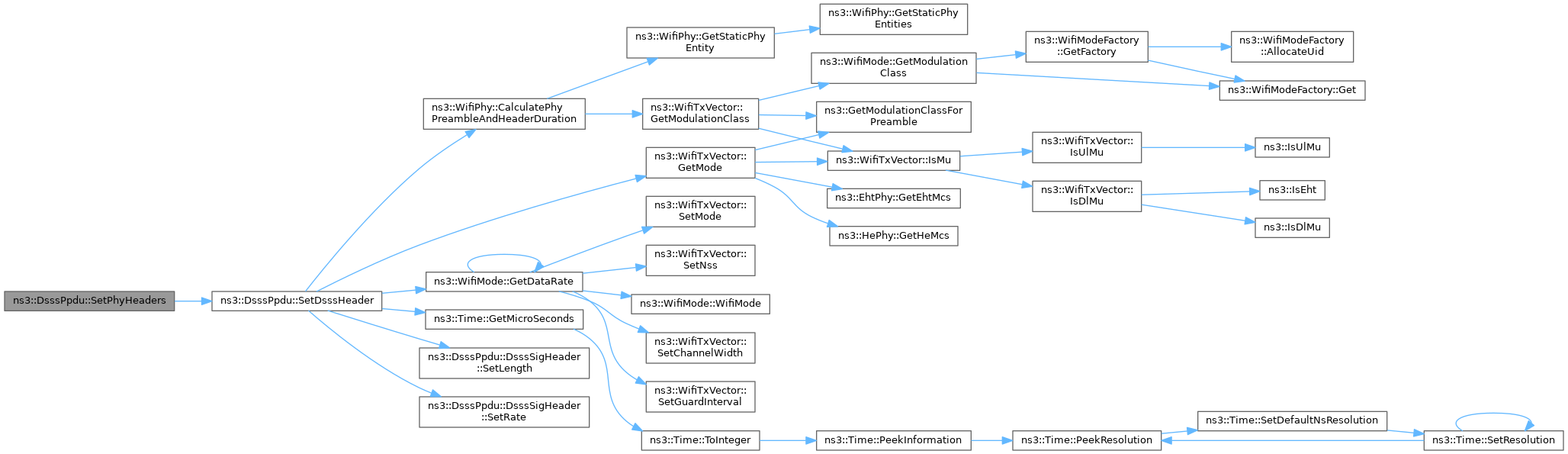

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetTxVectorFromDsssHeader()

void ns3::DsssPpdu::SetTxVectorFromDsssHeader ( WifiTxVector &  txVector,
const DsssSigHeader &  dsssSig
) const
privatevirtual

Fill in the TXVECTOR from DSSS header.

Parameters
txVectorthe TXVECTOR to fill in
dsssSigthe DSSS header

Definition at line 75 of file dsss-ppdu.cc.

References ns3::DsssPhy::GetDsssRate(), ns3::DsssPpdu::DsssSigHeader::GetRate(), and ns3::WifiTxVector::SetMode().

Referenced by DoGetTxVector().

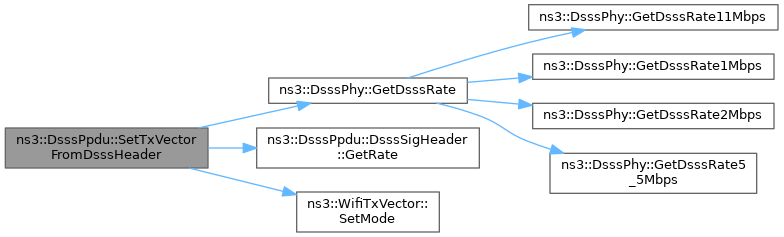

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ m_dsssSig

DsssSigHeader ns3::DsssPpdu::m_dsssSig
private

the DSSS SIG PHY header

Definition at line 135 of file dsss-ppdu.h.

Referenced by DoGetTxVector(), GetTxDuration(), and SetPhyHeaders().

The documentation for this class was generated from the following files:
