an address for a packet socket More...

#include "packet-socket-address.h"

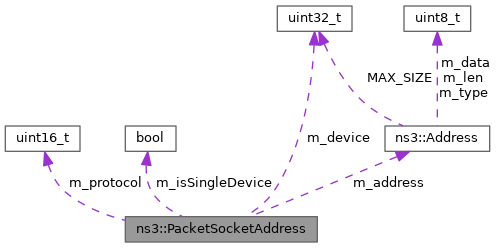

Collaboration diagram for ns3::PacketSocketAddress:

Public Member Functions
	PacketSocketAddress ()

Address	ConvertTo () const
	Convert an instance of this class to a polymorphic Address instance.

Address	GetPhysicalAddress () const
	Get the destination address.

uint16_t	GetProtocol () const
	Get the protocol.

uint32_t	GetSingleDevice () const
	Get the device this address is bound to.

bool	IsSingleDevice () const
	Checks if the address is bound to a specified NetDevice.

	operator Address () const

void	SetAllDevices ()
	Set the address to match all the outgoing NetDevice.

void	SetPhysicalAddress (const Address address)
	Set the destination address.

void	SetProtocol (uint16_t protocol)
	Set the protocol.

void	SetSingleDevice (uint32_t device)
	Set the address to match only a specified NetDevice.

Static Public Member Functions
static PacketSocketAddress	ConvertFrom (const Address &address)

static bool	IsMatchingType (const Address &address)

Static Private Member Functions
static uint8_t	GetType ()
	Return the Type of address.

Private Attributes
Address	m_address
	Destination address.

uint32_t	m_device
	Outgoing NetDevice index.

bool	m_isSingleDevice
	True if directed to a specific outgoing NetDevice.

uint16_t	m_protocol
	Protocol.

Detailed Description

an address for a packet socket

Definition at line 39 of file packet-socket-address.h.

Constructor & Destructor Documentation

◆ PacketSocketAddress()

ns3::PacketSocketAddress::PacketSocketAddress ( )

Definition at line 29 of file packet-socket-address.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ConvertFrom()

PacketSocketAddress ns3::PacketSocketAddress::ConvertFrom ( const Address & address )

static

Parameters

address a polymorphic address

Returns: an Address Convert a polymorphic address to an Mac48Address instance. The conversion performs a type check.

Definition at line 115 of file packet-socket-address.cc.

References ns3::Address::CopyAllFrom(), IsMatchingType(), ns3::Address::MAX_SIZE, NS_ASSERT, NS_LOG_FUNCTION, SetAllDevices(), SetPhysicalAddress(), SetProtocol(), and SetSingleDevice().

Referenced by ns3::PacketSocket::Bind(), ns3::PacketSocket::GetTxAvailable(), ns3::PacketSocketServer::HandleRead(), ns3::PacketSocketClient::Send(), and ns3::PacketSocket::SendTo().

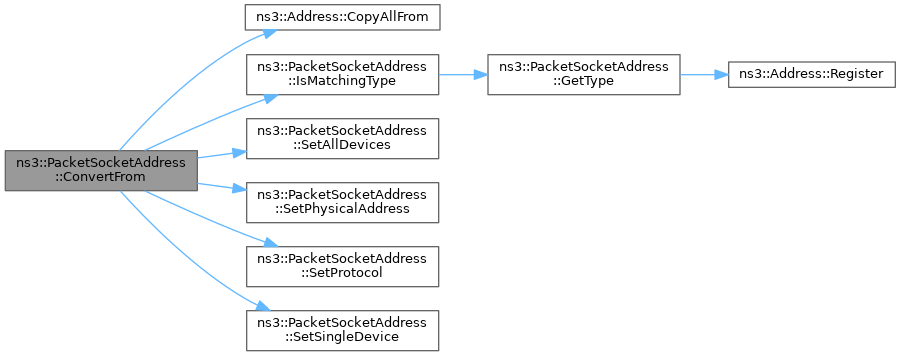

Here is the call graph for this function:

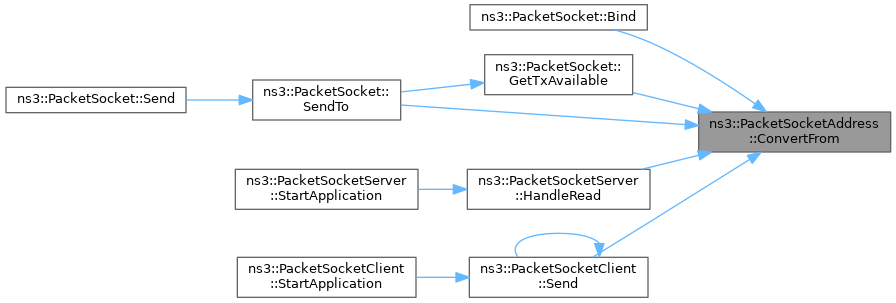

Here is the caller graph for this function:

◆ ConvertTo()

Address ns3::PacketSocketAddress::ConvertTo ( ) const

Convert an instance of this class to a polymorphic Address instance.

Returns: a new Address instance

Definition at line 98 of file packet-socket-address.cc.

References ns3::Address::CopyAllTo(), GetType(), m_address, m_device, m_isSingleDevice, m_protocol, ns3::Address::MAX_SIZE, and NS_LOG_FUNCTION.

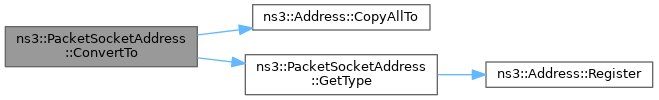

Here is the call graph for this function:

◆ GetPhysicalAddress()

Address ns3::PacketSocketAddress::GetPhysicalAddress ( ) const

Get the destination address.

Returns: The destination address

Definition at line 86 of file packet-socket-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::PacketSocket::SendTo().

Here is the caller graph for this function:

◆ GetProtocol()

uint16_t ns3::PacketSocketAddress::GetProtocol ( ) const

Get the protocol.

Returns: the protocol

Definition at line 65 of file packet-socket-address.cc.

References m_protocol, and NS_LOG_FUNCTION.

Referenced by ns3::PacketSocket::SendTo().

Here is the caller graph for this function:

◆ GetSingleDevice()

uint32_t ns3::PacketSocketAddress::GetSingleDevice ( ) const

Get the device this address is bound to.

Returns: the device index

Definition at line 79 of file packet-socket-address.cc.

References m_device, and NS_LOG_FUNCTION.

Referenced by ns3::PacketSocket::GetMinMtu(), and ns3::PacketSocket::SendTo().

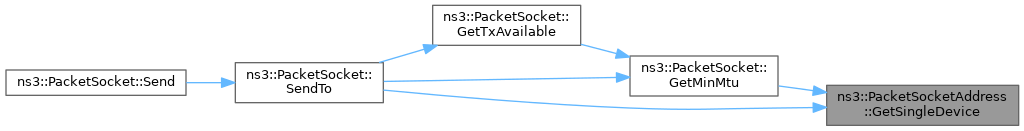

Here is the caller graph for this function:

◆ GetType()

uint8_t ns3::PacketSocketAddress::GetType ( )

staticprivate

Return the Type of address.

Returns: type of address

Definition at line 155 of file packet-socket-address.cc.

References NS_LOG_FUNCTION_NOARGS, and ns3::Address::Register().

Referenced by ConvertTo(), and IsMatchingType().

Here is the call graph for this function:

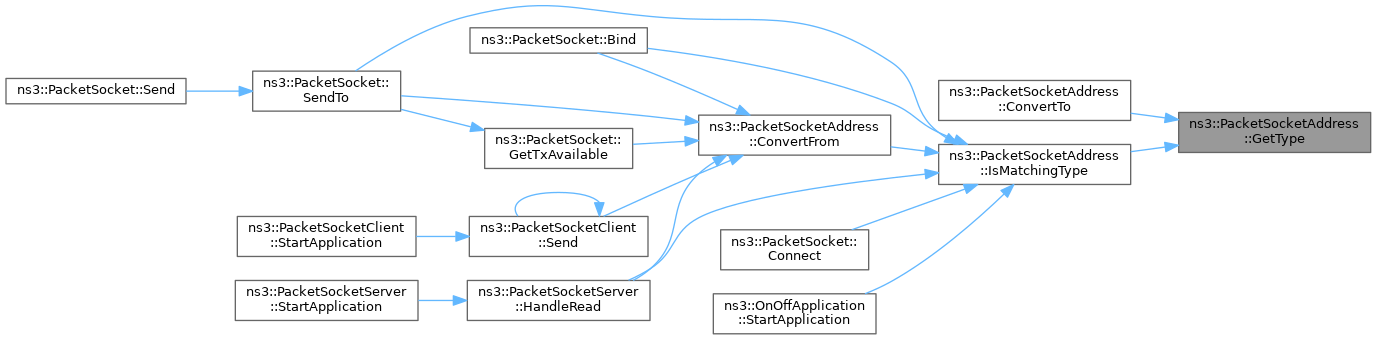

Here is the caller graph for this function:

◆ IsMatchingType()

bool ns3::PacketSocketAddress::IsMatchingType ( const Address & address )

static

Parameters

address address to test

Returns: true if the address matches, false otherwise.

Definition at line 148 of file packet-socket-address.cc.

References GetType(), and NS_LOG_FUNCTION.

Referenced by ns3::PacketSocket::Bind(), ns3::PacketSocket::Connect(), ConvertFrom(), ns3::PacketSocketServer::HandleRead(), ns3::PacketSocket::SendTo(), and ns3::OnOffApplication::StartApplication().

Here is the call graph for this function:

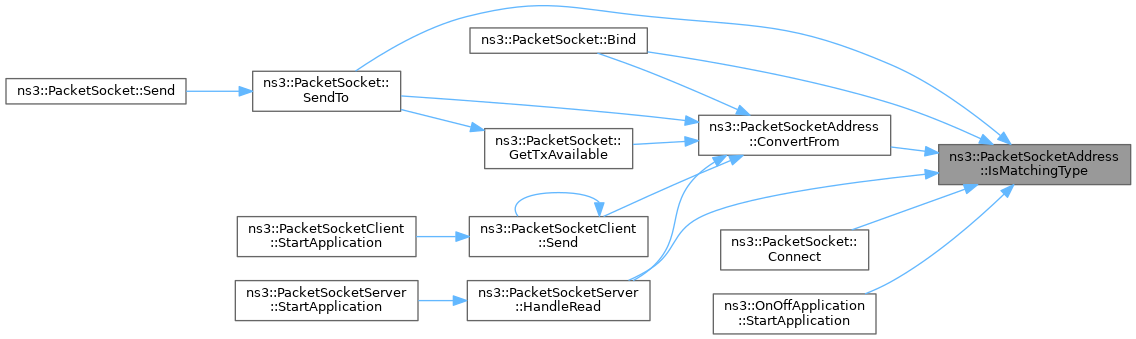

Here is the caller graph for this function:

◆ IsSingleDevice()

bool ns3::PacketSocketAddress::IsSingleDevice ( ) const

Checks if the address is bound to a specified NetDevice.

Returns: true if the address is bound to a NetDevice

Definition at line 72 of file packet-socket-address.cc.

References m_isSingleDevice, and NS_LOG_FUNCTION.

Referenced by ns3::PacketSocket::GetMinMtu(), and ns3::PacketSocket::SendTo().

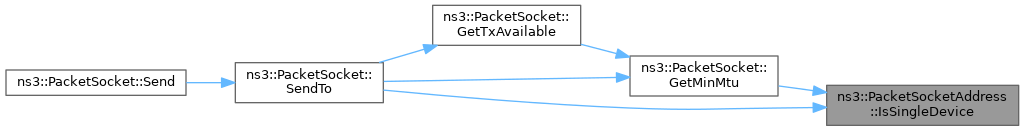

Here is the caller graph for this function:

◆ operator Address()

ns3::PacketSocketAddress::operator Address ( ) const

Returns: a new Address instance

Convert an instance of this class to a polymorphic Address instance.

Definition at line 92 of file packet-socket-address.cc.

◆ SetAllDevices()

void ns3::PacketSocketAddress::SetAllDevices ( )

Set the address to match all the outgoing NetDevice.

Definition at line 42 of file packet-socket-address.cc.

References m_device, m_isSingleDevice, and NS_LOG_FUNCTION.

Referenced by ConvertFrom(), and ns3::PacketSocket::GetSockName().

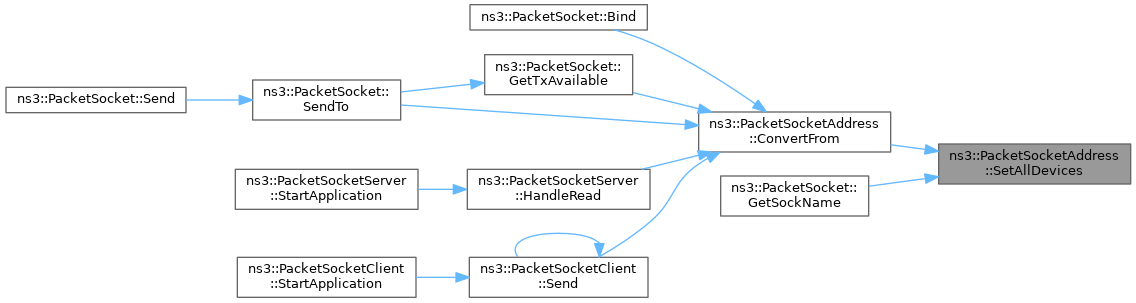

Here is the caller graph for this function:

◆ SetPhysicalAddress()

void ns3::PacketSocketAddress::SetPhysicalAddress ( const Address address )

Set the destination address.

Parameters

address the destination address

Definition at line 58 of file packet-socket-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::NoBackhaulEpcHelper::AddEnb(), ConvertFrom(), PacketSocketAppsTest::DoRun(), SpectrumIdealPhyTestCase::DoRun(), CsmaPacketSocketTestCase::DoRun(), BlockAckAggregationDisabledTest::DoRun(), PreservePacketsInAmpdus::DoRun(), OfdmaAckSequenceTest::DoRun(), TestUnsupportedModulationReception::DoRun(), Bug730TestCase::DoRun(), Bug2222TestCase::DoRun(), WifiTxopTest::DoRun(), ns3::PacketSocket::GetSockName(), Experiment::Run(), NetAnimExperiment::Run(), WifiChannelSwitchingTest::SendPacket(), UanExperiment::SendSinglePacket(), MultiLinkSetupTest::StartTraffic(), MultiLinkTxTest::StartTraffic(), MultiLinkMuTxTest::StartTraffic(), and ReleaseSeqNoAfterCtsTimeoutTest::StartTraffic().

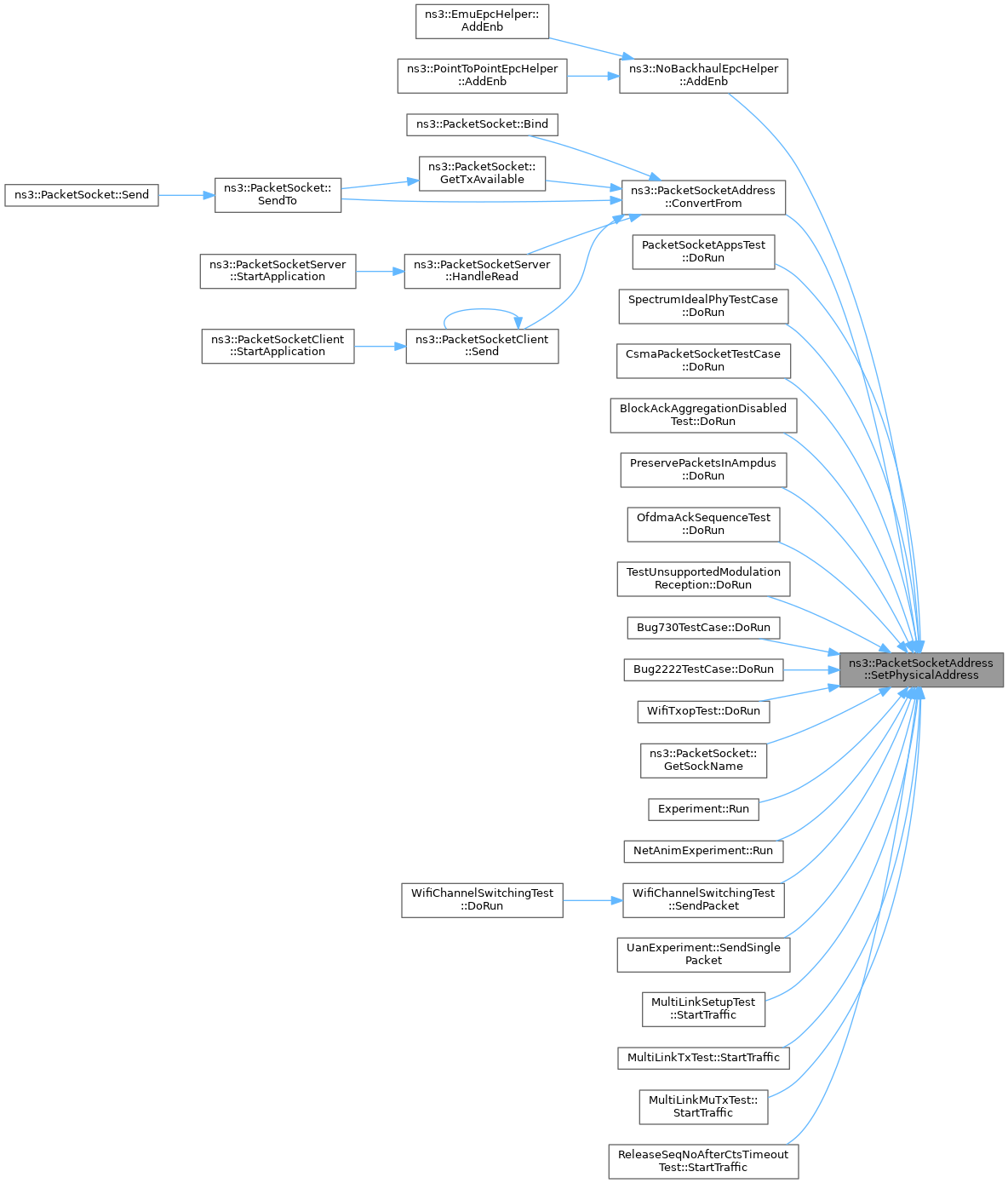

Here is the caller graph for this function:

◆ SetProtocol()

void ns3::PacketSocketAddress::SetProtocol ( uint16_t protocol )

Set the protocol.

Parameters

protocol the protocol

Definition at line 35 of file packet-socket-address.cc.

References m_protocol, and NS_LOG_FUNCTION.

Referenced by ns3::NoBackhaulEpcHelper::AddEnb(), ConvertFrom(), PacketSocketAppsTest::DoRun(), SpectrumIdealPhyTestCase::DoRun(), CsmaPacketSocketTestCase::DoRun(), BlockAckAggregationDisabledTest::DoRun(), PreservePacketsInAmpdus::DoRun(), OfdmaAckSequenceTest::DoRun(), TestUnsupportedModulationReception::DoRun(), Bug730TestCase::DoRun(), Bug2222TestCase::DoRun(), WifiTxopTest::DoRun(), EmlsrOperationsTestBase::DoSetup(), MultiLinkOperationsTestBase::DoSetup(), ns3::PacketSocket::GetSockName(), Experiment::Run(), NetAnimExperiment::Run(), WifiChannelSwitchingTest::SendPacket(), UanExperiment::SendSinglePacket(), MultiLinkSetupTest::StartTraffic(), MultiLinkTxTest::StartTraffic(), MultiLinkMuTxTest::StartTraffic(), and ReleaseSeqNoAfterCtsTimeoutTest::StartTraffic().

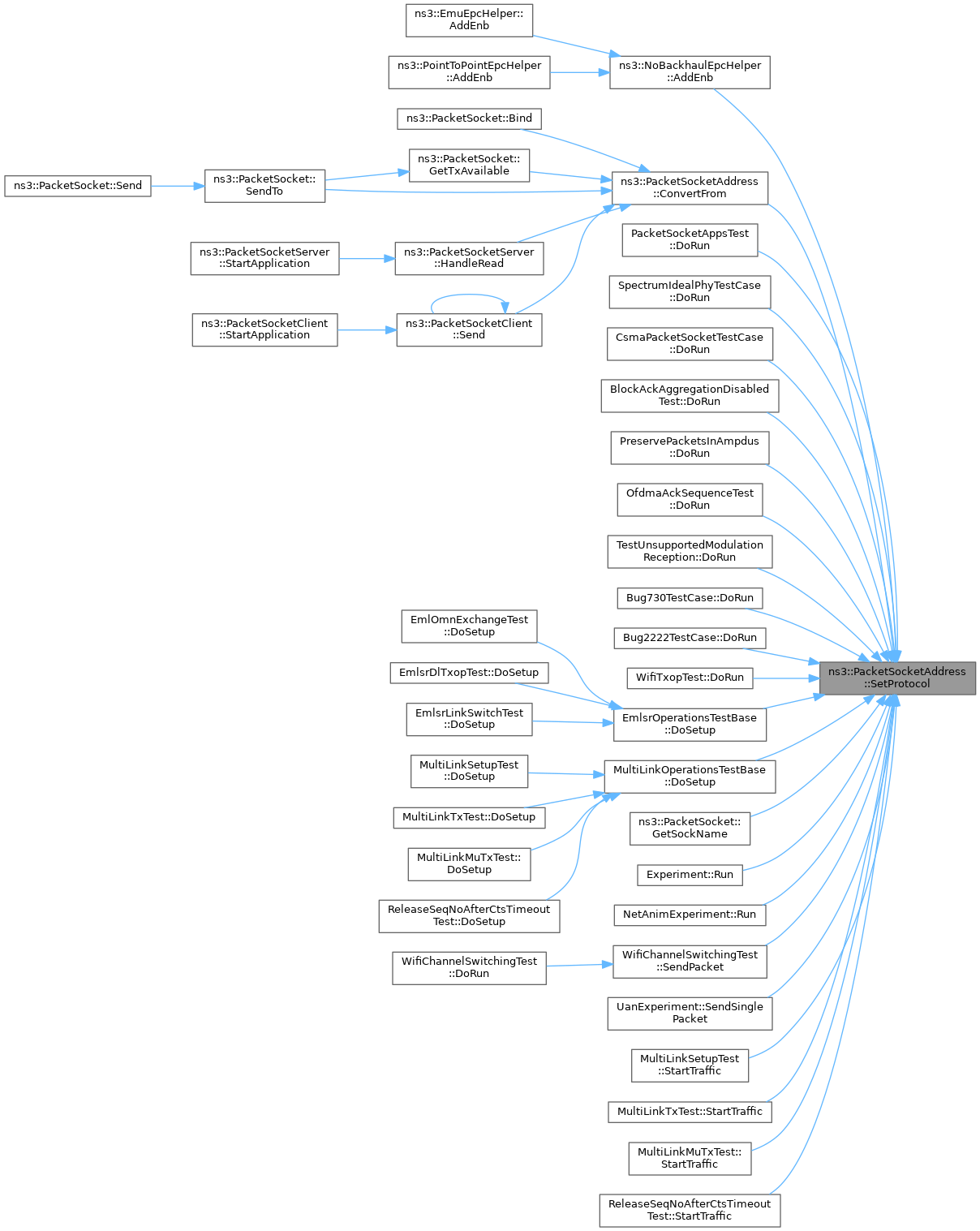

Here is the caller graph for this function:

◆ SetSingleDevice()

void ns3::PacketSocketAddress::SetSingleDevice ( uint32_t device )

Set the address to match only a specified NetDevice.

Parameters

device the NetDevice index

Definition at line 50 of file packet-socket-address.cc.

References m_device, m_isSingleDevice, and NS_LOG_FUNCTION.

Referenced by ns3::NoBackhaulEpcHelper::AddEnb(), ConvertFrom(), PacketSocketAppsTest::DoRun(), SpectrumIdealPhyTestCase::DoRun(), CsmaPacketSocketTestCase::DoRun(), BlockAckAggregationDisabledTest::DoRun(), PreservePacketsInAmpdus::DoRun(), OfdmaAckSequenceTest::DoRun(), TestUnsupportedModulationReception::DoRun(), Bug730TestCase::DoRun(), QosFragmentationTestCase::DoRun(), Bug2222TestCase::DoRun(), WifiTxopTest::DoRun(), EmlsrOperationsTestBase::DoSetup(), MultiLinkOperationsTestBase::DoSetup(), ns3::PacketSocket::GetSockName(), Experiment::Run(), NetAnimExperiment::Run(), WifiChannelSwitchingTest::SendPacket(), UanExperiment::SendSinglePacket(), MultiLinkSetupTest::StartTraffic(), MultiLinkTxTest::StartTraffic(), MultiLinkMuTxTest::StartTraffic(), and ReleaseSeqNoAfterCtsTimeoutTest::StartTraffic().

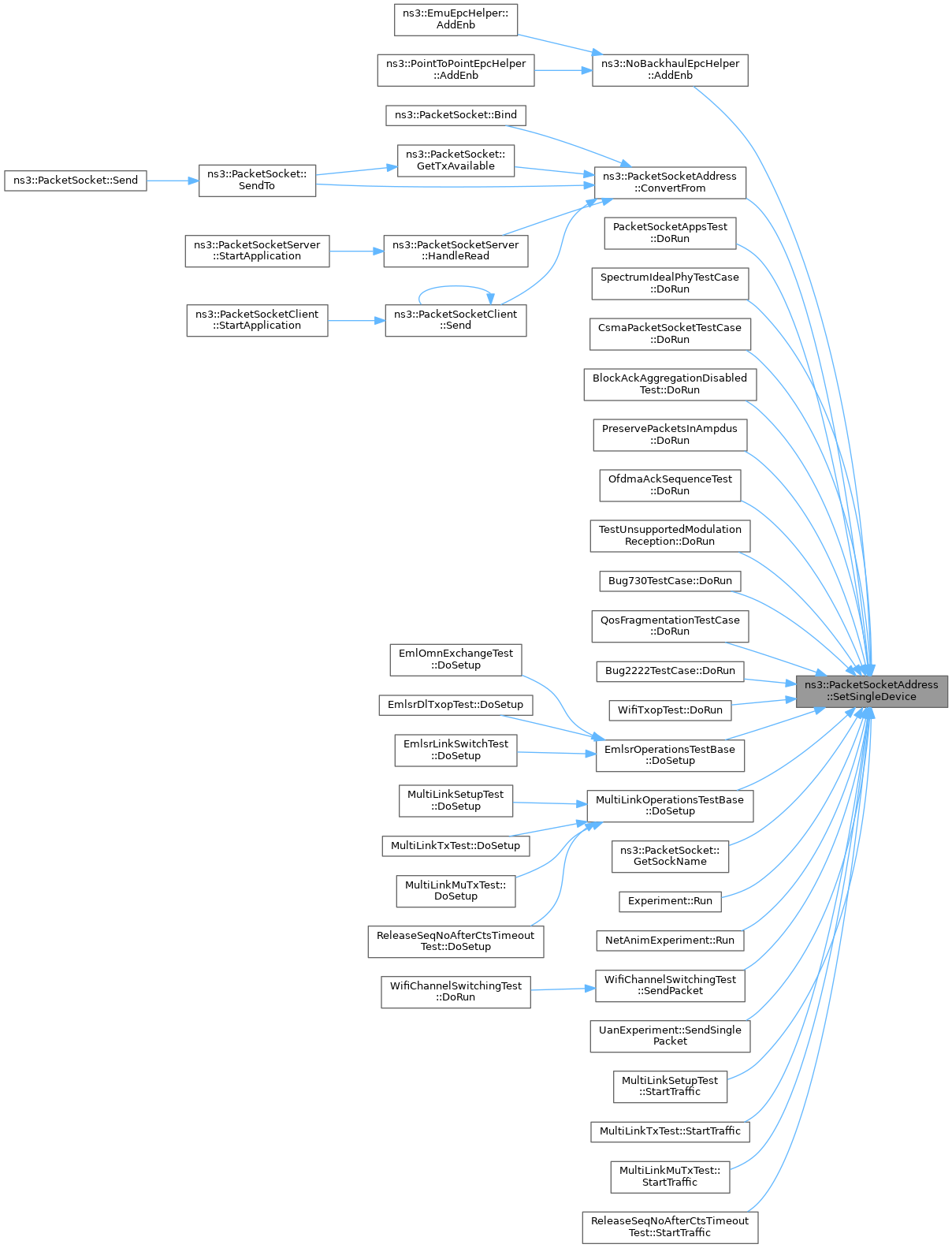

Here is the caller graph for this function:

Member Data Documentation

◆ m_address

Address ns3::PacketSocketAddress::m_address

private

Destination address.

Definition at line 128 of file packet-socket-address.h.

Referenced by ConvertTo(), GetPhysicalAddress(), and SetPhysicalAddress().

◆ m_device

uint32_t ns3::PacketSocketAddress::m_device

private

Outgoing NetDevice index.

Definition at line 127 of file packet-socket-address.h.

Referenced by ConvertTo(), GetSingleDevice(), SetAllDevices(), and SetSingleDevice().

◆ m_isSingleDevice

bool ns3::PacketSocketAddress::m_isSingleDevice

private

True if directed to a specific outgoing NetDevice.

Definition at line 126 of file packet-socket-address.h.

Referenced by ConvertTo(), IsSingleDevice(), SetAllDevices(), and SetSingleDevice().

◆ m_protocol

uint16_t ns3::PacketSocketAddress::m_protocol

private

Protocol.

Definition at line 125 of file packet-socket-address.h.

Referenced by ConvertTo(), GetProtocol(), and SetProtocol().

The documentation for this class was generated from the following files:

src/network/utils/packet-socket-address.h
src/network/utils/packet-socket-address.cc
