Namespace for implementation details. More...

Classes
class	AttributeContainerChecker

struct	GetStoredIe

struct	GetStoredIe< std::optional< T > >

struct	GetStoredIe< std::vector< T > >

class	ObjectPtrContainerChecker
	ObjectPtrContainerChecker implementation class. More...

class	PairChecker
	Internal checker class templated to each AttributeChecker for each entry in the pair. More...

class	PointerChecker
	PointerChecker implementation. More...

class	TupleChecker
	Internal checker class templated to each AttributeChecker for each entry in the tuple. More...

struct	TupleHelper
	Helper class defining static methods for MakeTupleChecker and MakeTupleAccessor that are called when user specifies the list of AttributeValue types included in a TupleValue type. More...

struct	TupleHelper< std::tuple< Args... > >
	Helper class defining static methods for MakeTupleValue, MakeTupleChecker and MakeTupleAccessor that are called when user provides a std::tuple of the AttributeValue types included in a TupleValue type. More...

Typedefs
template<class T >
using	GetStoredIeT = typename GetStoredIe< T >::type

Functions
template<typename T , typename Derived >
void	DoCopyIeFromContainingFrame (std::optional< T > &elem, const Derived &frame)

template<typename T , typename Derived >
void	DoCopyIeFromContainingFrame (std::vector< T > &elems, const Derived &frame)

template<typename T >
uint16_t	DoGetSerializedSize (const std::optional< T > &elem)

template<typename T >
uint16_t	DoGetSerializedSize (const std::vector< T > &elems)

template<typename T >
void	DoPrint (const std::optional< T > &elem, std::ostream &os)

template<typename T >
void	DoPrint (const std::vector< T > &elems, std::ostream &os)

template<typename T >
Buffer::Iterator	DoSerialize (const std::optional< T > &elem, Buffer::Iterator start)

template<typename T >
Buffer::Iterator	DoSerialize (const std::vector< T > &elems, Buffer::Iterator start)

Ptr< const AttributeChecker >	MakeDoubleChecker (double min, double max, std::string name)
	Make a Double attribute checker with embedded numeric type name.

Ptr< const AttributeChecker >	MakeIntegerChecker (int64_t min, int64_t max, std::string name)
	Make an Integer attribute checker with embedded numeric type name.

Ptr< const AttributeChecker >	MakeUintegerChecker (uint64_t min, uint64_t max, std::string name)
	Make an Uinteger attribute checker with embedded numeric type name.

template<typename T , typename Derived >
std::optional< std::pair< uint8_t, uint8_t > >	MustBeListedInNonInheritance (const std::optional< T > &elem, const Derived &frame)

template<typename T , typename Derived >
std::optional< std::pair< uint8_t, uint8_t > >	MustBeListedInNonInheritance (const std::vector< T > &elems, const Derived &frame)

template<typename T , typename Derived >
bool	MustBeSerializedInPerStaProfile (const std::optional< T > &elem, const Derived &frame)

template<typename T , typename Derived >
bool	MustBeSerializedInPerStaProfile (const std::vector< T > &elems, const Derived &frame)

template<typename T >
void	RemoveIfNotInherited (std::optional< T > &elem, const NonInheritance &nonInheritance)

template<typename T >
void	RemoveIfNotInherited (std::vector< T > &elem, const NonInheritance &nonInheritance)

Detailed Description

Namespace for implementation details.

Typedef Documentation

◆ GetStoredIeT

template<class T >

using ns3::internal::GetStoredIeT = typedef typename GetStoredIe<T>::type

Template Parameters

T	[explicit] An Information Element type

Provides the type used to store Information Elements in the tuple held by WifiMgtHeader:

a mandatory Information Element of type T is stored as std::optional<T>
an optional Information Element of type T is stored as std::optional<T>
an Information Element of type T that can appear 0 or more times is stored as std::vector<T>

Definition at line 77 of file wifi-mgt-header.h.

Function Documentation

◆ DoCopyIeFromContainingFrame() [1/2]

template<typename T , typename Derived >

void ns3::internal::DoCopyIeFromContainingFrame	(	std::optional< T > &	elem,
		const Derived &	frame
	)

Template Parameters

T	[deduced] the type of the given Information Element
Derived	[deduced] the type of the containing management frame

Parameters

elem	the given Information Element
frame	the containing management frame

Copy the given Information Element from the containing frame to the Per-STA Profile subelement of the Multi-Link Element, if the Information Element has been inherited (i.e., it is present outside the Multi-Link Element and not present in the Per-STA Profile subelement)

Definition at line 839 of file wifi-mgt-header.h.

Referenced by ns3::MgtHeaderInPerStaProfile< Derived, std::tuple< Elems... > >::CopyIesFromContainingFrame().

Here is the caller graph for this function:

◆ DoCopyIeFromContainingFrame() [2/2]

template<typename T , typename Derived >

void ns3::internal::DoCopyIeFromContainingFrame	(	std::vector< T > &	elems,
		const Derived &	frame
	)

Template Parameters

T	[deduced] the type of the given vector of Information Elements
Derived	[deduced] the type of the containing management frame

Parameters

elems	the given vector of Information Elements
frame	the containing management frame

Copy the given Information Element from the containing frame to the Per-STA Profile subelement of the Multi-Link Element, if the Information Element has been inherited (i.e., it is present outside the Multi-Link Element and not present in the Per-STA Profile subelement)

Definition at line 860 of file wifi-mgt-header.h.

◆ DoGetSerializedSize() [1/2]

template<typename T >

uint16_t ns3::internal::DoGetSerializedSize ( const std::optional< T > & elem )

Template Parameters

T	[deduced] the type of the Information Element

Parameters

elem	the optional Information Element

Returns: the serialized size of the Information Element, if present, or 0, otherwise

Definition at line 411 of file wifi-mgt-header.h.

Referenced by ns3::WifiMgtHeader< Derived, std::tuple< Elems... > >::GetSerializedSizeImpl(), and ns3::MgtHeaderInPerStaProfile< Derived, std::tuple< Elems... > >::GetSerializedSizeInPerStaProfileImpl().

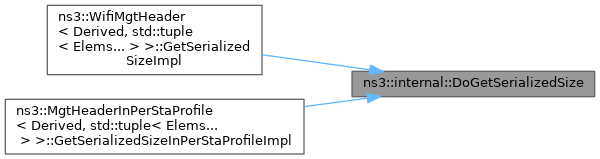

Here is the caller graph for this function:

◆ DoGetSerializedSize() [2/2]

template<typename T >

uint16_t ns3::internal::DoGetSerializedSize ( const std::vector< T > & elems )

Template Parameters

T	[deduced] the type of the Information Elements

Parameters

elems a vector of Information Elements

Returns: the serialized size of the Information Elements

Definition at line 423 of file wifi-mgt-header.h.

◆ DoPrint() [1/2]

template<typename T >

void ns3::internal::DoPrint	(	const std::optional< T > &	elem,
		std::ostream &	os
	)

Template Parameters

T	[deduced] the type of the Information Element

Parameters

elem	the optional Information Element
os	the output stream

Definition at line 582 of file wifi-mgt-header.h.

Referenced by ns3::WifiMgtHeader< Derived, std::tuple< Elems... > >::PrintImpl().

Here is the caller graph for this function:

◆ DoPrint() [2/2]

template<typename T >

void ns3::internal::DoPrint	(	const std::vector< T > &	elems,
		std::ostream &	os
	)

Template Parameters

T	[deduced] the type of the Information Elements

Parameters

elems	a vector of Information Elements
os	the output stream

Definition at line 597 of file wifi-mgt-header.h.

◆ DoSerialize() [1/2]

template<typename T >

Buffer::Iterator ns3::internal::DoSerialize	(	const std::optional< T > &	elem,
		Buffer::Iterator	start
	)

Template Parameters

T	[deduced] the type of the Information Element

Parameters

elem	the optional Information Element
start	the buffer iterator pointing to where serialization starts

Returns: an iterator pointing to where serialization terminated

Definition at line 458 of file wifi-mgt-header.h.

Referenced by ns3::WifiMgtHeader< Derived, std::tuple< Elems... > >::SerializeImpl(), and ns3::MgtHeaderInPerStaProfile< Derived, std::tuple< Elems... > >::SerializeInPerStaProfileImpl().

Here is the caller graph for this function:

◆ DoSerialize() [2/2]

template<typename T >

Buffer::Iterator ns3::internal::DoSerialize	(	const std::vector< T > &	elems,
		Buffer::Iterator	start
	)

Template Parameters

T	[deduced] the type of the Information Elements

Parameters

elems	a vector of Information Elements
start	the buffer iterator pointing to where serialization starts

Returns: an iterator pointing to where serialization terminated

Definition at line 471 of file wifi-mgt-header.h.

◆ MustBeListedInNonInheritance() [1/2]

template<typename T , typename Derived >

std::optional< std::pair< uint8_t, uint8_t > > ns3::internal::MustBeListedInNonInheritance	(	const std::optional< T > &	elem,
		const Derived &	frame
	)

Template Parameters

T	[deduced] the type of the given Information Element
Derived	[deduced] the type of the containing management frame

Parameters

elem	the given Information Element
frame	the containing management frame

Returns: a pair (Element ID, Element ID Extension) if the given Information Element shall be listed in the Non-Inheritance IE of the Per-STA Profile subelement of the Multi-Link Element included in the containing management frame

Definition at line 702 of file wifi-mgt-header.h.

Referenced by ns3::MgtHeaderInPerStaProfile< Derived, std::tuple< Elems... > >::GetSerializedSizeInPerStaProfileImpl(), and ns3::MgtHeaderInPerStaProfile< Derived, std::tuple< Elems... > >::SerializeInPerStaProfileImpl().

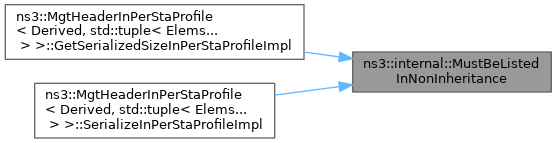

Here is the caller graph for this function:

◆ MustBeListedInNonInheritance() [2/2]

template<typename T , typename Derived >

std::optional< std::pair< uint8_t, uint8_t > > ns3::internal::MustBeListedInNonInheritance	(	const std::vector< T > &	elems,
		const Derived &	frame
	)

Template Parameters

T	[deduced] the type of the given vector of Information Elements
Derived	[deduced] the type of the containing management frame

Parameters

elems	the given Information Elements
frame	the containing management frame

Returns: a pair (Element ID, Element ID Extension) if the given Information Element shall be listed in the Non-Inheritance IE of the Per-STA Profile subelement of the Multi-Link Element included in the containing management frame

Definition at line 723 of file wifi-mgt-header.h.

◆ MustBeSerializedInPerStaProfile() [1/2]

template<typename T , typename Derived >

bool ns3::internal::MustBeSerializedInPerStaProfile	(	const std::optional< T > &	elem,
		const Derived &	frame
	)

Template Parameters

T	[deduced] the type of the given Information Element
Derived	[deduced] the type of the containing management frame

Parameters

elem	the given Information Element
frame	the containing management frame

Returns: whether the given Information Element shall be serialized in a Per-STA Profile subelement of the Multi-Link Element included in the containing management frame

Definition at line 631 of file wifi-mgt-header.h.

Referenced by ns3::MgtHeaderInPerStaProfile< Derived, std::tuple< Elems... > >::GetSerializedSizeInPerStaProfileImpl(), and ns3::MgtHeaderInPerStaProfile< Derived, std::tuple< Elems... > >::SerializeInPerStaProfileImpl().

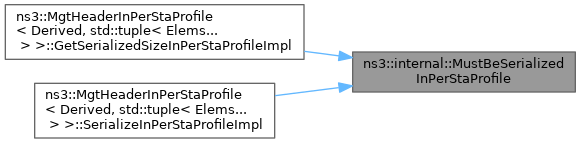

Here is the caller graph for this function:

◆ MustBeSerializedInPerStaProfile() [2/2]

template<typename T , typename Derived >

bool ns3::internal::MustBeSerializedInPerStaProfile	(	const std::vector< T > &	elems,
		const Derived &	frame
	)

Template Parameters

T	[deduced] the type of the given vector of Information Elements
Derived	[deduced] the type of the containing management frame

Parameters

elems	the given vector of Information Elements
frame	the containing management frame

Returns: whether the given Information Elements shall be serialized in a Per-STA Profile subelement of the Multi-Link Element included in the containing management frame

Definition at line 666 of file wifi-mgt-header.h.

◆ RemoveIfNotInherited() [1/2]

template<typename T >

void ns3::internal::RemoveIfNotInherited	(	std::optional< T > &	elem,
		const NonInheritance &	nonInheritance
	)

Template Parameters

T	[deduced] the type of the given Information Element

Parameters

elem	the given Information Element
nonInheritance	the Non-Inheritance information element

Remove the given Information Element from this header, if it is present and is listed in the given Non-Inheritance element.

Definition at line 929 of file wifi-mgt-header.h.

References ns3::NonInheritance::IsPresent().

Referenced by ns3::MgtHeaderInPerStaProfile< Derived, std::tuple< Elems... > >::CopyIesFromContainingFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RemoveIfNotInherited() [2/2]

template<typename T >

void ns3::internal::RemoveIfNotInherited	(	std::vector< T > &	elem,
		const NonInheritance &	nonInheritance
	)

Template Parameters

T	[deduced] the type of the given vector of Information Elements

Parameters

elem	the given Information Elements
nonInheritance	the Non-Inheritance information element

Remove the given Information Elements from this header, if they are present and are listed in the given Non-Inheritance element.

Definition at line 947 of file wifi-mgt-header.h.

References ns3::NonInheritance::IsPresent().

Here is the call graph for this function:
