ns3::TracedCallback< Ts > Class Template Reference
Core » Tracing

Forward calls to a chain of Callback. More...

#include "traced-callback.h"

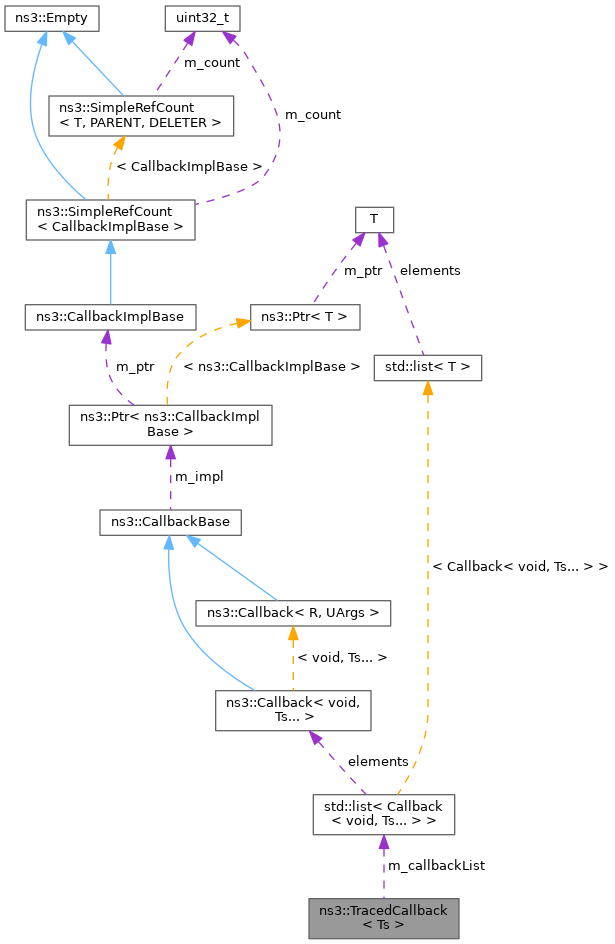

+ Collaboration diagram for ns3::TracedCallback< Ts >:

Public Types

typedef void(* Uint32Callback) (const uint32_t value)
 TracedCallback signature for POD.


Public Member Functions

 TracedCallback ()
 Constructor.

void Connect (const CallbackBase &callback, std::string path)
 Append a Callback to the chain with a context.

void ConnectWithoutContext (const CallbackBase &callback)
 Append a Callback to the chain (without a context).

void Disconnect (const CallbackBase &callback, std::string path)
 Remove from the chain a Callback which was connected with a context.

void DisconnectWithoutContext (const CallbackBase &callback)
 Remove from the chain a Callback which was connected without a context.

bool IsEmpty () const
 Checks if the Callbacks list is empty.

void operator() (Ts... args) const
 Functor which invokes the chain of Callbacks.


Private Types

typedef std::list< Callback< void, Ts... > > CallbackList
 Container type for holding the chain of Callbacks.


Private Attributes

CallbackList m_callbackList
 The chain of Callbacks.


Detailed Description

template<typename... Ts>
class ns3::TracedCallback< Ts >

Forward calls to a chain of Callback.

A TracedCallback has almost exactly the same API as a normal Callback but instead of forwarding calls to a single function (as a Callback normally does), it forwards calls to a chain of Callback. Connect adds a Callback at the end of the chain of callbacks. Disconnect removes a Callback from the chain of callbacks.

This is a functor: the chain of Callbacks is invoked by calling the operator() form with the appropriate number of arguments.

Template Parameters
Ts[explicit] Types of the functor arguments.

Definition at line 53 of file traced-callback.h.

Member Typedef Documentation

◆ CallbackList

template<typename... Ts>
typedef std::list<Callback<void, Ts...> > ns3::TracedCallback< Ts >::CallbackList
private

Container type for holding the chain of Callbacks.

Template Parameters
Ts[deduced] Types of the functor arguments.

Definition at line 116 of file traced-callback.h.

◆ Uint32Callback

template<typename... Ts>
typedef void(* ns3::TracedCallback< Ts >::Uint32Callback) (const uint32_t value)

TracedCallback signature for POD.

Parameters
[in]valueValue of the traced variable.

Definition at line 107 of file traced-callback.h.

Constructor & Destructor Documentation

◆ TracedCallback()

template<typename... Ts>
ns3::TracedCallback< Ts >::TracedCallback

Constructor.

Definition at line 131 of file traced-callback.h.

Member Function Documentation

◆ Connect()

template<typename... Ts>
void ns3::TracedCallback< Ts >::Connect ( const CallbackBase &  callback,
std::string  path
)

Append a Callback to the chain with a context.

The context string will be provided as the first argument to the Callback.

Parameters
[in]callbackCallback to add to chain.
[in]pathContext string to provide when invoking the Callback.

Definition at line 150 of file traced-callback.h.

References ns3::Callback< R, UArgs >::Bind(), and NS_FATAL_ERROR.

Referenced by ns3::TracedValue< T >::Connect().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ ConnectWithoutContext()

template<typename... Ts>
void ns3::TracedCallback< Ts >::ConnectWithoutContext ( const CallbackBase &  callback)

Append a Callback to the chain (without a context).

Parameters
[in]callbackCallback to add to chain.

Definition at line 138 of file traced-callback.h.

References NS_FATAL_ERROR_NO_MSG.

Referenced by ns3::CsmaNetDevice::AddLinkChangeCallback(), ns3::FdNetDevice::AddLinkChangeCallback(), ns3::LrWpanNetDevice::AddLinkChangeCallback(), ns3::LteNetDevice::AddLinkChangeCallback(), ns3::SimpleNetDevice::AddLinkChangeCallback(), ns3::PointToPointNetDevice::AddLinkChangeCallback(), ns3::MockNetDevice::AddLinkChangeCallback(), ns3::AlohaNoackNetDevice::AddLinkChangeCallback(), ns3::TapBridge::AddLinkChangeCallback(), ns3::UanNetDevice::AddLinkChangeCallback(), ns3::WifiNetDevice::AddLinkChangeCallback(), ns3::TracedValue< T >::ConnectWithoutContext(), and TracedCallbackTypedefTestCase::Checker< Ts >::Invoke().

+ Here is the caller graph for this function:

◆ Disconnect()

template<typename... Ts>
void ns3::TracedCallback< Ts >::Disconnect ( const CallbackBase &  callback,
std::string  path
)

Remove from the chain a Callback which was connected with a context.

Parameters
[in]callbackCallback to remove from the chain.
[in]pathContext path which was used to connect the Callback.

Definition at line 180 of file traced-callback.h.

References ns3::Callback< R, UArgs >::Bind(), and NS_FATAL_ERROR.

Referenced by ns3::TracedValue< T >::Disconnect().

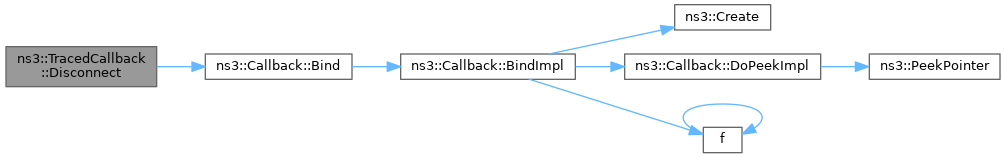

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DisconnectWithoutContext()

template<typename... Ts>
void ns3::TracedCallback< Ts >::DisconnectWithoutContext ( const CallbackBase &  callback)

Remove from the chain a Callback which was connected without a context.

Parameters
[in]callbackCallback to remove from the chain.

Definition at line 163 of file traced-callback.h.

Referenced by ns3::TracedValue< T >::DisconnectWithoutContext().

+ Here is the caller graph for this function:

◆ IsEmpty()

template<typename... Ts>
bool ns3::TracedCallback< Ts >::IsEmpty

Checks if the Callbacks list is empty.

Returns
true if the Callbacks list is empty.

Definition at line 203 of file traced-callback.h.

Referenced by ns3::WifiPhy::NotifyRxEnd(), ns3::WifiPhy::NotifyTxDrop(), and ns3::WifiPhy::NotifyTxEnd().

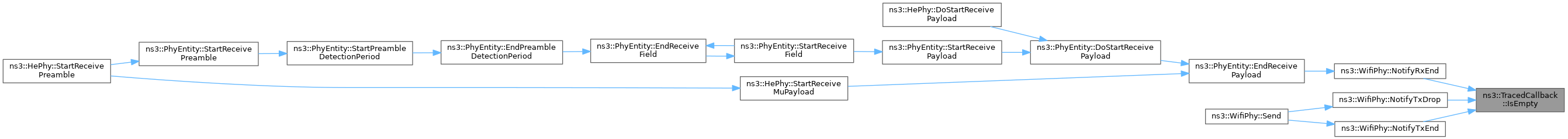

+ Here is the caller graph for this function:

◆ operator()()

template<typename... Ts>
void ns3::TracedCallback< Ts >::operator() ( Ts...  args) const

Functor which invokes the chain of Callbacks.

Template Parameters
Ts[deduced] Types of the functor arguments.
Parameters
[in]argsThe arguments to the functor

Definition at line 193 of file traced-callback.h.

Member Data Documentation

◆ m_callbackList

template<typename... Ts>
CallbackList ns3::TracedCallback< Ts >::m_callbackList
private

The chain of Callbacks.

Definition at line 118 of file traced-callback.h.

The documentation for this class was generated from the following file:
