OpenFlow statistics. More...

#include "openflow-interface.h"

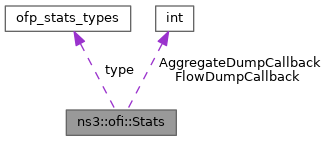

Collaboration diagram for ns3::ofi::Stats:

Classes
struct	FlowStatsState
	State of the FlowStats request/reply. More...

struct	PortStatsState
	State of the PortStats request/reply. More...

Public Member Functions
	Stats (ofp_stats_types _type, size_t body_len)
	Constructor.

void	DoCleanup (void *state)
	Cleans any state created by the init or dump functions.

int	DoDump (Ptr< OpenFlowSwitchNetDevice > swtch, void state, ofpbuf buffer)
	Appends statistics for OpenFlowSwitchNetDevice to 'buffer'.

int	DoInit (const void body, int body_len, void *state)
	Prepares to dump some kind of statistics on the connected OpenFlowSwitchNetDevice.

Public Attributes
ofp_stats_types	type
	Status type.

Private Member Functions
int	DescStatsDump (void state, ofpbuf buffer)
	Dumps the stats description.


int	FlowStatsInit (const void body, int body_len, void *state)
	Initialize the stats.

int	AggregateStatsInit (const void body, int body_len, void *state)
	Initialize the stats.

int	PortStatsInit (const void body, int body_len, void *state)
	Initialize the stats.


int	FlowStatsDump (Ptr< OpenFlowSwitchNetDevice > dp, FlowStatsState state, ofpbuf buffer)
	Dump the stats.

int	AggregateStatsDump (Ptr< OpenFlowSwitchNetDevice > dp, ofp_aggregate_stats_request state, ofpbuf buffer)
	Dump the stats.

int	TableStatsDump (Ptr< OpenFlowSwitchNetDevice > dp, void state, ofpbuf buffer)
	Dump the stats.

int	PortStatsDump (Ptr< OpenFlowSwitchNetDevice > dp, PortStatsState state, ofpbuf buffer)
	Dump the stats.

int	PortTableStatsDump (Ptr< OpenFlowSwitchNetDevice > dp, void state, ofpbuf buffer)
	Dump the stats.

Private Attributes
int(*	AggregateDumpCallback )(sw_flow flow, void state)
	Aggregate dump callback functor.

int(*	FlowDumpCallback )(sw_flow flow, void state)
	Flow dump callback functor.

Detailed Description

OpenFlow statistics.

Definition at line 147 of file openflow-interface.h.

Constructor & Destructor Documentation

◆ Stats()

ns3::ofi::Stats::Stats	(	ofp_stats_types	_type,
		size_t	body_len
	)

Constructor.

Parameters

_type	OpenFlow stats type.
body_len	Stat body length.

Definition at line 30 of file openflow-interface.cc.

References NS_LOG_ERROR, and type.

Member Function Documentation

◆ AggregateStatsDump()

int ns3::ofi::Stats::AggregateStatsDump	(	Ptr< OpenFlowSwitchNetDevice >	dp,
		ofp_aggregate_stats_request *	state,
		ofpbuf *	buffer
	)

private

Dump the stats.

Parameters

	dp	OpenFlow NetDevice.
	state	State.
[out]	buffer	output buffer.

Returns: 0 if successful

Definition at line 252 of file openflow-interface.cc.

References AggregateDumpCallback.

Referenced by DoDump().

Here is the caller graph for this function:

◆ AggregateStatsInit()

int ns3::ofi::Stats::AggregateStatsInit	(	const void *	body,
		int	body_len,
		void **	state
	)

private

Initialize the stats.

Parameters

body	Body member of the struct ofp_stats_request.
body_len	Length of the body member.
state	State information.

Returns: 0 if successful, otherwise a negative error code.

Definition at line 234 of file openflow-interface.cc.

Referenced by DoInit().

Here is the caller graph for this function:

◆ DescStatsDump()

int ns3::ofi::Stats::DescStatsDump	(	void *	state,
		ofpbuf *	buffer
	)

private

Dumps the stats description.

Parameters

[in]	state	The state.
[out]	buffer	Output buffer.

Returns: zero on success

Definition at line 143 of file openflow-interface.cc.

References ns3::OpenFlowSwitchNetDevice::GetHardwareDescription(), ns3::OpenFlowSwitchNetDevice::GetManufacturerDescription(), ns3::OpenFlowSwitchNetDevice::GetSerialNumber(), and ns3::OpenFlowSwitchNetDevice::GetSoftwareDescription().

Referenced by DoDump().

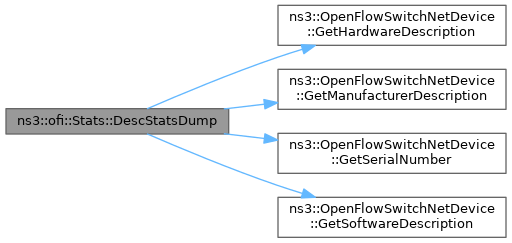

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoCleanup()

void ns3::ofi::Stats::DoCleanup ( void * state )

Cleans any state created by the init or dump functions.

May not be implemented if no cleanup is required.

Parameters

state State information to clear.

Definition at line 117 of file openflow-interface.cc.

References type.

Referenced by ns3::OpenFlowSwitchNetDevice::StatsDone().

Here is the caller graph for this function:

◆ DoDump()

int ns3::ofi::Stats::DoDump	(	Ptr< OpenFlowSwitchNetDevice >	swtch,
		void *	state,
		ofpbuf *	buffer
	)

Appends statistics for OpenFlowSwitchNetDevice to 'buffer'.

Parameters

swtch	The OpenFlowSwitchNetDevice this callback is associated with.
state	State information.
buffer	Buffer to append stats reply to.

Returns: 1 if it should be called again later with another buffer, 0 if it is done, or a negative errno value on failure.

Definition at line 93 of file openflow-interface.cc.

References AggregateStatsDump(), DescStatsDump(), FlowStatsDump(), PortStatsDump(), PortTableStatsDump(), TableStatsDump(), and type.

Referenced by ns3::OpenFlowSwitchNetDevice::StatsDump().

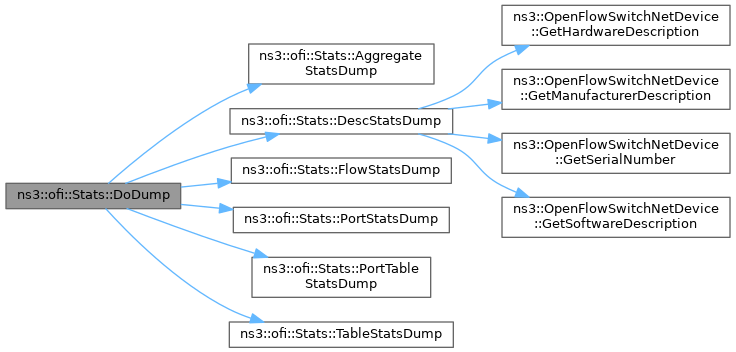

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoInit()

int ns3::ofi::Stats::DoInit	(	const void *	body,
		int	body_len,
		void **	state
	)

Prepares to dump some kind of statistics on the connected OpenFlowSwitchNetDevice.

Parameters

body	Body member of the struct ofp_stats_request.
body_len	Length of the body member.
state	State information.

Returns: 0 if successful, otherwise a negative error code.

Definition at line 69 of file openflow-interface.cc.

References AggregateStatsInit(), FlowStatsInit(), PortStatsInit(), and type.

Referenced by ns3::OpenFlowSwitchNetDevice::ReceiveStatsRequest().

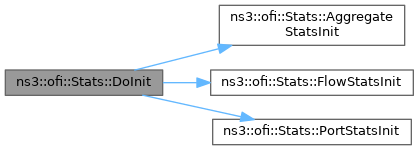

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FlowStatsDump()

int ns3::ofi::Stats::FlowStatsDump	(	Ptr< OpenFlowSwitchNetDevice >	dp,
		FlowStatsState *	state,
		ofpbuf *	buffer
	)

private

Dump the stats.

Parameters

	dp	OpenFlow NetDevice.
	state	State.
[out]	buffer	output buffer.

Returns: 0 if successful

Definition at line 204 of file openflow-interface.cc.

References ns3::ofi::Stats::FlowStatsState::buffer, FlowDumpCallback, MAX_FLOW_STATS_BYTES, ns3::ofi::Stats::FlowStatsState::now, ns3::ofi::Stats::FlowStatsState::position, ns3::ofi::Stats::FlowStatsState::rq, and ns3::ofi::Stats::FlowStatsState::table_idx.

Referenced by DoDump().

Here is the caller graph for this function:

◆ FlowStatsInit()

int ns3::ofi::Stats::FlowStatsInit	(	const void *	body,
		int	body_len,
		void **	state
	)

private

Initialize the stats.

Parameters

body	Body member of the struct ofp_stats_request.
body_len	Length of the body member.
state	State information.

Returns: 0 if successful, otherwise a negative error code.

Definition at line 158 of file openflow-interface.cc.

Referenced by DoInit().

Here is the caller graph for this function:

◆ PortStatsDump()

int ns3::ofi::Stats::PortStatsDump	(	Ptr< OpenFlowSwitchNetDevice >	dp,
		PortStatsState *	state,
		ofpbuf *	buffer
	)

private

Dump the stats.

Parameters

	dp	OpenFlow NetDevice.
	state	State.
[out]	buffer	output buffer.

Returns: 0 if successful

Definition at line 340 of file openflow-interface.cc.

References ns3::ofi::Port::mpls_ttl0_dropped, ns3::ofi::Port::netdev, NS_LOG_ERROR, ns3::ofi::Stats::PortStatsState::num_ports, port, ns3::ofi::Stats::PortStatsState::ports, ns3::ofi::Port::rx_bytes, ns3::ofi::Port::rx_packets, ns3::ofi::Port::tx_bytes, ns3::ofi::Port::tx_dropped, and ns3::ofi::Port::tx_packets.

Referenced by DoDump().

Here is the caller graph for this function:

◆ PortStatsInit()

int ns3::ofi::Stats::PortStatsInit	(	const void *	body,
		int	body_len,
		void **	state
	)

private

Initialize the stats.

Parameters

body	Body member of the struct ofp_stats_request.
body_len	Length of the body member.
state	State information.

Returns: 0 if successful, otherwise a negative error code.

Definition at line 326 of file openflow-interface.cc.

Referenced by DoInit().

Here is the caller graph for this function:

◆ PortTableStatsDump()

int ns3::ofi::Stats::PortTableStatsDump	(	Ptr< OpenFlowSwitchNetDevice >	dp,
		void *	state,
		ofpbuf *	buffer
	)

private

Dump the stats.

Parameters

	dp	OpenFlow NetDevice.
	state	State.
[out]	buffer	output buffer.

Returns: 0 if successful

Definition at line 313 of file openflow-interface.cc.

Referenced by DoDump().

Here is the caller graph for this function:

◆ TableStatsDump()

int ns3::ofi::Stats::TableStatsDump	(	Ptr< OpenFlowSwitchNetDevice >	dp,
		void *	state,
		ofpbuf *	buffer
	)

private

Dump the stats.

Parameters

	dp	OpenFlow NetDevice.
	state	State.
[out]	buffer	output buffer.

Returns: 0 if successful

Definition at line 292 of file openflow-interface.cc.

Referenced by DoDump().

Here is the caller graph for this function:

Member Data Documentation

◆ AggregateDumpCallback

int(* ns3::ofi::Stats::AggregateDumpCallback) (sw_flow *flow, void *state)

private

Aggregate dump callback functor.

Definition at line 236 of file openflow-interface.h.

Referenced by AggregateStatsDump().

◆ FlowDumpCallback

int(* ns3::ofi::Stats::FlowDumpCallback) (sw_flow *flow, void *state)

private

Flow dump callback functor.

Definition at line 234 of file openflow-interface.h.

Referenced by FlowStatsDump().

◆ type

ofp_stats_types ns3::ofi::Stats::type

Status type.

Definition at line 210 of file openflow-interface.h.

Referenced by Stats(), DoCleanup(), DoDump(), DoInit(), and ns3::OpenFlowSwitchNetDevice::StatsDump().

The documentation for this class was generated from the following files:

src/openflow/model/openflow-interface.h
src/openflow/model/openflow-interface.cc
