adhoc-aloha-ideal-phy.cc File Reference

#include <ns3/adhoc-aloha-noack-ideal-phy-helper.h>
#include <ns3/applications-module.h>
#include <ns3/core-module.h>
#include <ns3/friis-spectrum-propagation-loss.h>
#include <ns3/ism-spectrum-value-helper.h>
#include <ns3/log.h>
#include <ns3/mobility-module.h>
#include <ns3/network-module.h>
#include <ns3/propagation-delay-model.h>
#include <ns3/single-model-spectrum-channel.h>
#include <ns3/spectrum-analyzer.h>
#include <ns3/spectrum-helper.h>
#include <ns3/spectrum-model-300kHz-300GHz-log.h>
#include <ns3/spectrum-model-ism2400MHz-res1MHz.h>
#include <ns3/waveform-generator.h>
#include <iostream>
#include <string>

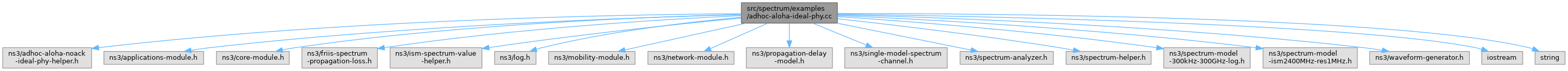

Include dependency graph for adhoc-aloha-ideal-phy.cc:

Go to the source code of this file.

Functions
void	PhyRxEndErrorTrace (std::string context, Ptr< const Packet > p)
	PHY end error RX trace.
void	PhyRxEndOkTrace (std::string context, Ptr< const Packet > p)
	PHY end OK RX trace.
void	PhyRxStartTrace (std::string context, Ptr< const Packet > p)
	PHY start RX trace.
void	PhyTxEndTrace (std::string context, Ptr< const Packet > p)
	PHY end TX trace.
void	PhyTxStartTrace (std::string context, Ptr< const Packet > p)
	PHY start TX trace.
void	ReceivePacket (Ptr< Socket > socket)
	Receive callback.
Ptr< Socket >	SetupPacketReceive (Ptr< Node > node)
	Create a socket and prepare it for packet reception.

Variables
static bool	g_verbose = false
	True for verbose output.

Detailed Description

Usage

$ ./ns3 run "adhoc-aloha-ideal-phy [Program Options]"

Program Options

--verbose

Print trace information if true [false]

Definition in file adhoc-aloha-ideal-phy.cc.

Function Documentation

PhyRxEndErrorTrace()

void PhyRxEndErrorTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

PHY end error RX trace.

Parameters

context	The context.
p	The packet.

Definition at line 113 of file adhoc-aloha-ideal-phy.cc.

References g_verbose.

PhyRxEndOkTrace()

void PhyRxEndOkTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

PHY end OK RX trace.

Parameters

context	The context.
p	The packet.

Definition at line 98 of file adhoc-aloha-ideal-phy.cc.

References g_verbose.

PhyRxStartTrace()

void PhyRxStartTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

PHY start RX trace.

Parameters

context	The context.
p	The packet.

Definition at line 83 of file adhoc-aloha-ideal-phy.cc.

References g_verbose.

PhyTxEndTrace()

void PhyTxEndTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

PHY end TX trace.

Parameters

context	The context.
p	The packet.

Definition at line 68 of file adhoc-aloha-ideal-phy.cc.

References g_verbose.

PhyTxStartTrace()

void PhyTxStartTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

PHY start TX trace.

Parameters

context	The context.
p	The packet.

Definition at line 53 of file adhoc-aloha-ideal-phy.cc.

References g_verbose.

ReceivePacket()

void ReceivePacket

(

Ptr< Socket >

socket

)

Receive callback.

Parameters

socket

The receiving socket.

Definition at line 127 of file adhoc-aloha-ideal-phy.cc.

References g_verbose.

Referenced by SetupPacketReceive().

Here is the caller graph for this function:

SetupPacketReceive()

Ptr< Socket > SetupPacketReceive

(

Ptr< Node >

node

)

Create a socket and prepare it for packet reception.

Parameters

node

The node.

Returns

a new socket

Definition at line 148 of file adhoc-aloha-ideal-phy.cc.

References ns3::Socket::CreateSocket(), ns3::TypeId::LookupByName(), ns3::MakeCallback(), ReceivePacket(), and sink.

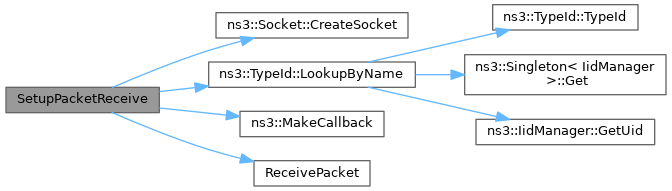

Here is the call graph for this function:

Variable Documentation

g_verbose

bool g_verbose = false

static

True for verbose output.

Definition at line 44 of file adhoc-aloha-ideal-phy.cc.

Referenced by PhyRxEndErrorTrace(), PhyRxEndOkTrace(), PhyRxStartTrace(), PhyTxEndTrace(), PhyTxStartTrace(), and ReceivePacket().
