Mesh Control field, see Section 8.2.4.7.3 IEEE 802.11-2012. More...

#include "dot11s-mac-header.h"

Inheritance diagram for ns3::dot11s::MeshHeader:

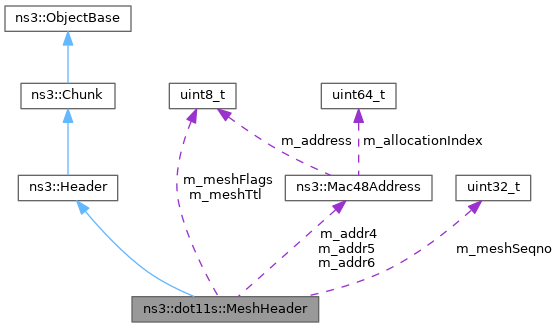

Collaboration diagram for ns3::dot11s::MeshHeader:

Public Member Functions
	MeshHeader ()

	~MeshHeader () override

uint32_t	Deserialize (Buffer::Iterator start) override

Mac48Address	GetAddr4 () const
	Get extended address 4.

Mac48Address	GetAddr5 () const
	Get extended address 5.

Mac48Address	GetAddr6 () const
	Get extended address 6.

uint8_t	GetAddressExt () const
	Get Address Extension Mode.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

uint32_t	GetMeshSeqno () const
	Get the four-byte mesh sequence number.

uint8_t	GetMeshTtl () const
	Get mesh TTL function subfield value.

uint32_t	GetSerializedSize () const override

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

void	SetAddr4 (Mac48Address address)
	Set extended address 4.

void	SetAddr5 (Mac48Address address)
	Set extended address 5.

void	SetAddr6 (Mac48Address address)
	Set extended address 6.

void	SetAddressExt (uint8_t num_of_addresses)
	Set Address Extension Mode.

void	SetMeshSeqno (uint32_t seqno)
	Set four-byte mesh sequence number.

void	SetMeshTtl (uint8_t TTL)
	Set mesh TTL subfield corresponding to the remaining number of hops the MSDU/MMPDU is forwarded.

Public Member Functions inherited from ns3::Header
	~Header () override

uint32_t	Deserialize (Buffer::Iterator start) override=0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual uint32_t	GetSerializedSize () const =0

void	Print (std::ostream &os) const override=0

virtual void	Serialize (Buffer::Iterator start) const =0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual void	Print (std::ostream &os) const =0
	Print the object contents.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Attributes
Mac48Address	m_addr4
	MAC address 4.

Mac48Address	m_addr5
	MAC address 5.

Mac48Address	m_addr6
	MAC address 6.

uint8_t	m_meshFlags
	mesh flags

uint32_t	m_meshSeqno
	mesh sequence no

uint8_t	m_meshTtl
	mesh TTL

Friends
bool	operator== (const MeshHeader &a, const MeshHeader &b)
	equality operator

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

Mesh Control field, see Section 8.2.4.7.3 IEEE 802.11-2012.

Definition at line 37 of file dot11s-mac-header.h.

Constructor & Destructor Documentation

◆ MeshHeader()

ns3::dot11s::MeshHeader::MeshHeader ( )

Definition at line 43 of file dot11s-mac-header.cc.

◆ ~MeshHeader()

ns3::dot11s::MeshHeader::~MeshHeader ( )

override

Definition at line 53 of file dot11s-mac-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::dot11s::MeshHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 166 of file dot11s-mac-header.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_addr4, m_addr5, m_addr6, m_meshFlags, m_meshSeqno, m_meshTtl, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadLsbtohU32(), and ns3::Buffer::Iterator::ReadU8().

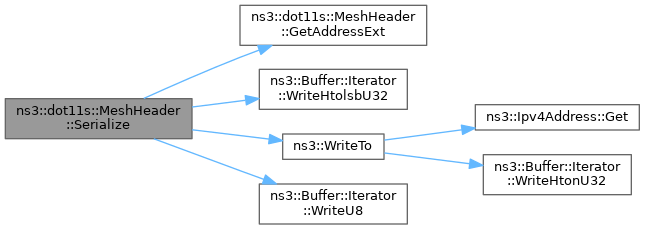

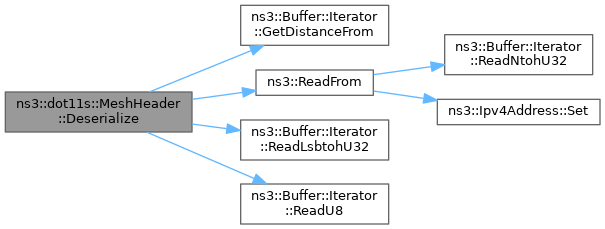

Here is the call graph for this function:

◆ GetAddr4()

Mac48Address ns3::dot11s::MeshHeader::GetAddr4 ( ) const

Get extended address 4.

Returns: the MAC address

Definition at line 82 of file dot11s-mac-header.cc.

References m_addr4.

◆ GetAddr5()

Mac48Address ns3::dot11s::MeshHeader::GetAddr5 ( ) const

Get extended address 5.

Returns: the MAC address

Definition at line 88 of file dot11s-mac-header.cc.

References m_addr5.

◆ GetAddr6()

Mac48Address ns3::dot11s::MeshHeader::GetAddr6 ( ) const

Get extended address 6.

Returns: the MAC address

Definition at line 94 of file dot11s-mac-header.cc.

References m_addr6.

◆ GetAddressExt()

uint8_t ns3::dot11s::MeshHeader::GetAddressExt ( ) const

Get Address Extension Mode.

Returns: the address extension mode value

Definition at line 131 of file dot11s-mac-header.cc.

References m_meshFlags.

Referenced by GetSerializedSize(), ns3::dot11s::HwmpProtocolMac::ReceiveData(), and Serialize().

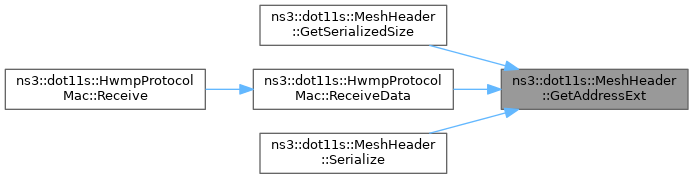

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::dot11s::MeshHeader::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 58 of file dot11s-mac-header.cc.

References GetTypeId().

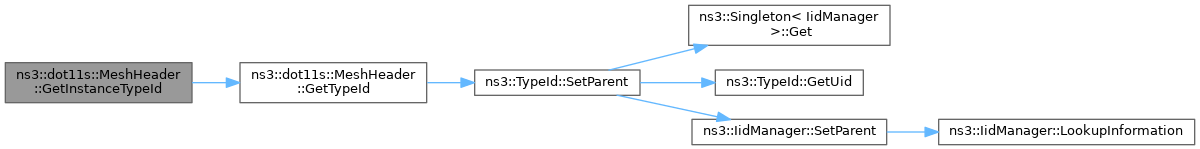

Here is the call graph for this function:

◆ GetMeshSeqno()

uint32_t ns3::dot11s::MeshHeader::GetMeshSeqno ( ) const

Get the four-byte mesh sequence number.

Returns: the sequence number

Definition at line 106 of file dot11s-mac-header.cc.

References m_meshSeqno.

Referenced by ns3::dot11s::HwmpProtocolMac::ReceiveData().

Here is the caller graph for this function:

◆ GetMeshTtl()

uint8_t ns3::dot11s::MeshHeader::GetMeshTtl ( ) const

Get mesh TTL function subfield value.

Returns: the TTL value

Definition at line 118 of file dot11s-mac-header.cc.

References m_meshTtl.

Referenced by ns3::dot11s::HwmpProtocolMac::ReceiveData().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::dot11s::MeshHeader::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 137 of file dot11s-mac-header.cc.

References GetAddressExt().

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::dot11s::MeshHeader::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 34 of file dot11s-mac-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

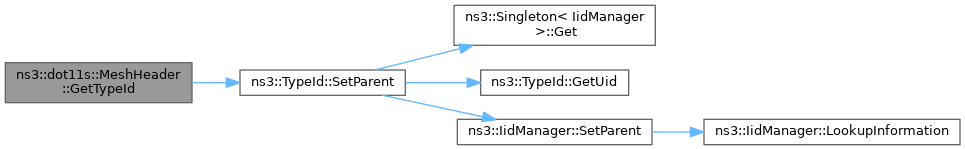

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::dot11s::MeshHeader::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 190 of file dot11s-mac-header.cc.

References m_addr4, m_addr5, m_addr6, m_meshFlags, m_meshSeqno, and m_meshTtl.

◆ Serialize()

void ns3::dot11s::MeshHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 143 of file dot11s-mac-header.cc.

References GetAddressExt(), m_addr4, m_addr5, m_addr6, m_meshFlags, m_meshSeqno, m_meshTtl, ns3::Buffer::Iterator::WriteHtolsbU32(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

◆ SetAddr4()

void ns3::dot11s::MeshHeader::SetAddr4 ( Mac48Address address )

Set extended address 4.

Parameters

address the MAC address to set

Definition at line 64 of file dot11s-mac-header.cc.

References m_addr4.

Referenced by MeshHeaderTest::DoRun().

Here is the caller graph for this function:

◆ SetAddr5()

void ns3::dot11s::MeshHeader::SetAddr5 ( Mac48Address address )

Set extended address 5.

Parameters

address the MAC address

Definition at line 70 of file dot11s-mac-header.cc.

References m_addr5.

Referenced by MeshHeaderTest::DoRun().

Here is the caller graph for this function:

◆ SetAddr6()

void ns3::dot11s::MeshHeader::SetAddr6 ( Mac48Address address )

Set extended address 6.

Parameters

address the MAC address

Definition at line 76 of file dot11s-mac-header.cc.

References m_addr6.

Referenced by MeshHeaderTest::DoRun().

Here is the caller graph for this function:

◆ SetAddressExt()

void ns3::dot11s::MeshHeader::SetAddressExt ( uint8_t num_of_addresses )

Set Address Extension Mode.

Parameters

num_of_addresses value between 0 and 3 for the two-bit field

Definition at line 124 of file dot11s-mac-header.cc.

References m_meshFlags, and NS_ASSERT.

Referenced by MeshHeaderTest::DoRun().

Here is the caller graph for this function:

◆ SetMeshSeqno()

void ns3::dot11s::MeshHeader::SetMeshSeqno ( uint32_t seqno )

Set four-byte mesh sequence number.

Parameters

seqno the sequence number to set

Definition at line 100 of file dot11s-mac-header.cc.

References m_meshSeqno.

Referenced by MeshHeaderTest::DoRun(), and ns3::dot11s::HwmpProtocolMac::UpdateOutcomingFrame().

Here is the caller graph for this function:

◆ SetMeshTtl()

void ns3::dot11s::MeshHeader::SetMeshTtl ( uint8_t TTL )

Set mesh TTL subfield corresponding to the remaining number of hops the MSDU/MMPDU is forwarded.

Parameters

TTL	the TTL value to set

Definition at line 112 of file dot11s-mac-header.cc.

References m_meshTtl.

Referenced by MeshHeaderTest::DoRun(), and ns3::dot11s::HwmpProtocolMac::UpdateOutcomingFrame().

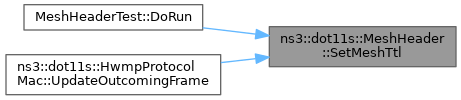

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator==

bool operator==	(	const MeshHeader &	a,
		const MeshHeader &	b
	)

friend

equality operator

Parameters

a	left hand side
b	right hand side

Returns: true if equal

Definition at line 198 of file dot11s-mac-header.cc.

Member Data Documentation

◆ m_addr4

Mac48Address ns3::dot11s::MeshHeader::m_addr4

private

MAC address 4.

Definition at line 124 of file dot11s-mac-header.h.

Referenced by Deserialize(), GetAddr4(), Print(), Serialize(), and SetAddr4().

◆ m_addr5

Mac48Address ns3::dot11s::MeshHeader::m_addr5

private

MAC address 5.

Definition at line 125 of file dot11s-mac-header.h.

Referenced by Deserialize(), GetAddr5(), Print(), Serialize(), and SetAddr5().

◆ m_addr6

Mac48Address ns3::dot11s::MeshHeader::m_addr6

private

MAC address 6.

Definition at line 126 of file dot11s-mac-header.h.

Referenced by Deserialize(), GetAddr6(), Print(), Serialize(), and SetAddr6().

◆ m_meshFlags

uint8_t ns3::dot11s::MeshHeader::m_meshFlags

private

mesh flags

Definition at line 121 of file dot11s-mac-header.h.

Referenced by Deserialize(), GetAddressExt(), Print(), Serialize(), and SetAddressExt().

◆ m_meshSeqno

uint32_t ns3::dot11s::MeshHeader::m_meshSeqno

private

mesh sequence no

Definition at line 123 of file dot11s-mac-header.h.

Referenced by Deserialize(), GetMeshSeqno(), Print(), Serialize(), and SetMeshSeqno().

◆ m_meshTtl

uint8_t ns3::dot11s::MeshHeader::m_meshTtl

private

mesh TTL

Definition at line 122 of file dot11s-mac-header.h.

Referenced by Deserialize(), GetMeshTtl(), Print(), Serialize(), and SetMeshTtl().

The documentation for this class was generated from the following files:

src/mesh/model/dot11s/dot11s-mac-header.h
src/mesh/model/dot11s/dot11s-mac-header.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MeshHeader()

◆ ~MeshHeader()

Member Function Documentation

◆ Deserialize()

◆ GetAddr4()

◆ GetAddr5()

◆ GetAddr6()

◆ GetAddressExt()

◆ GetInstanceTypeId()

◆ GetMeshSeqno()

◆ GetMeshTtl()

◆ GetSerializedSize()

◆ GetTypeId()

◆ Print()

◆ Serialize()

◆ SetAddr4()

◆ SetAddr5()

◆ SetAddr6()

◆ SetAddressExt()

◆ SetMeshSeqno()

◆ SetMeshTtl()

Friends And Related Function Documentation

◆ operator==

Member Data Documentation

◆ m_addr4

◆ m_addr5

◆ m_addr6

◆ m_meshFlags

◆ m_meshSeqno

◆ m_meshTtl
