IEEE802.15.4-2011 PHY PIB Attributes Table 52 in section 6.4.2. More...

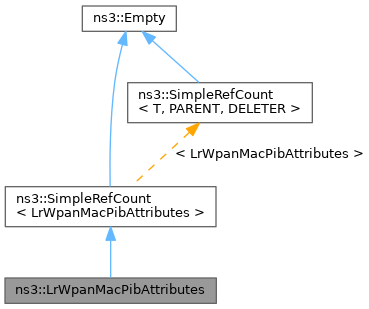

Inheritance diagram for ns3::LrWpanMacPibAttributes:

Collaboration diagram for ns3::LrWpanMacPibAttributes:

Public Attributes
Ptr< Packet >	macBeaconPayload
	The contents of the beacon payload.

uint8_t	macBeaconPayloadLength {0}
	The length in octets of the beacon payload.

Mac64Address	macExtendedAddress
	The EUI-64 bit address.

uint16_t	macPanId
	The identifier of the PAN.

Mac16Address	macShortAddress
	The 16 bit mac short address.

Additional Inherited Members
Public Member Functions inherited from ns3::SimpleRefCount< LrWpanMacPibAttributes >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Detailed Description

IEEE802.15.4-2011 PHY PIB Attributes Table 52 in section 6.4.2.

Definition at line 360 of file lr-wpan-mac.h.

Member Data Documentation

Ptr<Packet> ns3::LrWpanMacPibAttributes::macBeaconPayload

The contents of the beacon payload.

Definition at line 362 of file lr-wpan-mac.h.

uint8_t ns3::LrWpanMacPibAttributes::macBeaconPayloadLength {0}

The length in octets of the beacon payload.

Definition at line 363 of file lr-wpan-mac.h.

Mac64Address ns3::LrWpanMacPibAttributes::macExtendedAddress

The EUI-64 bit address.

Definition at line 365 of file lr-wpan-mac.h.

uint16_t ns3::LrWpanMacPibAttributes::macPanId

The identifier of the PAN.

Definition at line 366 of file lr-wpan-mac.h.

Mac16Address ns3::LrWpanMacPibAttributes::macShortAddress

The 16 bit mac short address.

Definition at line 364 of file lr-wpan-mac.h.

The documentation for this struct was generated from the following file:
