AODV Queue Entry. More...

#include "aodv-rqueue.h"

Collaboration diagram for ns3::aodv::QueueEntry:

Public Types
typedef Ipv4RoutingProtocol::ErrorCallback	ErrorCallback
	IPv4 routing error callback typedef.

typedef Ipv4RoutingProtocol::UnicastForwardCallback	UnicastForwardCallback
	IPv4 routing unicast forward callback typedef.

Public Member Functions
	QueueEntry (Ptr< const Packet > pa=nullptr, const Ipv4Header &h=Ipv4Header(), UnicastForwardCallback ucb=UnicastForwardCallback(), ErrorCallback ecb=ErrorCallback(), Time exp=Simulator::Now())
	constructor

ErrorCallback	GetErrorCallback () const
	Get error callback.

Time	GetExpireTime () const
	Get expire time.

Ipv4Header	GetIpv4Header () const
	Get IPv4 header.

Ptr< const Packet >	GetPacket () const
	Get packet from entry.

UnicastForwardCallback	GetUnicastForwardCallback () const
	Get unicast forward callback.

bool	operator== (const QueueEntry &o) const
	Compare queue entries.

void	SetErrorCallback (ErrorCallback ecb)
	Set error callback.

void	SetExpireTime (Time exp)
	Set expire time.

void	SetIpv4Header (Ipv4Header h)
	Set IPv4 header.

void	SetPacket (Ptr< const Packet > p)
	Set packet in entry.

void	SetUnicastForwardCallback (UnicastForwardCallback ucb)
	Set unicast forward callback.

Private Attributes
ErrorCallback	m_ecb
	Error callback.

Time	m_expire
	Expire time for queue entry.

Ipv4Header	m_header
	IP header.

Ptr< const Packet >	m_packet
	Data packet.

UnicastForwardCallback	m_ucb
	Unicast forward callback.

Detailed Description

AODV Queue Entry.

Definition at line 44 of file aodv-rqueue.h.

Member Typedef Documentation

◆ ErrorCallback

typedef Ipv4RoutingProtocol::ErrorCallback ns3::aodv::QueueEntry::ErrorCallback

IPv4 routing error callback typedef.

Definition at line 50 of file aodv-rqueue.h.

◆ UnicastForwardCallback

typedef Ipv4RoutingProtocol::UnicastForwardCallback ns3::aodv::QueueEntry::UnicastForwardCallback

IPv4 routing unicast forward callback typedef.

Definition at line 48 of file aodv-rqueue.h.

Constructor & Destructor Documentation

◆ QueueEntry()

ns3::aodv::QueueEntry::QueueEntry	(	Ptr< const Packet >	pa = `nullptr`,
		const Ipv4Header &	h = `Ipv4Header()`,
		UnicastForwardCallback	ucb = `UnicastForwardCallback()`,
		ErrorCallback	ecb = `ErrorCallback()`,
		Time	exp = `Simulator::Now()`
	)

inline

constructor

Parameters

pa	the packet to add to the queue
h	the Ipv4Header
ucb	the UnicastForwardCallback function
ecb	the ErrorCallback function
exp	the expiration time

Definition at line 61 of file aodv-rqueue.h.

Member Function Documentation

◆ GetErrorCallback()

ErrorCallback ns3::aodv::QueueEntry::GetErrorCallback ( ) const

inline

Get error callback.

Returns: the error callback

Definition at line 109 of file aodv-rqueue.h.

References m_ecb.

Referenced by ns3::aodv::QueueEntryTest::DoRun(), and ns3::aodv::RequestQueue::Drop().

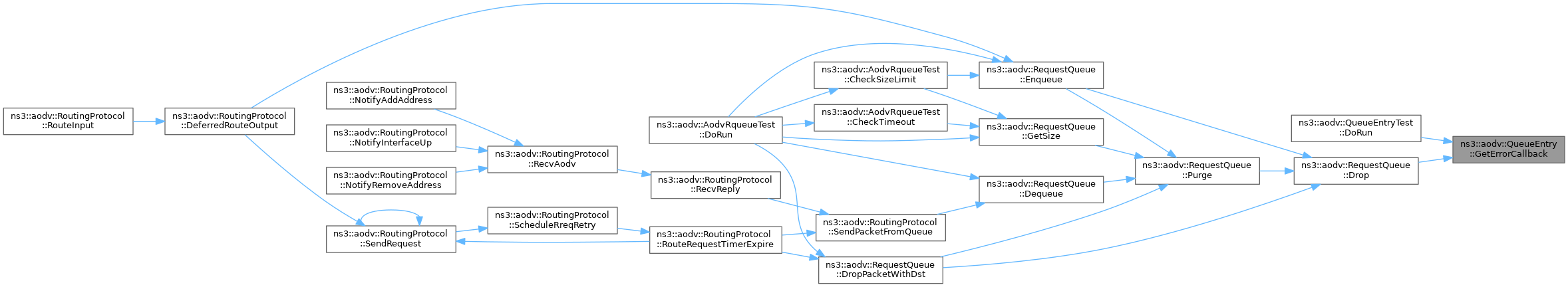

Here is the caller graph for this function:

◆ GetExpireTime()

Time ns3::aodv::QueueEntry::GetExpireTime ( ) const

inline

Get expire time.

Returns: the expiration time

Definition at line 172 of file aodv-rqueue.h.

References m_expire, and ns3::Simulator::Now().

Referenced by ns3::aodv::QueueEntryTest::DoRun(), and ns3::aodv::IsExpired::operator()().

Here is the call graph for this function:

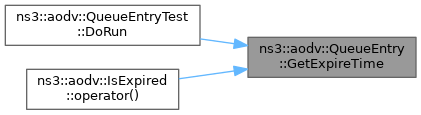

Here is the caller graph for this function:

◆ GetIpv4Header()

Ipv4Header ns3::aodv::QueueEntry::GetIpv4Header ( ) const

inline

Get IPv4 header.

Returns: the IPv4 header

Definition at line 145 of file aodv-rqueue.h.

References m_header.

Referenced by ns3::aodv::QueueEntryTest::DoRun(), ns3::aodv::RequestQueue::Drop(), ns3::aodv::RequestQueue::Enqueue(), and ns3::aodv::RoutingProtocol::SendPacketFromQueue().

Here is the caller graph for this function:

◆ GetPacket()

Ptr< const Packet > ns3::aodv::QueueEntry::GetPacket ( ) const

inline

Get packet from entry.

Returns: the packet

Definition at line 127 of file aodv-rqueue.h.

References m_packet.

Referenced by ns3::aodv::QueueEntryTest::DoRun(), ns3::aodv::RequestQueue::Drop(), ns3::aodv::RequestQueue::Enqueue(), and ns3::aodv::RoutingProtocol::SendPacketFromQueue().

Here is the caller graph for this function:

◆ GetUnicastForwardCallback()

UnicastForwardCallback ns3::aodv::QueueEntry::GetUnicastForwardCallback ( ) const

inline

Get unicast forward callback.

Returns: unicast callback

Definition at line 91 of file aodv-rqueue.h.

References m_ucb.

Referenced by ns3::aodv::QueueEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::SendPacketFromQueue().

Here is the caller graph for this function:

◆ operator==()

bool ns3::aodv::QueueEntry::operator== ( const QueueEntry & o ) const

inline

Compare queue entries.

Parameters

o	QueueEntry to compare

Returns: true if equal

Definition at line 79 of file aodv-rqueue.h.

References ns3::Ipv4Header::GetDestination(), m_expire, m_header, and m_packet.

Here is the call graph for this function:

◆ SetErrorCallback()

void ns3::aodv::QueueEntry::SetErrorCallback ( ErrorCallback ecb )

inline

Set error callback.

Parameters

ecb	The error callback

Definition at line 118 of file aodv-rqueue.h.

References m_ecb.

Referenced by ns3::aodv::QueueEntryTest::DoRun().

Here is the caller graph for this function:

◆ SetExpireTime()

void ns3::aodv::QueueEntry::SetExpireTime ( Time exp )

inline

Set expire time.

Parameters

exp	The expiration time

Definition at line 163 of file aodv-rqueue.h.

References m_expire, and ns3::Simulator::Now().

Referenced by ns3::aodv::QueueEntryTest::DoRun(), and ns3::aodv::RequestQueue::Enqueue().

Here is the call graph for this function:

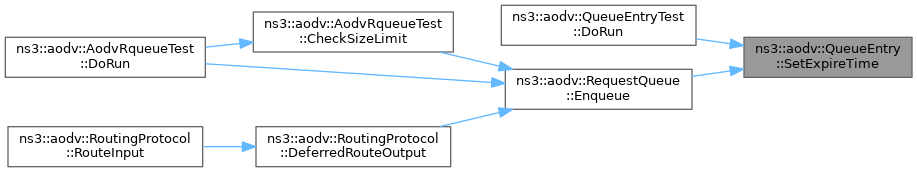

Here is the caller graph for this function:

◆ SetIpv4Header()

void ns3::aodv::QueueEntry::SetIpv4Header ( Ipv4Header h )

inline

Set IPv4 header.

Parameters

h	the IPv4 header

Definition at line 154 of file aodv-rqueue.h.

References m_header.

Referenced by ns3::aodv::QueueEntryTest::DoRun().

Here is the caller graph for this function:

◆ SetPacket()

void ns3::aodv::QueueEntry::SetPacket ( Ptr< const Packet > p )

inline

Set packet in entry.

Parameters

p	The packet

Definition at line 136 of file aodv-rqueue.h.

References m_packet.

◆ SetUnicastForwardCallback()

void ns3::aodv::QueueEntry::SetUnicastForwardCallback ( UnicastForwardCallback ucb )

inline

Set unicast forward callback.

Parameters

ucb	The unicast callback

Definition at line 100 of file aodv-rqueue.h.

References m_ucb.

Referenced by ns3::aodv::QueueEntryTest::DoRun().

Here is the caller graph for this function:

Member Data Documentation

◆ m_ecb

ErrorCallback ns3::aodv::QueueEntry::m_ecb

private

Error callback.

Definition at line 185 of file aodv-rqueue.h.

Referenced by GetErrorCallback(), and SetErrorCallback().

◆ m_expire

Time ns3::aodv::QueueEntry::m_expire

private

Expire time for queue entry.

Definition at line 187 of file aodv-rqueue.h.

Referenced by GetExpireTime(), operator==(), and SetExpireTime().

◆ m_header

Ipv4Header ns3::aodv::QueueEntry::m_header

private

IP header.

Definition at line 181 of file aodv-rqueue.h.

Referenced by GetIpv4Header(), operator==(), and SetIpv4Header().

◆ m_packet

Ptr<const Packet> ns3::aodv::QueueEntry::m_packet

private

Data packet.

Definition at line 179 of file aodv-rqueue.h.

Referenced by GetPacket(), operator==(), and SetPacket().

◆ m_ucb

UnicastForwardCallback ns3::aodv::QueueEntry::m_ucb

private

Unicast forward callback.

Definition at line 183 of file aodv-rqueue.h.

Referenced by GetUnicastForwardCallback(), and SetUnicastForwardCallback().

The documentation for this class was generated from the following file:

src/aodv/model/aodv-rqueue.h
