#include "epc-x2-header.h"

Inheritance diagram for ns3::EpcX2HandoverCancelHeader:

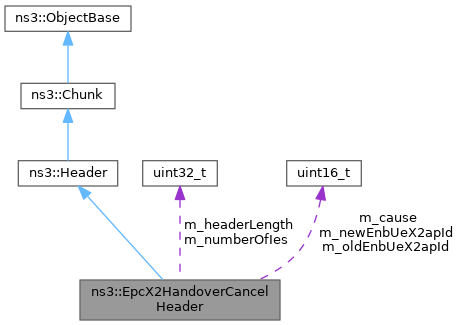

Collaboration diagram for ns3::EpcX2HandoverCancelHeader:

Public Member Functions
	EpcX2HandoverCancelHeader ()

	~EpcX2HandoverCancelHeader () override

uint32_t	Deserialize (Buffer::Iterator start) override

uint16_t	GetCause () const
	Get cause function.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

uint32_t	GetLengthOfIes () const
	Get length of IEs function.

uint16_t	GetNewEnbUeX2apId () const
	Get new ENB UE X2 AP ID function.

uint32_t	GetNumberOfIes () const
	Get number of IEs function.

uint16_t	GetOldEnbUeX2apId () const
	Get old ENB UE X2 AP ID function.

uint32_t	GetSerializedSize () const override

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

void	SetCause (uint16_t cause)
	Set cause function.

void	SetNewEnbUeX2apId (uint16_t x2apId)
	Set new ENB UE X2 AP ID function.

void	SetOldEnbUeX2apId (uint16_t x2apId)
	Set old ENB UE X2 AP ID function.

Public Member Functions inherited from ns3::Header
	~Header () override

uint32_t	Deserialize (Buffer::Iterator start) override=0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual uint32_t	GetSerializedSize () const =0

void	Print (std::ostream &os) const override=0

virtual void	Serialize (Buffer::Iterator start) const =0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual void	Print (std::ostream &os) const =0
	Print the object contents.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Attributes
uint16_t	m_cause
	cause

uint32_t	m_headerLength
	header length

uint16_t	m_newEnbUeX2apId
	new ENB UE X2 AP ID

uint32_t	m_numberOfIes
	number of IEs

uint16_t	m_oldEnbUeX2apId
	old ENB UE X2 AP ID

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

EpcX2HandoverCancelHeader.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 652 of file epc-x2-header.h.

Constructor & Destructor Documentation

◆ EpcX2HandoverCancelHeader()

ns3::EpcX2HandoverCancelHeader::EpcX2HandoverCancelHeader ( )

Definition at line 1500 of file epc-x2-header.cc.

◆ ~EpcX2HandoverCancelHeader()

ns3::EpcX2HandoverCancelHeader::~EpcX2HandoverCancelHeader ( )

override

Definition at line 1509 of file epc-x2-header.cc.

References m_cause, m_headerLength, m_newEnbUeX2apId, m_numberOfIes, and m_oldEnbUeX2apId.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::EpcX2HandoverCancelHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 1551 of file epc-x2-header.cc.

References GetSerializedSize(), m_cause, m_headerLength, m_newEnbUeX2apId, m_numberOfIes, m_oldEnbUeX2apId, and ns3::Buffer::Iterator::ReadNtohU16().

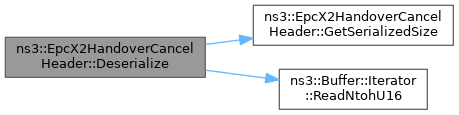

Here is the call graph for this function:

◆ GetCause()

uint16_t ns3::EpcX2HandoverCancelHeader::GetCause ( ) const

Get cause function.

Returns: the cause

Definition at line 1597 of file epc-x2-header.cc.

References m_cause.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::EpcX2HandoverCancelHeader::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 1529 of file epc-x2-header.cc.

References GetTypeId().

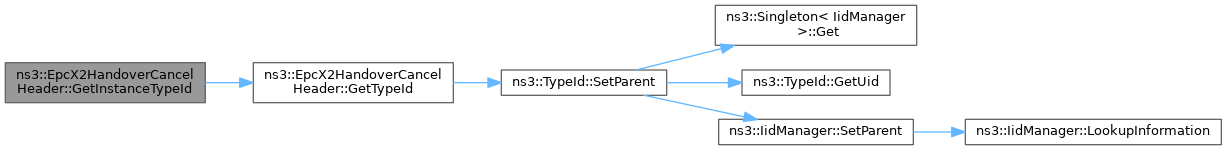

Here is the call graph for this function:

◆ GetLengthOfIes()

uint32_t ns3::EpcX2HandoverCancelHeader::GetLengthOfIes ( ) const

Get length of IEs function.

Returns: the length of IEs

Definition at line 1609 of file epc-x2-header.cc.

References m_headerLength.

Referenced by ns3::EpcX2::DoSendHandoverCancel().

Here is the caller graph for this function:

◆ GetNewEnbUeX2apId()

uint16_t ns3::EpcX2HandoverCancelHeader::GetNewEnbUeX2apId ( ) const

Get new ENB UE X2 AP ID function.

Returns: the new ENB UE X2 AP ID

Definition at line 1585 of file epc-x2-header.cc.

References m_newEnbUeX2apId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

◆ GetNumberOfIes()

uint32_t ns3::EpcX2HandoverCancelHeader::GetNumberOfIes ( ) const

Get number of IEs function.

Returns: the number of IEs

Definition at line 1615 of file epc-x2-header.cc.

References m_numberOfIes.

Referenced by ns3::EpcX2::DoSendHandoverCancel().

Here is the caller graph for this function:

◆ GetOldEnbUeX2apId()

uint16_t ns3::EpcX2HandoverCancelHeader::GetOldEnbUeX2apId ( ) const

Get old ENB UE X2 AP ID function.

Returns: the old ENB UE X2 AP ID

Definition at line 1573 of file epc-x2-header.cc.

References m_oldEnbUeX2apId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::EpcX2HandoverCancelHeader::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 1535 of file epc-x2-header.cc.

References m_headerLength.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::EpcX2HandoverCancelHeader::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 1519 of file epc-x2-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

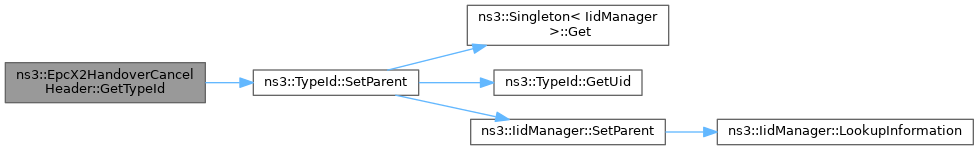

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::EpcX2HandoverCancelHeader::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 1565 of file epc-x2-header.cc.

References m_cause, m_newEnbUeX2apId, and m_oldEnbUeX2apId.

◆ Serialize()

void ns3::EpcX2HandoverCancelHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 1541 of file epc-x2-header.cc.

References m_cause, m_newEnbUeX2apId, m_oldEnbUeX2apId, and ns3::Buffer::Iterator::WriteHtonU16().

Here is the call graph for this function:
