ns3::PortRangeTlvValue Class Reference

PortRangeTlvValue class. More...

#include "wimax-tlv.h"

Inheritance diagram for ns3::PortRangeTlvValue:

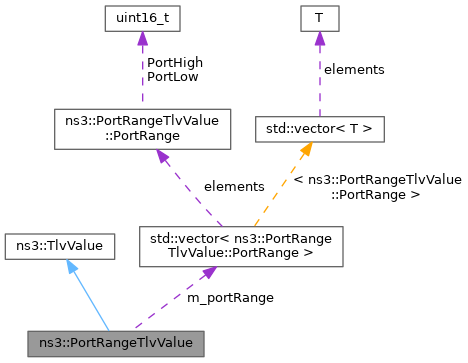

Collaboration diagram for ns3::PortRangeTlvValue:

Classes
struct	PortRange
	PortRange structure. More...

Public Types
typedef std::vector< PortRange >::const_iterator	Iterator
	PortRange vector iterator typedef.

Public Member Functions
	PortRangeTlvValue ()
	~PortRangeTlvValue () override
void	Add (uint16_t portLow, uint16_t portHigh)
	Add a range.
Iterator	Begin () const
	Begin iterator.
PortRangeTlvValue *	Copy () const override
	Copy.
uint32_t	Deserialize (Buffer::Iterator start, uint64_t valueLength) override
	Deserialize from a buffer.
Iterator	End () const
	End iterator.
uint32_t	GetSerializedSize () const override
	Get serialized size in bytes.
void	Serialize (Buffer::Iterator start) const override
	Serialize to a buffer.
Public Member Functions inherited from ns3::TlvValue
virtual	~TlvValue ()
virtual TlvValue *	Copy () const =0
	Copy function.
virtual uint32_t	Deserialize (Buffer::Iterator start, uint64_t valueLen)=0
	Deserialize from a buffer.
virtual uint32_t	GetSerializedSize () const =0
	Get serialized size in bytes.
virtual void	Serialize (Buffer::Iterator start) const =0
	Serialize to a buffer.

Private Attributes
std::vector< PortRange > *	m_portRange
	port range

Detailed Description

PortRangeTlvValue class.

Definition at line 483 of file wimax-tlv.h.

Member Typedef Documentation

Iterator

typedef std::vector<PortRange>::const_iterator ns3::PortRangeTlvValue::Iterator

PortRange vector iterator typedef.

Definition at line 494 of file wimax-tlv.h.

Constructor & Destructor Documentation

PortRangeTlvValue()

ns3::PortRangeTlvValue::PortRangeTlvValue

(

)

Definition at line 868 of file wimax-tlv.cc.

References m_portRange.

Referenced by Copy().

Here is the caller graph for this function:

~PortRangeTlvValue()

ns3::PortRangeTlvValue::~PortRangeTlvValue ( )

override

Definition at line 873 of file wimax-tlv.cc.

References m_portRange.

Member Function Documentation

Add()

void ns3::PortRangeTlvValue::Add	(	uint16_t	portLow,
		uint16_t	portHigh
	)

Add a range.

Parameters

portLow	the low port of the range
portHigh	the high port of the range

Definition at line 910 of file wimax-tlv.cc.

References m_portRange, ns3::PortRangeTlvValue::PortRange::PortHigh, and ns3::PortRangeTlvValue::PortRange::PortLow.

Referenced by Deserialize(), and ns3::IpcsClassifierRecord::ToTlv().

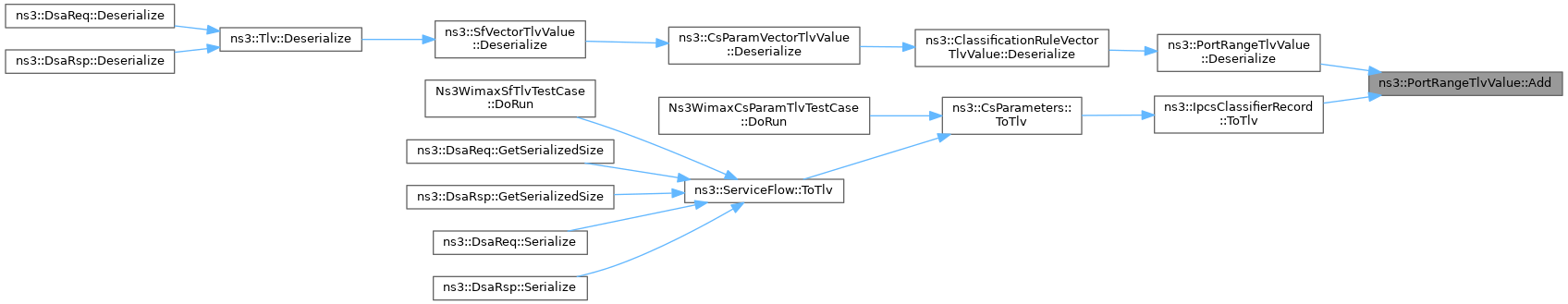

Here is the caller graph for this function:

Begin()

PortRangeTlvValue::Iterator ns3::PortRangeTlvValue::Begin

(

)

const

Begin iterator.

Returns

the beginning element

Definition at line 919 of file wimax-tlv.cc.

References m_portRange.

Copy()

PortRangeTlvValue * ns3::PortRangeTlvValue::Copy ( ) const

overridevirtual

Copy.

Returns

the port range tlv value

Implements ns3::TlvValue.

Definition at line 931 of file wimax-tlv.cc.

References PortRangeTlvValue(), and m_portRange.

Here is the call graph for this function:

Deserialize()

uint32_t ns3::PortRangeTlvValue::Deserialize ( Buffer::Iterator  start, uint64_t  valueLen  )

overridevirtual

Deserialize from a buffer.

Parameters

start	the iterator
valueLen	the maximum length of the value

Returns

the

Implements ns3::TlvValue.

Definition at line 896 of file wimax-tlv.cc.

References Add(), and ns3::Buffer::Iterator::ReadNtohU16().

Referenced by ns3::ClassificationRuleVectorTlvValue::Deserialize().

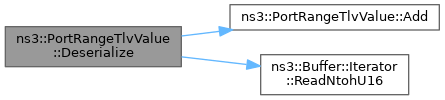

Here is the call graph for this function:

Here is the caller graph for this function:

End()

PortRangeTlvValue::Iterator ns3::PortRangeTlvValue::End

(

)

const

End iterator.

Returns

the ending element

Definition at line 925 of file wimax-tlv.cc.

References m_portRange.

GetSerializedSize()

uint32_t ns3::PortRangeTlvValue::GetSerializedSize ( ) const

overridevirtual

Get serialized size in bytes.

Returns

the serialized size

Implements ns3::TlvValue.

Definition at line 880 of file wimax-tlv.cc.

References m_portRange.

Referenced by ns3::ClassificationRuleVectorTlvValue::Deserialize(), and ns3::IpcsClassifierRecord::ToTlv().

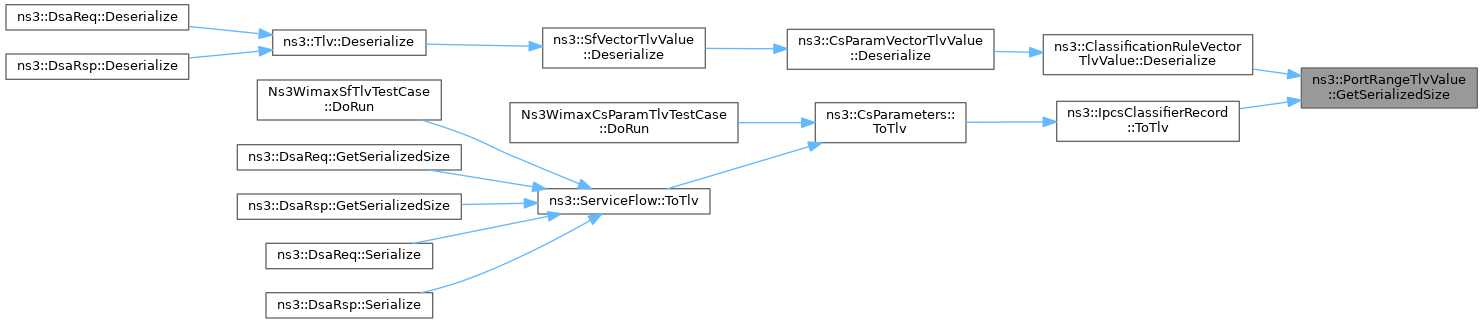

Here is the caller graph for this function:

Serialize()

void ns3::PortRangeTlvValue::Serialize ( Buffer::Iterator  start ) const

overridevirtual

Serialize to a buffer.

Parameters

start

the iterator

Implements ns3::TlvValue.

Definition at line 886 of file wimax-tlv.cc.

References m_portRange, and ns3::Buffer::Iterator::WriteHtonU16().

Here is the call graph for this function:

Member Data Documentation

m_portRange

std::vector<PortRange>* ns3::PortRangeTlvValue::m_portRange

private

port range

Definition at line 523 of file wimax-tlv.h.

Referenced by PortRangeTlvValue(), ~PortRangeTlvValue(), Add(), Begin(), Copy(), End(), GetSerializedSize(), and Serialize().

---

The documentation for this class was generated from the following files:

• src/wimax/model/wimax-tlv.h
• src/wimax/model/wimax-tlv.cc
