ns3::LteEnbPhySapUser Class Reference

Service Access Point (SAP) offered by the eNB-PHY to the eNB-MAC. More...

#include "lte-enb-phy-sap.h"

Inheritance diagram for ns3::LteEnbPhySapUser:

Public Member Functions
virtual	~LteEnbPhySapUser ()
virtual void	DlInfoListElementHarqFeedback (DlInfoListElement_s params)=0
	Notify the HARQ on the DL transmission status.
virtual void	ReceiveLteControlMessage (Ptr< LteControlMessage > msg)=0
	Receive SendLteControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.
virtual void	ReceivePhyPdu (Ptr< Packet > p)=0
	Called by the Phy to notify the MAC of the reception of a new PHY-PDU.
virtual void	ReceiveRachPreamble (uint32_t prachId)=0
	notify the reception of a RACH preamble on the PRACH
virtual void	SubframeIndication (uint32_t frameNo, uint32_t subframeNo)=0
	Trigger the start from a new frame (input from Phy layer)
virtual void	UlCqiReport (FfMacSchedSapProvider::SchedUlCqiInfoReqParameters ulcqi)=0
	Returns to MAC level the UL-CQI evaluated.
virtual void	UlInfoListElementHarqFeedback (UlInfoListElement_s params)=0
	Notify the HARQ on the UL transmission status.

Detailed Description

Service Access Point (SAP) offered by the eNB-PHY to the eNB-MAC.

This is the MAC SAP User, i.e., the part of the SAP that contains the MAC methods called by the PHY

Definition at line 69 of file lte-enb-phy-sap.h.

Constructor & Destructor Documentation

~LteEnbPhySapUser()

ns3::LteEnbPhySapUser::~LteEnbPhySapUser ( )

virtual

Definition at line 29 of file lte-enb-phy-sap.cc.

Member Function Documentation

DlInfoListElementHarqFeedback()

virtual void ns3::LteEnbPhySapUser::DlInfoListElementHarqFeedback ( DlInfoListElement_s  params )

pure virtual

Notify the HARQ on the DL transmission status.

Parameters

params

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

ReceiveLteControlMessage()

virtual void ns3::LteEnbPhySapUser::ReceiveLteControlMessage ( Ptr< LteControlMessage >  msg )

pure virtual

Receive SendLteControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.

Parameters

msg	the Ideal Control Message to receive

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

Referenced by ns3::LteEnbPhy::ReceiveLteControlMessage(), and ns3::LteEnbPhy::ReceiveLteControlMessageList().

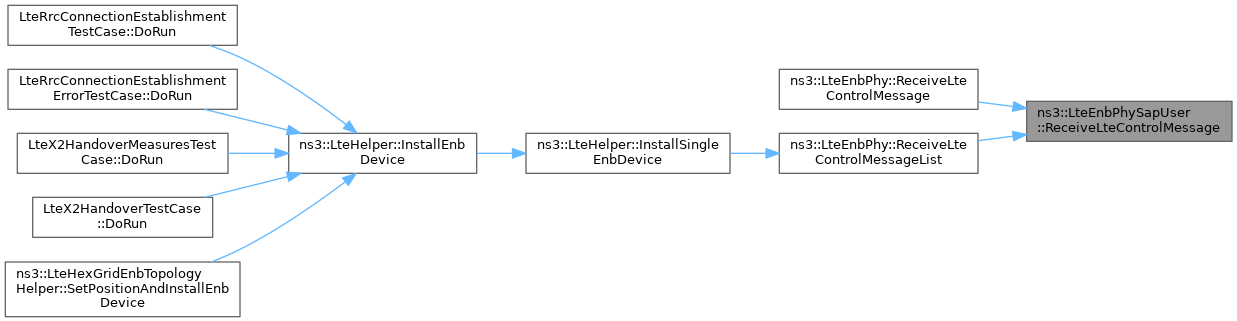

Here is the caller graph for this function:

ReceivePhyPdu()

virtual void ns3::LteEnbPhySapUser::ReceivePhyPdu ( Ptr< Packet >  p )

pure virtual

Called by the Phy to notify the MAC of the reception of a new PHY-PDU.

Parameters

p

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

Referenced by ns3::LteEnbPhy::PhyPduReceived().

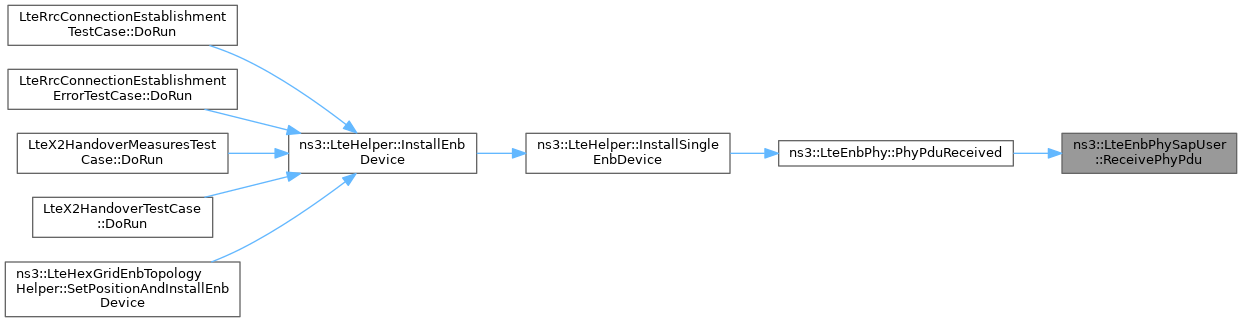

Here is the caller graph for this function:

ReceiveRachPreamble()

virtual void ns3::LteEnbPhySapUser::ReceiveRachPreamble ( uint32_t  prachId )

pure virtual

notify the reception of a RACH preamble on the PRACH

Parameters

prachId

the ID of the preamble

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

Referenced by ns3::LteEnbPhy::ReceiveLteControlMessageList().

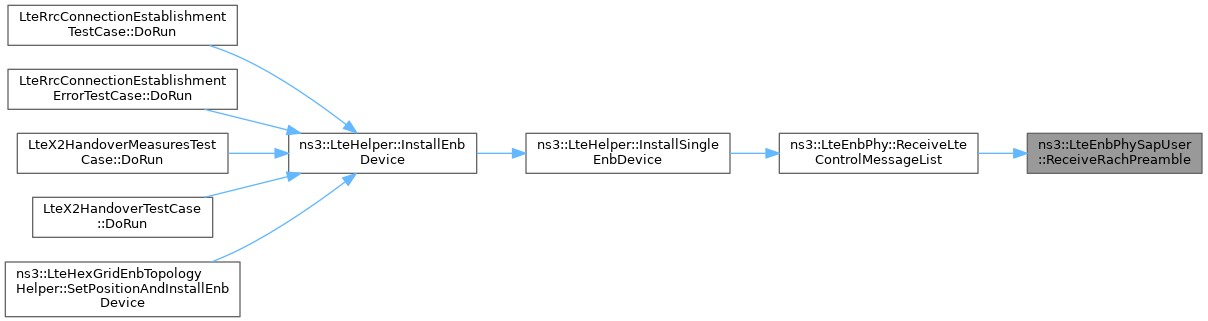

Here is the caller graph for this function:

SubframeIndication()

virtual void ns3::LteEnbPhySapUser::SubframeIndication ( uint32_t  frameNo, uint32_t  subframeNo  )

pure virtual

Trigger the start from a new frame (input from Phy layer)

Parameters

frameNo	frame number
subframeNo	subframe number

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

Referenced by ns3::LteEnbPhy::StartSubFrame().

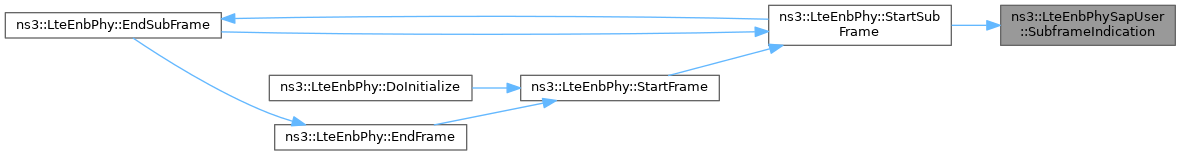

Here is the caller graph for this function:

UlCqiReport()

virtual void ns3::LteEnbPhySapUser::UlCqiReport ( FfMacSchedSapProvider::SchedUlCqiInfoReqParameters  ulcqi )

pure virtual

Returns to MAC level the UL-CQI evaluated.

Parameters

ulcqi

the UL-CQI (see FF MAC API 4.3.29)

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

Referenced by ns3::LteEnbPhy::GenerateCtrlCqiReport(), and ns3::LteEnbPhy::GenerateDataCqiReport().

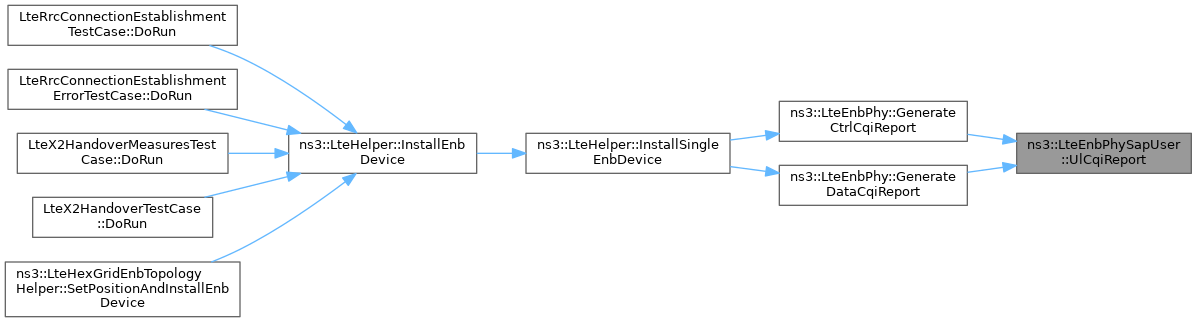

Here is the caller graph for this function:

UlInfoListElementHarqFeedback()

virtual void ns3::LteEnbPhySapUser::UlInfoListElementHarqFeedback ( UlInfoListElement_s  params )

pure virtual

Notify the HARQ on the UL transmission status.

Parameters

params

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

Referenced by ns3::LteEnbPhy::ReportUlHarqFeedback().

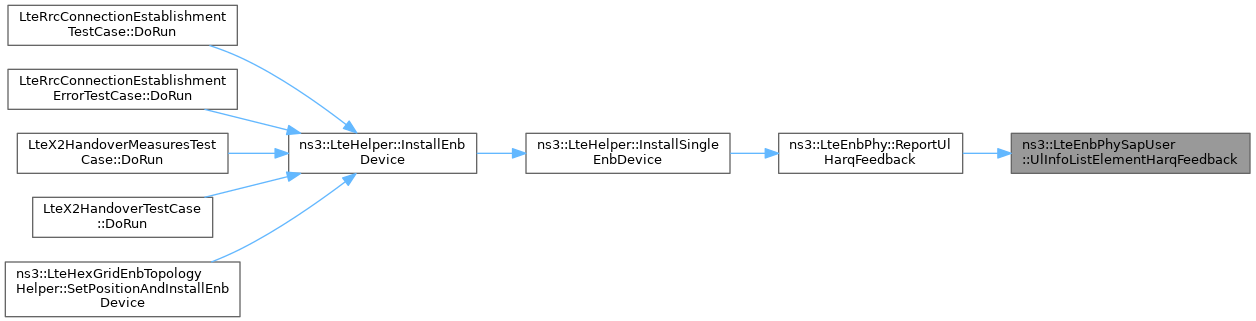

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-enb-phy-sap.h
• src/lte/model/lte-enb-phy-sap.cc
