EHT MCS and NSS Set subfield. More...
#include "eht-capabilities.h"

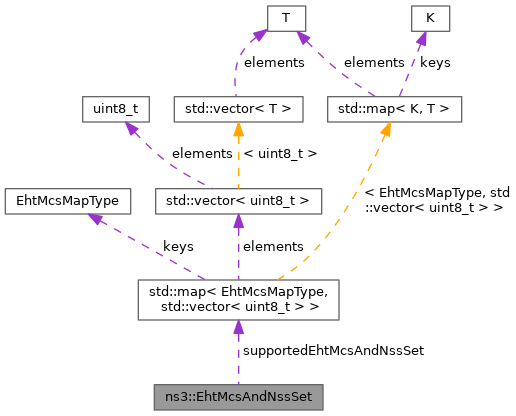

Collaboration diagram for ns3::EhtMcsAndNssSet:Public Types | |
| enum | EhtMcsMapType : uint8_t { EHT_MCS_MAP_TYPE_20_MHZ_ONLY = 0 , EHT_MCS_MAP_TYPE_NOT_LARGER_THAN_80_MHZ , EHT_MCS_MAP_TYPE_160_MHZ , EHT_MCS_MAP_TYPE_320_MHZ , EHT_MCS_MAP_TYPE_MAX } |
| The different EHT-MCS map types as defined in 9.4.2.313.4 Supported EHT-MCS And NSS Set field. More... | |
Public Member Functions | |
| uint16_t | Deserialize (Buffer::Iterator start, bool is2_4Ghz, uint8_t heSupportedChannelWidthSet, bool support320MhzIn6Ghz) |
| Deserialize the Supported EHT-MCS And NSS Set subfield. | |
| uint16_t | GetSize () const |
| Get the size of the serialized Supported EHT-MCS And NSS Set subfield. | |
| void | Serialize (Buffer::Iterator &start) const |
| Serialize the Supported EHT-MCS And NSS Set subfield. | |
Public Attributes | |
| std::map< EhtMcsMapType, std::vector< uint8_t > > | supportedEhtMcsAndNssSet |
| Supported EHT-MCS And NSS Set. | |
EHT MCS and NSS Set subfield.
See IEEE 802.11be D1.5 9.4.2.313.4 Supported EHT-MCS And NSS Set subfield
Definition at line 155 of file eht-capabilities.h.
| enum ns3::EhtMcsAndNssSet::EhtMcsMapType : uint8_t |
The different EHT-MCS map types as defined in 9.4.2.313.4 Supported EHT-MCS And NSS Set field.
| Enumerator | |
|---|---|
| EHT_MCS_MAP_TYPE_20_MHZ_ONLY | |
| EHT_MCS_MAP_TYPE_NOT_LARGER_THAN_80_MHZ | |
| EHT_MCS_MAP_TYPE_160_MHZ | |
| EHT_MCS_MAP_TYPE_320_MHZ | |
| EHT_MCS_MAP_TYPE_MAX | |
Definition at line 161 of file eht-capabilities.h.
| uint16_t ns3::EhtMcsAndNssSet::Deserialize | ( | Buffer::Iterator | start, |
| bool | is2_4Ghz, | ||
| uint8_t | heSupportedChannelWidthSet, | ||
| bool | support320MhzIn6Ghz | ||
| ) |
Deserialize the Supported EHT-MCS And NSS Set subfield.
| start | iterator pointing to where the Supported EHT-MCS And NSS Set subfield should be read from |
| is2_4Ghz | indicating whether PHY is operating in 2.4 GHz based on previously serialized IEs |
| heSupportedChannelWidthSet | supported channel width set based on previously deserialized HE capabilities IE |
| support320MhzIn6Ghz | flag whether 320 MHz is supported in 6 GHz band based on EHT PHY capabilities subfield |
Definition at line 188 of file eht-capabilities.cc.
References EHT_MCS_MAP_TYPE_160_MHZ, EHT_MCS_MAP_TYPE_20_MHZ_ONLY, EHT_MCS_MAP_TYPE_320_MHZ, EHT_MCS_MAP_TYPE_NOT_LARGER_THAN_80_MHZ, ns3::Buffer::Iterator::ReadU8(), and supportedEhtMcsAndNssSet.
Referenced by ns3::EhtCapabilities::DeserializeInformationField().
Here is the call graph for this function: Here is the caller graph for this function:| uint16_t ns3::EhtMcsAndNssSet::GetSize | ( | ) | const |
Get the size of the serialized Supported EHT-MCS And NSS Set subfield.
Definition at line 160 of file eht-capabilities.cc.
References supportedEhtMcsAndNssSet.
Referenced by ns3::EhtCapabilities::GetInformationFieldSize().
Here is the caller graph for this function:| void ns3::EhtMcsAndNssSet::Serialize | ( | Buffer::Iterator & | start | ) | const |
Serialize the Supported EHT-MCS And NSS Set subfield.
| start | iterator pointing to where the Supported EHT-MCS And NSS Set subfield should be written to |
Definition at line 175 of file eht-capabilities.cc.
References NS_ASSERT, and supportedEhtMcsAndNssSet.
Referenced by ns3::EhtCapabilities::SerializeInformationField().
Here is the caller graph for this function:| std::map<EhtMcsMapType, std::vector<uint8_t> > ns3::EhtMcsAndNssSet::supportedEhtMcsAndNssSet |
Supported EHT-MCS And NSS Set.
Definition at line 171 of file eht-capabilities.h.
Referenced by Deserialize(), ns3::EhtCapabilities::GetHighestSupportedRxMcs(), ns3::EhtCapabilities::GetHighestSupportedTxMcs(), GetSize(), Serialize(), ns3::EhtCapabilities::SetSupportedRxEhtMcsAndNss(), and ns3::EhtCapabilities::SetSupportedTxEhtMcsAndNss().
