Class for representing data rates. More...

#include "data-rate.h"

Collaboration diagram for ns3::DataRate:

Public Member Functions
	DataRate ()

	DataRate (std::string rate)
	String constructor.

	DataRate (uint64_t bps)
	Integer constructor.

Time	CalculateBitsTxTime (uint32_t bits) const
	Calculate transmission time.

Time	CalculateBytesTxTime (uint32_t bytes) const
	Calculate transmission time.

uint64_t	GetBitRate () const
	Get the underlying bitrate.

bool	operator!= (const DataRate &rhs) const

DataRate	operator* (double rhs) const
	Scales the DataRate.

DataRate	operator* (uint64_t rhs) const
	Scales the DataRate.

DataRate &	operator*= (double rhs)
	Scales the DataRate.

DataRate &	operator*= (uint64_t rhs)
	Scales the DataRate.

DataRate	operator+ (DataRate rhs) const

DataRate &	operator+= (DataRate rhs)

DataRate	operator- (DataRate rhs) const

DataRate &	operator-= (DataRate rhs)

bool	operator< (const DataRate &rhs) const

bool	operator<= (const DataRate &rhs) const

bool	operator== (const DataRate &rhs) const

bool	operator> (const DataRate &rhs) const

bool	operator>= (const DataRate &rhs) const

Static Private Member Functions
static bool	DoParse (const std::string s, uint64_t *v)
	Parse a string representing a DataRate into an uint64_t.

Private Attributes
uint64_t	m_bps
	data rate [bps]

Friends
std::istream &	operator>> (std::istream &is, DataRate &rate)
	Stream extraction operator.

Detailed Description

Class for representing data rates.

Allows for natural and familiar use of data rates. Allows construction from strings, natural multiplication e.g.:

DataRate x("56kbps");
double nBits = x*ns3::Seconds (19.2);
uint32_t nBytes = 20;
Time txtime = x.CalculateBytesTxTime (nBytes);

This class also supports the regular comparison operators <, >, <=, >=, ==, and !=

Data rate specifiers consist of

A numeric value,
An optional multiplier prefix and
A unit.

Whitespace is allowed but not required between the numeric value and multiplier or unit.

Supported multiplier prefixes:

Prefix	Value
"k", "K"	1000
"Ki"	1024
"M"	1000000
"Mi"	1024 Ki
"G"	10^9
"Gi "	1024 Mi

Supported unit strings:

Symbol	Meaning
"b"	bits
"B"	8-bit bytes
"s", "/s"	per second

Examples:

"56kbps" = 56,000 bits/s
"128 kb/s" = 128,000 bits/s
"8Kib/s" = 1 KiB/s = 8192 bits/s
"1kB/s" = 8000 bits/s

See also: DataRate Attribute

Definition at line 88 of file data-rate.h.

Constructor & Destructor Documentation

◆ DataRate() [1/3]

ns3::DataRate::DataRate ( )

Definition at line 188 of file data-rate.cc.

References NS_LOG_FUNCTION.

Referenced by operator*(), operator+(), and operator-().

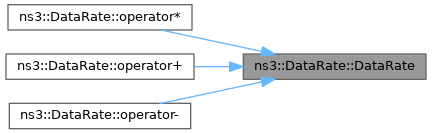

Here is the caller graph for this function:

◆ DataRate() [2/3]

ns3::DataRate::DataRate ( uint64_t bps )

Integer constructor.

Construct a data rate from an integer. This class only supports positive integer data rates in units of bits/s, meaning 1bit/s is the smallest non-trivial bitrate available.

Parameters

bps	bit/s value

Definition at line 194 of file data-rate.cc.

References NS_LOG_FUNCTION.

◆ DataRate() [3/3]

ns3::DataRate::DataRate ( std::string rate )

String constructor.

Construct a data rate from a string. Many different unit strings are supported Supported unit strings: bps, b/s, Bps, B/s
kbps, kb/s, Kbps, Kb/s, kBps, kB/s, KBps, KB/s, Kib/s, KiB/s
Mbps, Mb/s, MBps, MB/s, Mib/s, MiB/s
Gbps, Gb/s, GBps, GB/s, Gib/s, GiB/s
Examples: "56kbps" = 56,000 bits/s
"128 kb/s" = 128,000 bits/s
"8Kib/s" = 1 KiB/s = 8192 bits/s
"1kB/s" = 8000 bits/s

Parameters

rate	string representing the desired rate

Definition at line 311 of file data-rate.cc.

References DoParse(), m_bps, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

◆ CalculateBitsTxTime()

Time ns3::DataRate::CalculateBitsTxTime ( uint32_t bits ) const

Calculate transmission time.

Calculates the transmission time at this data rate

Parameters

bits	The number of bits (not bytes) for which to calculate

Returns: The transmission time for the number of bits specified

Definition at line 298 of file data-rate.cc.

References m_bps, NS_LOG_FUNCTION, and ns3::Seconds().

Referenced by CalculateBytesTxTime(), and DataRateTestCase1::SingleTest().

Here is the call graph for this function:

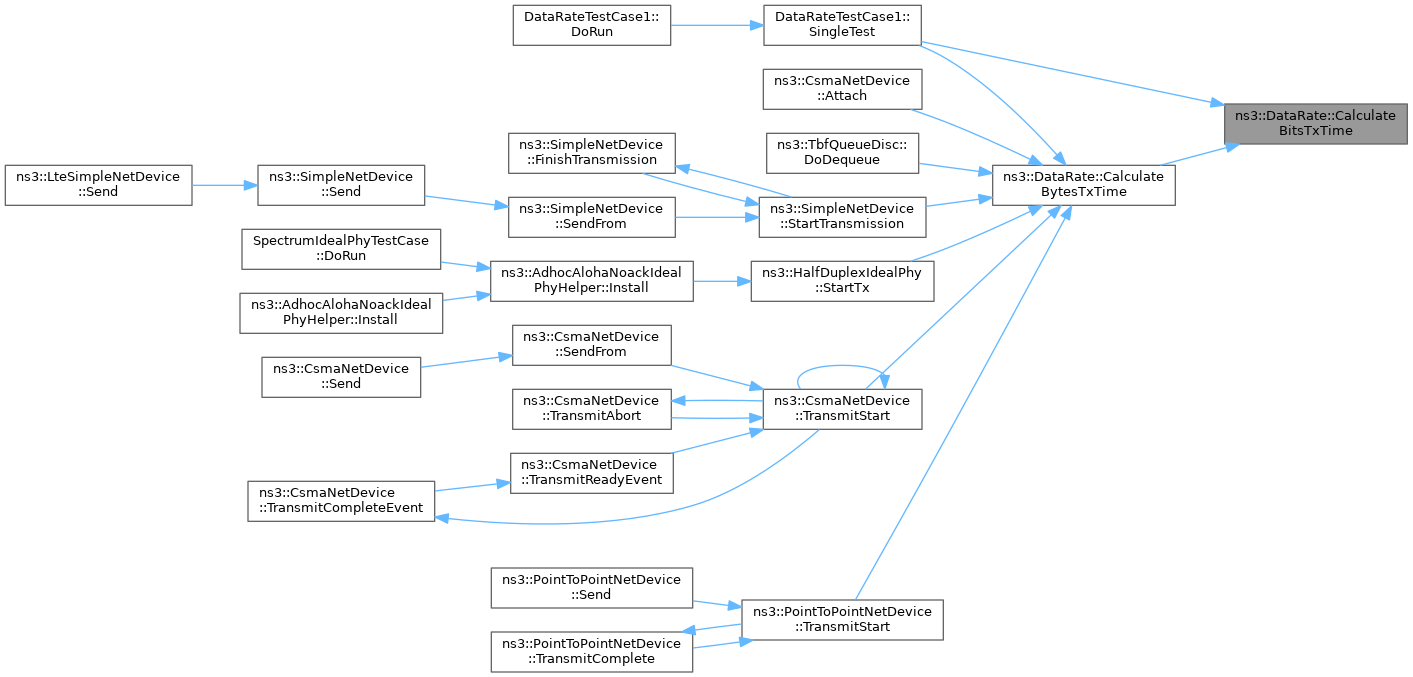

Here is the caller graph for this function:

◆ CalculateBytesTxTime()

Time ns3::DataRate::CalculateBytesTxTime ( uint32_t bytes ) const

Calculate transmission time.

Calculates the transmission time at this data rate

Parameters

bytes The number of bytes (not bits) for which to calculate

Returns: The transmission time for the number of bytes specified

Definition at line 291 of file data-rate.cc.

References CalculateBitsTxTime(), and NS_LOG_FUNCTION.

Referenced by ns3::CsmaNetDevice::Attach(), ns3::TbfQueueDisc::DoDequeue(), DataRateTestCase1::SingleTest(), ns3::SimpleNetDevice::StartTransmission(), ns3::HalfDuplexIdealPhy::StartTx(), ns3::CsmaNetDevice::TransmitStart(), and ns3::PointToPointNetDevice::TransmitStart().

Here is the call graph for this function:

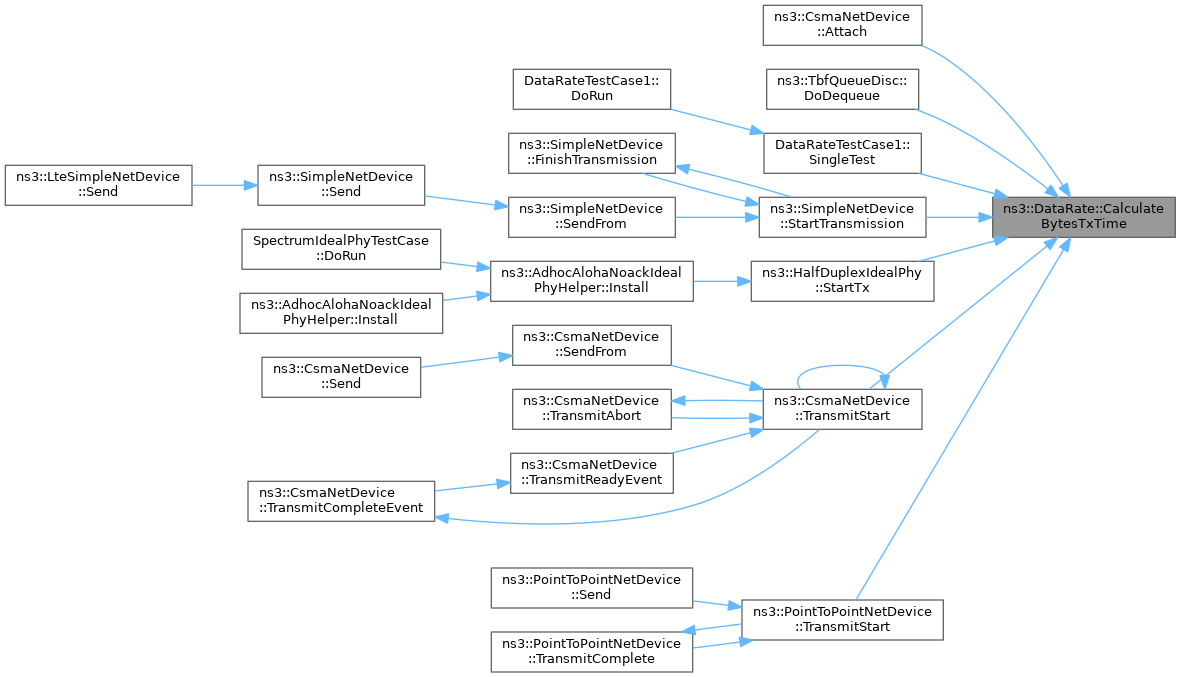

Here is the caller graph for this function:

◆ DoParse()

bool ns3::DataRate::DoParse	(	const std::string	s,
		uint64_t *	v
	)

staticprivate

Parse a string representing a DataRate into an uint64_t.

Allowed unit representations include all combinations of

An SI prefix: k, K, M, G
Decimal or kibibit (as in "Kibps", meaning 1024 bps)
Bits or bytes (8 bits)
"bps" or "/s"

Parameters

[in]	s	The string representation, including unit
[in,out]	v	The location to put the value, in bits/sec.

Returns: true if parsing was successful.

Definition at line 35 of file data-rate.cc.

References NS_LOG_FUNCTION.

Referenced by DataRate().

Here is the caller graph for this function:

◆ GetBitRate()

uint64_t ns3::DataRate::GetBitRate ( ) const

Get the underlying bitrate.

Returns: The underlying bitrate in bits per second

Definition at line 305 of file data-rate.cc.

References m_bps, and NS_LOG_FUNCTION.

Referenced by ns3::TcpBbr::AckAggregationCwnd(), ns3::OnOffApplication::CancelEvents(), ns3::TcpBbr::CheckFullPipe(), ns3::TbfQueueDisc::DoDequeue(), ns3::RedQueueDisc::InitializeParams(), ns3::TcpBbr::InitPacingRate(), ns3::operator*(), ns3::operator<<(), PacingRateTracer(), ns3::OnOffApplication::ScheduleNextTx(), ns3::TutorialApp::ScheduleTx(), Ipv4DynamicGlobalRoutingTestCase::SendData(), ns3::TcpBbr::SetPacingRate(), TraceQueueLength(), and ns3::TcpBbr::UpdateAckAggregation().

Here is the caller graph for this function:

◆ operator!=()

bool ns3::DataRate::operator!= ( const DataRate & rhs ) const

Returns: true if this rate is not equal to rhs

Parameters

rhs	the datarate to compare to this datarate

Definition at line 285 of file data-rate.cc.

References m_bps.

◆ operator*() [1/2]

DataRate ns3::DataRate::operator* ( double rhs ) const

Scales the DataRate.

Multiplies with double and is re-casted to an int

Returns: DataRate object representing the product of this object with rhs

Parameters

rhs	the double to multiply to this datarate

Definition at line 229 of file data-rate.cc.

References DataRate(), and m_bps.

Here is the call graph for this function:

◆ operator*() [2/2]

DataRate ns3::DataRate::operator* ( uint64_t rhs ) const

Scales the DataRate.

Returns: DataRate object representing the product of this object with rhs

Parameters

rhs	the uint64_t to multiply to this datarate

Definition at line 242 of file data-rate.cc.

References DataRate(), and m_bps.

Here is the call graph for this function:

◆ operator*=() [1/2]

DataRate & ns3::DataRate::operator*= ( double rhs )

Scales the DataRate.

Multiplies with double and is re-casted to an int

Returns: DataRate object representing the product of this object with rhs

Parameters

rhs	the double to multiply to this datarate

Definition at line 235 of file data-rate.cc.

References m_bps.

◆ operator*=() [2/2]

DataRate & ns3::DataRate::operator*= ( uint64_t rhs )

Scales the DataRate.

Returns: DataRate object representing the product of this object with rhs

Parameters

rhs	the uint64_t to multiply to this datarate

Definition at line 248 of file data-rate.cc.

References m_bps.

◆ operator+()

DataRate ns3::DataRate::operator+ ( DataRate rhs ) const

Returns: the DataRate representing the sum of this object with rhs

Parameters

rhs	the DataRate to add to this DataRate

Definition at line 201 of file data-rate.cc.

References DataRate(), and m_bps.

Here is the call graph for this function:

◆ operator+=()

DataRate & ns3::DataRate::operator+= ( DataRate rhs )

Returns: the DataRate representing the sum of this object with rhs

Parameters

rhs	the DataRate to add to this DataRate

Definition at line 207 of file data-rate.cc.

References m_bps.

◆ operator-()

DataRate ns3::DataRate::operator- ( DataRate rhs ) const

Returns: the DataRate representing the difference of this object with rhs

Parameters

rhs	the DataRate to subtract from this DataRate

Definition at line 214 of file data-rate.cc.

References DataRate(), m_bps, and NS_ASSERT_MSG.

Here is the call graph for this function:

◆ operator-=()

DataRate & ns3::DataRate::operator-= ( DataRate rhs )

Returns: the DataRate representing the difference of this object with rhs

Parameters

rhs	the DataRate to subtract from this DataRate

Definition at line 221 of file data-rate.cc.

References m_bps, and NS_ASSERT_MSG.

◆ operator<()

bool ns3::DataRate::operator< ( const DataRate & rhs ) const

Returns: true if this rate is less than rhs

Parameters

rhs	the datarate to compare to this datarate

Definition at line 254 of file data-rate.cc.

References m_bps.

◆ operator<=()

bool ns3::DataRate::operator<= ( const DataRate & rhs ) const

Returns: true if this rate is less than or equal to rhs

Parameters

rhs	the datarate to compare to this datarate

Definition at line 260 of file data-rate.cc.

References m_bps.

◆ operator==()

bool ns3::DataRate::operator== ( const DataRate & rhs ) const

Returns: true if this rate is equal to rhs

Parameters

rhs	the datarate to compare to this datarate

Definition at line 279 of file data-rate.cc.

References m_bps.

◆ operator>()

bool ns3::DataRate::operator> ( const DataRate & rhs ) const

Returns: true if this rate is greater than rhs

Parameters

rhs	the datarate to compare to this datarate

Definition at line 267 of file data-rate.cc.

References m_bps.

◆ operator>=()

bool ns3::DataRate::operator>= ( const DataRate & rhs ) const

Returns: true if this rate is greater than or equal to rhs

Parameters

rhs	the datarate to compare to this datarate

Definition at line 273 of file data-rate.cc.

References m_bps.

Friends And Related Function Documentation

◆ operator>>

std::istream & operator>>	(	std::istream &	is,
		DataRate &	rate
	)

friend

Stream extraction operator.

Parameters

is	the stream
rate	the data rate

Returns: a reference to the stream

Definition at line 331 of file data-rate.cc.

Member Data Documentation

◆ m_bps

uint64_t ns3::DataRate::m_bps

private

data rate [bps]

Definition at line 275 of file data-rate.h.

Referenced by DataRate(), CalculateBitsTxTime(), GetBitRate(), operator!=(), operator*(), operator*=(), operator+(), operator+=(), operator-(), operator-=(), operator<(), operator<=(), operator==(), operator>(), and operator>=().

The documentation for this class was generated from the following files:

src/network/utils/data-rate.h
src/network/utils/data-rate.cc
