ns3::WifiBlockAck Struct Reference

WifiBlockAck specifies that acknowledgment via Block Ack is required. More...

#include "wifi-acknowledgment.h"

Inheritance diagram for ns3::WifiBlockAck:

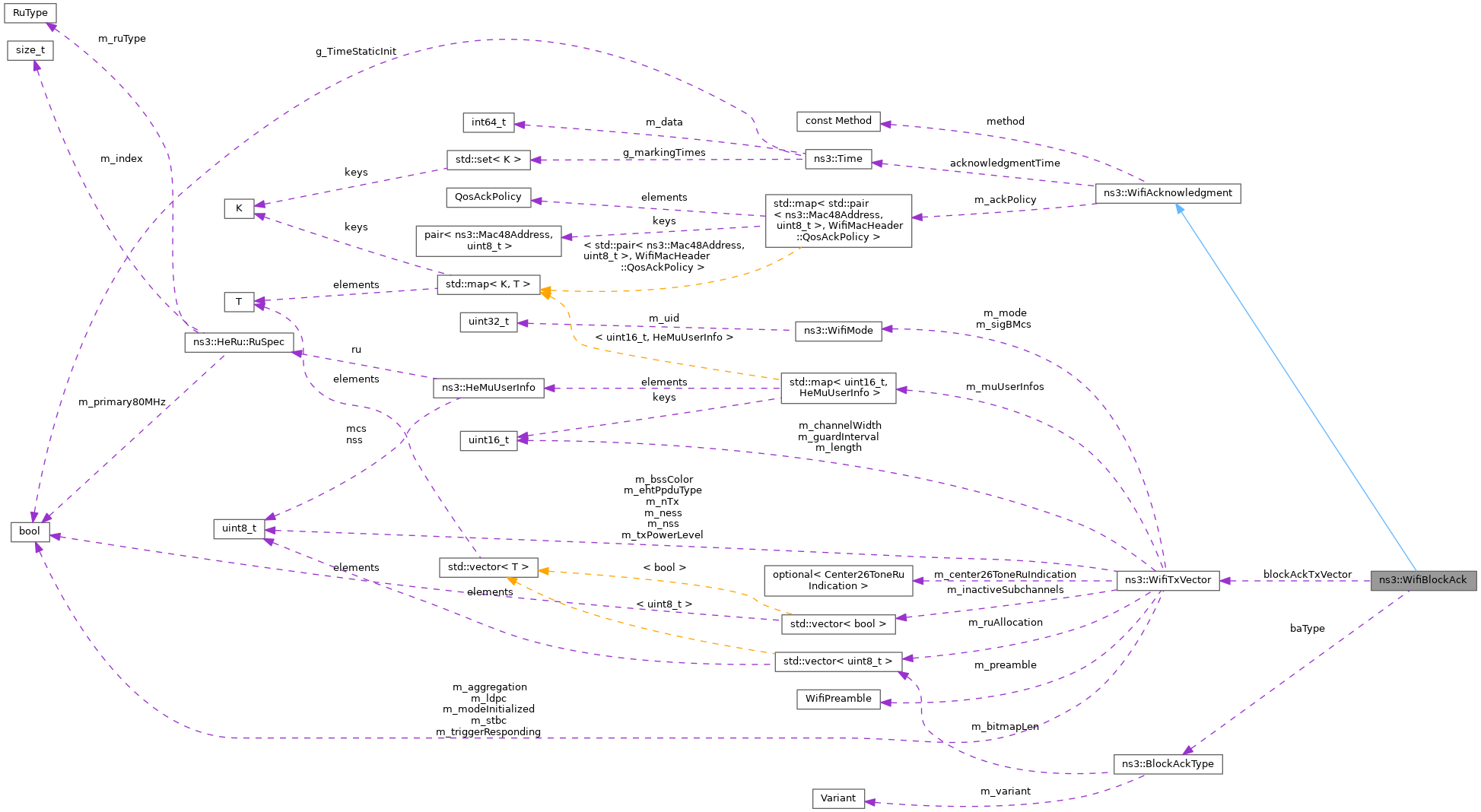

Collaboration diagram for ns3::WifiBlockAck:

Public Member Functions
	WifiBlockAck ()
bool	CheckQosAckPolicy (Mac48Address receiver, uint8_t tid, WifiMacHeader::QosAckPolicy ackPolicy) const override
	Check whether the given QoS Ack policy can be used for the MPDUs addressed to the given receiver and belonging to the given TID.
std::unique_ptr< WifiAcknowledgment >	Copy () const override
	Clone this object.
void	Print (std::ostream &os) const override
	Print the object contents.
Public Member Functions inherited from ns3::WifiAcknowledgment
	WifiAcknowledgment (Method m)
	Constructor.
virtual	~WifiAcknowledgment ()
virtual std::unique_ptr< WifiAcknowledgment >	Copy () const =0
	Clone this object.
WifiMacHeader::QosAckPolicy	GetQosAckPolicy (Mac48Address receiver, uint8_t tid) const
	Get the QoS Ack policy to use for the MPDUs addressed to the given receiver and belonging to the given TID.
virtual void	Print (std::ostream &os) const =0
	Print the object contents.
void	SetQosAckPolicy (Mac48Address receiver, uint8_t tid, WifiMacHeader::QosAckPolicy ackPolicy)
	Set the QoS Ack policy to use for the MPDUs addressed to the given receiver and belonging to the given TID.

Public Attributes
BlockAckType	baType
	BlockAck type.
WifiTxVector	blockAckTxVector
	BlockAck TXVECTOR.
Public Attributes inherited from ns3::WifiAcknowledgment
Time	acknowledgmentTime
	time required by the acknowledgment method
const Method	method
	acknowledgment method

Additional Inherited Members
Public Types inherited from ns3::WifiAcknowledgment
enum	Method {   NONE = 0 , NORMAL_ACK , BLOCK_ACK , BAR_BLOCK_ACK ,   DL_MU_BAR_BA_SEQUENCE , DL_MU_TF_MU_BAR , DL_MU_AGGREGATE_TF , UL_MU_MULTI_STA_BA ,   ACK_AFTER_TB_PPDU }
	Available acknowledgment methods. More...

Detailed Description

WifiBlockAck specifies that acknowledgment via Block Ack is required.

Definition at line 164 of file wifi-acknowledgment.h.

Constructor & Destructor Documentation

WifiBlockAck()

ns3::WifiBlockAck::WifiBlockAck

(

)

Definition at line 123 of file wifi-acknowledgment.cc.

Member Function Documentation

CheckQosAckPolicy()

bool ns3::WifiBlockAck::CheckQosAckPolicy ( Mac48Address  receiver, uint8_t  tid, WifiMacHeader::QosAckPolicy  ackPolicy  ) const

overridevirtual

Check whether the given QoS Ack policy can be used for the MPDUs addressed to the given receiver and belonging to the given TID.

Parameters

receiver	the MAC address of the receiver
tid	the TID
ackPolicy	the QoS Ack policy to use

Returns

true if the given QoS Ack policy can be used, false otherwise

Implements ns3::WifiAcknowledgment.

Definition at line 135 of file wifi-acknowledgment.cc.

References ns3::WifiMacHeader::NORMAL_ACK.

Copy()

std::unique_ptr< WifiAcknowledgment > ns3::WifiBlockAck::Copy ( ) const

overridevirtual

Clone this object.

Returns

a pointer to the cloned object

Implements ns3::WifiAcknowledgment.

Definition at line 129 of file wifi-acknowledgment.cc.

Print()

void ns3::WifiBlockAck::Print ( std::ostream &  os ) const

overridevirtual

Print the object contents.

Parameters

os	output stream in which the data should be printed.

Implements ns3::WifiAcknowledgment.

Definition at line 143 of file wifi-acknowledgment.cc.

Member Data Documentation

baType

BlockAckType ns3::WifiBlockAck::baType

BlockAck type.

Definition at line 175 of file wifi-acknowledgment.h.

blockAckTxVector

WifiTxVector ns3::WifiBlockAck::blockAckTxVector

BlockAck TXVECTOR.

Definition at line 174 of file wifi-acknowledgment.h.

---

The documentation for this struct was generated from the following files:

• src/wifi/model/wifi-acknowledgment.h
• src/wifi/model/wifi-acknowledgment.cc
