ns3::SfVectorTlvValue Class Reference

SfVectorTlvValue class. More...

#include "wimax-tlv.h"

Inheritance diagram for ns3::SfVectorTlvValue:

Collaboration diagram for ns3::SfVectorTlvValue:

Public Types
enum	Type {   SFID = 1 , CID = 2 , Service_Class_Name = 3 , reserved1 = 4 ,   QoS_Parameter_Set_Type = 5 , Traffic_Priority = 6 , Maximum_Sustained_Traffic_Rate = 7 , Maximum_Traffic_Burst = 8 ,   Minimum_Reserved_Traffic_Rate = 9 , Minimum_Tolerable_Traffic_Rate = 10 , Service_Flow_Scheduling_Type = 11 , Request_Transmission_Policy = 12 ,   Tolerated_Jitter = 13 , Maximum_Latency = 14 , Fixed_length_versus_Variable_length_SDU_Indicator = 15 , SDU_Size = 16 ,   Target_SAID = 17 , ARQ_Enable = 18 , ARQ_WINDOW_SIZE = 19 , ARQ_RETRY_TIMEOUT_Transmitter_Delay = 20 ,   ARQ_RETRY_TIMEOUT_Receiver_Delay = 21 , ARQ_BLOCK_LIFETIME = 22 , ARQ_SYNC_LOSS = 23 , ARQ_DELIVER_IN_ORDER = 24 ,   ARQ_PURGE_TIMEOUT = 25 , ARQ_BLOCK_SIZE = 26 , reserved2 = 27 , CS_Specification = 28 ,   IPV4_CS_Parameters = 100 }
	Type enumeration. More...
Public Types inherited from ns3::VectorTlvValue
typedef std::vector< Tlv * >::const_iterator	Iterator
	TLV vector iterator typedef.

Public Member Functions
	SfVectorTlvValue ()
SfVectorTlvValue *	Copy () const override
	Copy.
uint32_t	Deserialize (Buffer::Iterator start, uint64_t valueLength) override
	Deserialize from a buffer.
Public Member Functions inherited from ns3::VectorTlvValue
	VectorTlvValue ()
	~VectorTlvValue () override
void	Add (const Tlv &val)
	Add a TLV.
Iterator	Begin () const
	Begin iterator.
VectorTlvValue *	Copy () const override=0
	Copy.
uint32_t	Deserialize (Buffer::Iterator start, uint64_t valueLength) override=0
	Deserialize from a buffer.
Iterator	End () const
	End iterator.
uint32_t	GetSerializedSize () const override
	Get serialized size in bytes.
void	Serialize (Buffer::Iterator start) const override
	Serialize to a buffer.
Public Member Functions inherited from ns3::TlvValue
virtual	~TlvValue ()
virtual TlvValue *	Copy () const =0
	Copy function.
virtual uint32_t	Deserialize (Buffer::Iterator start, uint64_t valueLen)=0
	Deserialize from a buffer.
virtual uint32_t	GetSerializedSize () const =0
	Get serialized size in bytes.
virtual void	Serialize (Buffer::Iterator start) const =0
	Serialize to a buffer.

Detailed Description

SfVectorTlvValue class.

Definition at line 336 of file wimax-tlv.h.

Member Enumeration Documentation

Type

enum ns3::SfVectorTlvValue::Type

Type enumeration.

Enumerator
SFID
CID
Service_Class_Name
reserved1
QoS_Parameter_Set_Type
Traffic_Priority
Maximum_Sustained_Traffic_Rate
Maximum_Traffic_Burst
Minimum_Reserved_Traffic_Rate
Minimum_Tolerable_Traffic_Rate
Service_Flow_Scheduling_Type
Request_Transmission_Policy
Tolerated_Jitter
Maximum_Latency
Fixed_length_versus_Variable_length_SDU_Indicator
SDU_Size
Target_SAID
ARQ_Enable
ARQ_WINDOW_SIZE
ARQ_RETRY_TIMEOUT_Transmitter_Delay
ARQ_RETRY_TIMEOUT_Receiver_Delay
ARQ_BLOCK_LIFETIME
ARQ_SYNC_LOSS
ARQ_DELIVER_IN_ORDER
ARQ_PURGE_TIMEOUT
ARQ_BLOCK_SIZE
reserved2
CS_Specification
IPV4_CS_Parameters

Definition at line 340 of file wimax-tlv.h.

Constructor & Destructor Documentation

SfVectorTlvValue()

ns3::SfVectorTlvValue::SfVectorTlvValue

(

)

Definition at line 290 of file wimax-tlv.cc.

Referenced by Copy().

Here is the caller graph for this function:

Member Function Documentation

Copy()

SfVectorTlvValue * ns3::SfVectorTlvValue::Copy ( ) const

overridevirtual

Copy.

Returns

the vector TLV value

Implements ns3::VectorTlvValue.

Definition at line 295 of file wimax-tlv.cc.

References SfVectorTlvValue(), ns3::VectorTlvValue::Begin(), and ns3::VectorTlvValue::End().

Referenced by ns3::Tlv::Deserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

Deserialize()

uint32_t ns3::SfVectorTlvValue::Deserialize ( Buffer::Iterator  start, uint64_t  valueLen  )

overridevirtual

Deserialize from a buffer.

Parameters

start	the iterator
valueLen	the maximum length of the value

Returns

the

Implements ns3::VectorTlvValue.

Definition at line 306 of file wimax-tlv.cc.

References ns3::VectorTlvValue::Add(), ARQ_BLOCK_LIFETIME, ARQ_BLOCK_SIZE, ARQ_DELIVER_IN_ORDER, ARQ_Enable, ARQ_PURGE_TIMEOUT, ARQ_RETRY_TIMEOUT_Receiver_Delay, ARQ_RETRY_TIMEOUT_Transmitter_Delay, ARQ_SYNC_LOSS, ARQ_WINDOW_SIZE, CID, CS_Specification, ns3::U8TlvValue::Deserialize(), ns3::U16TlvValue::Deserialize(), ns3::U32TlvValue::Deserialize(), ns3::CsParamVectorTlvValue::Deserialize(), Fixed_length_versus_Variable_length_SDU_Indicator, IPV4_CS_Parameters, Maximum_Latency, Maximum_Sustained_Traffic_Rate, Maximum_Traffic_Burst, Minimum_Reserved_Traffic_Rate, Minimum_Tolerable_Traffic_Rate, ns3::Buffer::Iterator::Next(), NS_ASSERT_MSG, NS_FATAL_ERROR, QoS_Parameter_Set_Type, ns3::Buffer::Iterator::ReadU8(), Request_Transmission_Policy, reserved1, reserved2, SDU_Size, Service_Class_Name, Service_Flow_Scheduling_Type, SFID, Target_SAID, Tolerated_Jitter, and Traffic_Priority.

Referenced by ns3::Tlv::Deserialize().

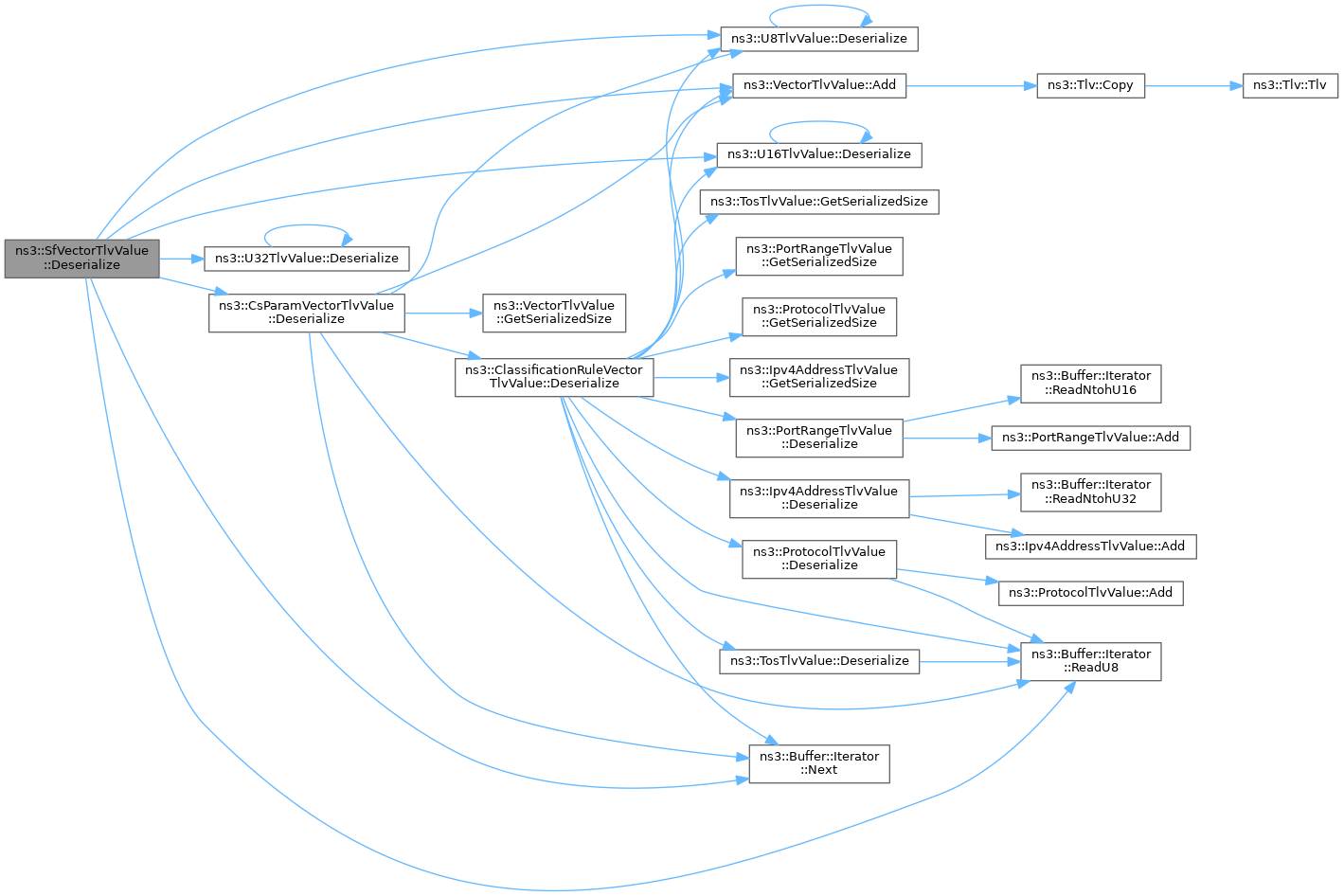

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/wimax/model/wimax-tlv.h
• src/wimax/model/wimax-tlv.cc
