HE configuration. More...

#include "he-configuration.h"

Inheritance diagram for ns3::HeConfiguration:

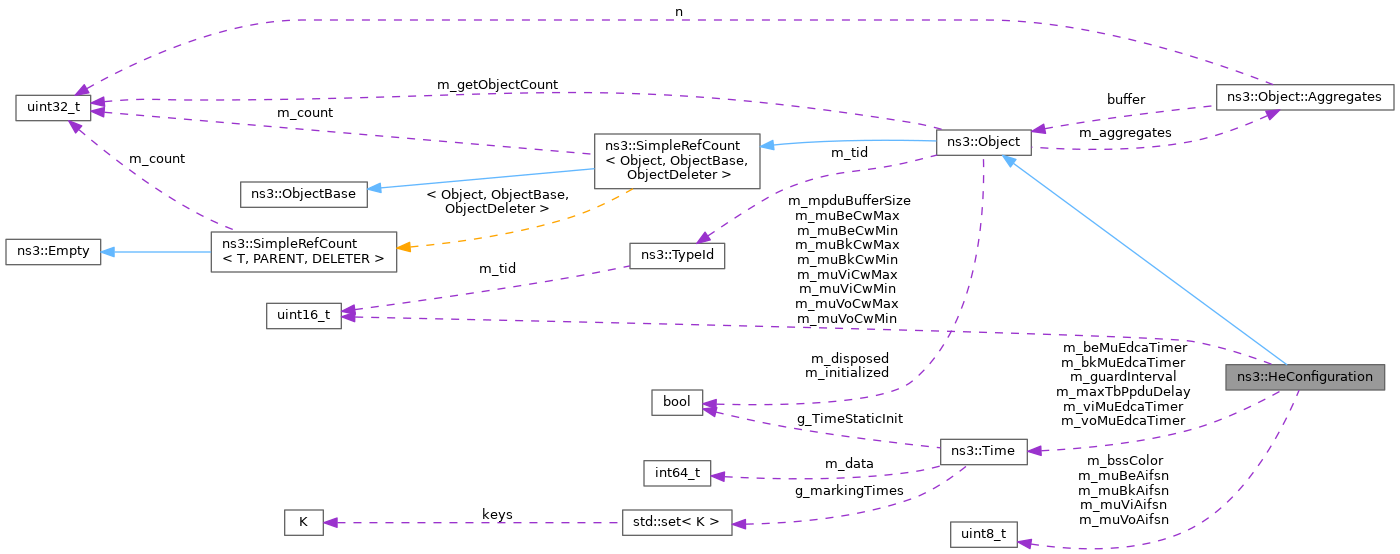

Collaboration diagram for ns3::HeConfiguration:

Public Member Functions
	HeConfiguration ()

uint8_t	GetBssColor () const

Time	GetGuardInterval () const

Time	GetMaxTbPpduDelay () const

uint16_t	GetMpduBufferSize () const

void	SetBssColor (uint8_t bssColor)

void	SetGuardInterval (Time guardInterval)

void	SetMaxTbPpduDelay (Time maxTbPpduDelay)

void	SetMpduBufferSize (uint16_t size)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor.

	~Object () override
	Destructor.

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together.

void	Dispose ()
	Dispose of this Object.

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object.

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object.

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one.

bool	IsInitialized () const
	Check if the object has been initialized.

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Attributes
Time	m_beMuEdcaTimer
	Timer for BE in MU EDCA Parameter Set.

Time	m_bkMuEdcaTimer
	Timer for BK in MU EDCA Parameter Set.

uint8_t	m_bssColor
	BSS color.

Time	m_guardInterval
	Supported HE guard interval.

Time	m_maxTbPpduDelay
	Max TB PPDU delay.

uint16_t	m_mpduBufferSize
	MPDU buffer size.

uint8_t	m_muBeAifsn
	AIFSN for BE in MU EDCA Parameter Set.

uint16_t	m_muBeCwMax
	CWmax for BE in MU EDCA Parameter Set.

uint16_t	m_muBeCwMin
	CWmin for BE in MU EDCA Parameter Set.

uint8_t	m_muBkAifsn
	AIFSN for BK in MU EDCA Parameter Set.

uint16_t	m_muBkCwMax
	CWmax for BK in MU EDCA Parameter Set.

uint16_t	m_muBkCwMin
	CWmin for BK in MU EDCA Parameter Set.

uint8_t	m_muViAifsn
	AIFSN for VI in MU EDCA Parameter Set.

uint16_t	m_muViCwMax
	CWmax for VI in MU EDCA Parameter Set.

uint16_t	m_muViCwMin
	CWmin for VI in MU EDCA Parameter Set.

uint8_t	m_muVoAifsn
	AIFSN for VO in MU EDCA Parameter Set.

uint16_t	m_muVoCwMax
	CWmax for VO in MU EDCA Parameter Set.

uint16_t	m_muVoCwMin
	CWmin for VO in MU EDCA Parameter Set.

Time	m_viMuEdcaTimer
	Timer for VI in MU EDCA Parameter Set.

Time	m_voMuEdcaTimer
	Timer for VO in MU EDCA Parameter Set.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object.

virtual void	DoDispose ()
	Destructor implementation.

virtual void	DoInitialize ()
	Initialize() implementation.

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

HE configuration.

This object stores HE configuration information, for use in modifying AP or STA behavior and for constructing HE-related information elements.

Config Paths

ns3::HeConfiguration is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/HeConfiguration"

Attributes

BeMuEdcaTimer: The MU EDCA Timer used by BE EDCA. It must be a multiple of 8192 us and must be in the range from 8.192 ms to 2088.96 ms. 0 is a reserved value, but we allow to use this value to indicate that an MU EDCA Parameter Set element must not be sent. Therefore, 0 can only be used if the MU EDCA Timer for all ACs is set to 0.
- Set with class: ns3::TimeValue
- Underlying type: Time +0ns:+2.08896e+09ns
- Initial value: +0ns
- Flags: constructwriteread
BkMuEdcaTimer: The MU EDCA Timer used by BK EDCA. It must be a multiple of 8192 us and must be in the range from 8.192 ms to 2088.96 ms.0 is a reserved value, but we allow to use this value to indicate that an MU EDCA Parameter Set element must not be sent. Therefore, 0 can only be used if the MU EDCA Timer for all ACs is set to 0.
- Set with class: ns3::TimeValue
- Underlying type: Time +0ns:+2.08896e+09ns
- Initial value: +0ns
- Flags: constructwriteread
BssColor: The BSS color
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: constructwriteread
GuardInterval: Specify the shortest guard interval duration that can be used for HE transmissions.Possible values are 800ns, 1600ns or 3200ns.
- Set with class: ns3::TimeValue
- Underlying type: Time +800ns:+3200ns
- Initial value: +3200ns
- Flags: constructwriteread
MaxTbPpduDelay: If positive, the value of this attribute specifies the maximum delay with which a TB PPDU can be received after the reception of the first TB PPDU. If the delay is higher than this value, the TB PPDU is dropped and considered interference. The maximum delay is anyway capped at the duration of the training fields in the PPDU. This attribute is only valid for APs.
- Set with class: ns3::TimeValue
- Underlying type: Time +0ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: constructwriteread
MpduBufferSize: The MPDU buffer size for receiving A-MPDUs
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 64:256
- Initial value: 64
- Flags: constructwriteread
MuBeAifsn: AIFSN used by BE EDCA when the MU EDCA Timer is running. It must be either zero (EDCA disabled) or a value from 2 to 15.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:15
- Initial value: 0
- Flags: constructwriteread
MuBeCwMax: CWmax used by BE EDCA when the MU EDCA Timer is running. It must be a power of 2 minus 1 in the range from 0 to 32767.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:32767
- Initial value: 1023
- Flags: constructwriteread
MuBeCwMin: CWmin used by BE EDCA when the MU EDCA Timer is running. It must be a power of 2 minus 1 in the range from 0 to 32767.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:32767
- Initial value: 15
- Flags: constructwriteread
MuBkAifsn: AIFSN used by BK EDCA when the MU EDCA Timer is running. It must be either zero (EDCA disabled) or a value from 2 to 15.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:15
- Initial value: 0
- Flags: constructwriteread
MuBkCwMax: CWmax used by BK EDCA when the MU EDCA Timer is running. It must be a power of 2 minus 1 in the range from 0 to 32767.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:32767
- Initial value: 1023
- Flags: constructwriteread
MuBkCwMin: CWmin used by BK EDCA when the MU EDCA Timer is running. It must be a power of 2 minus 1 in the range from 0 to 32767.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:32767
- Initial value: 15
- Flags: constructwriteread
MuViAifsn: AIFSN used by VI EDCA when the MU EDCA Timer is running. It must be either zero (EDCA disabled) or a value from 2 to 15.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:15
- Initial value: 0
- Flags: constructwriteread
MuViCwMax: CWmax used by VI EDCA when the MU EDCA Timer is running. It must be a power of 2 minus 1 in the range from 0 to 32767.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:32767
- Initial value: 1023
- Flags: constructwriteread
MuViCwMin: CWmin used by VI EDCA when the MU EDCA Timer is running. It must be a power of 2 minus 1 in the range from 0 to 32767.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:32767
- Initial value: 15
- Flags: constructwriteread
MuVoAifsn: AIFSN used by VO EDCA when the MU EDCA Timer is running. It must be either zero (EDCA disabled) or a value from 2 to 15.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:15
- Initial value: 0
- Flags: constructwriteread
MuVoCwMax: CWmax used by VO EDCA when the MU EDCA Timer is running. It must be a power of 2 minus 1 in the range from 0 to 32767.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:32767
- Initial value: 1023
- Flags: constructwriteread
MuVoCwMin: CWmin used by VO EDCA when the MU EDCA Timer is running. It must be a power of 2 minus 1 in the range from 0 to 32767.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:32767
- Initial value: 15
- Flags: constructwriteread
ViMuEdcaTimer: The MU EDCA Timer used by VI EDCA. It must be a multiple of 8192 us and must be in the range from 8.192 ms to 2088.96 ms.0 is a reserved value, but we allow to use this value to indicate that an MU EDCA Parameter Set element must not be sent. Therefore, 0 can only be used if the MU EDCA Timer for all ACs is set to 0.
- Set with class: ns3::TimeValue
- Underlying type: Time +0ns:+2.08896e+09ns
- Initial value: +0ns
- Flags: constructwriteread
VoMuEdcaTimer: The MU EDCA Timer used by VO EDCA. It must be a multiple of 8192 us and must be in the range from 8.192 ms to 2088.96 ms.0 is a reserved value, but we allow to use this value to indicate that an MU EDCA Parameter Set element must not be sent. Therefore, 0 can only be used if the MU EDCA Timer for all ACs is set to 0.
- Set with class: ns3::TimeValue
- Underlying type: Time +0ns:+2.08896e+09ns
- Initial value: +0ns
- Flags: constructwriteread

No TraceSources are defined for this type.
Size of this type is 112 bytes (on a 64-bit architecture).

Definition at line 36 of file he-configuration.h.

Constructor & Destructor Documentation

◆ HeConfiguration()

ns3::HeConfiguration::HeConfiguration ( )

Definition at line 31 of file he-configuration.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetBssColor()

uint8_t ns3::HeConfiguration::GetBssColor ( ) const

Returns: the BSS color

Definition at line 209 of file he-configuration.cc.

References m_bssColor.

Referenced by GetTypeId().

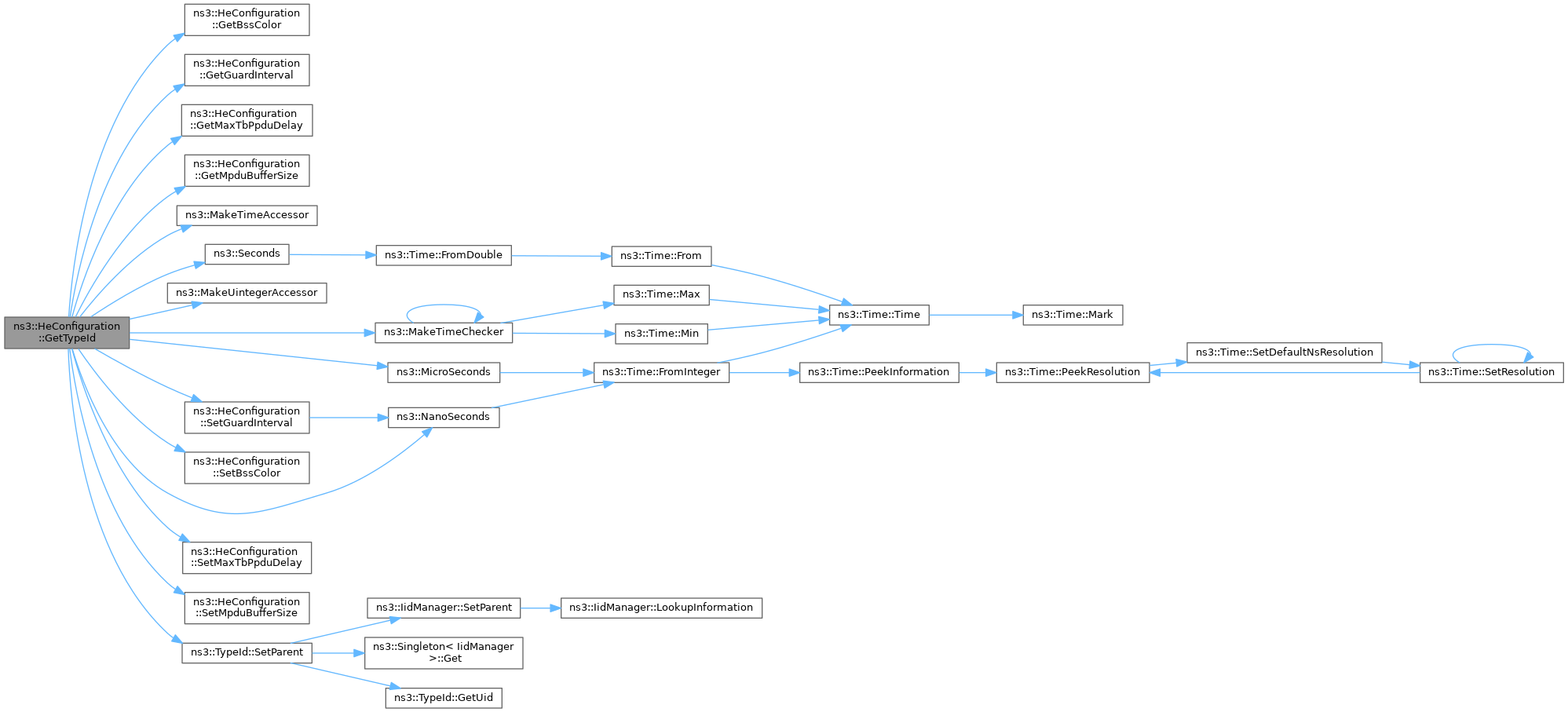

Here is the caller graph for this function:

◆ GetGuardInterval()

Time ns3::HeConfiguration::GetGuardInterval ( ) const

Returns: the supported HE guard interval

Definition at line 196 of file he-configuration.cc.

References m_guardInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetMaxTbPpduDelay()

Time ns3::HeConfiguration::GetMaxTbPpduDelay ( ) const

Returns: the maximum TB PPDU delay

Definition at line 215 of file he-configuration.cc.

References m_maxTbPpduDelay.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetMpduBufferSize()

uint16_t ns3::HeConfiguration::GetMpduBufferSize ( ) const

Returns: the MPDU buffer size to receive A-MPDUs

Definition at line 234 of file he-configuration.cc.

References m_mpduBufferSize.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::HeConfiguration::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 37 of file he-configuration.cc.

References GetBssColor(), GetGuardInterval(), GetMaxTbPpduDelay(), GetMpduBufferSize(), m_beMuEdcaTimer, m_bkMuEdcaTimer, m_muBeAifsn, m_muBeCwMax, m_muBeCwMin, m_muBkAifsn, m_muBkCwMax, m_muBkCwMin, m_muViAifsn, m_muViCwMax, m_muViCwMin, m_muVoAifsn, m_muVoCwMax, m_muVoCwMin, m_viMuEdcaTimer, m_voMuEdcaTimer, ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeUintegerAccessor(), ns3::MicroSeconds(), ns3::NanoSeconds(), ns3::Seconds(), SetBssColor(), SetGuardInterval(), SetMaxTbPpduDelay(), SetMpduBufferSize(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ SetBssColor()

void ns3::HeConfiguration::SetBssColor ( uint8_t bssColor )

Parameters

bssColor the BSS color

Definition at line 202 of file he-configuration.cc.

References m_bssColor, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetGuardInterval()

void ns3::HeConfiguration::SetGuardInterval ( Time guardInterval )

Parameters

guardInterval the supported HE guard interval

Definition at line 187 of file he-configuration.cc.

References m_guardInterval, ns3::NanoSeconds(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetMaxTbPpduDelay()

void ns3::HeConfiguration::SetMaxTbPpduDelay ( Time maxTbPpduDelay )

Parameters

maxTbPpduDelay the maximum TB PPDU delay

Definition at line 221 of file he-configuration.cc.

References m_maxTbPpduDelay.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetMpduBufferSize()

void ns3::HeConfiguration::SetMpduBufferSize ( uint16_t size )

Parameters

size	the MPDU buffer size to receive A-MPDUs

Definition at line 227 of file he-configuration.cc.

References m_mpduBufferSize, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

Member Data Documentation

◆ m_beMuEdcaTimer

Time ns3::HeConfiguration::m_beMuEdcaTimer

private

Timer for BE in MU EDCA Parameter Set.

Definition at line 97 of file he-configuration.h.

Referenced by GetTypeId().

◆ m_bkMuEdcaTimer

Time ns3::HeConfiguration::m_bkMuEdcaTimer

private

Timer for BK in MU EDCA Parameter Set.

Definition at line 98 of file he-configuration.h.

Referenced by GetTypeId().

◆ m_bssColor

uint8_t ns3::HeConfiguration::m_bssColor

private

BSS color.

Definition at line 82 of file he-configuration.h.

Referenced by GetBssColor(), and SetBssColor().

◆ m_guardInterval

Time ns3::HeConfiguration::m_guardInterval

private

Supported HE guard interval.

Definition at line 81 of file he-configuration.h.

Referenced by GetGuardInterval(), and SetGuardInterval().

◆ m_maxTbPpduDelay

Time ns3::HeConfiguration::m_maxTbPpduDelay

private

Max TB PPDU delay.

Definition at line 83 of file he-configuration.h.

Referenced by GetMaxTbPpduDelay(), and SetMaxTbPpduDelay().

◆ m_mpduBufferSize

uint16_t ns3::HeConfiguration::m_mpduBufferSize

private

MPDU buffer size.

Definition at line 84 of file he-configuration.h.

Referenced by GetMpduBufferSize(), and SetMpduBufferSize().

◆ m_muBeAifsn

uint8_t ns3::HeConfiguration::m_muBeAifsn

private

AIFSN for BE in MU EDCA Parameter Set.

Definition at line 85 of file he-configuration.h.

Referenced by GetTypeId().

◆ m_muBeCwMax

uint16_t ns3::HeConfiguration::m_muBeCwMax

private

CWmax for BE in MU EDCA Parameter Set.

Definition at line 93 of file he-configuration.h.

Referenced by GetTypeId().

◆ m_muBeCwMin

uint16_t ns3::HeConfiguration::m_muBeCwMin

private

CWmin for BE in MU EDCA Parameter Set.

Definition at line 89 of file he-configuration.h.

Referenced by GetTypeId().

◆ m_muBkAifsn

uint8_t ns3::HeConfiguration::m_muBkAifsn

private

AIFSN for BK in MU EDCA Parameter Set.

Definition at line 86 of file he-configuration.h.

Referenced by GetTypeId().

◆ m_muBkCwMax

uint16_t ns3::HeConfiguration::m_muBkCwMax

private

CWmax for BK in MU EDCA Parameter Set.

Definition at line 94 of file he-configuration.h.

Referenced by GetTypeId().

◆ m_muBkCwMin

uint16_t ns3::HeConfiguration::m_muBkCwMin

private

CWmin for BK in MU EDCA Parameter Set.

Definition at line 90 of file he-configuration.h.

Referenced by GetTypeId().

◆ m_muViAifsn

uint8_t ns3::HeConfiguration::m_muViAifsn

private

AIFSN for VI in MU EDCA Parameter Set.

Definition at line 87 of file he-configuration.h.

Referenced by GetTypeId().

◆ m_muViCwMax

uint16_t ns3::HeConfiguration::m_muViCwMax

private

CWmax for VI in MU EDCA Parameter Set.

Definition at line 95 of file he-configuration.h.

Referenced by GetTypeId().

◆ m_muViCwMin

uint16_t ns3::HeConfiguration::m_muViCwMin

private

CWmin for VI in MU EDCA Parameter Set.

Definition at line 91 of file he-configuration.h.

Referenced by GetTypeId().

◆ m_muVoAifsn

uint8_t ns3::HeConfiguration::m_muVoAifsn

private

AIFSN for VO in MU EDCA Parameter Set.

Definition at line 88 of file he-configuration.h.

Referenced by GetTypeId().

◆ m_muVoCwMax

uint16_t ns3::HeConfiguration::m_muVoCwMax

private

CWmax for VO in MU EDCA Parameter Set.

Definition at line 96 of file he-configuration.h.

Referenced by GetTypeId().

◆ m_muVoCwMin

uint16_t ns3::HeConfiguration::m_muVoCwMin

private

CWmin for VO in MU EDCA Parameter Set.

Definition at line 92 of file he-configuration.h.

Referenced by GetTypeId().

◆ m_viMuEdcaTimer

Time ns3::HeConfiguration::m_viMuEdcaTimer

private

Timer for VI in MU EDCA Parameter Set.

Definition at line 99 of file he-configuration.h.

Referenced by GetTypeId().

◆ m_voMuEdcaTimer

Time ns3::HeConfiguration::m_voMuEdcaTimer

private

Timer for VO in MU EDCA Parameter Set.

Definition at line 100 of file he-configuration.h.

Referenced by GetTypeId().

The documentation for this class was generated from the following files:

src/wifi/model/he/he-configuration.h
src/wifi/model/he/he-configuration.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Constructor & Destructor Documentation

◆ HeConfiguration()

Member Function Documentation

◆ GetBssColor()

◆ GetGuardInterval()

◆ GetMaxTbPpduDelay()

◆ GetMpduBufferSize()

◆ GetTypeId()

◆ SetBssColor()

◆ SetGuardInterval()

◆ SetMaxTbPpduDelay()

◆ SetMpduBufferSize()

Member Data Documentation

◆ m_beMuEdcaTimer

◆ m_bkMuEdcaTimer

◆ m_bssColor

◆ m_guardInterval

◆ m_maxTbPpduDelay

◆ m_mpduBufferSize

◆ m_muBeAifsn

◆ m_muBeCwMax

◆ m_muBeCwMin

◆ m_muBkAifsn

◆ m_muBkCwMax

◆ m_muBkCwMin

◆ m_muViAifsn

◆ m_muViCwMax

◆ m_muViCwMin

◆ m_muVoAifsn

◆ m_muVoCwMax

◆ m_muVoCwMin

◆ m_viMuEdcaTimer

◆ m_voMuEdcaTimer
