ns3::McpsDataConfirmParams Struct Reference

MCPS-DATA.confirm params. More...

#include "lr-wpan-mac.h"

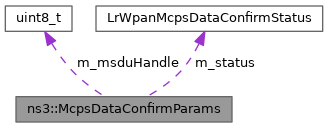

Collaboration diagram for ns3::McpsDataConfirmParams:

Public Attributes
uint8_t	m_msduHandle {0}
	MSDU handle.
LrWpanMcpsDataConfirmStatus	m_status
	The status of the last MSDU transmission.

Detailed Description

MCPS-DATA.confirm params.

See 7.1.1.2

Definition at line 418 of file lr-wpan-mac.h.

Member Data Documentation

m_msduHandle

uint8_t ns3::McpsDataConfirmParams::m_msduHandle {0}

MSDU handle.

Definition at line 420 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EnqueueTxQElement(), ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanMac::PrepareRetransmission(), and ns3::LrWpanMac::SetLrWpanMacState().

m_status

LrWpanMcpsDataConfirmStatus ns3::McpsDataConfirmParams::m_status

Initial value:

{
        IEEE_802_15_4_INVALID_PARAMETER}

The status of the last MSDU transmission.

Definition at line 421 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EnqueueTxQElement(), ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanMac::PrepareRetransmission(), ns3::LrWpanMac::PurgeInd(), and ns3::LrWpanMac::SetLrWpanMacState().

---

The documentation for this struct was generated from the following file:

• src/lr-wpan/model/lr-wpan-mac.h
