Class implementing the phased array model virtual base class. More...

#include "phased-array-model.h"

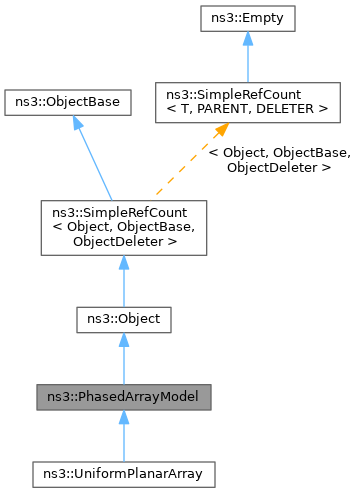

Inheritance diagram for ns3::PhasedArrayModel:

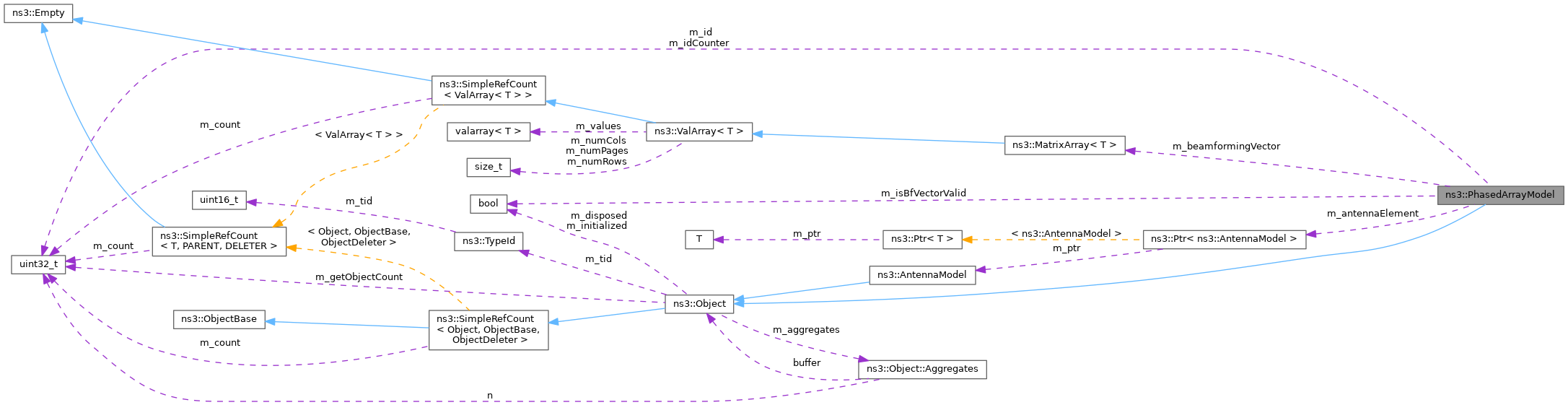

Collaboration diagram for ns3::PhasedArrayModel:

Public Types
using	ComplexVector = ComplexMatrixArray
	the underlying Valarray

Public Member Functions
	PhasedArrayModel ()
	Constructor.

	~PhasedArrayModel () override
	Destructor.

virtual uint16_t	ArrayIndexFromPortIndex (uint16_t portIndex, uint16_t subElementIndex) const =0
	Calculate the index in the antenna array from the port index and the element in the port.

Ptr< const AntennaModel >	GetAntennaElement () const
	Returns a pointer to the AntennaModel instance used to model the elements of the array.

ComplexVector	GetBeamformingVector () const
	Returns the beamforming vector that is currently being used.

ComplexVector	GetBeamformingVector (Angles a) const
	Returns the beamforming vector that points towards the specified position.

const PhasedArrayModel::ComplexVector &	GetBeamformingVectorRef () const
	Returns the const reference of the beamforming vector that is currently being used.

virtual std::pair< double, double >	GetElementFieldPattern (Angles a, uint8_t polIndex=0) const =0
	Returns the horizontal and vertical components of the antenna element field pattern at the specified direction.

virtual Vector	GetElementLocation (uint64_t index) const =0
	Returns the location of the antenna element with the specified index, normalized with respect to the wavelength.

virtual uint8_t	GetElemPol (size_t elementIndex) const =0
	Returns the index of the polarization to which belongs that antenna element.

virtual size_t	GetHElemsPerPort () const =0
	Get the horizontal number of antenna elements per port.

uint32_t	GetId () const
	Returns the ID of this antenna array instance.

virtual uint32_t	GetNumColumns () const =0
	Get the number of columns.

virtual size_t	GetNumElems () const =0
	Returns the number of antenna elements.

virtual size_t	GetNumElemsPerPort () const =0
	Get the number of elements per port.

virtual uint16_t	GetNumHorizontalPorts () const =0
	Get the horizontal number of ports.

virtual uint8_t	GetNumPols () const =0
	Get the number of polarizations.

virtual uint16_t	GetNumPorts () const =0
	Get the number of ports.

virtual uint32_t	GetNumRows () const =0
	Get the number of rows.

virtual uint16_t	GetNumVerticalPorts () const =0
	Get the vertical number of ports.

virtual double	GetPolSlant () const =0
	Get the polarization slant angle.

ComplexVector	GetSteeringVector (Angles a) const
	Returns the steering vector that points toward the specified position.

virtual size_t	GetVElemsPerPort () const =0
	Get the vertical number of antenna elements per port.

virtual bool	IsDualPol () const =0
	Get the indication whether the antenna array is dual polarized.

double	norm (const ComplexVector &complexVector) const
	Computes the Frobenius norm of the complex vector.

void	SetAntennaElement (Ptr< AntennaModel > antennaElement)
	Sets the antenna model to be used.

void	SetBeamformingVector (const ComplexVector &beamformingVector)
	Sets the beamforming vector to be used.

virtual void	SetNumColumns (uint32_t nColumns)=0
	Set the number of columns.

virtual void	SetNumHorizontalPorts (uint16_t nPorts)=0
	Set the horizontal number of ports.

virtual void	SetNumRows (uint32_t nRows)=0
	Set the number of rows.

virtual void	SetNumVerticalPorts (uint16_t nPorts)=0
	Set the vertical number of ports.

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor.

	~Object () override
	Destructor.

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together.

void	Dispose ()
	Dispose of this Object.

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object.

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object.

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one.

bool	IsInitialized () const
	Check if the object has been initialized.

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Protected Attributes
Ptr< AntennaModel >	m_antennaElement
	the model of the antenna element in use

ComplexVector	m_beamformingVector
	the beamforming vector in use

uint32_t	m_id {0}
	the ID of this antenna array instance

bool	m_isBfVectorValid
	ensures the validity of the beamforming vector

Static Protected Attributes
static uint32_t	m_idCounter = 0
	the ID counter that is used to determine the unique antenna array ID

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object.

virtual void	DoDispose ()
	Destructor implementation.

virtual void	DoInitialize ()
	Initialize() implementation.

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

Class implementing the phased array model virtual base class.

Introspection did not find any typical Config paths.

Attributes

AntennaElement: A pointer to the antenna element used by the phased array
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::AntennaModel>
- Initial value: 0x1a1ceb0
- Flags: constructwriteread

No TraceSources are defined for this type.
Size of this type is 104 bytes (on a 64-bit architecture).

Definition at line 37 of file phased-array-model.h.

Member Typedef Documentation

◆ ComplexVector

using ns3::PhasedArrayModel::ComplexVector = ComplexMatrixArray

the underlying Valarray

Definition at line 57 of file phased-array-model.h.

Constructor & Destructor Documentation

◆ PhasedArrayModel()

ns3::PhasedArrayModel::PhasedArrayModel ( )

Constructor.

Definition at line 37 of file phased-array-model.cc.

References m_id, and m_idCounter.

◆ ~PhasedArrayModel()

ns3::PhasedArrayModel::~PhasedArrayModel ( )

override

Destructor.

Definition at line 43 of file phased-array-model.cc.

Member Function Documentation

◆ ArrayIndexFromPortIndex()

virtual uint16_t ns3::PhasedArrayModel::ArrayIndexFromPortIndex	(	uint16_t	portIndex,
		uint16_t	subElementIndex
	)		const

pure virtual

Calculate the index in the antenna array from the port index and the element in the port.

Parameters

portIndex	the port index
subElementIndex	the element index in the port

Returns: the antenna element index in the antenna array

Implemented in ns3::UniformPlanarArray.

◆ GetAntennaElement()

Ptr< const AntennaModel > ns3::PhasedArrayModel::GetAntennaElement ( ) const

Returns a pointer to the AntennaModel instance used to model the elements of the array.

Returns: pointer to the AntennaModel instance

Definition at line 139 of file phased-array-model.cc.

References m_antennaElement, and NS_LOG_FUNCTION.

◆ GetBeamformingVector() [1/2]

PhasedArrayModel::ComplexVector ns3::PhasedArrayModel::GetBeamformingVector ( ) const

Returns the beamforming vector that is currently being used.

Returns: the current beamforming vector

Definition at line 73 of file phased-array-model.cc.

References m_beamformingVector, m_isBfVectorValid, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

◆ GetBeamformingVector() [2/2]

PhasedArrayModel::ComplexVector ns3::PhasedArrayModel::GetBeamformingVector ( Angles a ) const

Returns the beamforming vector that points towards the specified position.

Parameters

a	the beamforming angle

Returns: the beamforming vector

Definition at line 93 of file phased-array-model.cc.

References GetNumElems(), GetNumPorts(), GetSteeringVector(), MRG32k3a::norm, and NS_LOG_FUNCTION.

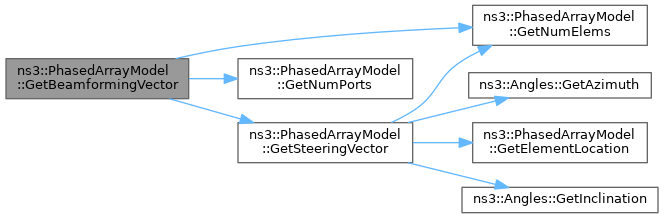

Here is the call graph for this function:

◆ GetBeamformingVectorRef()

const PhasedArrayModel::ComplexVector & ns3::PhasedArrayModel::GetBeamformingVectorRef ( ) const

Returns the const reference of the beamforming vector that is currently being used.

Returns: the const reference of the current beamforming vector

Definition at line 83 of file phased-array-model.cc.

References m_beamformingVector, m_isBfVectorValid, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

◆ GetElementFieldPattern()

virtual std::pair< double, double > ns3::PhasedArrayModel::GetElementFieldPattern	(	Angles	a,
		uint8_t	polIndex = `0`
	)		const

pure virtual

Returns the horizontal and vertical components of the antenna element field pattern at the specified direction.

Single polarization is considered.

Parameters

a	the angle indicating the interested direction
polIndex	the index of the polarization for which will be retrieved the field pattern

Returns: a pair in which the first element is the horizontal component of the field pattern and the second element is the vertical component of the field pattern

Implemented in ns3::UniformPlanarArray.

◆ GetElementLocation()

virtual Vector ns3::PhasedArrayModel::GetElementLocation ( uint64_t index ) const

pure virtual

Returns the location of the antenna element with the specified index, normalized with respect to the wavelength.

Parameters

index the index of the antenna element

Returns: the 3D vector that represents the position of the element

Implemented in ns3::UniformPlanarArray.

Referenced by GetSteeringVector().

Here is the caller graph for this function:

◆ GetElemPol()

virtual uint8_t ns3::PhasedArrayModel::GetElemPol ( size_t elementIndex ) const

pure virtual

Returns the index of the polarization to which belongs that antenna element.

Parameters

elementIndex the antenna element for which will be returned the polarization index

Returns: the polarization index

Implemented in ns3::UniformPlanarArray.

◆ GetHElemsPerPort()

virtual size_t ns3::PhasedArrayModel::GetHElemsPerPort ( ) const

pure virtual

Get the horizontal number of antenna elements per port.

Returns: the horizontal number of antenna elements per port

Implemented in ns3::UniformPlanarArray.

◆ GetId()

uint32_t ns3::PhasedArrayModel::GetId ( ) const

Returns the ID of this antenna array instance.

Returns: the ID value

Definition at line 146 of file phased-array-model.cc.

References m_id.

◆ GetNumColumns()

virtual uint32_t ns3::PhasedArrayModel::GetNumColumns ( ) const

pure virtual

Get the number of columns.

Returns: the number of columns in the antenna array

Implemented in ns3::UniformPlanarArray.

◆ GetNumElems()

virtual size_t ns3::PhasedArrayModel::GetNumElems ( ) const

pure virtual

Returns the number of antenna elements.

Returns: the number of antenna elements

Implemented in ns3::UniformPlanarArray.

Referenced by GetBeamformingVector(), GetSteeringVector(), and SetBeamformingVector().

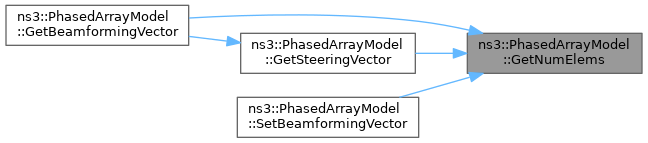

Here is the caller graph for this function:

◆ GetNumElemsPerPort()

virtual size_t ns3::PhasedArrayModel::GetNumElemsPerPort ( ) const

pure virtual

Get the number of elements per port.

Returns: the number of elements per port

Implemented in ns3::UniformPlanarArray.

◆ GetNumHorizontalPorts()

virtual uint16_t ns3::PhasedArrayModel::GetNumHorizontalPorts ( ) const

pure virtual

Get the horizontal number of ports.

Returns: the horizontal number of ports

Implemented in ns3::UniformPlanarArray.

◆ GetNumPols()

virtual uint8_t ns3::PhasedArrayModel::GetNumPols ( ) const

pure virtual

Get the number of polarizations.

Returns: the number of polarizations

Implemented in ns3::UniformPlanarArray.

◆ GetNumPorts()

virtual uint16_t ns3::PhasedArrayModel::GetNumPorts ( ) const

pure virtual

Get the number of ports.

Returns: the number of ports

Implemented in ns3::UniformPlanarArray.

Referenced by GetBeamformingVector().

Here is the caller graph for this function:

◆ GetNumRows()

virtual uint32_t ns3::PhasedArrayModel::GetNumRows ( ) const

pure virtual

Get the number of rows.

Returns: the number of rows in the antenna array

Implemented in ns3::UniformPlanarArray.

◆ GetNumVerticalPorts()

virtual uint16_t ns3::PhasedArrayModel::GetNumVerticalPorts ( ) const

pure virtual

Get the vertical number of ports.

Returns: the vertical number of ports

Implemented in ns3::UniformPlanarArray.

◆ GetPolSlant()

virtual double ns3::PhasedArrayModel::GetPolSlant ( ) const

pure virtual

Get the polarization slant angle.

Returns: the polarization slant angle

Implemented in ns3::UniformPlanarArray.

◆ GetSteeringVector()

PhasedArrayModel::ComplexVector ns3::PhasedArrayModel::GetSteeringVector ( Angles a ) const

Returns the steering vector that points toward the specified position.

Parameters

a	the steering angle

Returns: the steering vector

Definition at line 116 of file phased-array-model.cc.

References ns3::Angles::GetAzimuth(), GetElementLocation(), ns3::Angles::GetInclination(), and GetNumElems().

Referenced by GetBeamformingVector().

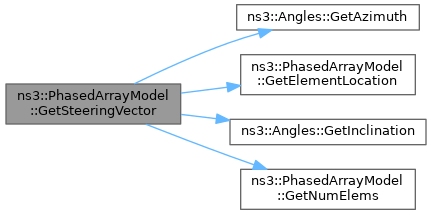

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::PhasedArrayModel::GetTypeId ( )

static

Get the type ID.

Returns: The object TypeId. type definition for complex vectors

Definition at line 48 of file phased-array-model.cc.

References m_antennaElement, ns3::MakePointerAccessor(), and ns3::TypeId::SetParent().

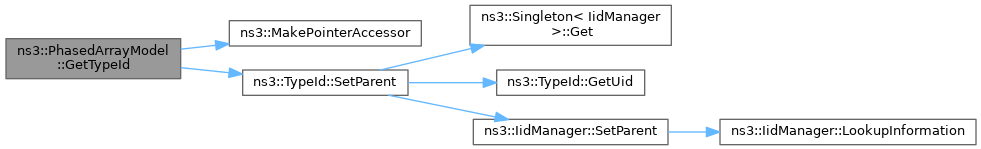

Here is the call graph for this function:

◆ GetVElemsPerPort()

virtual size_t ns3::PhasedArrayModel::GetVElemsPerPort ( ) const

pure virtual

Get the vertical number of antenna elements per port.

Returns: the vertical number of antenna elements per port

Implemented in ns3::UniformPlanarArray.

◆ IsDualPol()

virtual bool ns3::PhasedArrayModel::IsDualPol ( ) const

pure virtual

Get the indication whether the antenna array is dual polarized.

Returns: Returns true if the antenna array is dual polarized

Implemented in ns3::UniformPlanarArray.

◆ norm()

double ns3::PhasedArrayModel::norm ( const ComplexVector & complexVector ) const

inline

Computes the Frobenius norm of the complex vector.

Parameters

complexVector on which to calculate Frobenius norm

Returns: the Frobenius norm of the complex vector

Definition at line 65 of file phased-array-model.h.

References ns3::ValArray< T >::GetSize(), and MRG32k3a::norm.

Here is the call graph for this function:

◆ SetAntennaElement()

void ns3::PhasedArrayModel::SetAntennaElement ( Ptr< AntennaModel > antennaElement )

Sets the antenna model to be used.

Parameters

antennaElement the antenna model

Definition at line 132 of file phased-array-model.cc.

References m_antennaElement, and NS_LOG_FUNCTION.

◆ SetBeamformingVector()

void ns3::PhasedArrayModel::SetBeamformingVector ( const ComplexVector & beamformingVector )

Sets the beamforming vector to be used.

Parameters

beamformingVector the beamforming vector

Definition at line 63 of file phased-array-model.cc.

References GetNumElems(), ns3::ValArray< T >::GetSize(), m_beamformingVector, m_isBfVectorValid, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

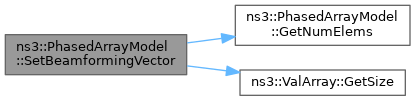

Here is the call graph for this function:

◆ SetNumColumns()

virtual void ns3::PhasedArrayModel::SetNumColumns ( uint32_t nColumns )

pure virtual

Set the number of columns.

Parameters

nColumns the number of columns to be set

Implemented in ns3::UniformPlanarArray.

◆ SetNumHorizontalPorts()

virtual void ns3::PhasedArrayModel::SetNumHorizontalPorts ( uint16_t nPorts )

pure virtual

Set the horizontal number of ports.

Parameters

nPorts the horizontal number of ports

Implemented in ns3::UniformPlanarArray.

◆ SetNumRows()

virtual void ns3::PhasedArrayModel::SetNumRows ( uint32_t nRows )

pure virtual

Set the number of rows.

Parameters

nRows the number of rows to be set

Implemented in ns3::UniformPlanarArray.

◆ SetNumVerticalPorts()

virtual void ns3::PhasedArrayModel::SetNumVerticalPorts ( uint16_t nPorts )

pure virtual

Set the vertical number of ports.

Parameters

nPorts the vertical number of ports

Implemented in ns3::UniformPlanarArray.

Member Data Documentation

◆ m_antennaElement

Ptr<AntennaModel> ns3::PhasedArrayModel::m_antennaElement

protected

the model of the antenna element in use

Definition at line 259 of file phased-array-model.h.

Referenced by GetAntennaElement(), ns3::UniformPlanarArray::GetElementFieldPattern(), GetTypeId(), and SetAntennaElement().

◆ m_beamformingVector

ComplexVector ns3::PhasedArrayModel::m_beamformingVector

protected

the beamforming vector in use

Definition at line 258 of file phased-array-model.h.

Referenced by GetBeamformingVector(), GetBeamformingVectorRef(), and SetBeamformingVector().

◆ m_id

uint32_t ns3::PhasedArrayModel::m_id {0}

protected

the ID of this antenna array instance

Definition at line 263 of file phased-array-model.h.

Referenced by PhasedArrayModel(), and GetId().

◆ m_idCounter

uint32_t ns3::PhasedArrayModel::m_idCounter = 0

staticprotected

the ID counter that is used to determine the unique antenna array ID

Definition at line 262 of file phased-array-model.h.

Referenced by PhasedArrayModel().

◆ m_isBfVectorValid

bool ns3::PhasedArrayModel::m_isBfVectorValid

protected

ensures the validity of the beamforming vector

Definition at line 260 of file phased-array-model.h.

Referenced by GetBeamformingVector(), GetBeamformingVectorRef(), ns3::UniformPlanarArray::SetAntennaHorizontalSpacing(), ns3::UniformPlanarArray::SetAntennaVerticalSpacing(), SetBeamformingVector(), ns3::UniformPlanarArray::SetNumColumns(), and ns3::UniformPlanarArray::SetNumRows().

The documentation for this class was generated from the following files:

src/antenna/model/phased-array-model.h
src/antenna/model/phased-array-model.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Attributes

Member Typedef Documentation

◆ ComplexVector

Constructor & Destructor Documentation

◆ PhasedArrayModel()

◆ ~PhasedArrayModel()

Member Function Documentation

◆ ArrayIndexFromPortIndex()

◆ GetAntennaElement()

◆ GetBeamformingVector() [1/2]

◆ GetBeamformingVector() [2/2]

◆ GetBeamformingVectorRef()

◆ GetElementFieldPattern()

◆ GetElementLocation()

◆ GetElemPol()

◆ GetHElemsPerPort()

◆ GetId()

◆ GetNumColumns()

◆ GetNumElems()

◆ GetNumElemsPerPort()

◆ GetNumHorizontalPorts()

◆ GetNumPols()

◆ GetNumPorts()

◆ GetNumRows()

◆ GetNumVerticalPorts()

◆ GetPolSlant()

◆ GetSteeringVector()

◆ GetTypeId()

◆ GetVElemsPerPort()

◆ IsDualPol()

◆ norm()

◆ SetAntennaElement()

◆ SetBeamformingVector()

◆ SetNumColumns()

◆ SetNumHorizontalPorts()

◆ SetNumRows()

◆ SetNumVerticalPorts()

Member Data Documentation

◆ m_antennaElement

◆ m_beamformingVector

◆ m_id

◆ m_idCounter

◆ m_isBfVectorValid
