ns3::PhyReceptionStatParameters Struct Reference

PhyReceptionStatParameters structure. More...

#include "lte-common.h"

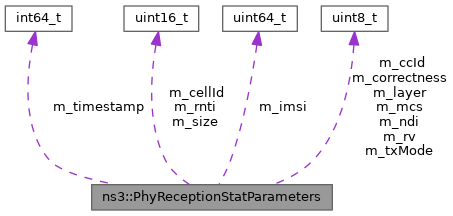

Collaboration diagram for ns3::PhyReceptionStatParameters:

Public Types
typedef void(*	TracedCallback) (const PhyReceptionStatParameters params)
	TracedCallback signature.

Public Attributes
uint8_t	m_ccId
	component carrier id
uint16_t	m_cellId
	Cell ID of the attached Enb.
uint8_t	m_correctness
	correctness of the TB received
uint64_t	m_imsi
	IMSI of the scheduled UE.
uint8_t	m_layer
	the layer (cw) of the transmission
uint8_t	m_mcs
	MCS for transport block.
uint8_t	m_ndi
	new data indicator flag
uint16_t	m_rnti
	C-RNTI scheduled.
uint8_t	m_rv
	the redundancy version (HARQ)
uint16_t	m_size
	Size of transport block.
int64_t	m_timestamp
	in millisecond
uint8_t	m_txMode
	the transmission Mode

Detailed Description

PhyReceptionStatParameters structure.

Definition at line 211 of file lte-common.h.

Member Typedef Documentation

TracedCallback

typedef void(* ns3::PhyReceptionStatParameters::TracedCallback) (const PhyReceptionStatParameters params)

TracedCallback signature.

Parameters

[in]

params

Value of the PhyReceptionStatParameters.

Todo:

The argument should be passed by const reference, since it's large.

Definition at line 232 of file lte-common.h.

Member Data Documentation

m_ccId

uint8_t ns3::PhyReceptionStatParameters::m_ccId

component carrier id

Definition at line 224 of file lte-common.h.

m_cellId

uint16_t ns3::PhyReceptionStatParameters::m_cellId

Cell ID of the attached Enb.

Definition at line 214 of file lte-common.h.

m_correctness

uint8_t ns3::PhyReceptionStatParameters::m_correctness

correctness of the TB received

Definition at line 223 of file lte-common.h.

m_imsi

uint64_t ns3::PhyReceptionStatParameters::m_imsi

IMSI of the scheduled UE.

Definition at line 215 of file lte-common.h.

m_layer

uint8_t ns3::PhyReceptionStatParameters::m_layer

the layer (cw) of the transmission

Definition at line 218 of file lte-common.h.

m_mcs

uint8_t ns3::PhyReceptionStatParameters::m_mcs

MCS for transport block.

Definition at line 219 of file lte-common.h.

m_ndi

uint8_t ns3::PhyReceptionStatParameters::m_ndi

new data indicator flag

Definition at line 222 of file lte-common.h.

m_rnti

uint16_t ns3::PhyReceptionStatParameters::m_rnti

C-RNTI scheduled.

Definition at line 216 of file lte-common.h.

m_rv

uint8_t ns3::PhyReceptionStatParameters::m_rv

the redundancy version (HARQ)

Definition at line 221 of file lte-common.h.

m_size

uint16_t ns3::PhyReceptionStatParameters::m_size

Size of transport block.

Definition at line 220 of file lte-common.h.

m_timestamp

int64_t ns3::PhyReceptionStatParameters::m_timestamp

in millisecond

Definition at line 213 of file lte-common.h.

m_txMode

uint8_t ns3::PhyReceptionStatParameters::m_txMode

the transmission Mode

Definition at line 217 of file lte-common.h.

---

The documentation for this struct was generated from the following file:

• src/lte/model/lte-common.h
