lr-wpan-mac.h File Reference

#include "lr-wpan-fields.h"
#include "lr-wpan-mac-base.h"
#include "lr-wpan-phy.h"
#include <ns3/event-id.h>
#include <ns3/sequence-number.h>
#include <ns3/traced-callback.h>
#include <ns3/traced-value.h>
#include <deque>
#include <memory>

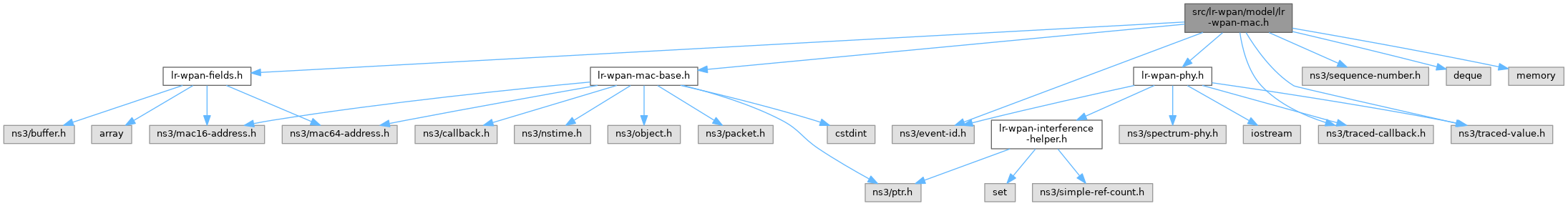

Include dependency graph for lr-wpan-mac.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ns3::LrWpanMac::IndTxQueueElement
	Helper structure for managing pending transaction list elements (Indirect transmissions). More...
class	ns3::LrWpanMac
	Class that implements the LR-WPAN MAC state machine. More...
struct	ns3::LrWpanMac::TxQueueElement
	Helper structure for managing transmission queue elements. More...

Namespaces
namespace	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.
namespace	ns3::TracedValueCallback
	TracedValue Callback function types.

Typedefs
typedef void(*	ns3::TracedValueCallback::LrWpanMacState) (LrWpanMacState oldValue, LrWpanMacState newValue)
	TracedValue callback signature for LrWpanMacState.
typedef void(*	ns3::TracedValueCallback::SuperframeStatus) (SuperframeStatus oldValue, SuperframeStatus newValue)
	TracedValue callback signature for SuperframeStatus.

Enumerations
enum	ns3::LrWpanMacState {   ns3::MAC_IDLE , ns3::MAC_CSMA , ns3::MAC_SENDING , ns3::MAC_ACK_PENDING ,   ns3::CHANNEL_ACCESS_FAILURE , ns3::CHANNEL_IDLE , ns3::SET_PHY_TX_ON , ns3::MAC_GTS ,   ns3::MAC_INACTIVE , ns3::MAC_CSMA_DEFERRED }
	MAC states. More...
enum	ns3::LrWpanTxOption { ns3::TX_OPTION_NONE = 0 , ns3::TX_OPTION_ACK = 1 , ns3::TX_OPTION_GTS = 2 , ns3::TX_OPTION_INDIRECT = 4 }
	Tx options. More...
enum	ns3::PendingPrimitiveStatus {   ns3::MLME_NONE = 0 , ns3::MLME_START_REQ = 1 , ns3::MLME_SCAN_REQ = 2 , ns3::MLME_ASSOC_REQ = 3 ,   ns3::MLME_SYNC_REQ = 4 }
	Indicates a pending MAC primitive. More...
enum	ns3::SuperframeStatus { ns3::BEACON , ns3::CAP , ns3::CFP , ns3::INACTIVE }
	Superframe status. More...
enum	ns3::SuperframeType { ns3::OUTGOING = 0 , ns3::INCOMING = 1 }
	Superframe type. More...

Functions
std::ostream &	ns3::operator<< (std::ostream &os, const LrWpanMacState &state)
	Overloaded operator to print the value of a LrWpanMacState.
